Black rectangular HDMI switch with four inputs and multiple audio outputs

ESTONE

ESTONE OZQ9 4x1 HDMI 2.0 4K 60Hz Switch with ARC & Audio Extractor

SKU CH-2WX2-576PX

Connects four HDMI sources to one display at 4K 60 Hz with ARC and multiple audio outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC f
  • Input Connector4 x HDMI
  • Connect four HDMI sources to one display with 4K 60 Hz support
  • Extract digital audio via optical Toslink or coaxial outputs for external sound systems
  • Route TV audio back through the switch using ARC on the HDMI output
  • Switch inputs instantly with the included IR remote control
  • Handles HDR10 and deep colour up to 36 bit per channel

4x1 HDMI Switch for Multi-Source Setups

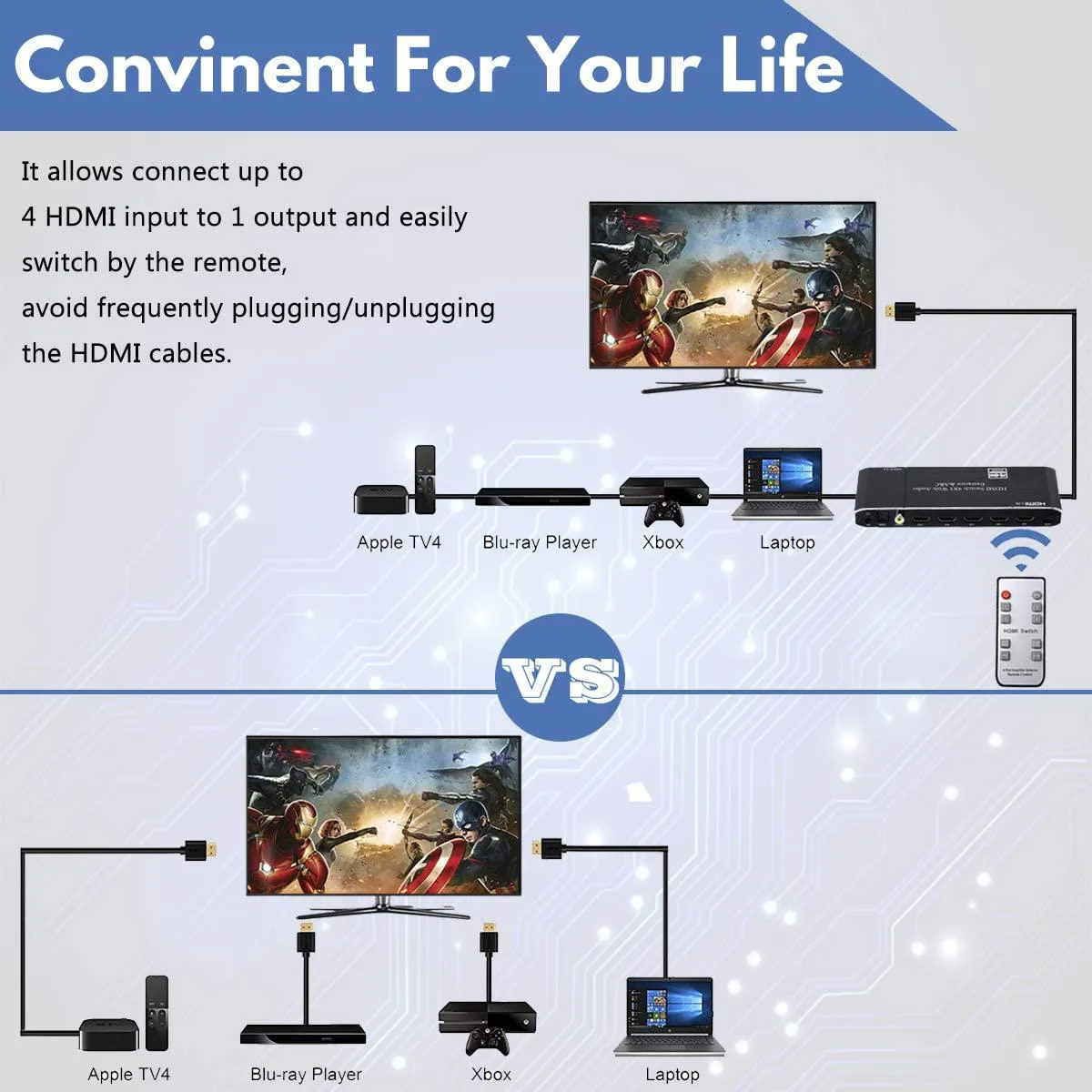

The ESTONE OZQ9 routes four HDMI sources to one display with 4K at 60 Hz and HDR10. It suits living-room rigs that connect a console, a streaming box, a PC and a Blu-ray player to a single TV input. ARC on the output sends TV audio back to a soundbar or AV receiver without extra cables.

Capacity: Four Inputs, 18.5 Gbps Bandwidth

Four HDMI 2.0b inputs accept 480i through 4K at 60 Hz with 36-bit deep colour and 4:4:4 chroma. The 18.5 Gbps aggregate bandwidth handles 4K 60 Hz 8:8:8 RGB and 7.1-channel LPCM, Dolby TrueHD or DTS-HD Master Audio pass-through. It does not support 4K above 60 Hz, 8K, VRR or auto low-latency mode.

Thermals and Power: Fanless 5 V Operation

The aluminium chassis runs passively on the included 5 V 1 A adapter, drawing under 5 W in normal switching. No fan means silent operation on a shelf or behind a TV. The unit stays warm to the touch after hours of 4K 60 Hz throughput but remains within safe limits without active cooling.

Highlights

  • Connect four HDMI sources to one display with 4K 60 Hz support
  • Extract digital audio via optical Toslink or coaxial outputs for external sound systems
  • Route TV audio back through the switch using ARC on the HDMI output
  • Switch inputs instantly with the included IR remote control
  • Handles HDR10 and deep colour up to 36 bit per channel

Specifications

BrandESTONE
SeriesOZQ9
ModelOZQ9
Part NumberOZQ9
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4

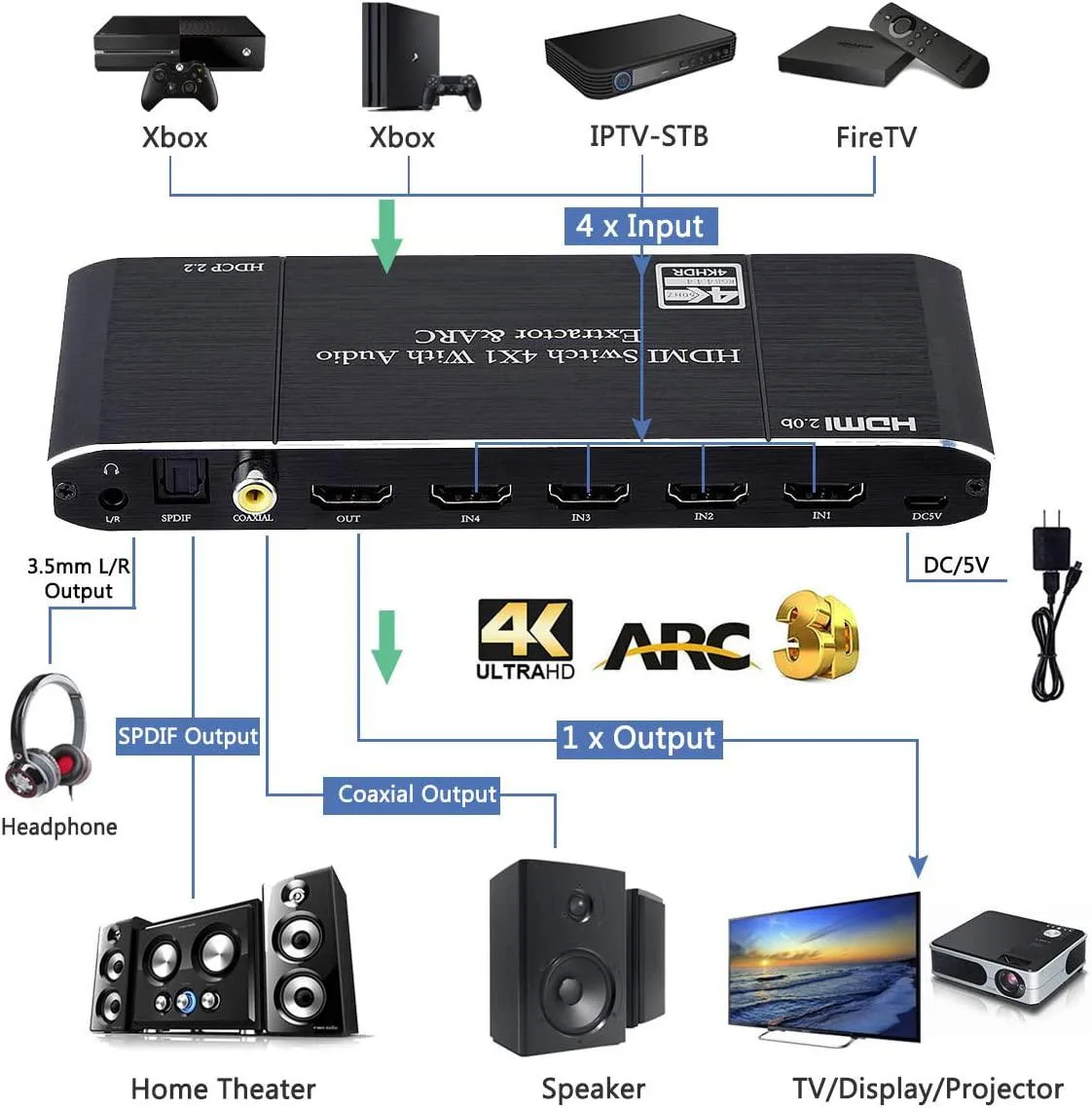

Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial, 3.5mm Jack output.
2.Coaxial and Toslink port output support audio return function (ARC)
3.3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
4.support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@60Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
5.Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.2Gbps
6.Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
7.Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
8.Supports Dolb
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesThere are 4 ports HDMI input,1 port HDMI output, Toslink output, Coaxial Output, L/R output HDMI output port with ARC function
Support 480i / 480p / 576i / 576p / 720p@50/60Hz / 1080p@50/60Hz / 4Kx2K@20/30Hz/60Hz with 36bit RGB / YcbCR 4:4:4 / (4k@60hz RGB8:8:8)
Max bandwidth per channel: 600MHz ; Max baud rate per display: 18Gbps; Compliant with HDMI2.0b, HDCP2.2 /1 .4 /1.3 /1.2/1.1
HDMI input and output hdmi 2.0b cables can reach up to 3 meters if your Resoltion up to 4K@60HZ; can reach up to 5 meters if your Resolution up to 4K@30HZ
Support 24/30/36 bit deep color per channel (Kin
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1.HDMI Switch 4x1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

Will the OZQ9 pass 4K 60 Hz from my older PS4 Pro through its HDMI 2.0b inputs without signal loss?

The switch handles 4K at 60 Hz and 18.5 Gbps bandwidth on each of the four HDMI 2.0b inputs, so a PS4 Pro signal passes through unchanged.

How can I confirm ARC audio is actually reaching my soundbar via the HDMI output?

Play content with Dolby TrueHD or DTS-HD; if the soundbar shows the matching format and the front-panel LED indicates the active input, ARC is working.

Does the box include the IR remote battery and optical Toslink cable?

The package contains the switch, a 5 V 1 A power adapter, the IR remote (battery not included), and a user manual; Toslink cable is not supplied.
