Black rectangular HDMI switch with four inputs, one output, optical, coaxial and 3.5 mm audio ports

ESTONE

ESTONE OZQ9 4K 60Hz HDMI 2.0 Switch 4 Port Audio Extractor ARC

SKU CH-JX67-NWD92

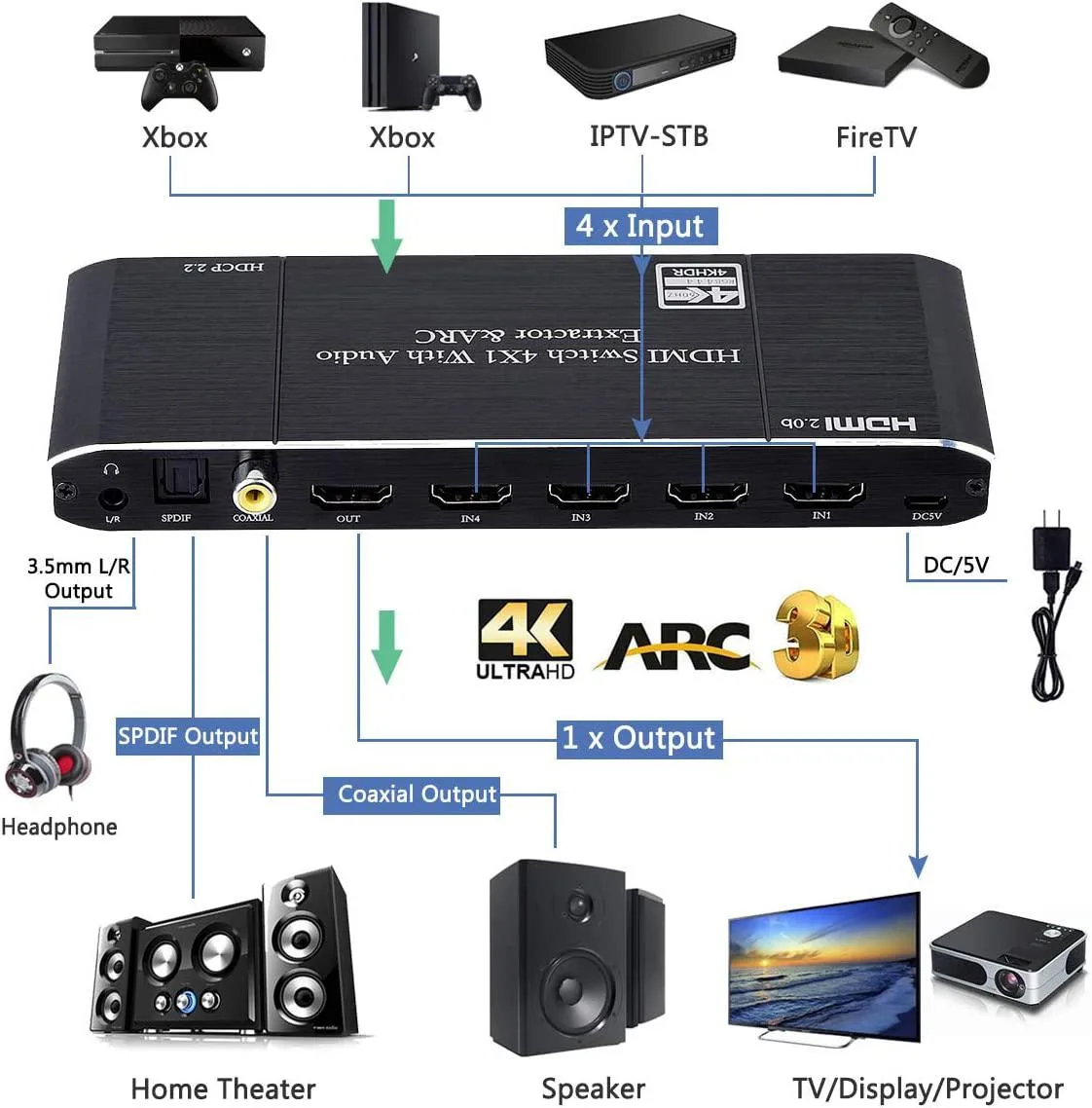

Four HDMI sources connect to one display at 4K 60 Hz with audio extracted via ARC, optical, coaxial or 3.5 mm

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC f
  • Input Connector4 x HDMI
  • Switch four HDMI sources to one display with 4K 60 Hz support
  • Extract audio to optical, coaxial or 3.5 mm jack for external sound systems
  • Use ARC on the HDMI output to return TV audio to a receiver

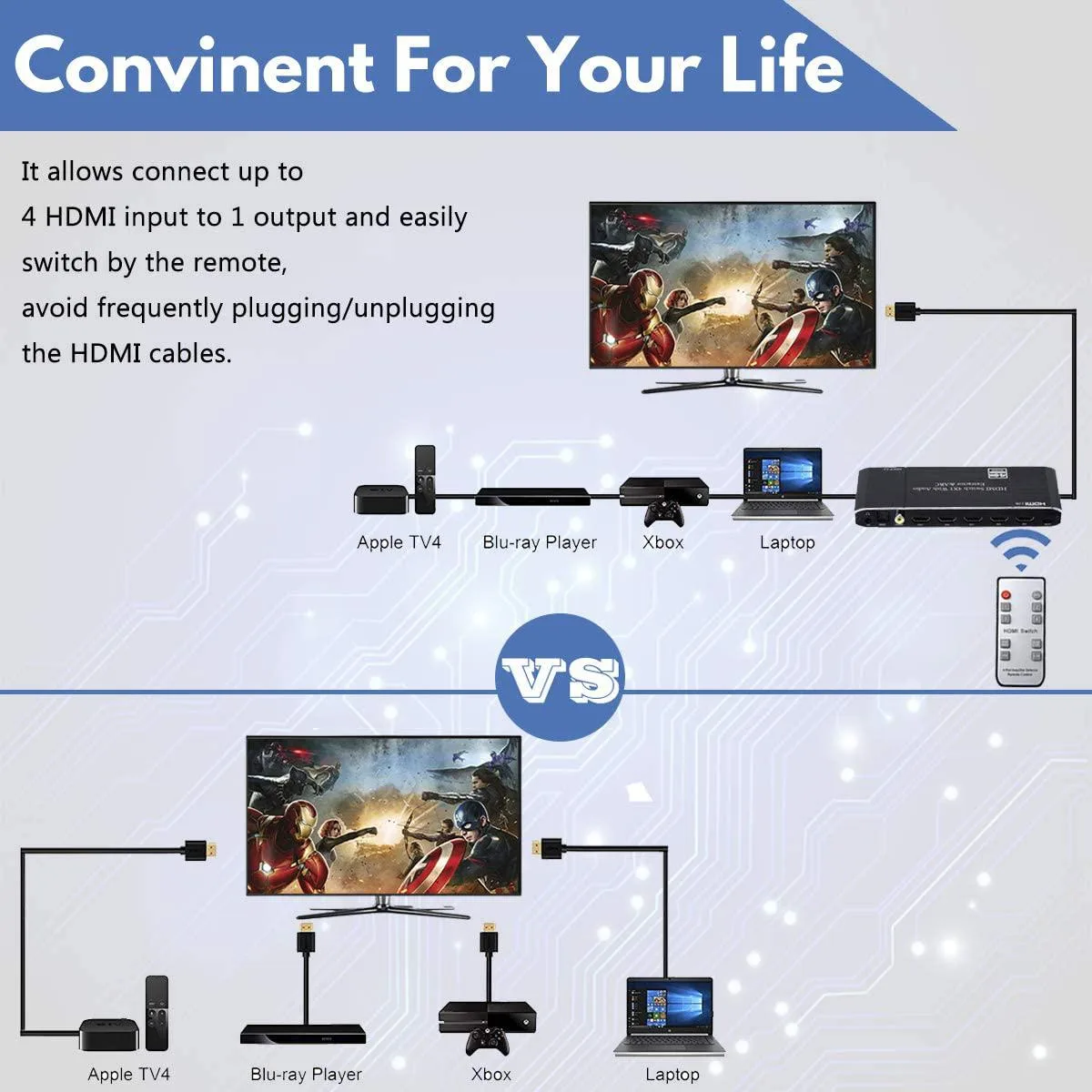

  • Control switching from the sofa with the included IR remote
  • Handles HDR10, 18.5 Gbps bandwidth and 7.1-channel LPCM audio

What this switch does

The ESTONE OZQ9 routes four HDMI sources to one display at up to 4K@60Hz with 18.5Gbps bandwidth. It extracts audio through optical Toslink, coaxial, 3.5mm jack and stereo RCA outputs. The HDMI output supports ARC for return audio from a compatible TV or soundbar. HDCP 2.2 and HDR10 pass through without compression.

Check your cables and sources

Each source must use an HDMI 2.0b cable no longer than 3 metres for 4K@60Hz or 5 metres for 4K@30Hz. The switch requires the included 5V/1A DC adapter for reliable operation. Verify that your display and sources support the resolutions you need from the list: 480i, 480p, 576i, 576p, 720p@50/60Hz, 1080p@50/60Hz and 4K@20/30/60Hz. DVI adapters are not compatible.

Thermals noise and power

The unit draws power from the external 5V/1A supply and runs silently with no fan. Its compact metal chassis dissipates heat passively during normal switching and audio extraction. No active cooling is required and audible noise is absent in typical use.

Highlights

  • Switch four HDMI sources to one display with 4K 60 Hz support
  • Extract audio to optical, coaxial or 3.5 mm jack for external sound systems
  • Use ARC on the HDMI output to return TV audio to a receiver
  • Control switching from the sofa with the included IR remote
  • Handles HDR10, 18.5 Gbps bandwidth and 7.1-channel LPCM audio

Specifications

BrandESTONE
SeriesOZQ9
ModelOZQ9
Part NumberOZQ9
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial, 3.5mm Jack output.
2.Coaxial and Toslink port output support audio return function (ARC)
3.3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
4.support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@60Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
5.Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.2Gbps
6.Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
7.Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
8.Supports Dolb
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesThere are 4 ports HDMI input,1 port HDMI output, Toslink output, Coaxial Output, L/R output HDMI output port with ARC function
Support 480i / 480p / 576i / 576p / 720p@50/60Hz / 1080p@50/60Hz / 4Kx2K@20/30Hz/60Hz with 36bit RGB / YcbCR 4:4:4 / (4k@60hz RGB8:8:8)
Max bandwidth per channel: 600MHz ; Max baud rate per display: 18Gbps; Compliant with HDMI2.0b, HDCP2.2 /1 .4 /1.3 /1.2/1.1
HDMI input and output hdmi 2.0b cables can reach up to 3 meters if your Resoltion up to 4K@60HZ; can reach up to 5 meters if your Resolution up to 4K@30HZ
Support 24/30/36 bit deep color per channel (Kin
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1.HDMI Switch 4x1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

What comes in the box and do I need to buy cables or batteries separately?

The package includes the 4×1 HDMI switch with audio extractor, a 5V/1A DC power adapter, an IR remote and a user manual. HDMI cables are not included and the remote requires a battery which is not supplied.

Which audio outputs should I use if I want ARC versus simple extraction?

The HDMI output port with ARC function and both the Coaxial and Toslink outputs support audio return. The 3.5 mm jack and R/L outputs provide audio extraction only and do not support ARC.

What does the 18 Gbps bandwidth mean for my 4K 60 Hz sources?

The 18 Gbps (600 MHz per channel) bandwidth allows full 4K@60 Hz 4:4:4 RGB or YCbCr 4:4:4 signals, plus HDR10 and 36-bit deep colour, provided you use HDMI 2.0b cables no longer than 3 metres.
