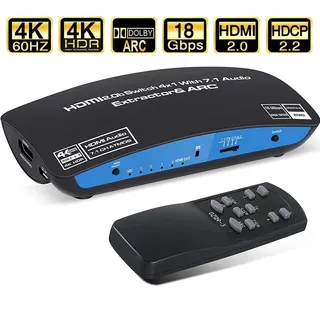

Black rectangular HDMI switch with four input ports and audio outputs

ESTONE

ESTONE OZQ9-1 4x1 HDMI Audio Switch 4K 60Hz 7.1CH

SKU CH-T0ZM-YDMMM

Routes four HDMI sources to one display at 4K 60 Hz while extracting 7.1 Atmos, 5.1 optical or 2.0 stereo audio to external speakers

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications4K@60Hz HDMI Switch 4 in 1 output with HDMI Audio(7.1CH ATMO
  • Input Connector4 x HDMI
  • Connect four sources to one display with 4K 60 Hz switching
  • Extract 7.1 Atmos audio to HDMI, optical or 3.5 mm outputs

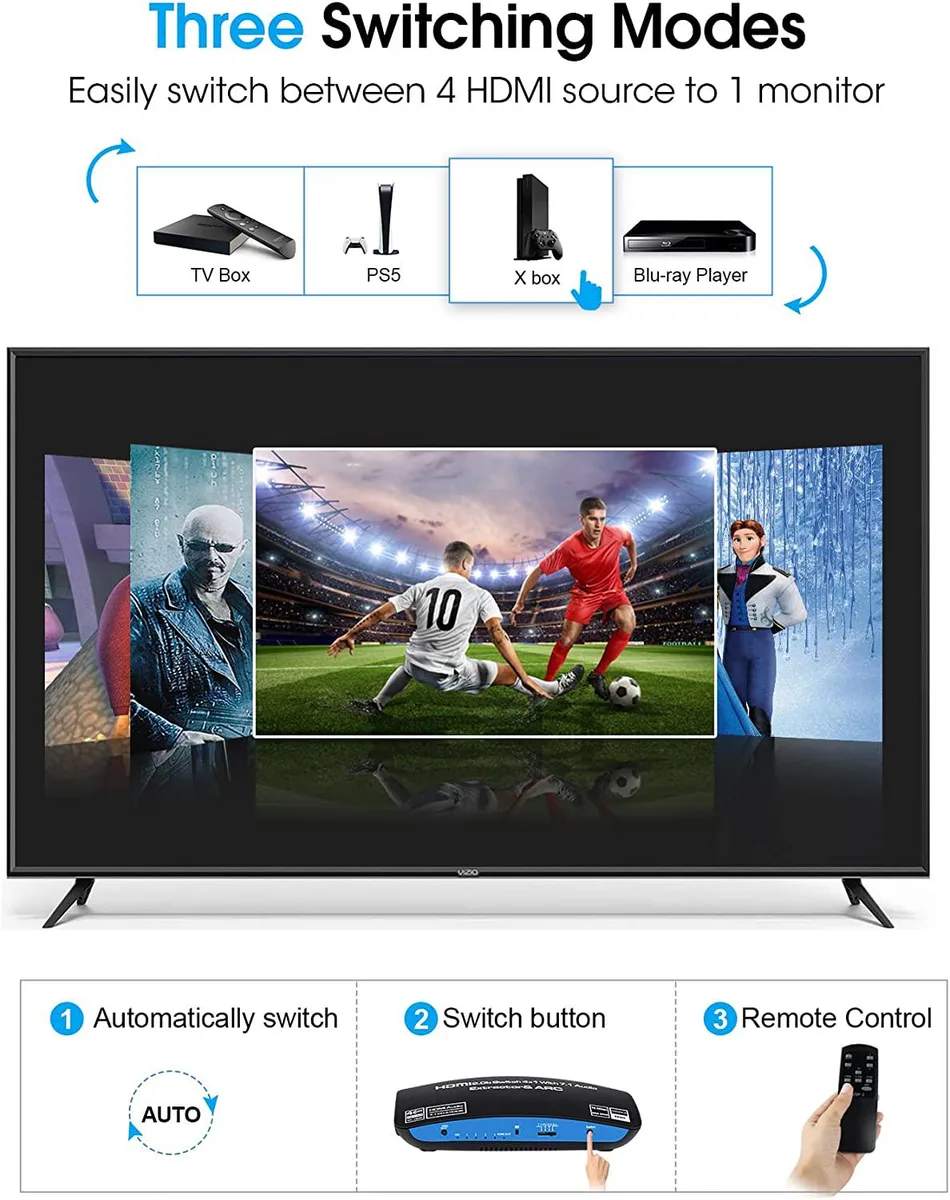

  • Switch instantly via included remote control
  • Supports HDR10, HDCP 2.2 and 18.5 Gbps bandwidth
  • Compact 5.91 x 2.36 x 0.79 inch design fits anywhere

4x1 HDMI switch with 7.1 audio extraction

The ESTONE OZQ9-1 routes four HDMI sources to one display and pulls multichannel sound out through HDMI, optical and 3.5 mm outputs. It handles 4K at 60 Hz, HDR10 and HDCP 2.2 across an 18.5 Gbps bandwidth. A remote control and 5 V power adapter are included for immediate setup.

Home-theatre users needing multichannel breakout

Buyers who want to send one source to several screens should look at a splitter instead. Systems that require more than four inputs or 8K resolution exceed the switch’s port count and bandwidth. Installations without a nearby power outlet cannot operate the unit because external power is mandatory.

Four inputs, one display, three audio paths

The switch comfortably handles 4K 60 Hz video with HDR and 7.1 channel Atmos over HDMI, 5.1 channel Dolby or DTS over optical, and stereo PCM over the 3.5 mm jack. It runs out of headroom at resolutions above 4K 60 Hz or when a fifth source must be connected.

Highlights

  • Connect four sources to one display with 4K 60 Hz switching
  • Extract 7.1 Atmos audio to HDMI, optical or 3.5 mm outputs
  • Switch instantly via included remote control
  • Supports HDR10, HDCP 2.2 and 18.5 Gbps bandwidth
  • Compact 5.91 x 2.36 x 0.79 inch design fits anywhere

Specifications

BrandESTONE
SeriesOZQ9-1
ModelOZQ9-1
Part NumberOZQ9-1
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
Specifications4K@60Hz HDMI Switch 4 in 1 output with HDMI Audio(7.1CH ATMOS)/SPDIF Optical/3.5 Audio Extractor

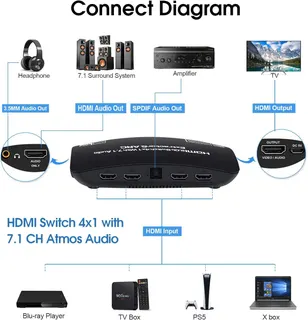

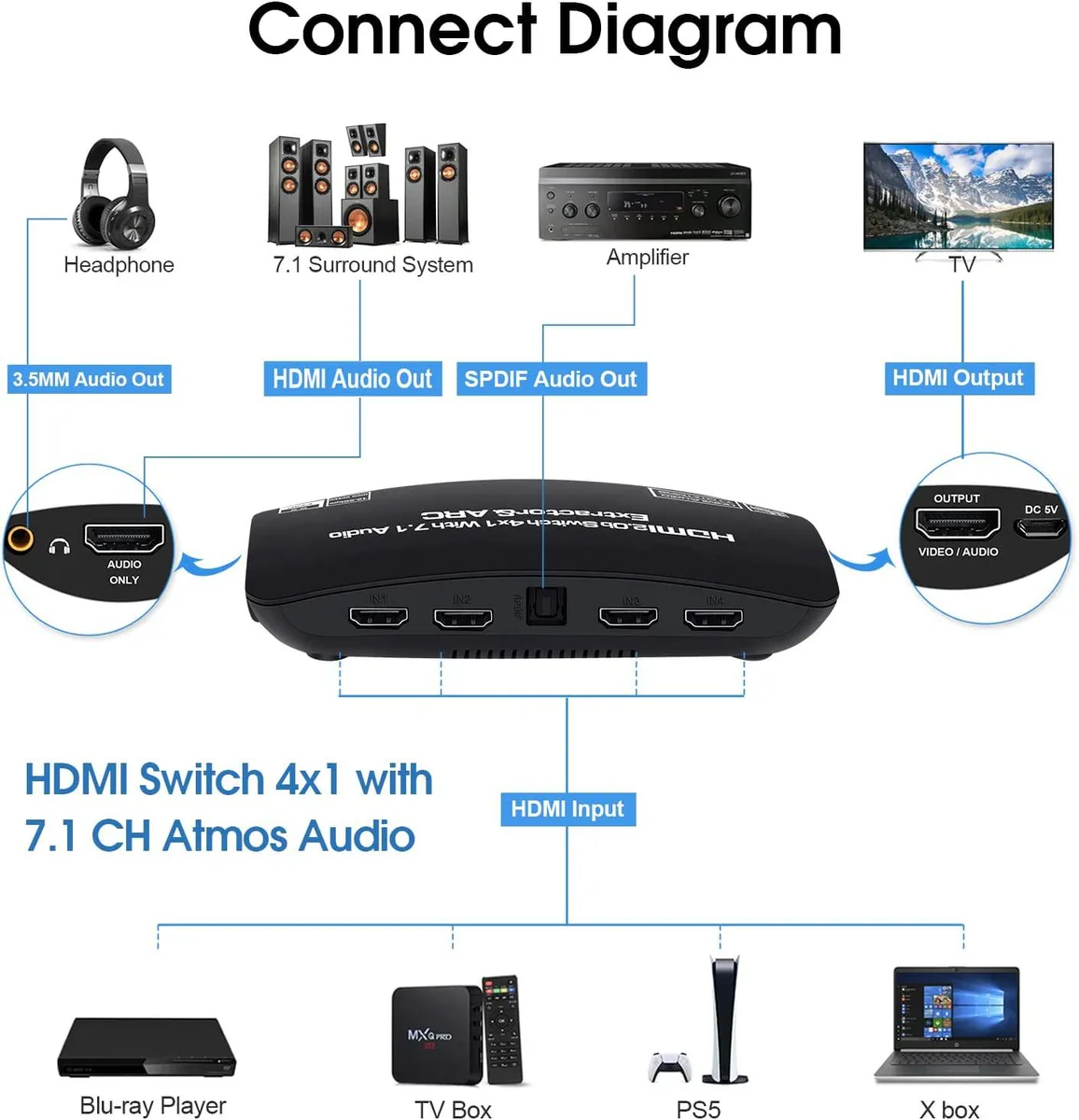

This HDMI Switch 4x1 with audio extractor can connect up to 4 HD Source to 1 HDMI Display, and extracts audio from the 4K HDMI signal to HDMI 7.1 atmos audio, optical fiber or stereo audio and send it to an external speaker or soundbar.
Support Four audio modes: 7.1CH/5.1CH/2.0CH/pass-through (PASS)
HDMI Input and Out: Dobly Digital/Atmos 7.1CH, Dobly TrueHD, DTS:X, DTS Digital, DTS-HD Master, Dobly /DTS 7.1/5.1, PCM 7.1/5.1/2.0
HDMI Audio Out: Dobly Digital/Atmos 7.1CH, Dobly TrueHD, DTS
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport Max resolution 4K@60Hz
Support 7.1 ATMOS audio out
Support HDCP2.2, HDMI2.0b, RGB 8:8:8, HDR10
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1 x 4K 60Hz HDMI Switch 4x1
1 x 5V/2A DC Power Adapter
1 x Remote Control
1 x User Manual

Questions about this item

What display connection do I need to use the 4K 60Hz output of this HDMI switch?

Connect the single HDMI output port to a display that accepts 4K at 60 Hz via HDMI 2.0b and supports HDCP 2.2 for protected content.

Will my 1080p 120Hz sources work through the four HDMI inputs alongside a 4K 60Hz source?

Yes, the switch handles 1080p at 120 Hz on its inputs while the output remains at 4K 60 Hz, so mixed-resolution sources can stay connected simultaneously.

How can I verify the audio extractor is sending 7.1-channel Atmos to my soundbar after setup?

Play Atmos test content and confirm the soundbar reports Dolby Atmos 7.1 on its HDMI input; the optical port will only carry 5.1 and the 3.5 mm port stereo PCM.
