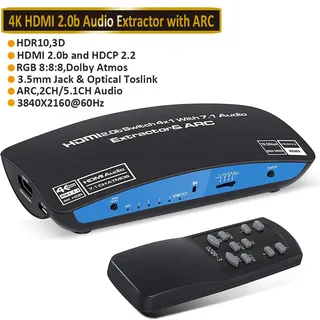

Black rectangular HDMI switch with four inputs and one output

ESTONE

ESTONE OZQ9-1 4K 60Hz HDMI Switch Audio Extractor

SKU CH-DZ8Z-TZDTH

Connects four HDMI sources to one display at 4K 60 Hz and extracts 7.1 Atmos, 5.1 optical or stereo audio

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications4K@60Hz HDMI Switch 4 in 1 output with HDMI Audio(7.1CH ATMO
  • Input Connector4 x HDMI
  • Connect four sources to one display with 4K at 60 Hz switching
  • Extract 7.1 Atmos audio via HDMI, 5.1 via optical, 2.0 via 3.5 mm
  • Supports HDR 10, HDCP 2.2 and RGB 8:8:8 for accurate colour
  • 5 Gbps bandwidth handles full 4K 60 Hz signals without compression
  • Includes remote control and 5 V power adapter for convenient setup

4-Port 4K HDMI Switch with Audio Extraction

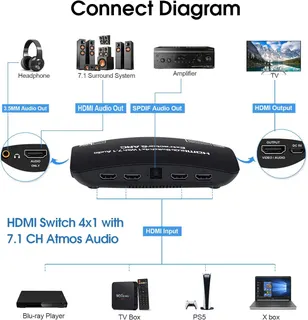

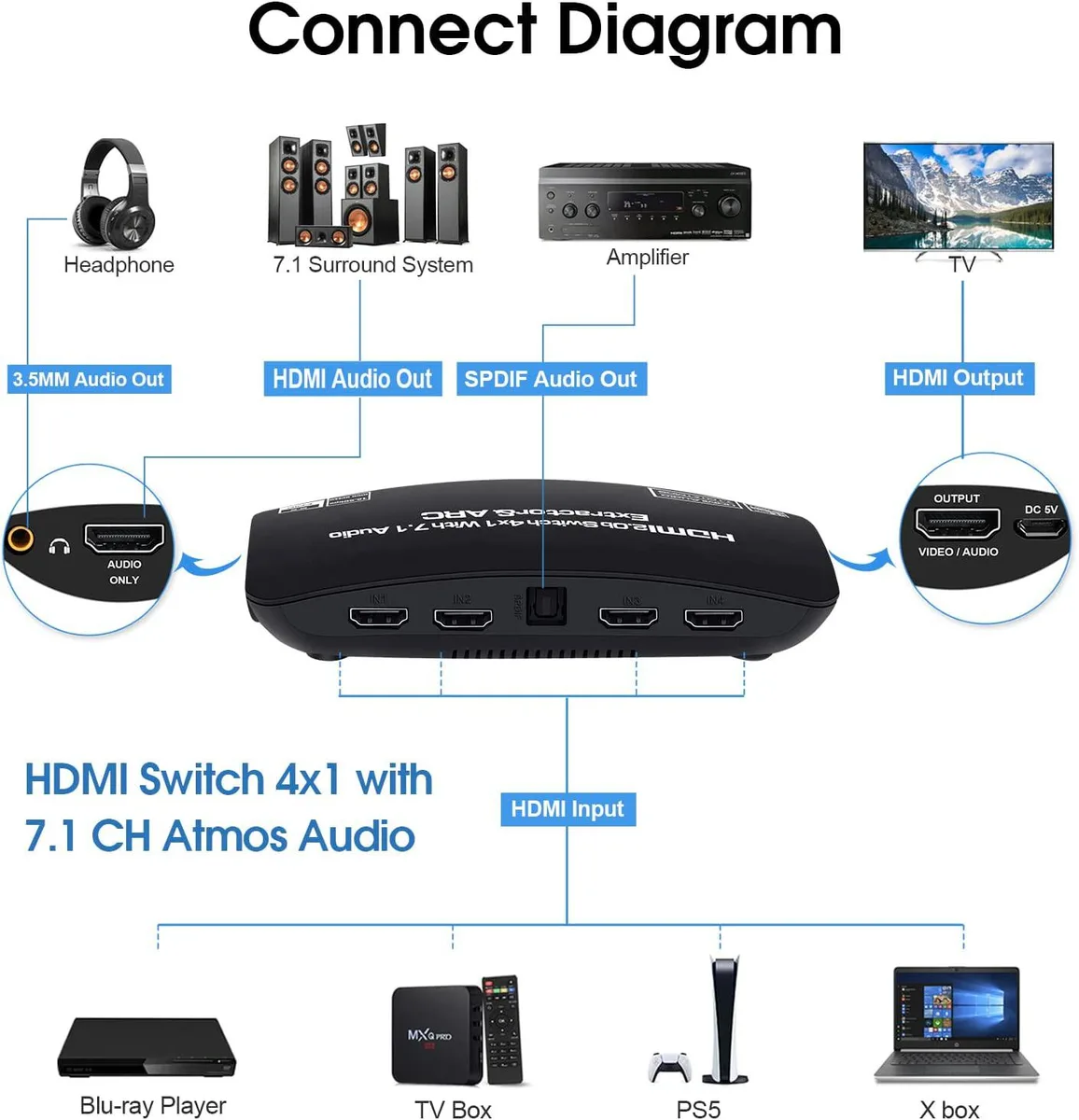

This HDMI switch connects four source devices to one display at up to 4K resolution and 60 Hz refresh rate. It extracts audio from the HDMI stream to three separate outputs: HDMI carrying 7.1-channel Dolby Atmos, optical Toslink for 5.1-channel digital audio, and a 3.5 mm jack for stereo. The unit supports HDR10, HDCP 2.2 and RGB 8:8:8 colour.

Home-theatre users needing one display

Buyers who want to send one source to several screens should choose a splitter instead. Anyone requiring audio formats beyond Dolby Atmos, DTS:X or PCM over the HDMI output will not find them here. The optical output is limited to 5.1 channels and the 3.5 mm jack to stereo, so full 7.1 analogue monitoring is not possible.

18.5 Gbps bandwidth for 4K 60 Hz passthrough

The 18.5 Gbps bandwidth determines whether the switch can pass full 4K 60 Hz 4:4:4 signals without compression. If your sources output higher data rates or you need features such as variable refresh rate, this bandwidth ceiling will be the limiting factor.

Highlights

  • Connect four sources to one display with 4K at 60 Hz switching
  • Extract 7.1 Atmos audio via HDMI, 5.1 via optical, 2.0 via 3.5 mm
  • Supports HDR 10, HDCP 2.2 and RGB 8:8:8 for accurate colour
  • 5 Gbps bandwidth handles full 4K 60 Hz signals without compression
  • Includes remote control and 5 V power adapter for convenient setup

Specifications

BrandESTONE
SeriesOZQ9-1
ModelOZQ9-1
Part NumberOZQ9-1
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
Specifications4K@60Hz HDMI Switch 4 in 1 output with HDMI Audio(7.1CH ATMOS)/SPDIF Optical/3.5 Audio Extractor
This HDMI Switch 4x1 with audio extractor can connect up to 4 HD Source to 1 HDMI Display, and extracts audio from the 4K HDMI signal to HDMI 7.1 atmos audio, optical fiber or stereo audio and send it to an external speaker or soundbar.
Support Four audio modes: 7.1CH/5.1CH/2.0CH/pass-through (PASS)
HDMI Input and Out: Dobly Digital/Atmos 7.1CH, Dobly TrueHD, DTS:X, DTS Digital, DTS-HD Master, Dobly /DTS 7.1/5.1, PCM 7.1/5.1/2.0
HDMI Audio Out: Dobly Digital/Atmos 7.1CH, Dobly TrueHD, DTS
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport Max resolution 4K@60Hz
Support 7.1 ATMOS audio out
Support HDCP2.2, HDMI2.0b, RGB 8:8:8, HDR10
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1 x 4K 60Hz HDMI Switch 4x1
1 x 5V/2A DC Power Adapter
1 x Remote Control
1 x User Manual

Questions about this item

What cables and accessories are included in the box with the OZQ9-1 switch?

The box contains the 4x1 HDMI switch, a 5V/2A DC power adapter, a remote control and a user manual. HDMI cables for the four inputs and the single output are not included and must be purchased separately.

Which audio output should I choose for 7.1-channel Atmos versus basic stereo?

Use the HDMI audio output for 7.1-channel Atmos, TrueHD or DTS:X. The optical port carries Dolby Digital or DTS up to 5.1-channel and PCM 2.0. The 3.5 mm jack is limited to PCM 2.0 stereo.

Will the 18.5 Gbps bandwidth handle 4K 60 Hz HDR10 from a games console?

Yes. The switch supports HDMI 2.0b, 18.5 Gbps bandwidth, RGB 8:8:8 and HDR10, so 4K at 60 Hz with HDR from a console passes through to the display without compression.
