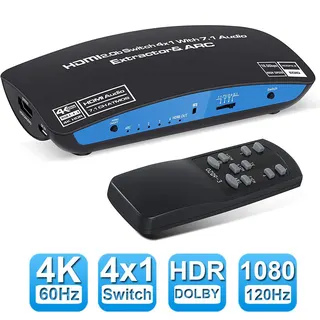

Black rectangular HDMI switch with four inputs and audio extractor ports

ESTONE

ESTONE OZQ9-1 4K 60Hz HDMI 4x1 Switch Audio Extractor

SKU CH-QHYP-0H8R5

Connects four HDMI sources to one display at 4K 60 Hz while extracting 7.1 Atmos, 5.1 optical or stereo audio

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications4K@60Hz HDMI Switch 4 in 1 output with HDMI Audio(7.1CH ATMO
  • Input Connector4 x HDMI
  • Connect four sources to one display with 4K 60Hz switching
  • Extract 7.1CH Atmos audio via HDMI optical or 3.5mm outputs
  • Support HDR10 HDCP 2.2 and 18.5Gbps bandwidth for full signal fidelity

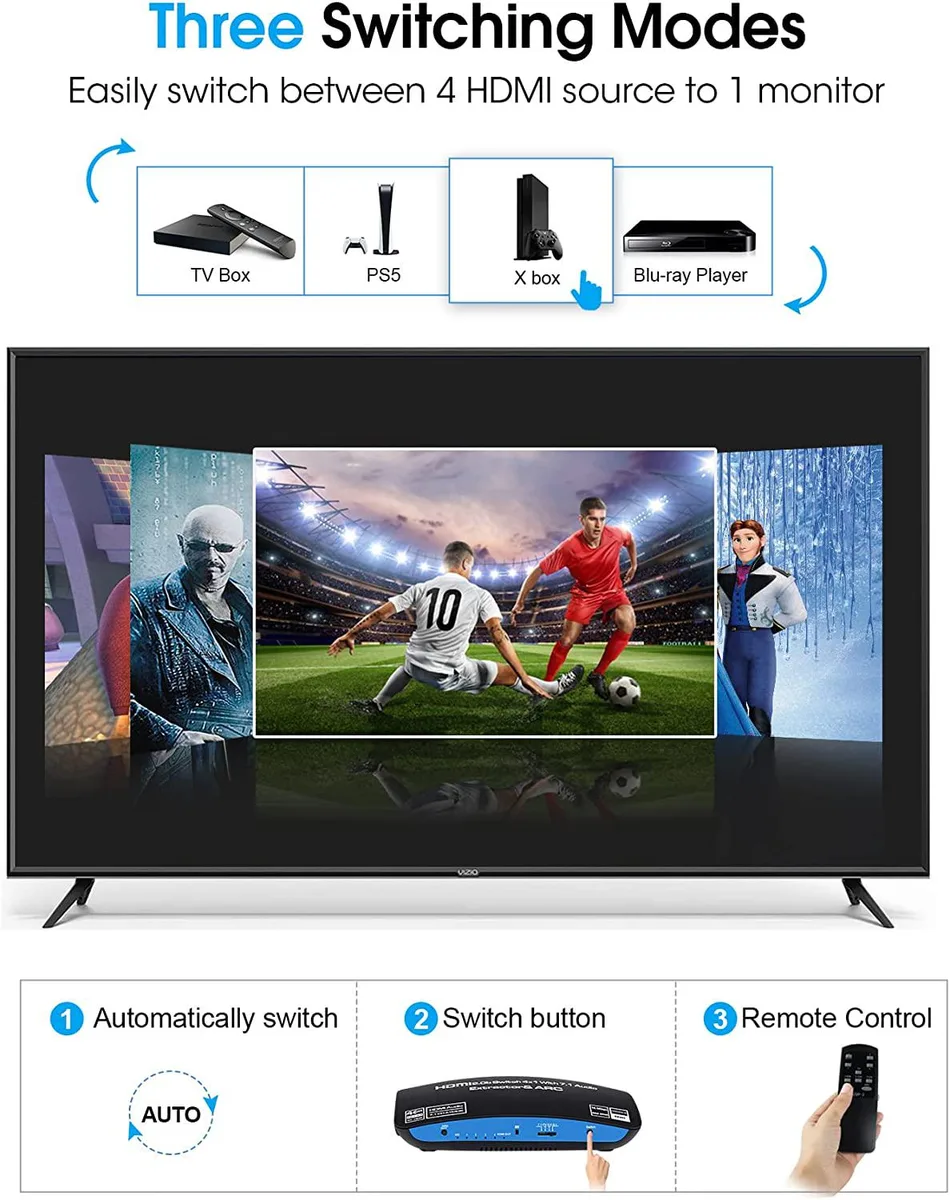

  • Switch inputs instantly with included remote control
  • Compact 5.91 x 2.36 x .79 inch design fits any setup

4K 60Hz 4-Port HDMI Switch

The ESTONE OZQ9-1 is a 4-in-1 HDMI switch with an integrated audio extractor. It connects up to four HDMI sources to a single display while sending sound to external speakers or a soundbar. The unit supports 4K at 60Hz, HDR10 and HDCP 2.2 for protected content. A remote control and 5V power adapter are included.

18.5Gbps Bandwidth & 7.1 Atmos Extraction

The switch passes 18.5Gbps bandwidth with RGB 8:8:8 colour and 36-bit deep colour. Audio is extracted from the HDMI stream to three outputs: HDMI 7.1 Atmos, optical Toslink 5.1 and 3.5mm stereo. Four audio modes cover 7.1, 5.1, 2.0 and pass-through. ARC support returns TV audio to an external system.

Installers Needing Multi-Source Audio Split

Home-theatre owners with several 4K sources and a single HDMI input will benefit from the combined switching and extraction. Buyers who need to send one source to multiple displays should not use this unit; it is a 4-in-1 switch, not a 1-in-4 splitter. Systems without an external amplifier or soundbar will not use the audio outputs.

Highlights

  • Connect four sources to one display with 4K 60Hz switching
  • Extract 7.1CH Atmos audio via HDMI optical or 3.5mm outputs
  • Support HDR10 HDCP 2.2 and 18.5Gbps bandwidth for full signal fidelity
  • Switch inputs instantly with included remote control
  • Compact 5.91 x 2.36 x .79 inch design fits any setup

Specifications

BrandESTONE
SeriesOZQ9-1
ModelOZQ9-1
Part NumberOZQ9-1
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
Specifications4K@60Hz HDMI Switch 4 in 1 output with HDMI Audio(7.1CH ATMOS)/SPDIF Optical/3.5 Audio Extractor

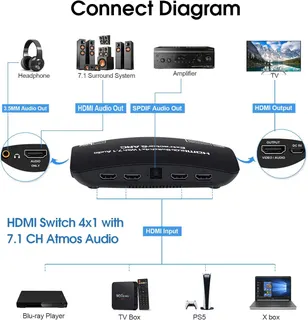

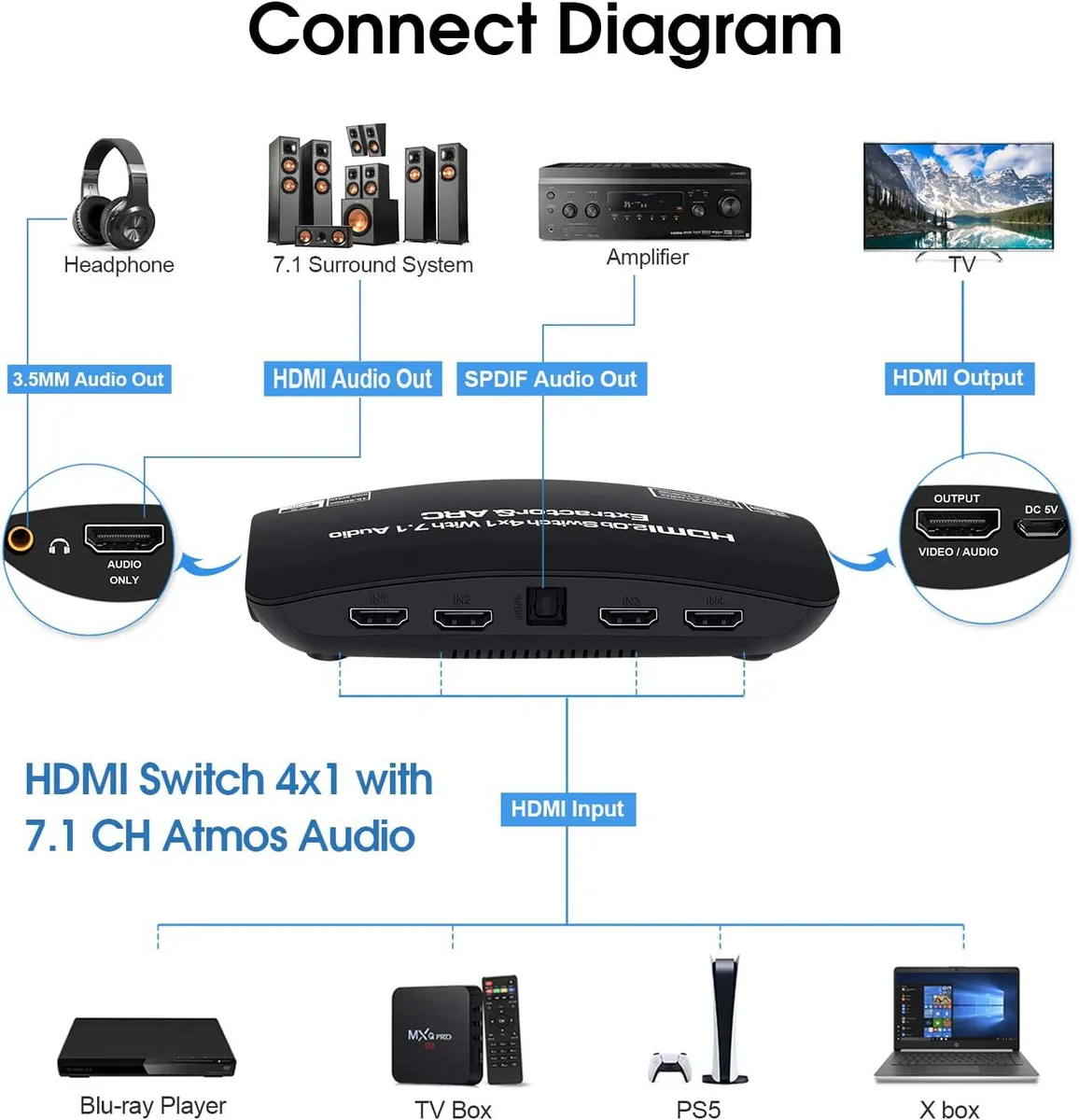

This HDMI Switch 4x1 with audio extractor can connect up to 4 HD Source to 1 HDMI Display, and extracts audio from the 4K HDMI signal to HDMI 7.1 atmos audio, optical fiber or stereo audio and send it to an external speaker or soundbar.
Support Four audio modes: 7.1CH/5.1CH/2.0CH/pass-through (PASS)
HDMI Input and Out: Dobly Digital/Atmos 7.1CH, Dobly TrueHD, DTS:X, DTS Digital, DTS-HD Master, Dobly /DTS 7.1/5.1, PCM 7.1/5.1/2.0
HDMI Audio Out: Dobly Digital/Atmos 7.1CH, Dobly TrueHD, DTS
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport Max resolution 4K@60Hz
Support 7.1 ATMOS audio out
Support HDCP2.2, HDMI2.0b, RGB 8:8:8, HDR10
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1 x 4K 60Hz HDMI Switch 4x1
1 x 5V/2A DC Power Adapter
1 x Remote Control
1 x User Manual

Questions about this item

Will 4K 60 Hz video pass through without dropping frames or colour depth?

Yes, the switch handles 4K at 60 Hz with RGB 8:8:8 and HDR10 at the full 18.5 Gbps bandwidth.

Does the HDMI 2.0b interface limit audio formats on the optical or 3.5 mm outputs?

Optical carries Dolby Digital or DTS 5.1 and PCM 2.0; the 3.5 mm jack is PCM 2.0 only, while HDMI passes 7.1 Atmos and TrueHD.

How much space does the unit need on a shelf or rack?

It measures 5.91 by 2.36 by 0.79 inches and weighs 11.9 ounces, so it fits in a compact AV cabinet.
