Small black rectangular HDMI switch with rounded edges, remote and USB-C cable included

ESTONE

ESTONE OZQ8AB3 8K@60Hz HDMI 2.1 bidirectional video switch

SKU CH-NSC5-4E2JX

A bidirectional HDMI 2.1 switch that toggles two sources to one display or one source between two screens at 8K 60 Hz and 4K 120 Hz with VRR and HDR

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • Specifications8K@60Hz 4K@120Hz 1080P@240Hz HDMI Bi-Directional Switch can
  • Input Connector1 x HDMI
  • Bidirectional HDMI 2.1 switch toggles two sources or two displays with one button
  • 8K@60Hz and 4K@120Hz resolution support up to 48Gbps bandwidth
  • VRR and Dynamic HDR deliver smooth gaming motion on PS5 and Xbox
  • Manual switching via front button or included remote avoids port wear
  • Compact aluminum housing measures 5.91 x 2.36 x 0.79 inches

Bidirectional HDMI 2.1 switch

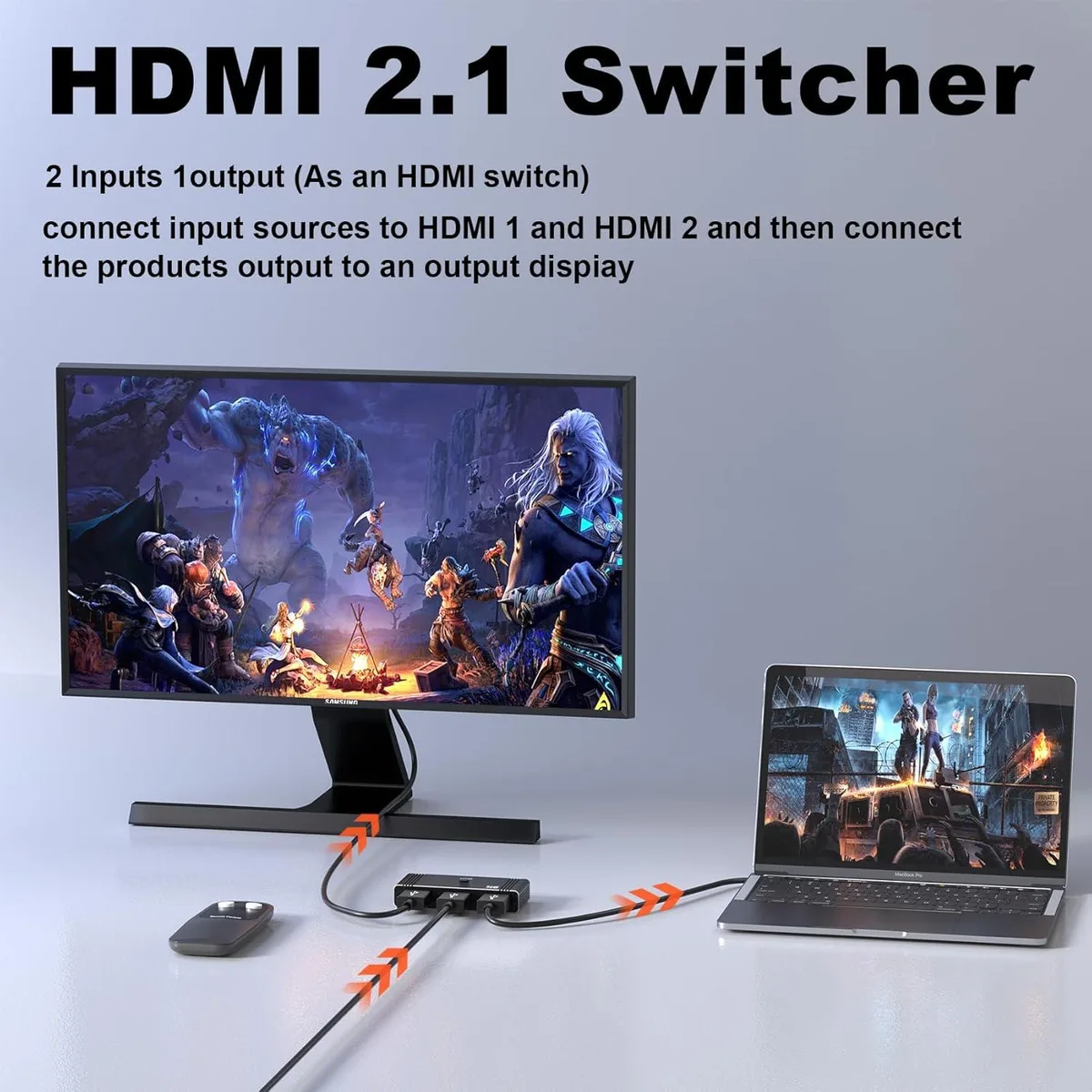

The ESTONE OZQ8AB3 is a manual bidirectional HDMI 2.1 switch that works as a 2-in-1-out switcher or a 1-in-2-out splitter. It connects two source devices to one display or one source to two displays, though both outputs cannot show content simultaneously. A push button and an included remote control select the active path without unplugging cables.

Replacing manual cable swapping

This unit removes the need to physically swap HDMI leads when moving between a console, Blu-ray player or laptop. The jump is worthwhile when a display has only one HDMI 2.1 input but multiple 8K or high-refresh sources need access, or when a single source must feed two screens in turn. It does not automate switching, so users who want hands-free source detection will not be served.

Cable-length limits at each resolution

HDMI 2.1 bandwidth of 48 Gbps is supported, but cable reach drops sharply with resolution. Certified cables must stay within 1.5 metres for 8K at 60 Hz, 3 metres for 4K at 120 Hz or 144 Hz, and 8 metres for 1080P at 240 Hz. Exceeding these distances will break the link even if every device supports the target mode.

Highlights

  • Bidirectional HDMI 2.1 switch toggles two sources or two displays with one button
  • 8K@60Hz and 4K@120Hz resolution support up to 48Gbps bandwidth
  • VRR and Dynamic HDR deliver smooth gaming motion on PS5 and Xbox
  • Manual switching via front button or included remote avoids port wear
  • Compact aluminum housing measures 5.91 x 2.36 x 0.79 inches

Specifications

BrandESTONE
SeriesOZQ8AB3
ModelOZQ8AB3
Part NumberOZQ8AB3
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
Specifications8K@60Hz 4K@120Hz 1080P@240Hz HDMI Bi-Directional Switch can connect two HDMI sources like blu-ray player and PS3, PS4, PS4 pro, PS5 etc,to a single HDMI display like HDTV. Besides,it also can switch one signal source to two displays(just like 1*2 splitter ,but it is different that the 2 displays can not work at the same time).
Input Connector1 x HDMI
Output Connector2 x HDMI
Maximum Cable Length8K resolution within 1.5 meters (4.9 ft), 4K resolution within 3 meters (9.8 ft), 1080P resolution within 8 meters (26.2 ft)
Maximum Resolutions7680 x 4320
FeaturesHDMI 2.1 Switch 2 in 1 out: HDMI 2.1 Switch can smoothly connect 2 HDMI signal sources to 1 display (HDMI Switch 2 in 1 out), or as an HDMI Splitter connect 1 HDMI display to switch between 2 displays (CANNOT display simultaneously).
HDMI 2.1 Switch Bi-directional 2 in 1- 8K@60Hz / 4K@120Hz (4K@165Hz, 4K@144Hz)
Support 8K@60Hz, 4K@120Hz (4K@165Hz, 4K@144Hz), 2K/1080P@240Hz and back forward compatible.
Support increasing your number of HDMI ports if limited by your device's internal ports.
Supports Dynamic HDR, HDR10+, VRR, Chroma 4:2:0 / 4:2:2 / 4:4:4.
Supports Dolby Vision and HDCP
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents8K@60Hz bidirectional HDMI 2.1 switch x1,Control Remote x1, type c cable x1.
?

Questions about this item

How long can the HDMI cables be for 8K@60Hz on this OZQ8AB3 switch?

Use cables no longer than 1.5 metres (4.9 ft) on each side to maintain 8K@60Hz performance.

Does the switch change inputs automatically or only by button press?

It does not support automatic switching; you must press the button on the unit or use the included remote control.

Is the supplied Type-C cable used for power or data?

The Type-C cable provides power to the switch; the unit has no internal battery and needs external USB power.
