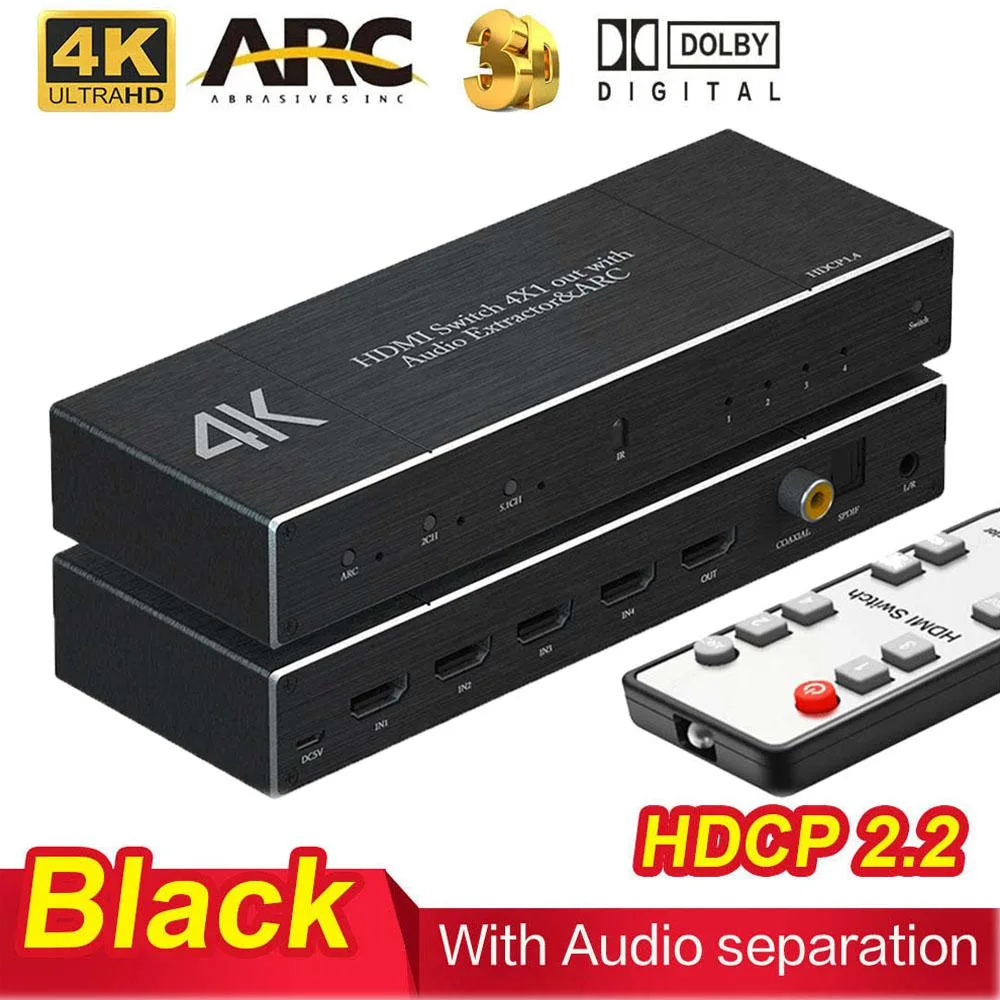

Black rectangular box with four HDMI inputs on one side, HDMI output plus optical, coaxial and 3.5 mm audio jacks on the other

ESTONE

ESTONE OZQ7 4x1 HDMI Switch with Audio Extractor ARC

SKU CH-9ZB2-W2M67

A 4×1 HDMI switch that routes four sources to one display at 4K@60Hz and extracts audio via optical, coaxial and 3.5 mm outputs with ARC support on the optical and coaxial ports

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC f
  • Input Connector4 x HDMI
  • Connect four sources to one display with 4 HDMI inputs
  • Enjoy 4K@60Hz video clarity at 18.5Gbps bandwidth
  • Extract audio via Toslink and Coaxial with ARC support
  • Switch sources conveniently using the included IR remote
  • Supports Dolby True-HD and DTS-HD pass-through for surround sound

Four-input HDMI switch with audio extraction

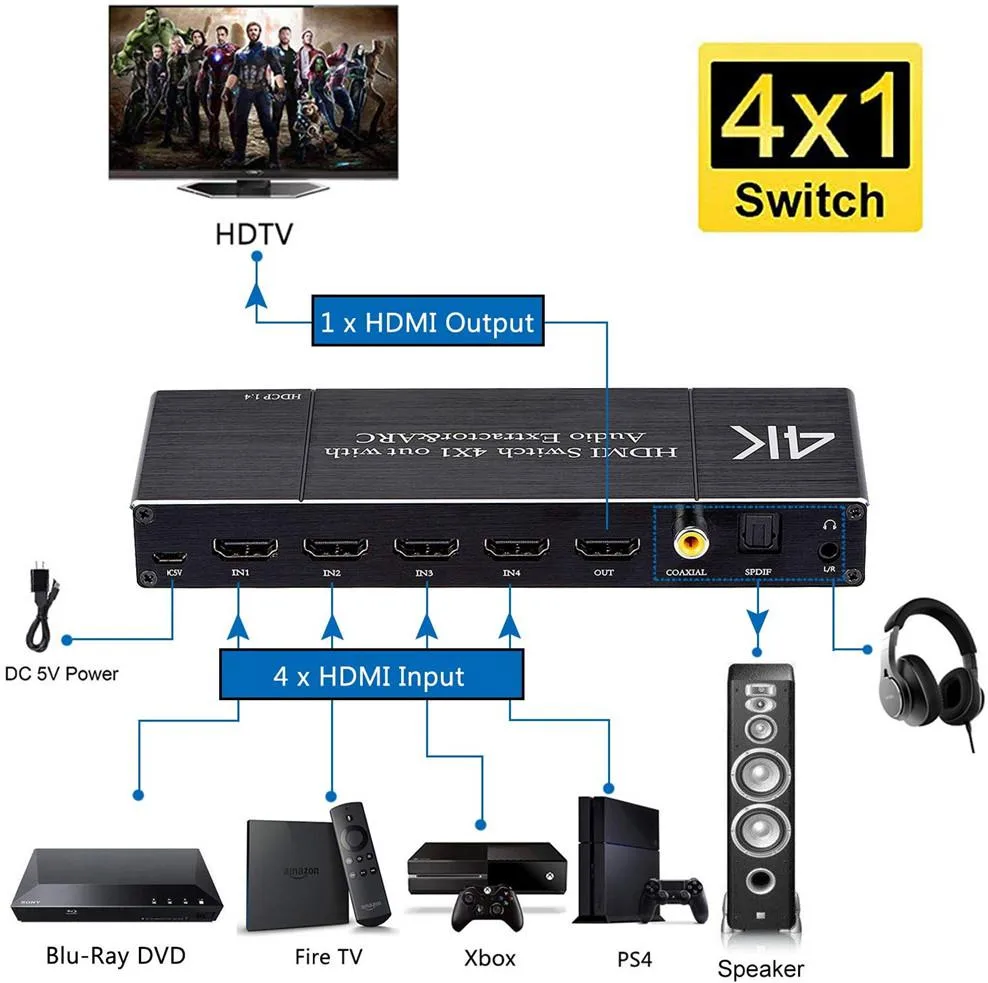

The ESTONE OZQ7 routes four HDMI sources to a single display and simultaneously extracts audio through optical, coaxial and analogue outputs. It is built for home-theatre owners who need to connect multiple consoles, streamers or players to one TV or projector without swapping cables.

Bandwidth and cable-length limits

The switch handles 18.5 Gbps aggregate bandwidth and 300 MHz per channel, supporting 4K at 60 Hz with YUV 4:2:0 chroma subsampling. HDMI 2.0 cables are reliable up to 3 metres at 4K 60 Hz and up to 5 metres at 4K 30 Hz; longer runs or full 4:4:4 colour at 60 Hz exceed the available throughput.

Supported formats and headroom

The unit passes 480i through 1080p at 50 or 60 Hz and 4K at 20, 30 or 60 Hz with 24, 30 or 36-bit deep colour. Coaxial and optical outputs return ARC audio including Dolby True-HD and DTS-HD bitstreams, but the switch cannot decode those formats. The 3.5 mm jack provides stereo extraction only and does not carry ARC. Builders needing more than four inputs or full 4:4:4 4K 60 Hz bandwidth will require a different solution.

Highlights

  • Connect four sources to one display with 4 HDMI inputs
  • Enjoy 4K@60Hz video clarity at 18.5Gbps bandwidth
  • Extract audio via Toslink and Coaxial with ARC support
  • Switch sources conveniently using the included IR remote
  • Supports Dolby True-HD and DTS-HD pass-through for surround sound

Specifications

BrandESTONE
SeriesOZQ7
ModelOZQ7
Part NumberOZQ7
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial, 3.5mm Jack output.
2.Coaxial and Toslink port output support audio return function (ARC)
3.3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
4.support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@60Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
5.Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.2Gbps
6.Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
7.Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
8.Supports Dolb
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesThere are 4 ports HDMI input,1 port HDMI output, Toslink output, Coaxial Output, L/R output HDMI output port with ARC function
Support 480i / 480p / 576i / 576p / 720p@50/60Hz / 1080p@50/60Hz / 4Kx2K@20/30Hz/60Hz with 36bit RGB / YcbCR 4:4:4 / (4k@60hz RGB8:8:8)
Max bandwidth per channel: 600MHz ; Max baud rate per display: 18Gbps; Compliant with HDMI2.0b, HDCP2.2 /1 .4 /1.3 /1.2/1.1
HDMI input and output hdmi 2.0b cables can reach up to 3 meters if your Resoltion up to 4K@60HZ; can reach up to 5 meters if your Resolution up to 4K@30HZ
Support 24/30/36 bit deep color per channel (Kin
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1.HDMI Switch 4x1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

Should I pick the OZQ7 or a different HDMI switch model?

The OZQ7 is the only model listed; it provides four HDMI inputs, one HDMI output with ARC, plus optical, coaxial and 3.5 mm audio outputs.

What does the 4K@60 Hz rating mean when I connect my sources?

It supports 4K at 60 Hz with YUV 4:2:0 colour sampling; 4K at 60 Hz RGB 4:4:4 requires a shorter cable run.

Which HDMI version does the switch use and what bandwidth does that limit?

The switch is HDMI 2.0 compliant with a maximum bandwidth of 18.5 Gbps per channel.
