Black rectangular HDMI switch box with four inputs and audio output ports

ESTONE

ESTONE OZQ7 4x1 HDMI Switch Audio Extractor 4K@60Hz

SKU CH-VNJ5-J4R87

A 4×1 HDMI switch with audio extraction to optical, coaxial and 3.5 mm, passing 4K at 60 Hz and ARC

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC f
  • Input Connector4 x HDMI
  • Switch four sources to one display with 4K@60Hz support
  • Extract audio via optical Toslink or coaxial with ARC return
  • Output stereo sound through 3.5mm jack for headphones or speakers
  • Control switching from the sofa using the included IR remote
  • Connect legacy and modern gear across 480i to 4K@60Hz resolutions

4×1 HDMI Switch with Audio Extraction

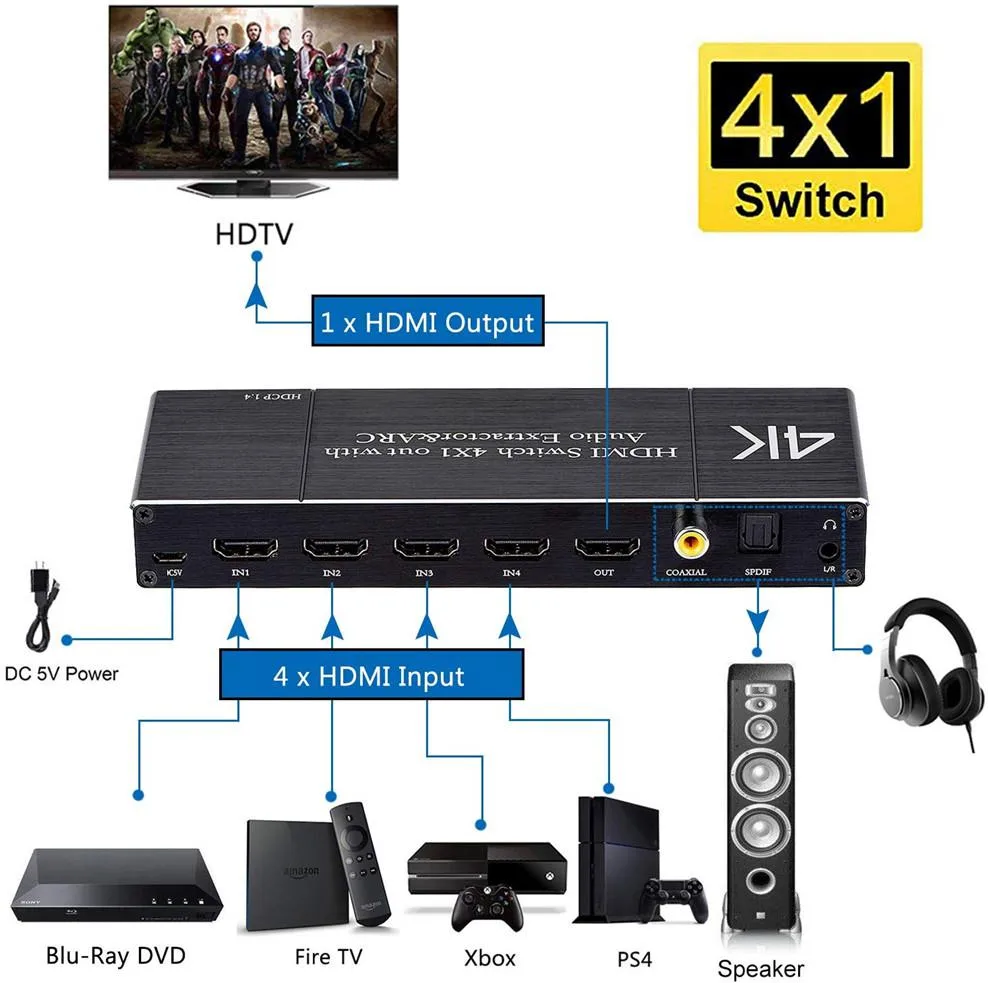

The ESTONE OZQ7 routes four HDMI sources to one display while extracting sound through optical, coaxial and analogue outputs. It handles video up to 4K at 60 Hz with 18.5 Gbps bandwidth and supports 24, 30 or 36-bit deep colour. An IR remote and 5 V power supply are included for immediate setup.

Upgrade from Manual Cable Swapping

Replacing constant plug changes with a single button press saves wear on ports and keeps a home-theatre rack tidy. The jump is worthwhile when you run a games console, streaming box, Blu-ray player and PC into one TV or projector and want instant switching without signal loss.

Audio Formats and Cable Limits

The switch passes Dolby TrueHD, DTS-HD, AC3, DTS and DSD bitstreams to an external decoder but cannot decode them itself. ARC returns TV audio via optical or coaxial only; the 3.5 mm jack carries stereo extraction without ARC. HDMI cables up to 3 metres at 4K 60 Hz or 5 metres at 4K 30 Hz are supported.

Highlights

  • Switch four sources to one display with 4K@60Hz support
  • Extract audio via optical Toslink or coaxial with ARC return
  • Output stereo sound through 3.5mm jack for headphones or speakers
  • Control switching from the sofa using the included IR remote
  • Connect legacy and modern gear across 480i to 4K@60Hz resolutions

Specifications

BrandESTONE
SeriesOZQ7
ModelOZQ7
Part NumberOZQ7
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial, 3.5mm Jack output.
2.Coaxial and Toslink port output support audio return function (ARC)
3.3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
4.support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@60Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
5.Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.2Gbps
6.Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
7.Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
8.Supports Dolb
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ

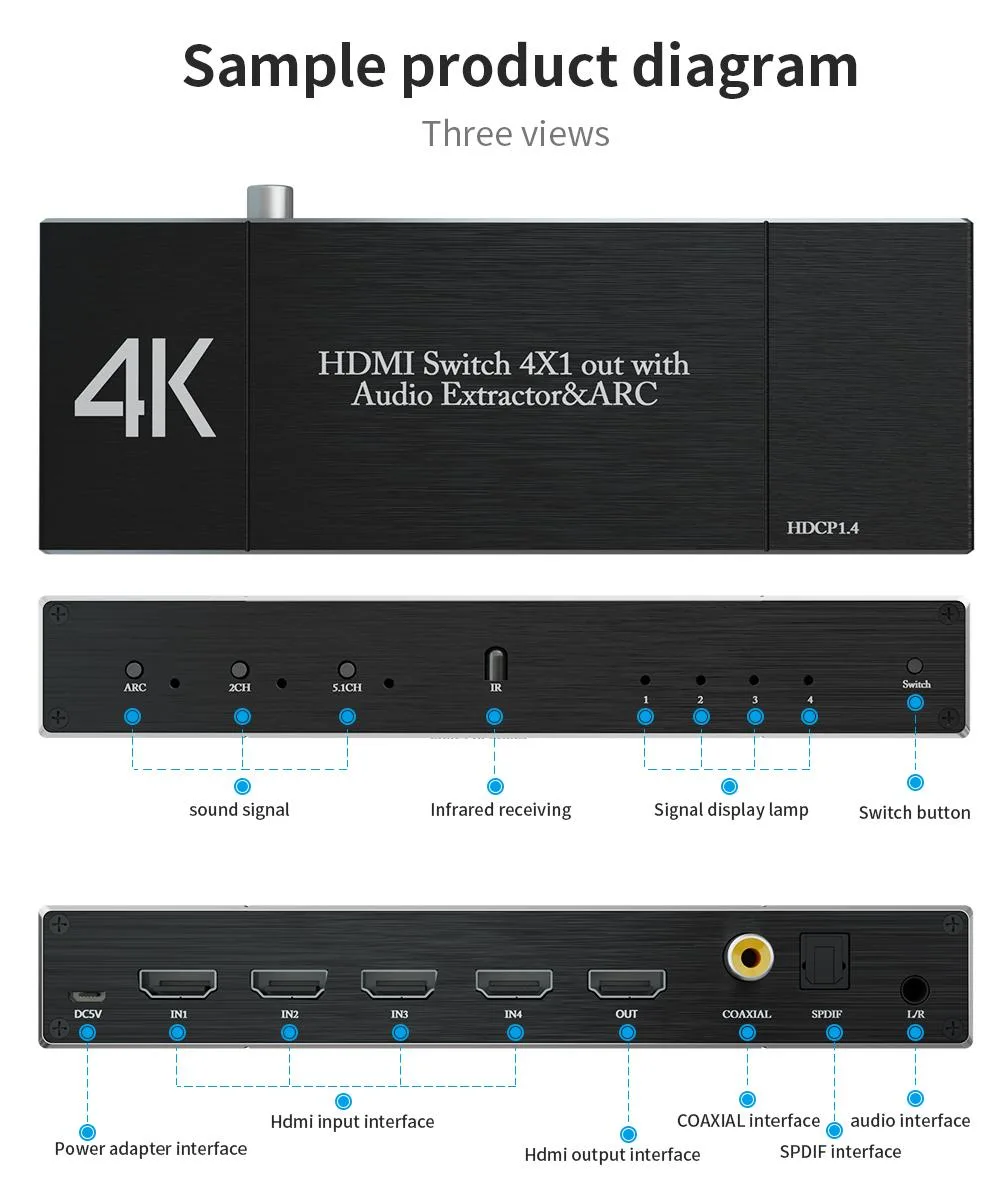

FeaturesThere are 4 ports HDMI input,1 port HDMI output, Toslink output, Coaxial Output, L/R output HDMI output port with ARC function
Support 480i / 480p / 576i / 576p / 720p@50/60Hz / 1080p@50/60Hz / 4Kx2K@20/30Hz/60Hz with 36bit RGB / YcbCR 4:4:4 / (4k@60hz RGB8:8:8)
Max bandwidth per channel: 600MHz ; Max baud rate per display: 18Gbps; Compliant with HDMI2.0b, HDCP2.2 /1 .4 /1.3 /1.2/1.1
HDMI input and output hdmi 2.0b cables can reach up to 3 meters if your Resoltion up to 4K@60HZ; can reach up to 5 meters if your Resolution up to 4K@30HZ
Support 24/30/36 bit deep color per channel (Kin
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1.HDMI Switch 4x1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

How much clearance is needed for the 5.91 x 2.36 x 0.79 inch chassis and its rear-facing HDMI, Toslink, coaxial and 3.5 mm ports?

Allow at least 5.91 inches width, 2.36 inches depth and 0.79 inches height plus extra space behind the unit for cable bend radius on the four HDMI inputs, HDMI output, Toslink, coaxial and 3.5 mm jacks.

Which input-selection method should be used first — the front panel button or the IR remote — and what is the common oversight?

Connect the 5 V/1 A DC adapter, link all sources and the display, then use the front panel button to confirm switching works before relying on the IR remote; the oversight is skipping the button check and assuming the remote functions without line of sight.

What recurring maintenance does the IR remote require?

The remote requires a user-supplied battery replacement when the IR range drops; no other user-serviceable parts or firmware updates are needed for the switch itself.
