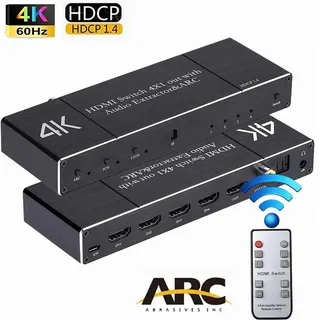

Small black rectangular box with four HDMI inputs, one HDMI output, Toslink, coaxial and 3.5mm audio ports, IR remote included

ESTONE

ESTONE OZQ7 4x1 HDMI audio switch 4K 60Hz 18.5Gbps ARC

SKU CH-V5SW-C3WGH

Routes four HDMI sources to one display at 4K 60 Hz while extracting audio via ARC-enabled Toslink and coaxial outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC f
  • Input Connector4 x HDMI

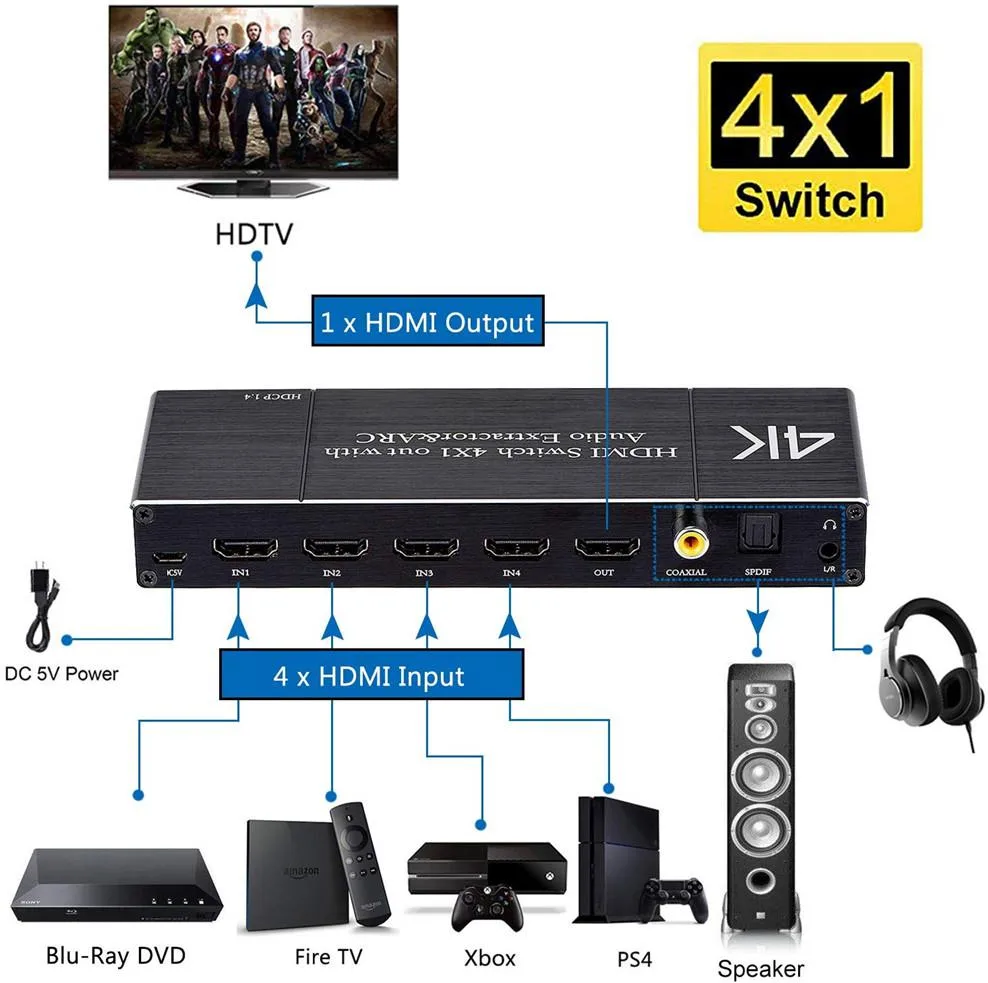

  • Connect four sources to one display with 4 HDMI inputs and 1 HDMI output
  • Enjoy 4K 60 Hz video at 18.5 Gbps bandwidth with HDR support
  • Extract audio via Toslink or Coaxial outputs with ARC return function
  • Switch sources instantly using the included IR remote control
  • Compact 5.91 x 2.36 x 0.79 inch design fits any setup

4x1 HDMI switch with audio extraction

The ESTONE OZQ7 routes four HDMI sources to a single display while extracting sound through optical, coaxial and analogue outputs. It handles video up to 4K at 60 Hz with 18.5 Gbps bandwidth and supports HDR10 and HDCP 2.2. An IR remote and 5 V power adapter are included for desktop or living-room use.

Suits multi-source setups needing audio breakout

Home-theatre owners who connect a console, streamer, Blu-ray player and PC to one TV will appreciate the ARC-capable Toslink and coaxial ports for sending sound to a receiver or soundbar. The 3.5 mm jack provides a simple headphone or powered-speaker feed. Buyers who require more than four inputs, HDMI 2.1 features such as 8K or VRR, or decoding of Dolby TrueHD and DTS-HD bitstreams should look elsewhere.

Handles four 4K 60 Hz sources

The switch passes 480i through 4K 60 Hz signals at 24, 30 or 36-bit deep colour in RGB 4:4:4, YCbCr 4:2:2 and 4:2:0 formats. HDMI 2.0 cables up to 3 metres work at 4K 60 Hz; longer runs up to 5 metres are supported at 4K 30 Hz. It cannot process DVI signals or decode the high-resolution audio formats it transports.

Highlights

  • Connect four sources to one display with 4 HDMI inputs and 1 HDMI output
  • Enjoy 4K 60 Hz video at 18.5 Gbps bandwidth with HDR support
  • Extract audio via Toslink or Coaxial outputs with ARC return function
  • Switch sources instantly using the included IR remote control
  • Compact 5.91 x 2.36 x 0.79 inch design fits any setup

Specifications

BrandESTONE
SeriesOZQ7
ModelOZQ7
Part NumberOZQ7
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4

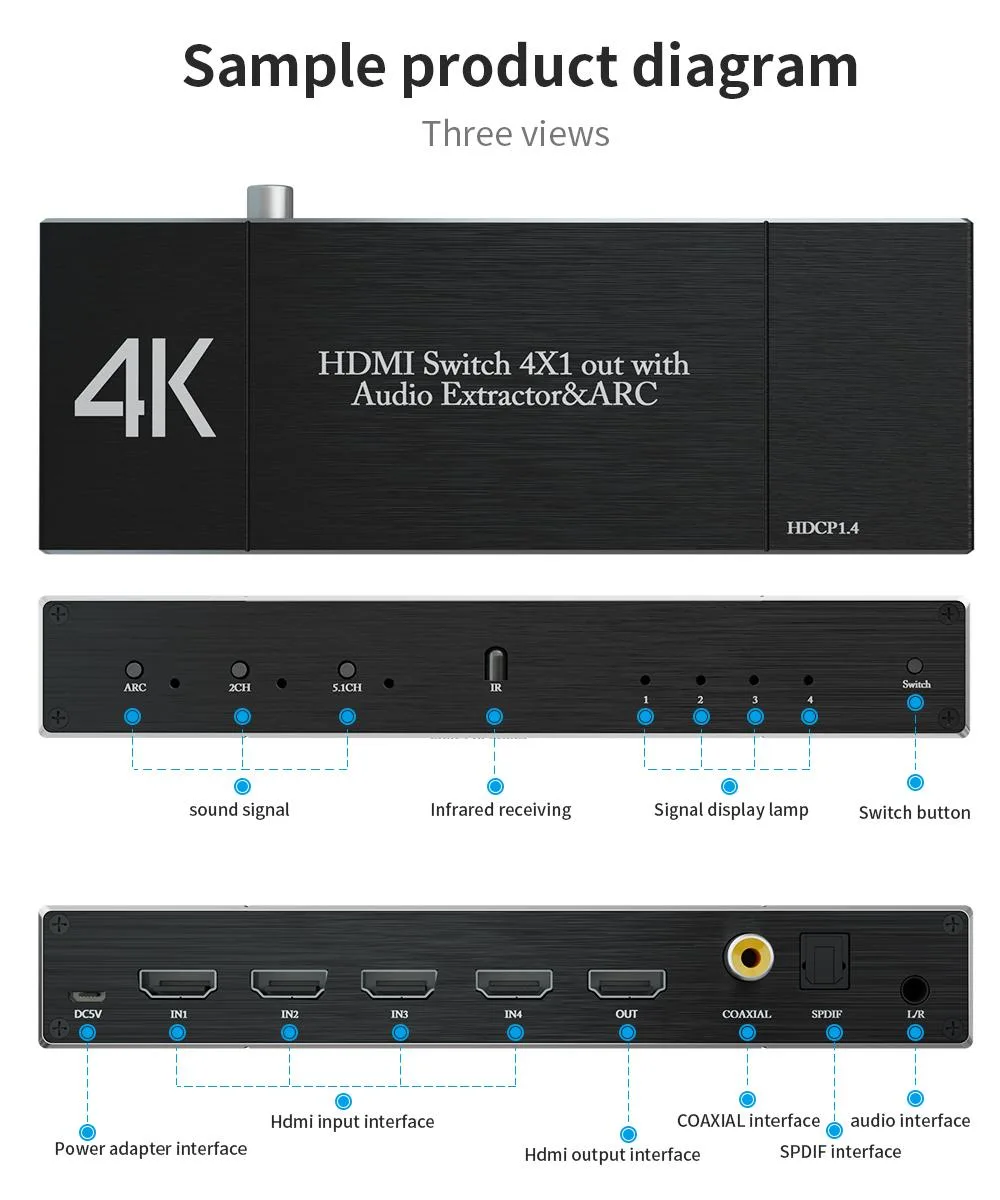

Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial, 3.5mm Jack output.
2.Coaxial and Toslink port output support audio return function (ARC)
3.3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
4.support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@60Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
5.Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.2Gbps
6.Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
7.Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
8.Supports Dolb
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesThere are 4 ports HDMI input,1 port HDMI output, Toslink output, Coaxial Output, L/R output HDMI output port with ARC function
Support 480i / 480p / 576i / 576p / 720p@50/60Hz / 1080p@50/60Hz / 4Kx2K@20/30Hz/60Hz with 36bit RGB / YcbCR 4:4:4 / (4k@60hz RGB8:8:8)
Max bandwidth per channel: 600MHz ; Max baud rate per display: 18Gbps; Compliant with HDMI2.0b, HDCP2.2 /1 .4 /1.3 /1.2/1.1
HDMI input and output hdmi 2.0b cables can reach up to 3 meters if your Resoltion up to 4K@60HZ; can reach up to 5 meters if your Resolution up to 4K@30HZ
Support 24/30/36 bit deep color per channel (Kin
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1.HDMI Switch 4x1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

Do I need an external power adapter for the OZQ7 switch to operate?

Yes, the package includes a 5V/1A DC power adapter that must be connected for the switch to function.

Will a 1080p source at 60Hz pass through without downscaling on the OZQ7?

Yes, the switch supports 1080p at 50/60Hz alongside 4K resolutions, so a 1080p60 source will pass through at its native rate.

How can I confirm ARC audio is actually returning from my TV through the Toslink port?

Connect the TV to the HDMI output, enable ARC on the TV, select the correct input on the switch, then verify sound plays through a device plugged into the Toslink output.
