Black rectangular HDMI switch with four inputs and multiple audio outputs

ESTONE

ESTONE OZQ7 4K@60Hz 4x1 HDMI Switch Audio Extractor ARC

SKU CH-T8PR-VTFXE

Routes four HDMI sources to one display at 4K 60 Hz while extracting audio via optical, coaxial or 3.5 mm outputs with ARC support

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC f
  • Input Connector4 x HDMI
  • Switch four sources to one display with 4K@60Hz clarity
  • Extract audio via optical, coaxial or 3.5mm jack outputs
  • ARC support on optical and coaxial returns TV sound to your receiver
  • Handles 1080p@120Hz and deep-colour formats up to 36-bit
  • IR remote lets you change inputs from the sofa

4x1 HDMI Switch with Audio Extraction

This ESTONE OZQ7 switch routes four HDMI sources to a single display while extracting audio through Toslink, coaxial and 3.5 mm outputs. It handles resolutions up to 4K at 60 Hz and supports ARC on the main HDMI output and digital audio ports. A 5 V power adapter and IR remote are included for desktop or rack installation.

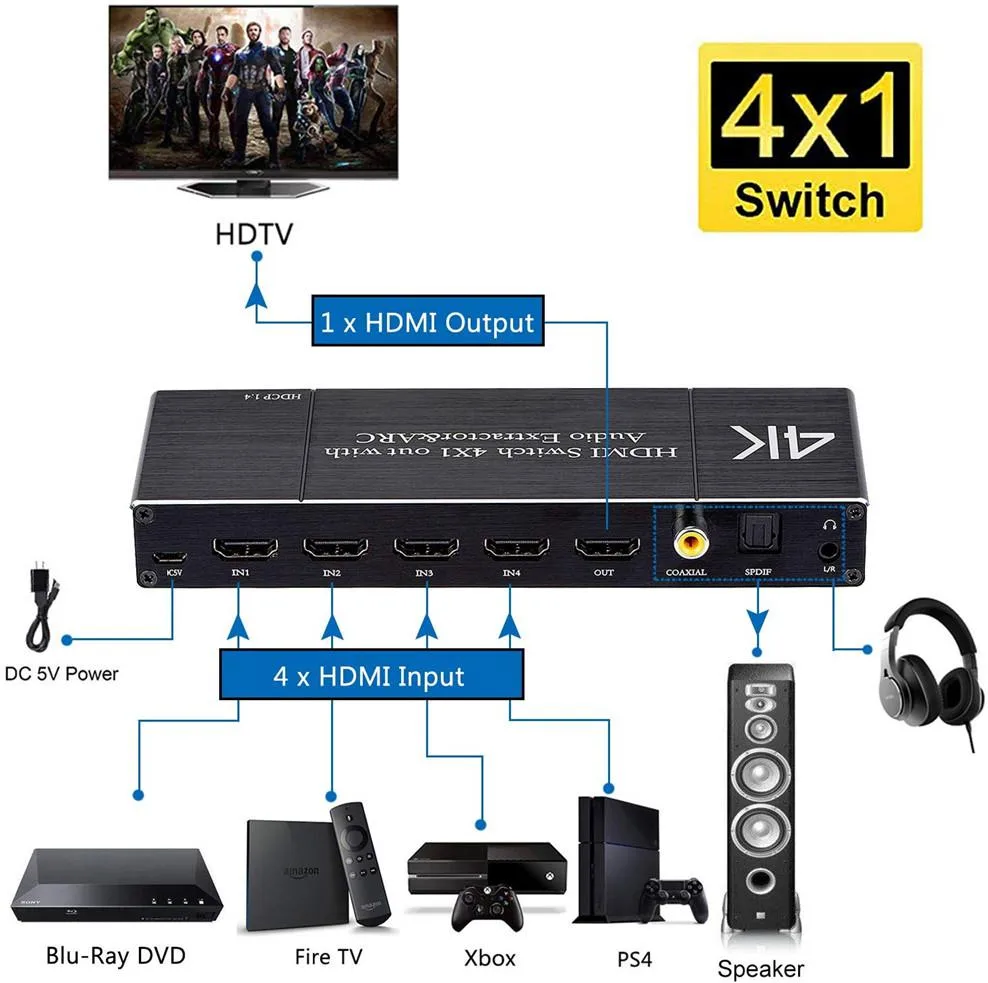

Home-theatre and multi-source setups

The unit suits anyone connecting a console, streamer, PC and Blu-ray player to one TV or projector and sending sound to a soundbar or AV receiver via optical or coaxial. It will not work for users who need simultaneous multi-display output, HDMI 2.1 bandwidth, or ARC on the 3.5 mm jack. Buyers requiring DVI compatibility should also look elsewhere.

18.5 Gbps bandwidth ceiling

The 18.5 Gbps aggregate bandwidth and 300 MHz per-channel limit determine whether 4K 60 Hz 4:4:4 signals pass without compression. If your sources demand higher throughput — such as 4K 120 Hz or 8K — this switch cannot carry them.

Highlights

  • Switch four sources to one display with 4K@60Hz clarity
  • Extract audio via optical, coaxial or 3.5mm jack outputs
  • ARC support on optical and coaxial returns TV sound to your receiver
  • Handles 1080p@120Hz and deep-colour formats up to 36-bit
  • IR remote lets you change inputs from the sofa

Specifications

BrandESTONE
SeriesOZQ7
ModelOZQ7
Part NumberOZQ7
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial, 3.5mm Jack output.
2.Coaxial and Toslink port output support audio return function (ARC)
3.3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
4.support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@60Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
5.Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.2Gbps
6.Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
7.Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
8.Supports Dolb
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesThere are 4 ports HDMI input,1 port HDMI output, Toslink output, Coaxial Output, L/R output HDMI output port with ARC function
Support 480i / 480p / 576i / 576p / 720p@50/60Hz / 1080p@50/60Hz / 4Kx2K@20/30Hz/60Hz with 36bit RGB / YcbCR 4:4:4 / (4k@60hz RGB8:8:8)
Max bandwidth per channel: 600MHz ; Max baud rate per display: 18Gbps; Compliant with HDMI2.0b, HDCP2.2 /1 .4 /1.3 /1.2/1.1
HDMI input and output hdmi 2.0b cables can reach up to 3 meters if your Resoltion up to 4K@60HZ; can reach up to 5 meters if your Resolution up to 4K@30HZ
Support 24/30/36 bit deep color per channel (Kin
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1.HDMI Switch 4x1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

How can I confirm the ESTONE OZQ7 is passing a 4K@60Hz signal correctly after connecting my sources and display?

Verify the TV or projector reports 4K@60Hz in its info menu, check that video plays without flicker or drop-outs, and confirm audio is heard through the HDMI ARC, Toslink or coaxial outputs.

What accessories are included with the OZQ7 and what must I provide myself?

The box contains the 4×1 HDMI switch with audio extractor, a 5V/1A DC power adapter, an IR remote and a user manual. You must supply four HDMI source cables, one HDMI display cable and a coin-cell battery for the remote.

Which audio output should I choose on the OZQ7 to get ARC sound from my TV?

Use the Toslink or coaxial output — both support ARC. The 3.5 mm jack does not carry ARC audio.
