Black rectangular HDMI switch with four input ports and multiple audio outputs

ESTONE

ESTONE OZQ7 4K@60Hz 4x1 HDMI Switch Audio Extractor

SKU CH-2ESZ-Y1XTZ

A four-input HDMI switch with 4K@60Hz support extracts audio via Toslink, coaxial and 3.5mm outputs while passing ARC through the HDMI output

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC f
  • Input Connector4 x HDMI
  • Connect four sources to one display via 4K@60Hz switching
  • Extract audio to Toslink or Coaxial with ARC return support
  • Send stereo sound through 3.5mm jack for headphones or speakers
  • Switch inputs instantly using the included IR remote control
  • Pass Dolby True-HD and DTS-HD bitstreams to your receiver

4x1 HDMI Switch with Audio Extraction

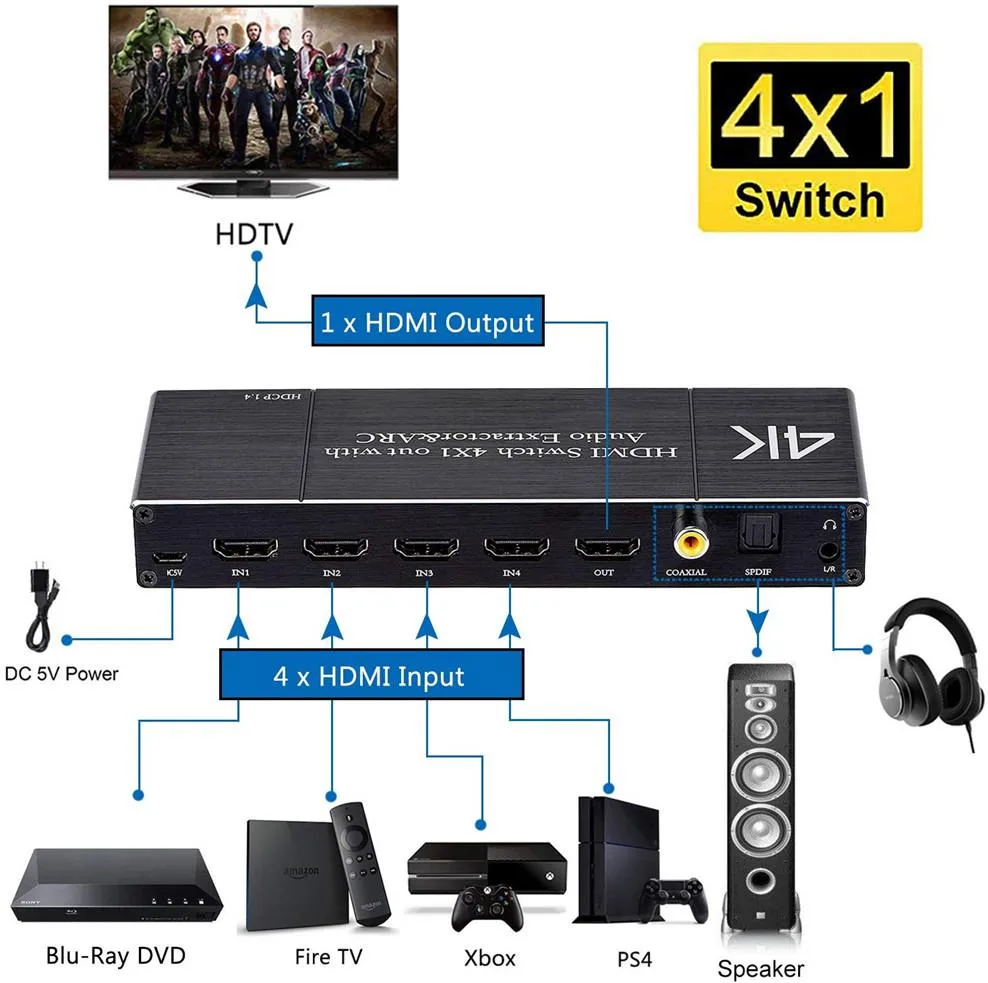

The ESTONE OZQ7 routes four HDMI sources to a single display while extracting audio through Toslink, coaxial and 3.5 mm outputs. It suits home-theatre owners who want to connect a console, streaming stick, Blu-ray player and PC to one TV or projector without swapping cables.

Audio outputs and ARC support

Coaxial and Toslink ports pass ARC return audio from a compatible display, while the 3.5 mm jack provides stereo extraction only. The switch passes Dolby True-HD, DTS-HD, AC3, DTS and DSD bitstreams without decoding them, so an external receiver handles surround processing.

4K@60 Hz bandwidth and cable limits

The unit handles 4K@60 Hz at YUV4:2:0 and lower resolutions up to 4K@30 Hz with 4:4:4 colour. HDMI 2.0 cables reach three metres at 4K@60 Hz and five metres at 4K@30 Hz; longer runs or DVI adapters are not supported.

Highlights

  • Connect four sources to one display via 4K@60Hz switching
  • Extract audio to Toslink or Coaxial with ARC return support
  • Send stereo sound through 3.5mm jack for headphones or speakers
  • Switch inputs instantly using the included IR remote control
  • Pass Dolby True-HD and DTS-HD bitstreams to your receiver

Specifications

BrandESTONE
SeriesOZQ7
ModelOZQ7
Part NumberOZQ7
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial, 3.5mm Jack output.
2.Coaxial and Toslink port output support audio return function (ARC)
3.3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
4.support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@60Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
5.Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.2Gbps
6.Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
7.Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
8.Supports Dolb
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesThere are 4 ports HDMI input,1 port HDMI output, Toslink output, Coaxial Output, L/R output HDMI output port with ARC function
Support 480i / 480p / 576i / 576p / 720p@50/60Hz / 1080p@50/60Hz / 4Kx2K@20/30Hz/60Hz with 36bit RGB / YcbCR 4:4:4 / (4k@60hz RGB8:8:8)
Max bandwidth per channel: 600MHz ; Max baud rate per display: 18Gbps; Compliant with HDMI2.0b, HDCP2.2 /1 .4 /1.3 /1.2/1.1
HDMI input and output hdmi 2.0b cables can reach up to 3 meters if your Resoltion up to 4K@60HZ; can reach up to 5 meters if your Resolution up to 4K@30HZ
Support 24/30/36 bit deep color per channel (Kin
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1.HDMI Switch 4x1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

Will the 5V/1A power adapter need replacing over time?

The unit ships with a 5V/1A DC power adapter; if it fails you can source any 5V/1A replacement with the same barrel connector.

What bandwidth ceiling hits first during a long 4K@60Hz session?

The switch is rated for 18.5Gbps total bandwidth and 10.2Gbps per display channel, so the 10.2Gbps per-channel limit is the first bottleneck.

Does the box get hot or draw much power when left on all day?

It runs from a 5V/1A supply (5W max), has no fan, and the metal case stays warm but not hot during continuous operation.
