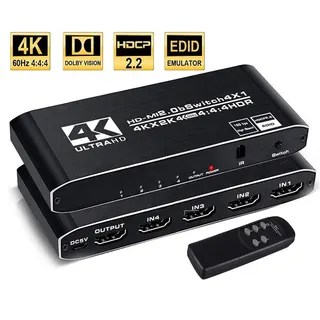

Black rectangular HDMI switch box with four input ports and one output port

ESTONE

ESTONE OZQ5-1 4K 60Hz 4x1 HDMI Switch

SKU CH-SFE1-TF0HM

Routes four HDMI sources to one display at 4K 60 Hz with HDR and IR remote control

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4-Port UHD
  • SpecificationsSwitching function: Switch the four HDMI inputs, one of whic
  • Input Connector4 x HDMI
  • Switch four sources to one display with 4K@60Hz clarity
  • 5Gbps bandwidth keeps HDR and 3D signals intact
  • IR remote lets you change inputs from the sofa
  • Backward compatible with HDMI 1.0, 1.3 and 1.4 devices
  • Supports PCM, DTS, AC-3 and Dolby Atmos audio formats

4K 60Hz 4×1 HDMI Switch

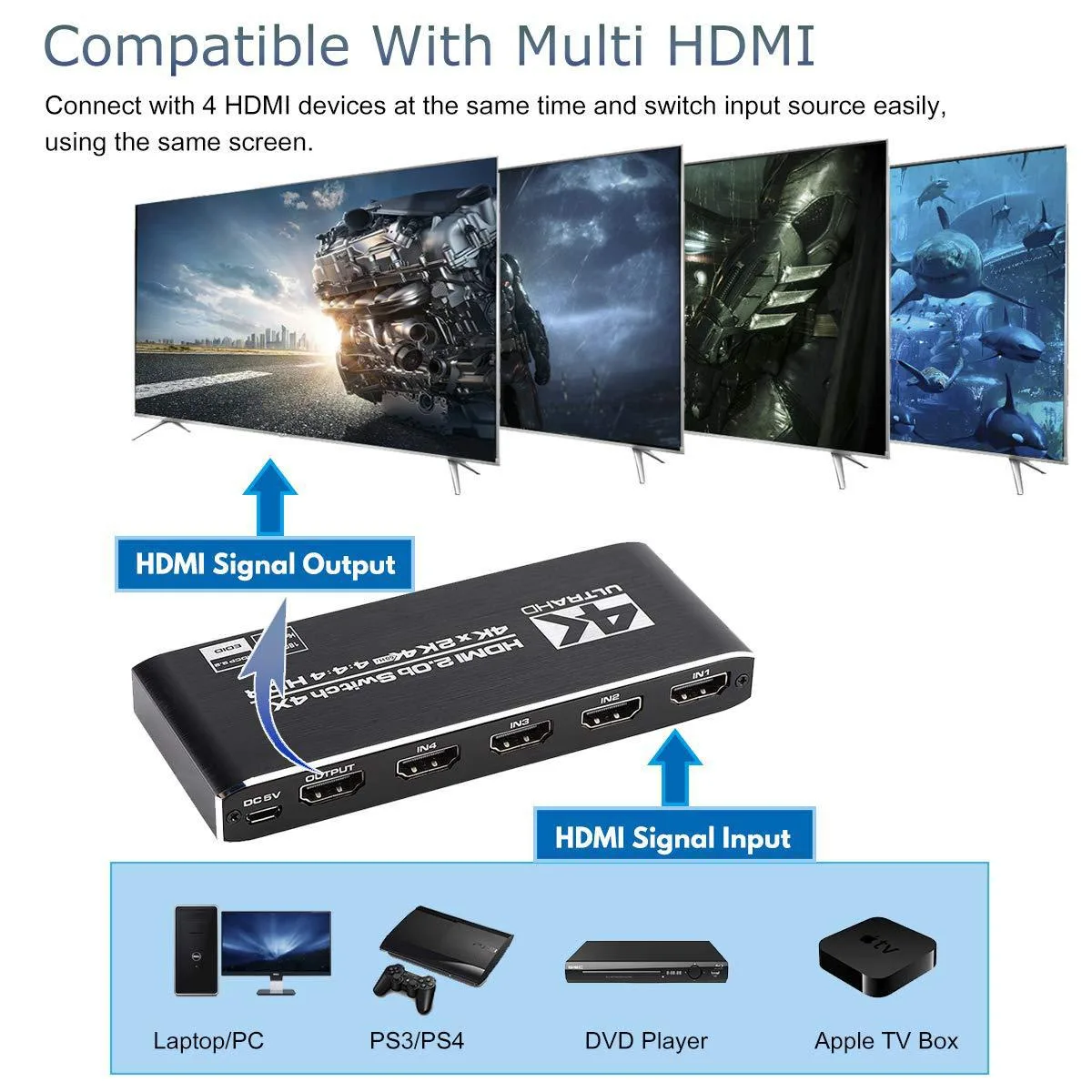

The ESTONE OZQ5-1 connects four HDMI sources to one display. It suits home-theatre owners who need to swap between a console, a streaming box, a Blu-ray player and a PC without unplugging cables. An IR remote and front-panel button both change the active input. The unit is new and ships with a power adapter.

18.5 Gbps bandwidth at 4K 60Hz

The switch passes full 4K resolution at 60 Hz with YUV444 or RGB888 colour sampling. Lower frame-rate 4K modes such as 24, 25 or 30 Hz are also supported. HDMI 2.0b and HDCP 2.2 compliance protect premium content. Bandwidth below 18.5 Gbps would force chroma subscaling or frame-rate drops.

Handles 4K 60Hz HDR and multi-channel audio

The switch comfortably carries 3840×2160 at 60 Hz with HDR10 and Dolby Vision metadata. It also transmits Dolby Atmos, DTS-HD and PCM audio without distortion. It runs out of headroom for resolutions above 4K or refresh rates beyond 60 Hz, so 8K or high-frame-rate 4K sources need a different solution.

Highlights

  • Switch four sources to one display with 4K@60Hz clarity
  • 5Gbps bandwidth keeps HDR and 3D signals intact
  • IR remote lets you change inputs from the sofa
  • Backward compatible with HDMI 1.0, 1.3 and 1.4 devices
  • Supports PCM, DTS, AC-3 and Dolby Atmos audio formats

Specifications

BrandESTONE
SeriesOZQ5-1
ModelOZQ5-1
Part NumberOZQ5-1
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4-Port UHD
SpecificationsSwitching function: Switch the four HDMI inputs, one of which is the synchronous output of the HDMI signal;
Support ultra-clear 4K*2K@60Hz (YUV444/RGB888), not just 4Kx2K@24/25/30Hz;
Support HDMI version: support HDMI2.0b, backward compatible with HDMI1.0, HDMI1.3, HDMI1.4;
Support HDCP version: HDCP2.2 backward compatible with HDCP1.4;
Support audio: support PCM, DTS, AC-3, Dolby Atmos, Dolby Atmos and HD audio;
Support 3D: If both the HDMI signal source and the HDMI display device support 3D, the 3D video will be automatically recognized and output.;
Support HDR10, Dolby World;
Sup
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
Features- Compatible with all the devices of older than HDMI2.0b, supporting HDCP2.2, 4K*2K, HDR, color display format RGB(YUV4: 4: 4)
- Supporting high resolution inputs 480P, 720P, 1080i, 1080p, 3D, 3840x2160P
- Supporting video output broadband 18gbps/600MHZ
- Supporting automatic identification of signal sources and automatically jumping to the next port with a signal source when the existing signal source is disconnected
- Supporting the MHL function with LED indicators
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1 x 4 in 1 out HD-MI Switch
1 x Power Adapter
1 x Remote Control
1 x User Manual

Questions about this item

What does the 18.5 Gbps bandwidth mean when the switch is connected to a 4K display?

It carries a full 4K 60 Hz signal with YUV 4:4:4 or RGB 8:8:8 colour, so the image stays at full chroma resolution without dropping to 4:2:0 or 30 Hz.

Which HDMI standard does the switch implement, and what does that limit in practice?

The switch follows HDMI 2.0b with HDCP 2.2, capping video at 4K 60 Hz 18.5 Gbps and blocking higher refresh rates or 8K signals that would need HDMI 2.1 bandwidth.

How much space does the unit need on a shelf or behind a TV?

The box measures 5.91 x 2.36 x 0.79 inches and weighs 11.9 ounces, so it fits in a shallow cabinet or on a narrow AV rack shelf.
