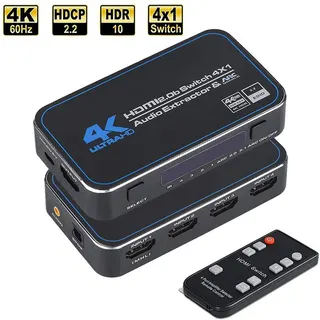

Black rectangular HDMI switch with four input ports, one output, optical and 3.5 mm audio jacks, IR sensor and remote

ESTONE

ESTONE OZQ4 HDMI Switch 4×1 Audio Extractor 4K 60Hz ARC

SKU CH-C4XQ-NWTKQ

Routes four HDMI 2.0 sources to one 4K 60 Hz display while extracting audio via optical or 3.5 mm and supporting ARC

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4-Port UHD
  • SpecificationsInput:HDMI 2.0 ports X4 Output:HDMI 2.0 port X1, optical tos
  • Input Connector4 x HDMI
  • Connect four sources to one display with 4K@60Hz clarity
  • Extract audio to soundbars via optical or 3.5mm outputs
  • Switch inputs instantly using the included IR remote control
  • Enjoy HDR10 and HDCP 2.2 protected content without signal loss
  • Automatic source detection selects the active device for you

4-Port HDMI 2.0 Switch with Audio Extractor

This ESTONE OZQ4 switch connects four HDMI 2.0 sources to a single display at up to 4K 60 Hz. It is designed for home-theatre enthusiasts and gamers who need to toggle between consoles, streaming sticks and set-top boxes without swapping cables.

Black metal chassis with IR remote

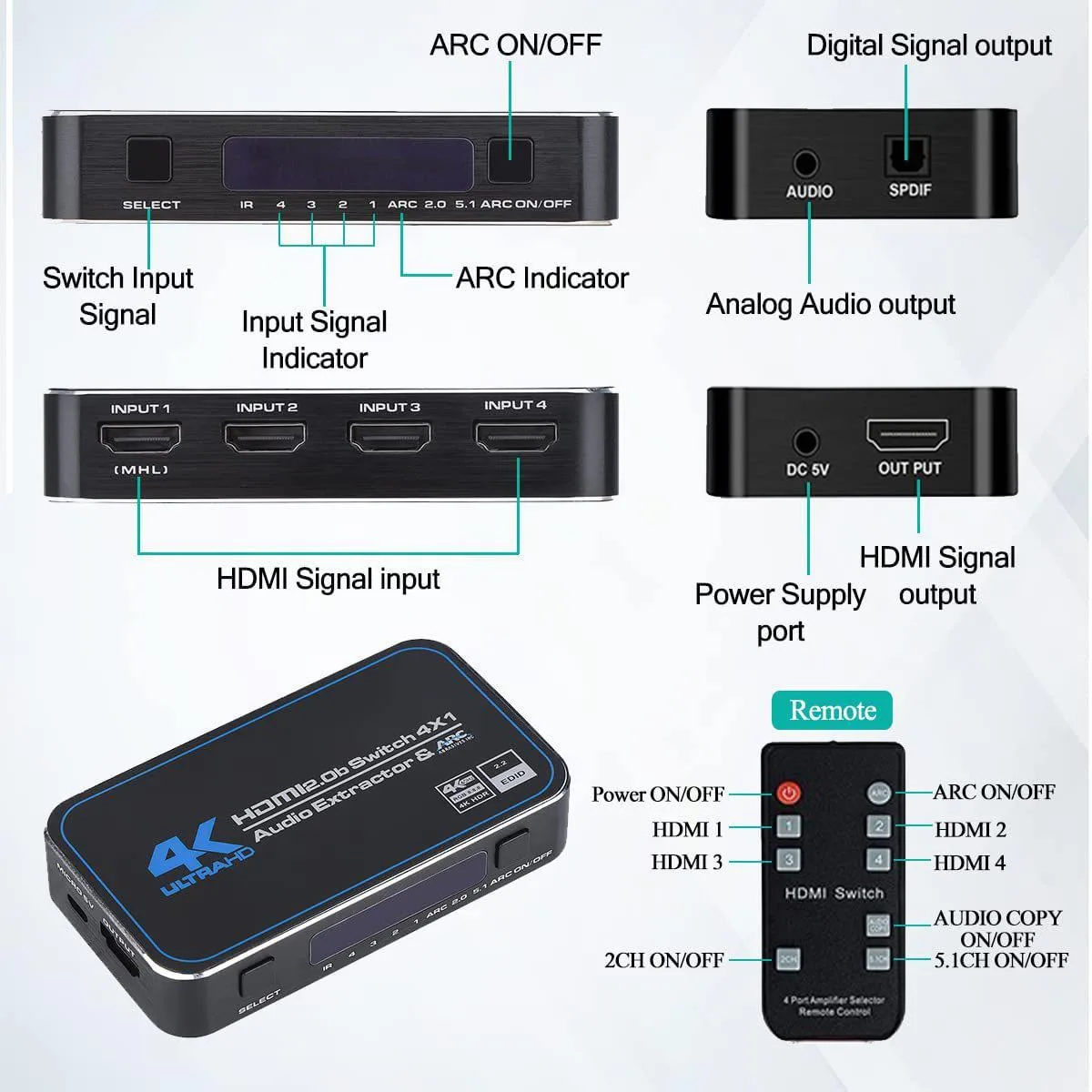

The compact unit measures 5.91 by 2.36 by 0.79 inches and weighs 11.9 ounces. Front-panel buttons and the included IR remote select inputs, while automatic signal detection jumps to the most recent active source. Optical Toslink and 3.5 mm stereo outputs extract audio independently of the TV, and the HDMI output supports ARC through the optical port only.

Replaces manual cable swapping

The jump is worth it when a display has only one HDMI 2.0 input but the system runs four 4K 60 Hz devices. It also adds dedicated digital and analogue audio outputs that simpler switchers lack. Buyers who need more than four inputs or HDMI 2.1 bandwidth should look elsewhere.

Highlights

  • Connect four sources to one display with 4K@60Hz clarity
  • Extract audio to soundbars via optical or 3.5mm outputs
  • Switch inputs instantly using the included IR remote control
  • Enjoy HDR10 and HDCP 2.2 protected content without signal loss
  • Automatic source detection selects the active device for you

Specifications

BrandESTONE
SeriesOZQ4
ModelOZQ4
Part NumberOZQ4
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4-Port UHD
SpecificationsInput:HDMI 2.0 ports X4
Output:HDMI 2.0 port X1,
optical toslink audioX1
3.5mm stereo audioX1
ARC function:Yes(toslink port only)
Resolutions:4KX2K/60Hz in&out
HDCP:HDCP 2.2 compliant
HDMI version:HDMI 2.0
HDR:supports HDR up to 10 bite
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
Features1.Support ARC functions, Compatible with HDTV which support HDMI and HDCP
2.Support compressed audio; DTS digital, Dolby digital (DTS-HD and DOLBY)
3.Support high-resolution input: 480P/ 576P/ 720P/ 1080P/ 1080p 3D/ 4K@60Hz, HDMI V2.0, HDCP V1.4
4.Support video transmission: 18Gbps/ 600MHZ
5.Support high-definition signal with remote control
6.Support automatic identification of the signal source
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package ContentsHDMI 2.0 switcher 4X1 with audioX1
IR remote controlX1(no battery)
USB power cable(no power adpater)

Questions about this item

What bandwidth does the HDMI 2.0 interface cap at in practice?

The switch passes up to 18.5 Gbps at 600 MHz, which matches the HDMI 2.0 limit for 4K at 60 Hz.

How much depth does the unit need behind the TV or shelf?

It measures 5.91 inches wide, 2.36 inches deep and 0.79 inches high, so allow at least 2.36 inches of clearance.

What is the correct order to power the switch and sources so ARC works?

Connect the USB power cable first, then attach the four HDMI sources and the display, then press the remote or front button to select the active input.
