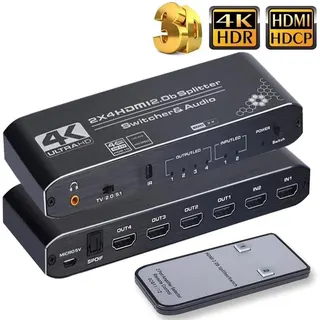

Black rectangular HDMI switch box with IR remote control

ESTONE

ESTONE OZQ12 2x4 HDMI Switch Splitter Audio Extractor 4K@60Hz Remote Control

SKU CH-TJGY-AQMP1

Routes two HDMI sources to four displays at 4K@60Hz with optical and 3.5mm audio extraction

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • Specifications2 HDMI inputs switch and split to 4 HDMI displays HDMI resol
  • Input Connector4 x HDMI

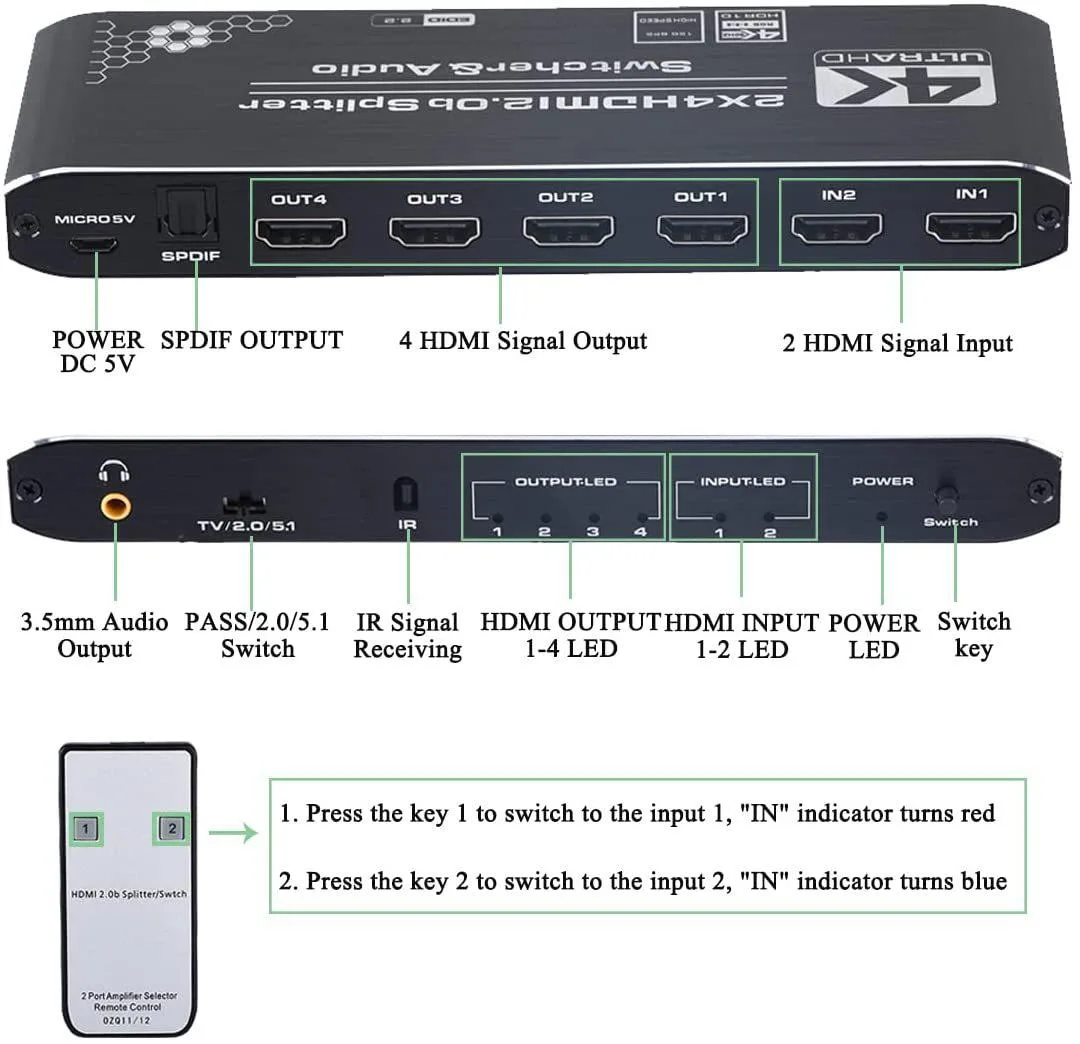

  • Switch two sources across four displays with IR remote control
  • Extract audio to optical, 3.5 mm and HDMI simultaneously
  • Pass 4K 60 Hz HDR video at 18.5 Gbps bandwidth
  • Support deep colour up to 48-bit and 5.1 surround sound
  • Transmit 4K 60 Hz up to 10 m and 1080p up to 20 m

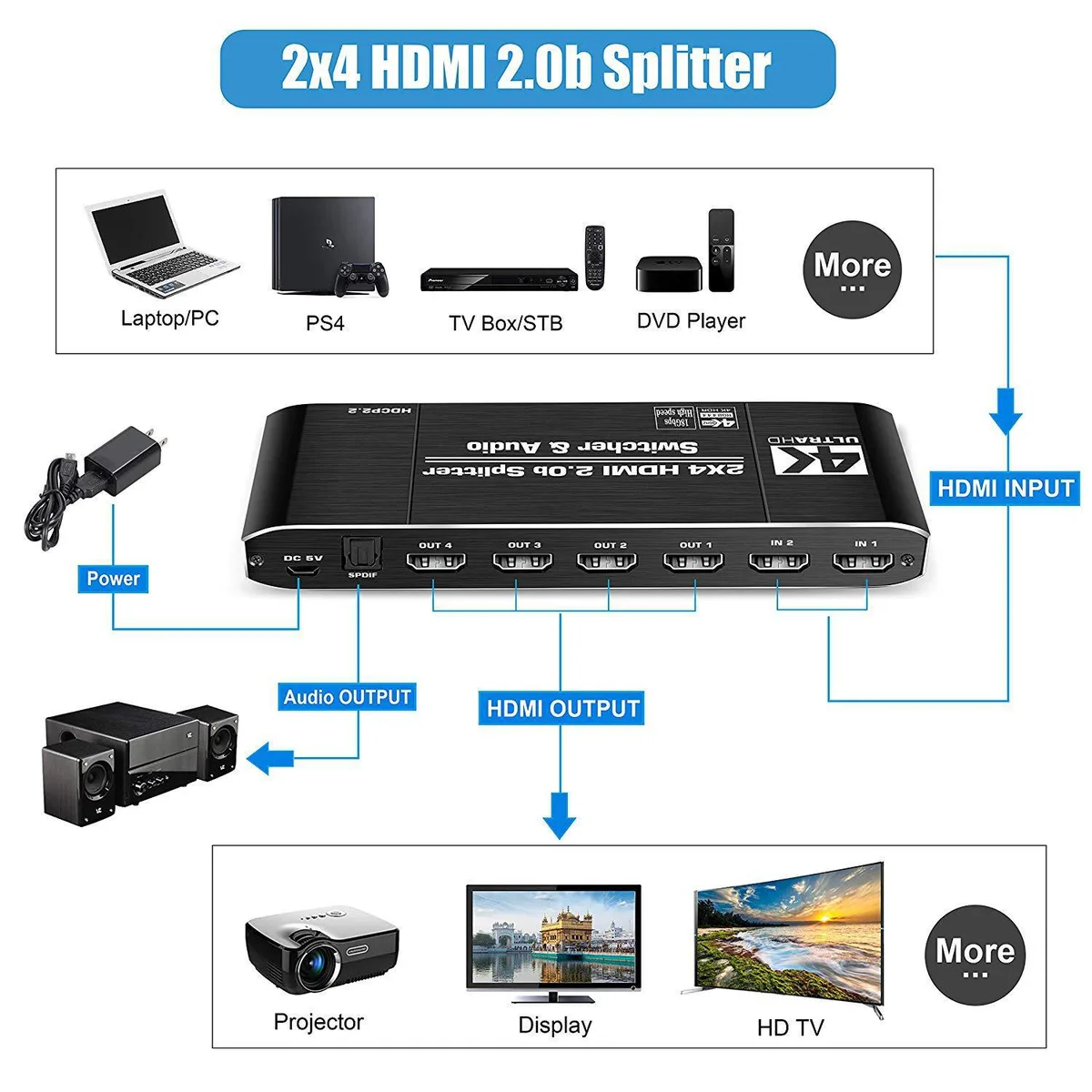

2-in-4 HDMI switch with audio extraction

The ESTONE OZQ12 routes two HDMI sources to four displays simultaneously, delivering identical 4K@60Hz HDR content to every screen. It supports HDMI 2.0b and HDCP 2.2 with 18.5Gbps bandwidth and deep colour up to 48-bit. An IR remote and front-panel button provide instant input switching for home theatres, conference rooms or digital-signage walls.

Passive operation with external 5V supply

The unit draws power from an included 5V adapter, adding no fan noise or measurable heat to the rack. Signal paths remain purely electronic, so 4K@60Hz runs cleanly over 10m cables and 1080p extends to 20m using AWG26 leads. Audio extracts in parallel through HDMI, 3.5mm stereo and optical TOSLINK without interrupting the video stream.

Replaces separate splitters, switches and DACs

Installers who currently chain a 2-way switch, a 4-way splitter and a standalone audio extractor can consolidate all three functions into one box. The jump is worth it when a single source must feed four zones with synchronised 5.1-channel sound and zero added latency.

Highlights

  • Switch two sources across four displays with IR remote control
  • Extract audio to optical, 3.5 mm and HDMI simultaneously
  • Pass 4K 60 Hz HDR video at 18.5 Gbps bandwidth
  • Support deep colour up to 48-bit and 5.1 surround sound
  • Transmit 4K 60 Hz up to 10 m and 1080p up to 20 m

Specifications

BrandESTONE
SeriesOZQ12
ModelOZQ12
Part NumberOZQ12
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
Specifications2 HDMI inputs switch and split to 4 HDMI displays
HDMI resolution:Support 4K@60Hz (YUV 4:4:4) & 4K HDR
In HDMI HDR resolution, 4K@60Hz HDMI Input and Output distance can be up to 10m,1080p can be up to 20m using the AWG26 standard HDMI Cable.
Downscaling output from 4K to 1080p at the same time.
Audio Supports: DTS - HD/Dolby-true HD/DTS/Dolby-AC3/DSD
Support HDCP 2.2 & HDMI 2.0b
Support deep color 24/12/10/8 Bit.
Max bandwidth& baud rate: 600MHz&18.5Gbps
Works with: PS4 /XBox /Apple Tv 4K/pc /Blu-Ray/Etc More
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
2 HDMI inputs switch and split to 4 HDMI displays
Support LPCM/Dolby/DTS 5.1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Splitter Switch 2x4
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

How do I connect the 5 V power adapter and the two HDMI sources so the switcher sends 4K@60 Hz to all four displays?

Plug the included 5 V adapter into the DC jack, connect each source to one of the two HDMI inputs, then run HDMI cables from the four outputs to your displays; the unit will automatically split the selected input to all four outputs at up to 4K@60 Hz.

Will the optical TOSLINK or 3.5 mm audio outputs need any firmware updates or consumable parts over time?

No firmware updates or consumable parts are required; the optical TOSLINK and 3.5 mm jack are passive electrical interfaces that continue working as long as the switcher has power.

At what cable length does 4K@60 Hz HDR signal integrity degrade first on this 18.5 Gbps switcher?

With AWG26 cables the 4K@60 Hz HDR path is specified up to 10 m; beyond that distance the signal is the first limit you will hit under sustained use.
