Black rectangular HDMI switch splitter with IR remote control

ESTONE

ESTONE OZQ12 2x4 HDMI Switch Splitter Audio Extractor 4K@60Hz 18.5Gbps Remote

SKU CH-TWJ6-Y6XNA

Connects two HDMI sources to four displays at 4K@60Hz with 18.5Gbps bandwidth and extracts audio via optical or 3.5mm outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • Specifications2 HDMI inputs switch and split to 4 HDMI displays HDMI resol
  • Input Connector4 x HDMI
  • Switch and split two sources to four displays
  • 4K at 60 Hz with 18.5 Gbps bandwidth
  • HDCP 2.2 and HDMI 2.0b compliant
  • Optical, 3.5 mm and HDMI audio outputs together

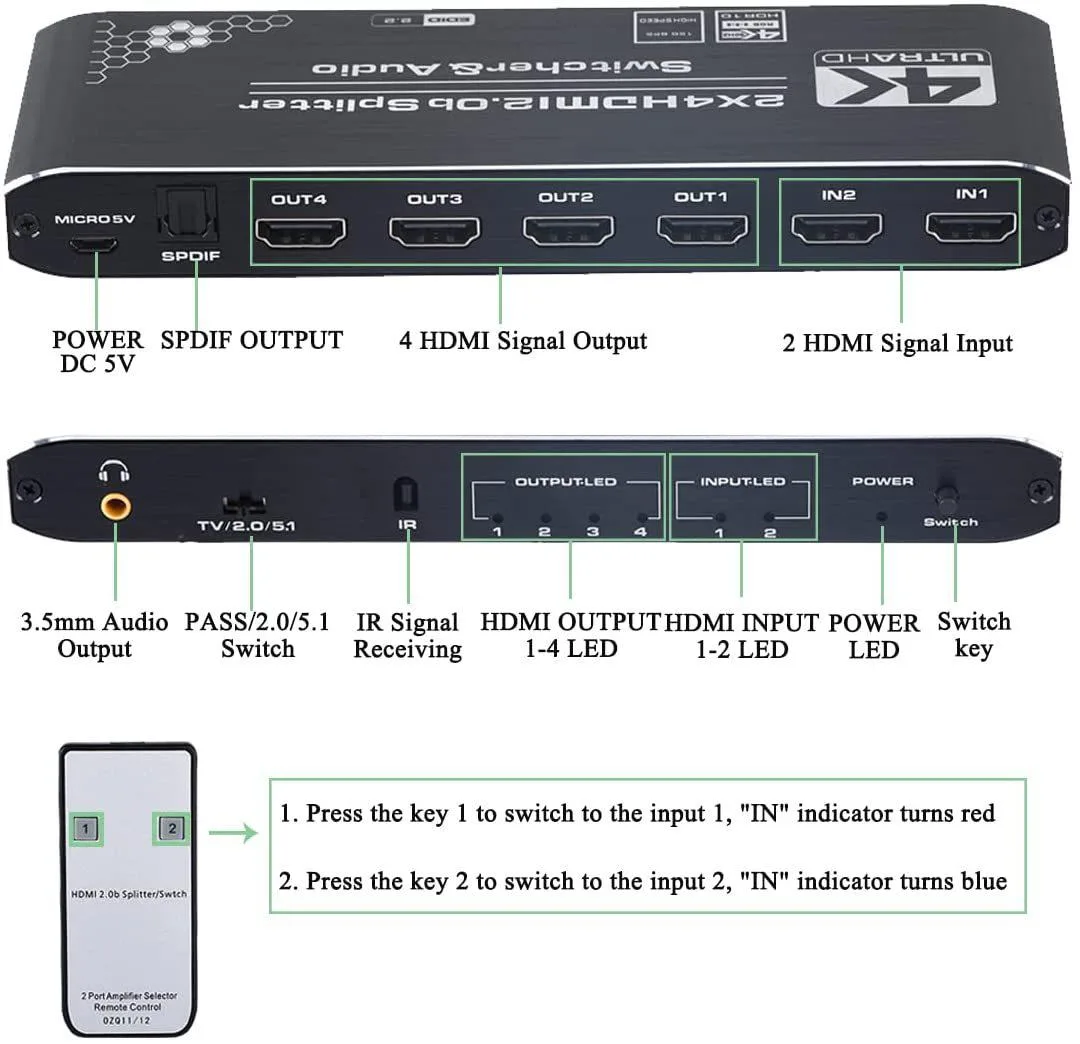

  • IR remote and front button for input selection

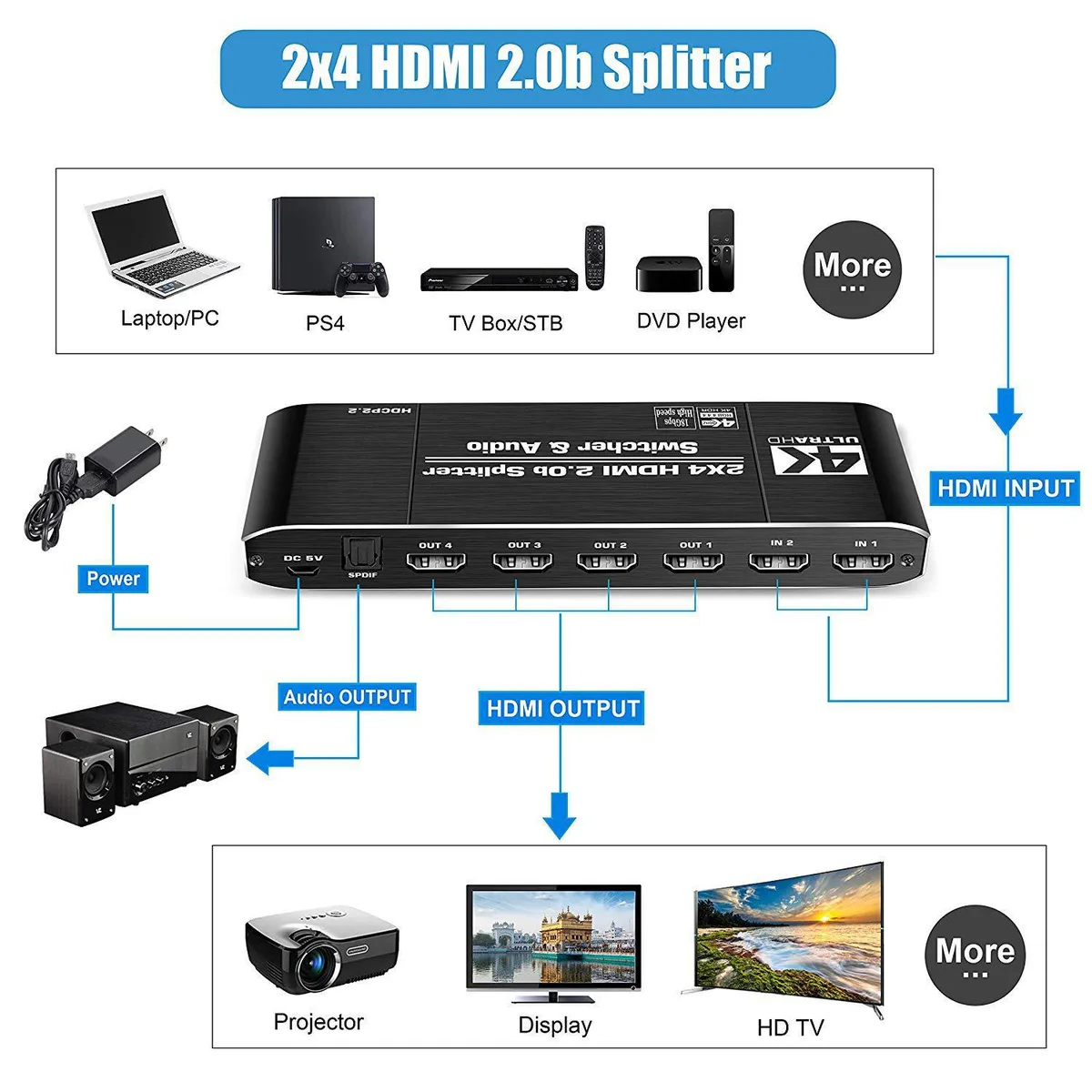

2×4 HDMI Switch Splitter for Multi-Display Setups

The ESTONE OZQ12 connects two HDMI source devices and simultaneously distributes the signal to four displays. It supports 4K@60Hz resolution with YUV 4:4:4 colour sampling and HDR. HDCP 2.2 and HDMI 2.0b compliance ensure compatibility with protected content. An included IR remote and front-panel button provide instant input switching.

18.5 Gbps Bandwidth with Downscaling and Audio

The 18.5 Gbps bandwidth and 600 MHz TMDS clock maintain signal integrity for 4K@60Hz over cable runs up to 10 metres and 1080p up to 20 metres using AWG26 cable. The unit downscales 4K to 1080p per output when needed. Audio is extracted simultaneously via HDMI, 3.5 mm jack and optical TOSLINK, supporting LPCM, Dolby, DTS 5.1, DTS-HD and Dolby TrueHD formats.

Replaces Separate Splitters Switches

This single box replaces a standalone HDMI switch, a 1×4 splitter and a dedicated audio extractor, reducing cable clutter and power outlets. The jump is worth it when you need two sources mirrored across four screens with multi-format audio breakout. It is not for installations requiring independent content on each display or more than two input sources.

Highlights

  • Switch and split two sources to four displays
  • 4K at 60 Hz with 18.5 Gbps bandwidth
  • HDCP 2.2 and HDMI 2.0b compliant
  • Optical, 3.5 mm and HDMI audio outputs together
  • IR remote and front button for input selection

Specifications

BrandESTONE
SeriesOZQ12
ModelOZQ12
Part NumberOZQ12
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
Specifications2 HDMI inputs switch and split to 4 HDMI displays
HDMI resolution:Support 4K@60Hz (YUV 4:4:4) & 4K HDR
In HDMI HDR resolution, 4K@60Hz HDMI Input and Output distance can be up to 10m,1080p can be up to 20m using the AWG26 standard HDMI Cable.
Downscaling output from 4K to 1080p at the same time.
Audio Supports: DTS - HD/Dolby-true HD/DTS/Dolby-AC3/DSD
Support HDCP 2.2 & HDMI 2.0b
Support deep color 24/12/10/8 Bit.
Max bandwidth& baud rate: 600MHz&18.5Gbps
Works with: PS4 /XBox /Apple Tv 4K/pc /Blu-Ray/Etc More
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
2 HDMI inputs switch and split to 4 HDMI displays
Support LPCM/Dolby/DTS 5.1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Splitter Switch 2x4
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

Does the ESTONE OZQ12 generate noticeable heat or fan noise when powered continuously?

The unit is passively cooled with no fan, so it runs silently; its compact metal chassis dissipates heat during all-day operation.

Which cables and power items must I already have to use the 2×4 switch?

You need two HDMI source cables, up to four HDMI display cables, and a nearby mains outlet for the included 5 V adapter.

Will 1080p-only monitors work alongside 4K screens on the four outputs?

Yes, the splitter downscales 4K to 1080p per port, so older 1080p displays show the same picture as 4K ones.
