ESTONE OZQ12 2x4 HDMI Switch Splitter Audio Extractor
Routes two HDMI sources to four displays at 4K 60 Hz with 18.5 Gbps bandwidth and optical plus 3.5 mm audio extraction
- TypeHDMI Switchers
- Changer TypeHDMI Switch/Extender
- ColorBlack
- Ports2
- Specifications2 HDMI inputs switch and split to 4 HDMI displays HDMI resol
- Input Connector4 x HDMI

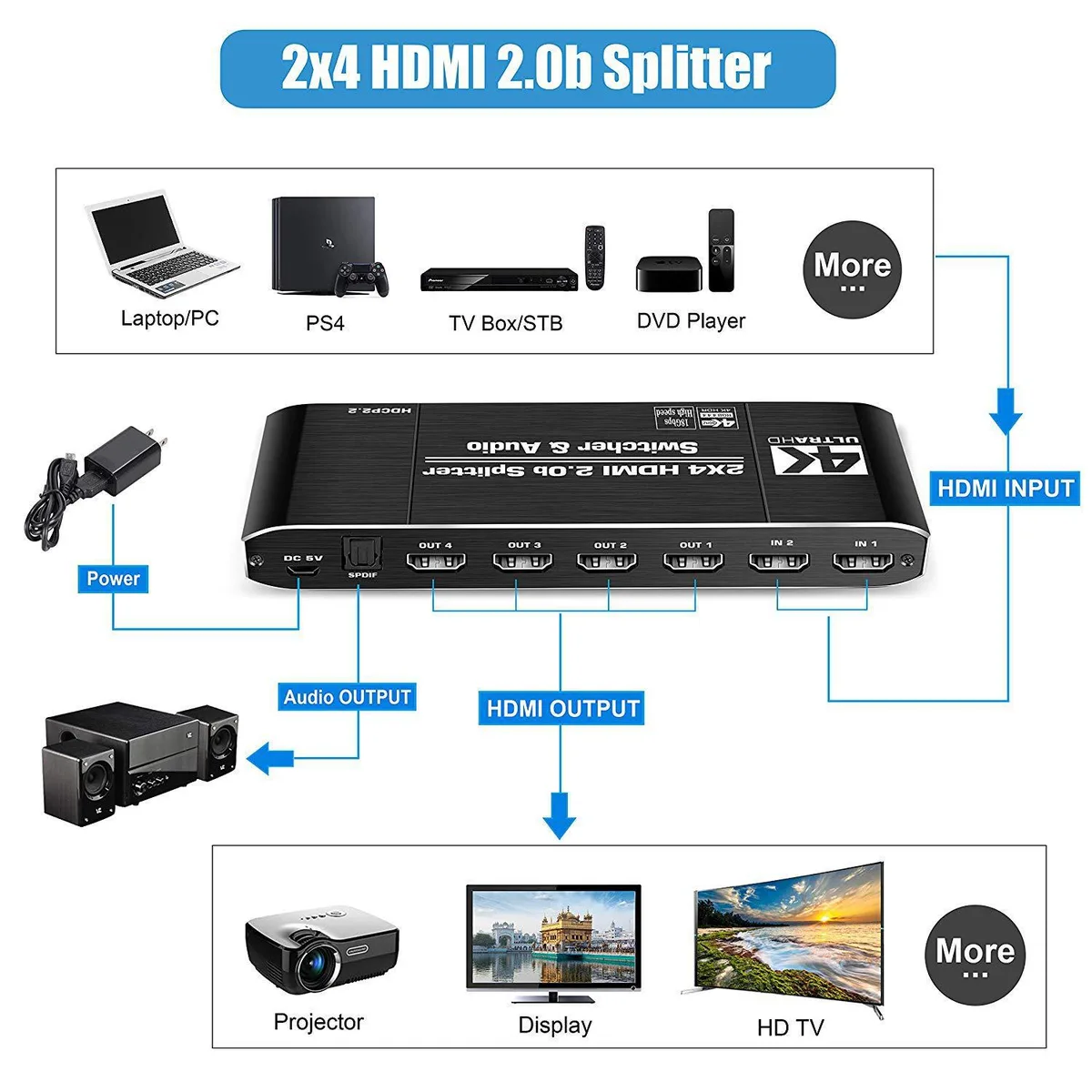

- Routes 2 HDMI sources to 4 displays simultaneously
- Delivers 4K at 60 Hz with HDR and 4:4:4 colour
- Extracts audio to optical Toslink and 3.5 mm jack

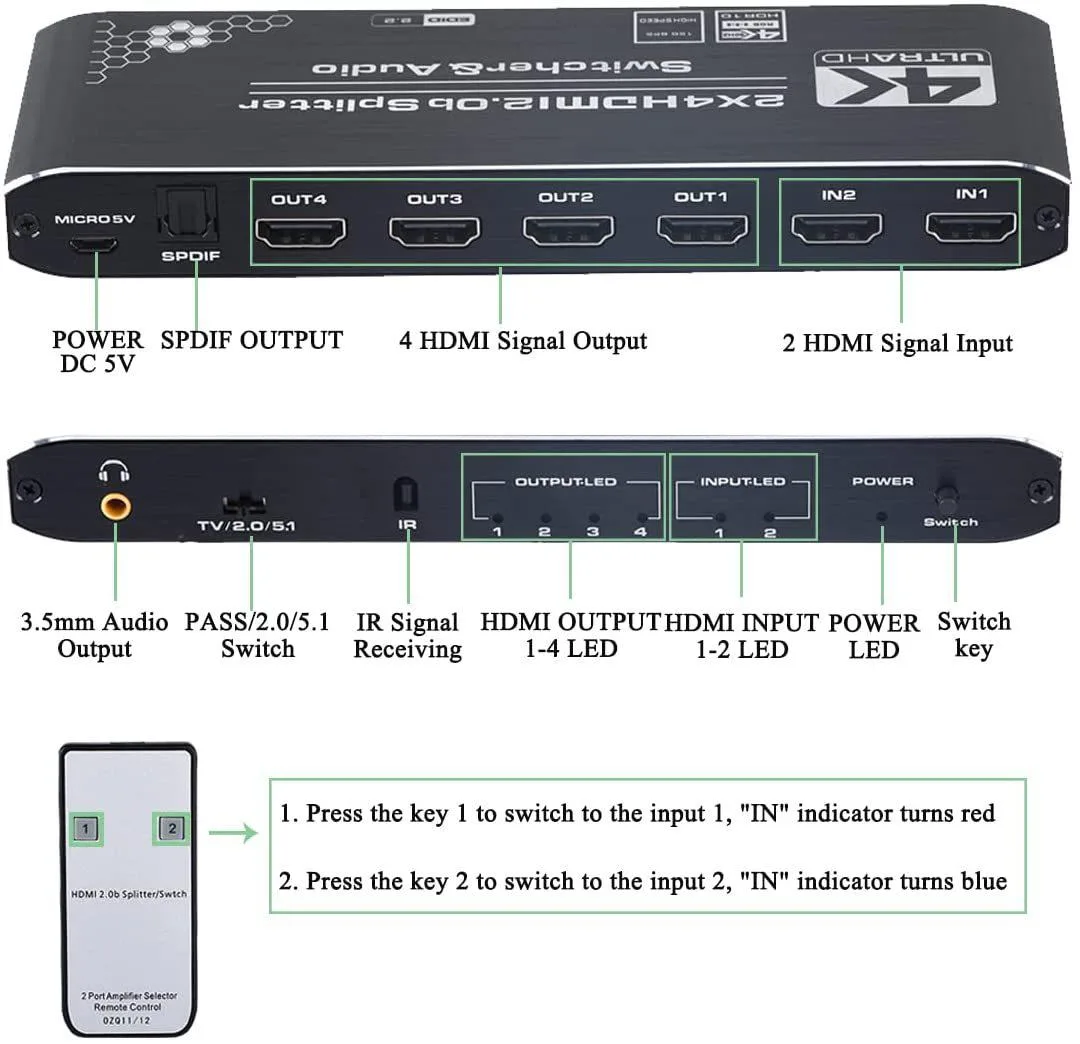

- IR remote and front button for instant input switching
- Supports 18.5 Gbps bandwidth and HDCP 2.2 compliance

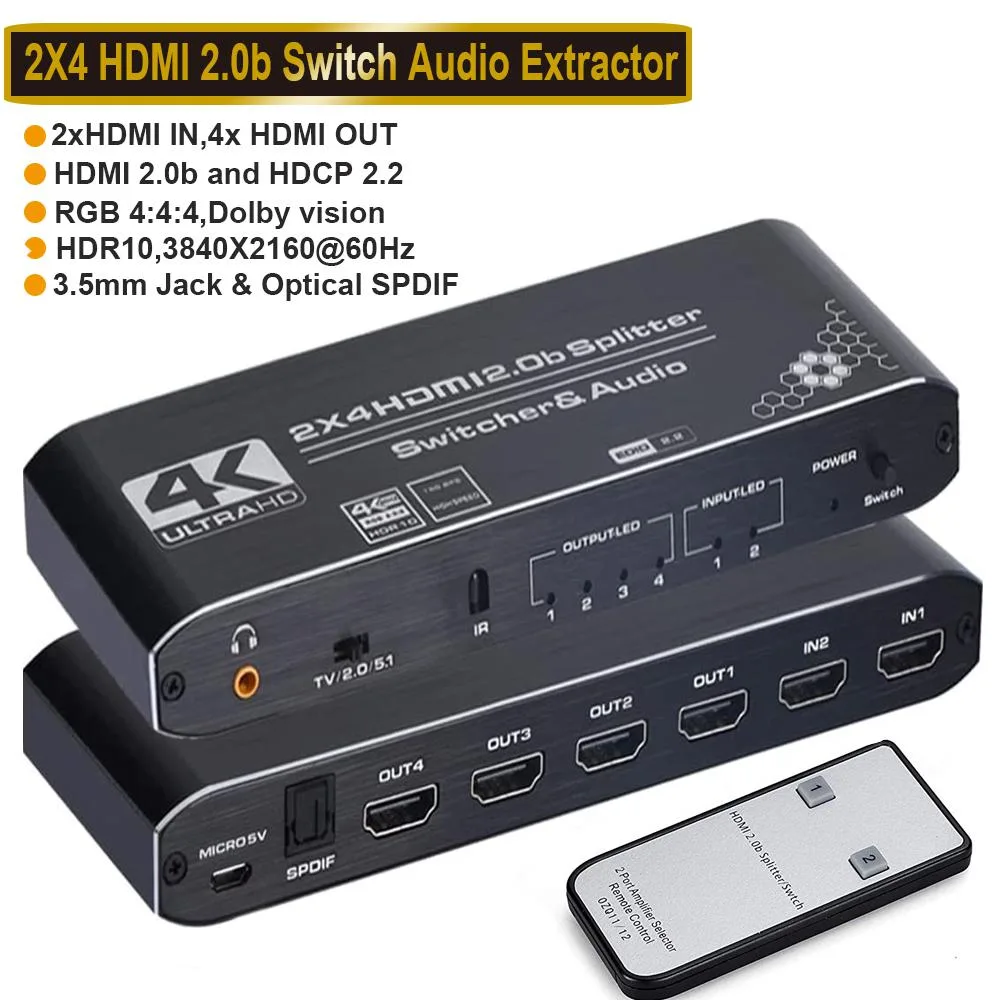

2x4 HDMI Switch with Audio Extraction
This ESTONE OZQ12 unit routes two HDMI sources to four identical displays at up to 4K@60Hz with HDR. It simultaneously extracts audio through HDMI, 3.5 mm and optical Toslink outputs. The box supports HDCP 2.2, 18.5Gbps bandwidth and deep colour up to 48-bit for home-theatre or commercial installations.
Verify sources displays and cables
Confirm both source devices output HDMI 2.0b signals and that all four target displays accept 3840x2160 at 60Hz. Use AWG26 cables no longer than 10m for 4K HDR or 20m for 1080p to maintain signal integrity. Ensure a 5V power outlet is available for the included adapter and check whether your audio system needs LPCM 5.1 or bitstream Dolby/DTS formats.
Replaces separate switch splitter and extractor
A single box removes the need for a standalone HDMI matrix plus a separate audio de-embedder, saving space and one power socket. The jump is worthwhile when you must show the same 4K@60Hz image on four screens while feeding an AV receiver or soundbar via optical or 3.5 mm. If you only need one display or independent source selection per screen, this device does not fit.
Highlights
- Routes 2 HDMI sources to 4 displays simultaneously
- Delivers 4K at 60 Hz with HDR and 4:4:4 colour
- Extracts audio to optical Toslink and 3.5 mm jack
- IR remote and front button for instant input switching
- Supports 18.5 Gbps bandwidth and HDCP 2.2 compliance
Specifications
| Brand | ESTONE |
|---|---|
| Series | OZQ12 |
| Model | OZQ12 |
| Part Number | OZQ12 |
| Type | HDMI Switchers |
| Changer Type | HDMI Switch/Extender |
| Color | Black |
| Ports | 2 |
| Specifications | 2 HDMI inputs switch and split to 4 HDMI displays HDMI resolution:Support 4K@60Hz (YUV 4:4:4) & 4K HDR In HDMI HDR resolution, 4K@60Hz HDMI Input and Output distance can be up to 10m,1080p can be up to 20m using the AWG26 standard HDMI Cable. Downscaling output from 4K to 1080p at the same time. Audio Supports: DTS - HD/Dolby-true HD/DTS/Dolby-AC3/DSD Support HDCP 2.2 & HDMI 2.0b Support deep color 24/12/10/8 Bit. Max bandwidth& baud rate: 600MHz&18.5Gbps Works with: PS4 /XBox /Apple Tv 4K/pc /Blu-Ray/Etc More |
| Input Connector | 4 x HDMI |
| Output Connector | 1 x HDMI |
| Maximum Resolutions | 4K@60Hz |
| Bandwidth | 18.5Gbps/600MHZ |
| Features | Support HDMI 2.0b HDCP 2.2 Support 3D video format Support highest resolution up to 3840*2160/60Hz Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz Support deep color 8/10/12/24/32/48bit Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4 2 HDMI inputs switch and split to 4 HDMI displays Support LPCM/Dolby/DTS 5.1 audio |
| Dimensions | 5.91 x 2.36 x 0.79 inches |
| Weight | 11.9 ounces |
| Package Quantity | 1 |
| Package Contents | 1x HDMI Splitter Switch 2x4 1x 5V power adapter 1x IR Remote Control 1x User Manual |
Questions about this item
What cables and accessories are included with the ESTONE OZQ12, and what must I provide?
The box contains the 2x4 HDMI switch splitter, a 5 V power adapter, an IR remote control and a user manual. You need to supply HDMI cables for the two sources and four displays, plus any optical or 3.5 mm audio cables for extracted sound.
Which version of the OZQ12 should I choose for 4K HDR at 60 Hz with full 4:4:4 colour?
The single model OZQ12 supports 4K at 60 Hz, HDR, RGB 4:4:4, 18.5 Gbps bandwidth and HDCP 2.2, so it meets that requirement without any alternative version to select.
How far can I run HDMI cables at 4K 60 Hz HDR and at 1080p with this splitter?
At 4K 60 Hz HDR the input and output runs can reach 10 m using AWG26 cable; at 1080p the distance extends to 20 m with the same cable standard.
