ESTONE
ESTONE OZQ11 2x2 HDMI Switch Splitter 4K 60Hz Audio Out
A 2×2 HDMI matrix routes two sources to two 4K 60 Hz displays with downscaling, optical and 3.5 mm audio extraction, and IR remote control
- TypeHDMI Switchers
- Changer TypeHDMI Switch/Extender
- ColorBlack
- Ports2
- Input Connector2 x HDMI
- Output Connector2 x HDMI
- Routes two HDMI sources to two displays at 4K 60 Hz
- Extracts audio via 3.5 mm jack and optical output
- Downscaling lets one screen show 4K and the other 1080p
- IR remote and front button give instant source switching
- HDMI 2.0b and HDCP 2.2 compliant for protected 4K content

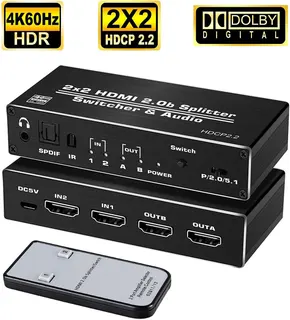

2x2 HDMI matrix switch

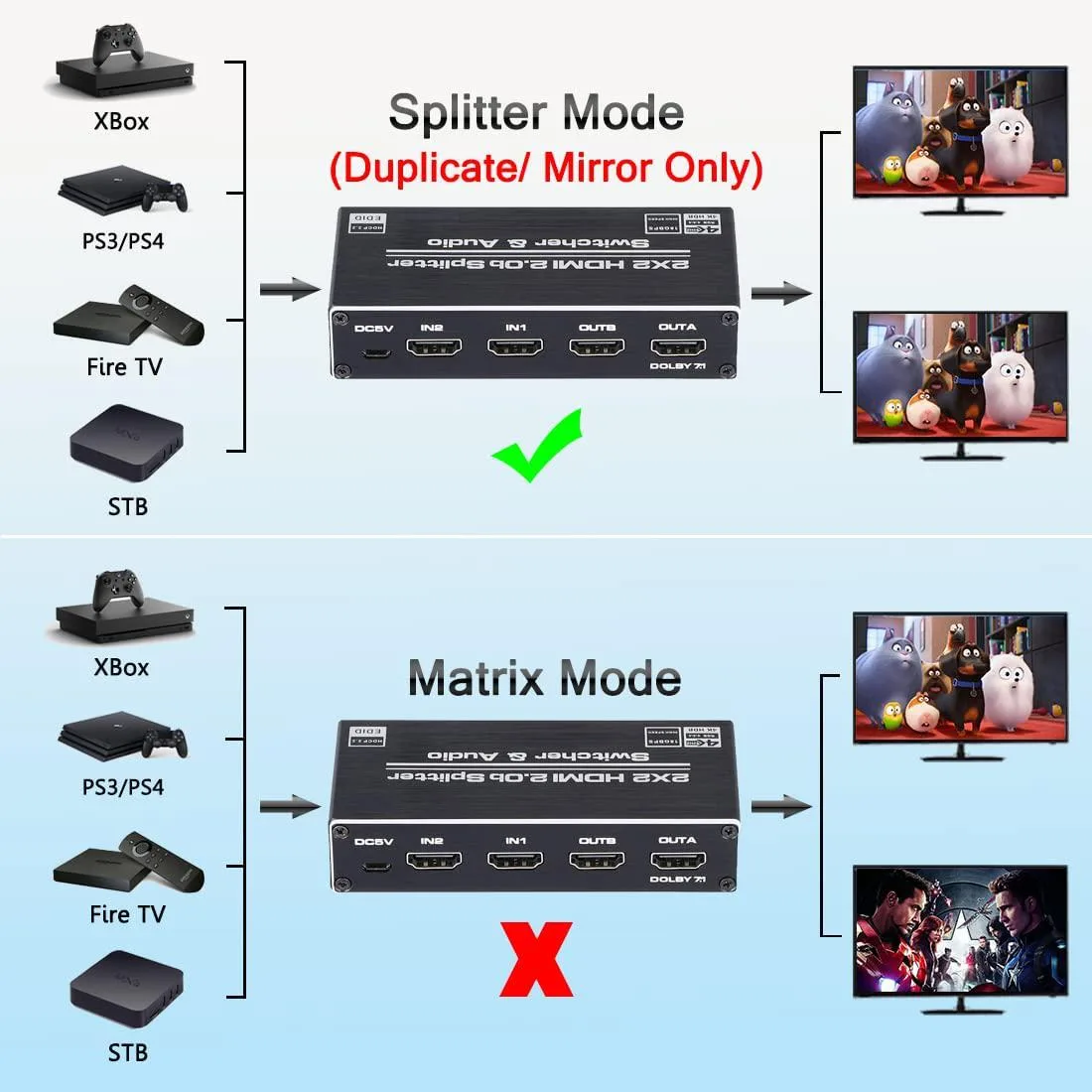

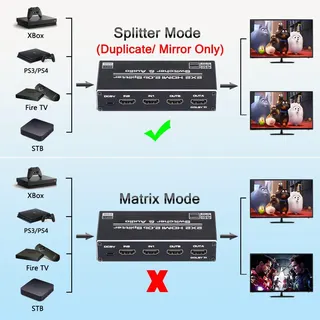

The ESTONE OZQ11 routes video and audio from two HDMI sources to two displays at the same time. It handles 4K at 60 Hz with 18.5 Gbps bandwidth and HDCP 2.2 compliance. An IR remote and front-panel button let you change sources instantly.
Audio extraction and downscaling

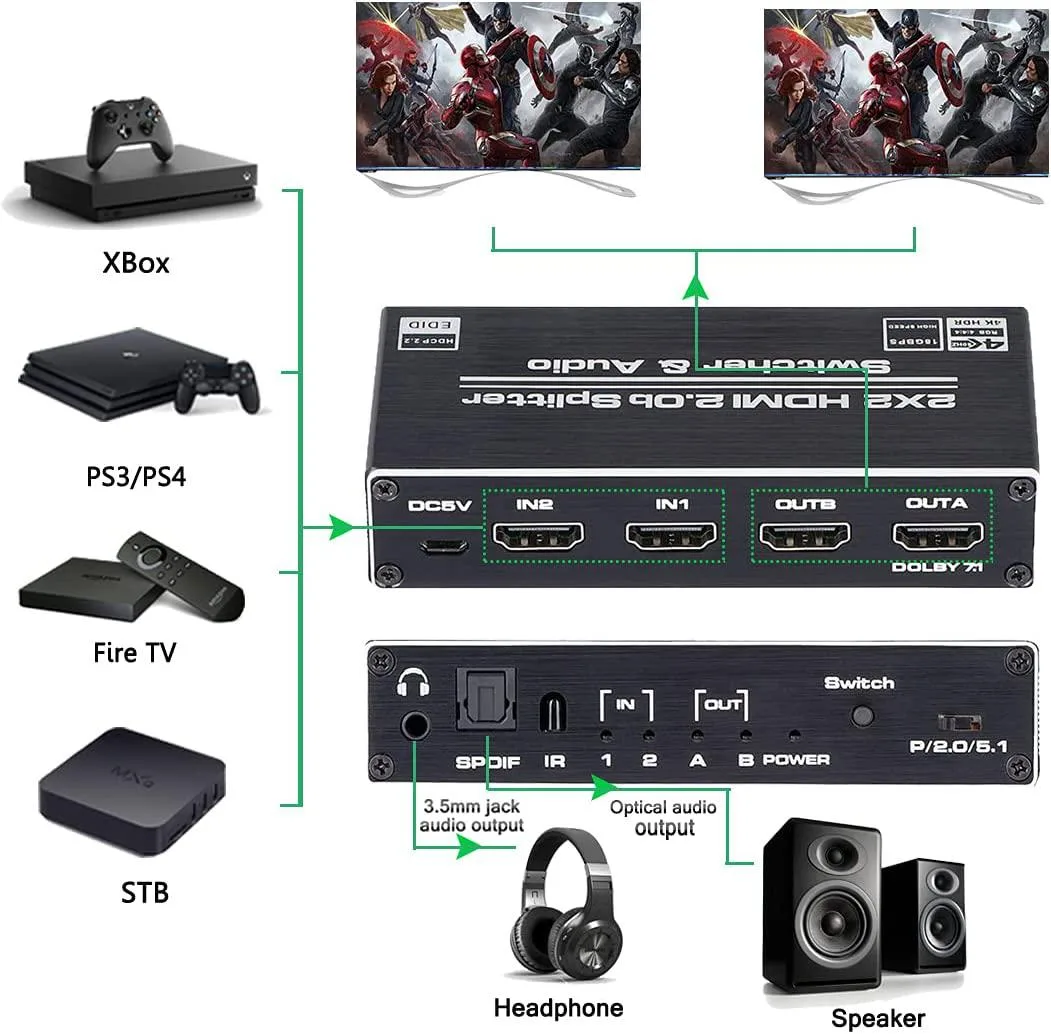

A 3.5 mm jack and optical output pull multichannel formats such as DTS-HD and Dolby TrueHD away from the HDMI path. The downscaling engine can send 4K to one screen and 1080p to the other without reconfiguring sources. The unit also amplifies the signal for cable runs up to 10 metres at 4K or 20 metres at 1080p.
Dual-display installers and separate audio zones
Installers who need mirrored or independent 4K outputs with extracted audio for a soundbar or headphones will find the connections they need. Users who require more than two inputs, more than two outputs, or DTS 7.1 pass-through should look at a larger matrix.
Highlights
- Routes two HDMI sources to two displays at 4K 60 Hz
- Extracts audio via 3.5 mm jack and optical output
- Downscaling lets one screen show 4K and the other 1080p
- IR remote and front button give instant source switching
- HDMI 2.0b and HDCP 2.2 compliant for protected 4K content
Specifications
| Brand | ESTONE |
|---|---|
| Series | OZQ11 |
| Model | OZQ11 |
| Part Number | OZQ11 |
| Type | HDMI Switchers |
| Changer Type | HDMI Switch/Extender |
| Color | Black |
| Ports | 2 |
| Input Connector | 2 x HDMI |
| Output Connector | 2 x HDMI |
| Maximum Resolutions | 4K@60Hz |
| Bandwidth | 18.5Gbps/600MHZ |
| Features | Downscaling ( can output 4K and 1080p at the same time ) Support HDMI 2.0 / HDCP 2.2 Support 3D video format Support highest resolution up to 3840 x 2160/ 60HZ YUV 4: 4: 4 Support 3.5mm earphone jack and optical audio output Support 18Gbps data rate and Tmds clock up to 600MHz Support video format: 8 / 10 / 12 bit deep color Support audio format: DTS-HD/ Dolby-true HD / DTS / Doiby-AC3 / DSD Transmission long distance, 4K / 60Hz up to 10meters, 1080p up to 20meters |
| Dimensions | 5.91 x 2.36 x 0.79 inches |
| Weight | 11.9 ounces |
| Package Quantity | 1 |
| Package Contents | 1 x HDMI Switch Splitter 2 in 2 out 1 x IR Remote Control 1 x 5V / 1A Power adapter 1 x User Manual |
Questions about this item
Does the 5V 1A power adapter or the IR remote control need periodic replacement?
The IR remote uses a standard button cell that may need changing after extended use; the 5V 1A power adapter is solid-state and has no scheduled replacement interval.
What bandwidth limit appears first when running 4K 60Hz signals continuously through both HDMI outputs?
The 18.5 Gbps bandwidth ceiling and 600 MHz TMDS clock are the first limits reached when both outputs carry 4K 60Hz YUV 4:4:4 streams.
How much heat does the unit generate and is there any fan noise during all-day operation?
The metal enclosure passively dissipates heat from the 5W power draw; there is no fan, so operation is completely silent.
