Black rectangular HDMI switch with front buttons and rear ports

ESTONE

ESTONE OZQ11 2x2 HDMI Switch Splitter 4K 60Hz Audio Extractor

SKU CH-PXGJ-V2EHX

Routes two HDMI sources to two displays at 4K 60 Hz and 1080p 120 Hz with optical and 3.5 mm audio extraction and downscaling

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • Input Connector2 x HDMI
  • Output Connector2 x HDMI
  • Route two sources to two displays with 4K 60 Hz clarity
  • Extract audio via optical or 3.5 mm jack for external sound systems
  • Downscale independently so one screen shows 4K while the other shows 1080p
  • Switch instantly by IR remote or front button with no signal loss
  • Transmit 4K 60 Hz up to 10 metres and 1080p up to 20 metres

2x2 HDMI Matrix with Audio Extraction

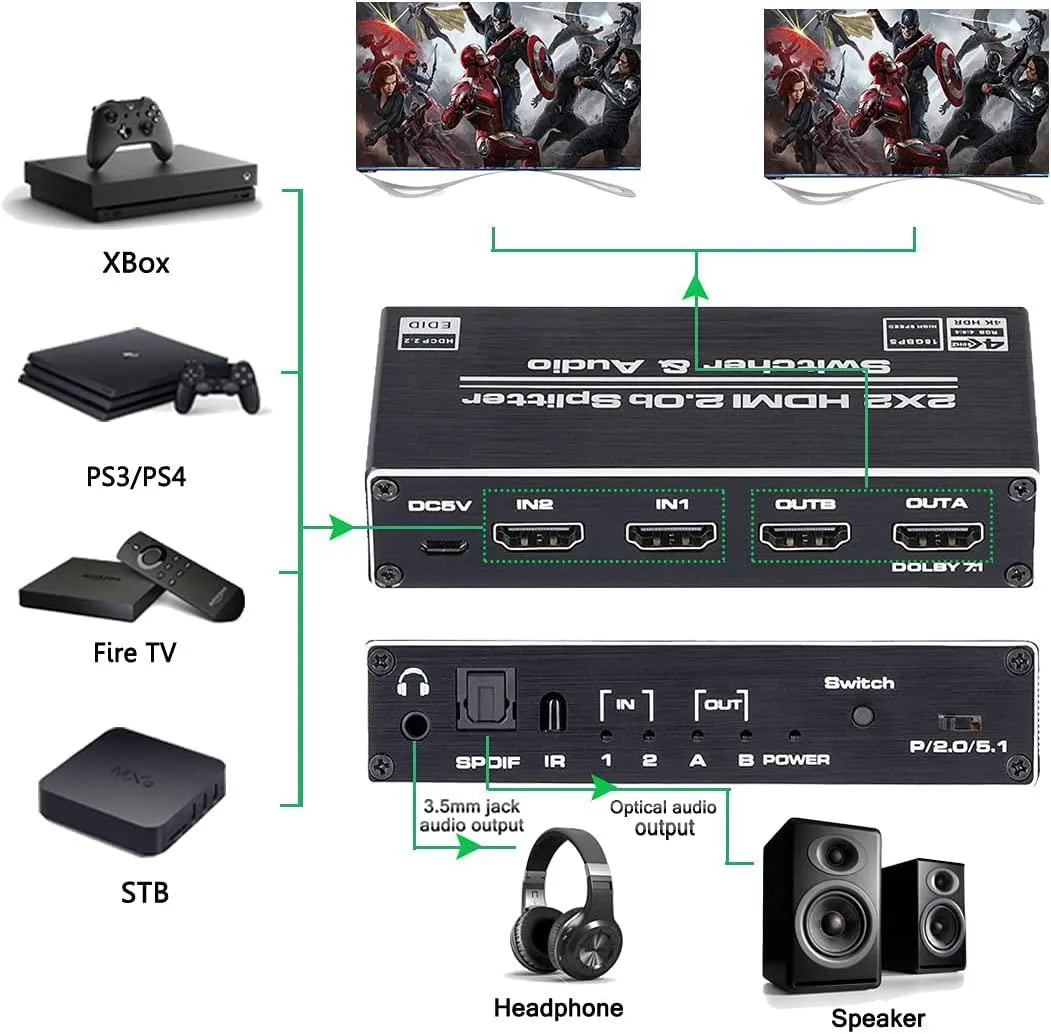

The ESTONE OZQ11 routes two HDMI sources to two displays simultaneously or independently. It supports 4K at 60 Hz and 1080p at 120 Hz with 18.5 Gbps bandwidth. Downscaling lets one output show 4K while the other shows 1080p. Optical and 3.5 mm ports extract audio for external speakers or headphones.

HDMI 2.0b and HDCP 2.2 ceiling

The 600 MHz TMDS clock caps video at 4K 60 Hz 4:4:4 12-bit. HDR10 passes through but higher refresh rates at 4K are not possible. Audio formats stop at 5.1 channels; 7.1 DTS is not supported. Cable runs reach 10 metres at 4K 60 Hz and 20 metres at 1080p before signal quality drops.

Replaces basic splitters and switchers

A simple 1x2 splitter cannot select between sources or send different resolutions to each screen. A 2x1 switch cannot drive two displays at once. This matrix adds audio extraction and downscaling in one box. The jump is worth it when you need independent source selection, mixed-resolution outputs, or separate audio paths without extra converters.

Highlights

  • Route two sources to two displays with 4K 60 Hz clarity
  • Extract audio via optical or 3.5 mm jack for external sound systems
  • Downscale independently so one screen shows 4K while the other shows 1080p
  • Switch instantly by IR remote or front button with no signal loss
  • Transmit 4K 60 Hz up to 10 metres and 1080p up to 20 metres

Specifications

BrandESTONE
SeriesOZQ11
ModelOZQ11
Part NumberOZQ11
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
Input Connector2 x HDMI
Output Connector2 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesDownscaling ( can output 4K and 1080p at the same time )
Support HDMI 2.0 / HDCP 2.2
Support 3D video format
Support highest resolution up to 3840 x 2160/ 60HZ YUV 4: 4: 4
Support 3.5mm earphone jack and optical audio output
Support 18Gbps data rate and Tmds clock up to 600MHz
Support video format: 8 / 10 / 12 bit deep color
Support audio format: DTS-HD/ Dolby-true HD / DTS / Doiby-AC3 / DSD
Transmission long distance, 4K / 60Hz up to 10meters, 1080p up to 20meters
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1 x HDMI Switch Splitter 2 in 2 out
1 x IR Remote Control
1 x 5V / 1A Power adapter
1 x User Manual

Questions about this item

Should I pick the 2x2 model or a different port layout for my two sources and two displays?

The OZQ11 is a fixed 2x2 matrix with two HDMI inputs and two HDMI outputs, so it matches a two-source, two-display setup exactly.

What does the 18.5 Gbps bandwidth mean when I connect a 4K 60 Hz source?

It carries the full 4K 60 Hz 4:4:4 signal without compression, and also handles 1080p 120 Hz for high-refresh gaming.

How does the HDMI 2.0b and HDCP 2.2 spec limit what I can play?

It supports 4K 60 Hz HDR and protected 4K streams, but caps at 18 Gbps so 4K 120 Hz or 8K signals will not pass.
