Black rectangular HDMI 2x2 switch with front ports and IR remote

ESTONE

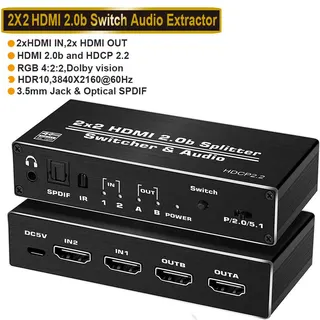

ESTONE OZQ11 2x2 HDMI 2.0 Switch Audio Extractor 4K@60Hz

SKU CH-B6QM-0BT4V

A 2×2 HDMI 2.0 matrix routes two sources to two displays at 4K 60 Hz with simultaneous 3.5 mm and optical audio extraction

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • Input Connector2 x HDMI
  • Output Connector2 x HDMI
  • Routes two HDMI sources to two displays simultaneously
  • Downscaling lets one screen show 4K while another shows 1080p
  • Optical and 3.5 mm audio outputs extract multi-channel sound
  • HDMI 2.0b and HDCP 2.2 compliant for protected 4K@60Hz content
  • IR remote and front button give instant source switching

2x2 HDMI 2.0 Matrix Switch

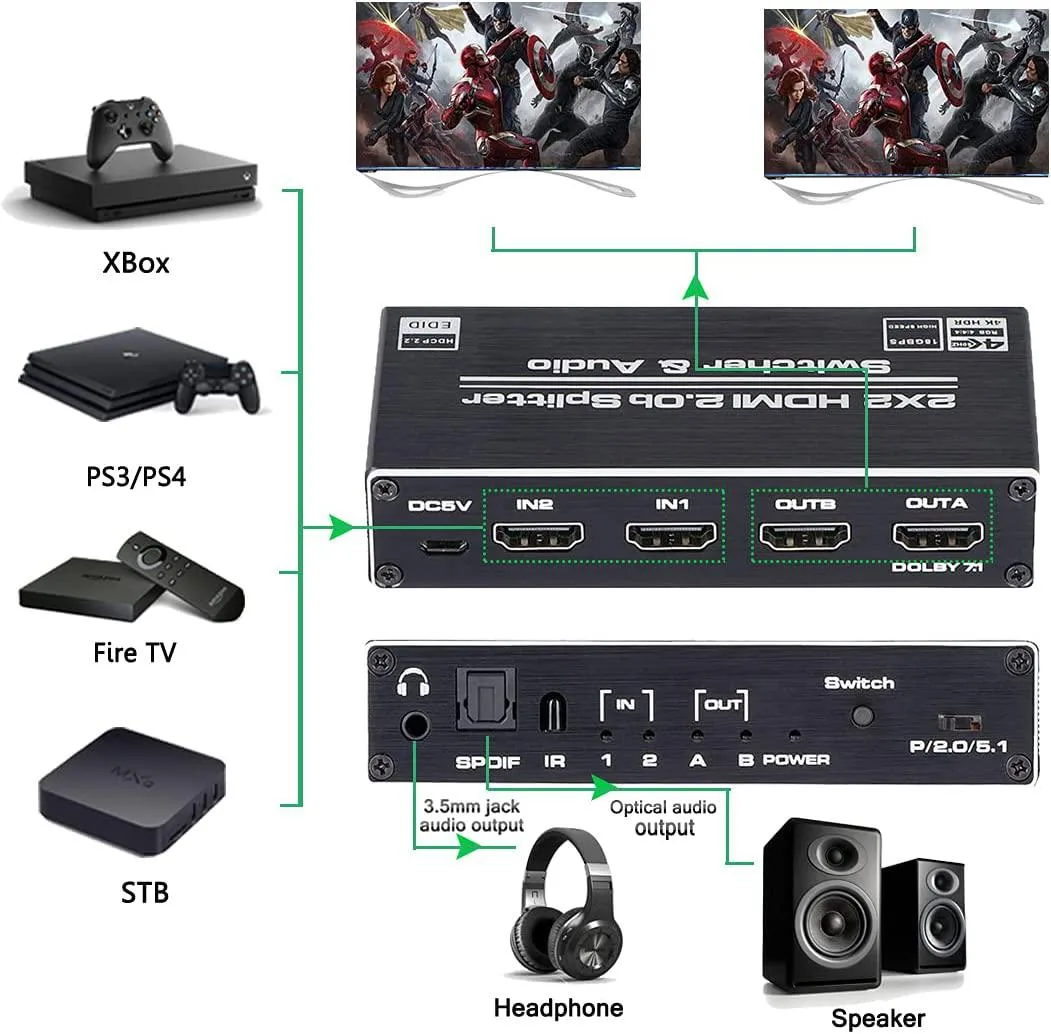

The ESTONE OZQ11 routes video and audio from two HDMI sources to two HDMI displays simultaneously. It supports 4K resolution at 60 Hz with 18.5 Gbps bandwidth and HDCP 2.2 compliance. An included IR remote and front-panel button provide instant source selection. The unit also extracts audio through 3.5 mm and optical outputs for external sound systems.

Upgrade from basic splitters

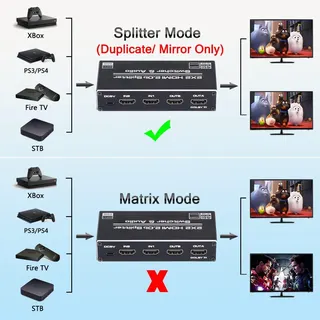

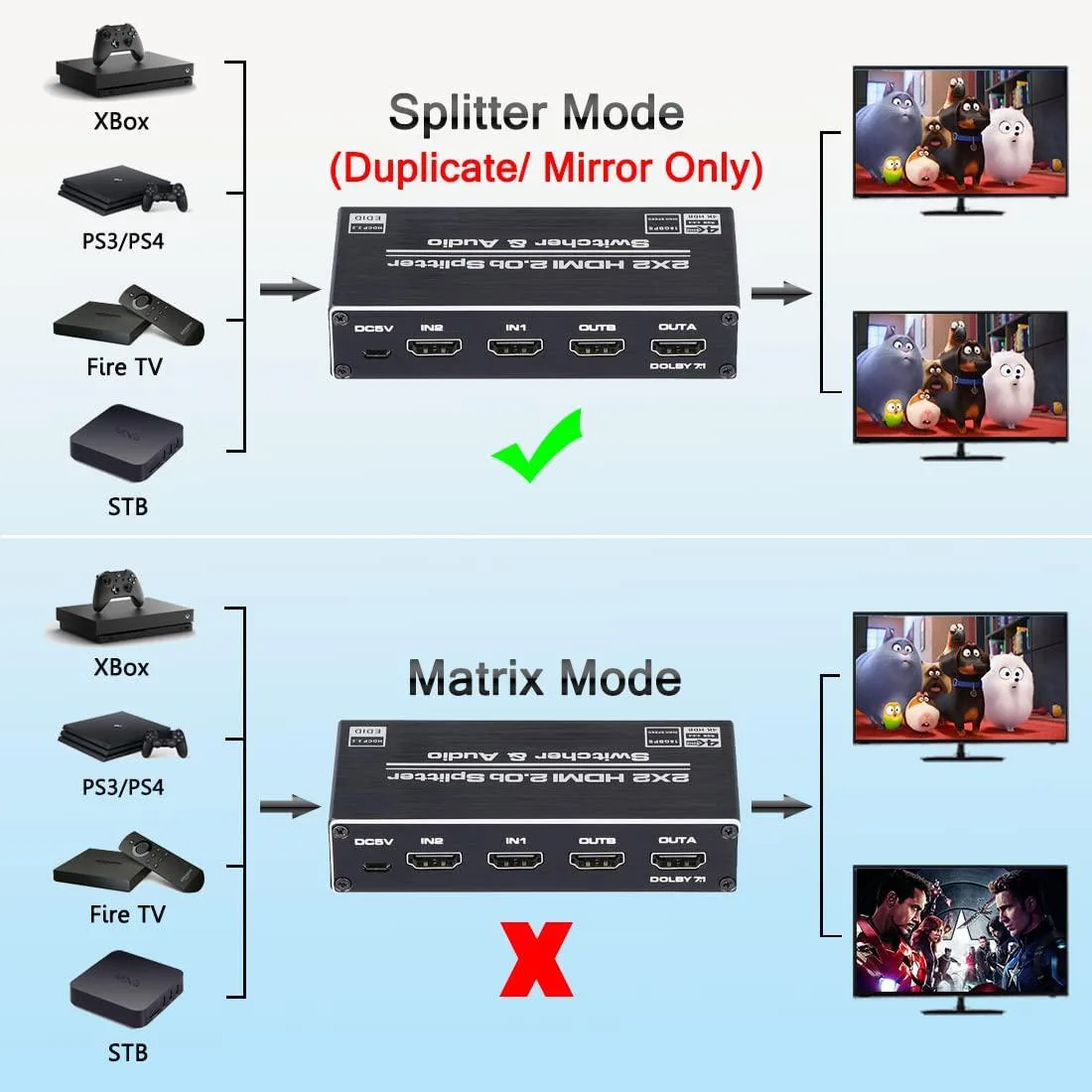

Unlike simple 1x2 splitters that only mirror one source, this matrix lets each display show a different input or both show the same source. The downscaling feature outputs 4K and 1080p simultaneously, so mixed-resolution screens work without manual reconfiguration. Signal amplification extends 4K transmission to 10 metres and 1080p to 20 metres without quality loss.

Installers needing two-zone distribution

Home-theatre and light-commercial setups that require independent source routing to two zones will benefit from the matrix switching and audio extraction. Buyers who need more than two inputs or two outputs, or who require DTS 7.1 pass-through, should consider a larger matrix or a dedicated AV receiver instead.

Highlights

  • Routes two HDMI sources to two displays simultaneously
  • Downscaling lets one screen show 4K while another shows 1080p
  • Optical and 3.5 mm audio outputs extract multi-channel sound
  • HDMI 2.0b and HDCP 2.2 compliant for protected 4K@60Hz content
  • IR remote and front button give instant source switching

Specifications

BrandESTONE
SeriesOZQ11
ModelOZQ11
Part NumberOZQ11
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
Input Connector2 x HDMI
Output Connector2 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesDownscaling ( can output 4K and 1080p at the same time )
Support HDMI 2.0 / HDCP 2.2
Support 3D video format
Support highest resolution up to 3840 x 2160/ 60HZ YUV 4: 4: 4
Support 3.5mm earphone jack and optical audio output
Support 18Gbps data rate and Tmds clock up to 600MHz
Support video format: 8 / 10 / 12 bit deep color
Support audio format: DTS-HD/ Dolby-true HD / DTS / Doiby-AC3 / DSD
Transmission long distance, 4K / 60Hz up to 10meters, 1080p up to 20meters
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1 x HDMI Switch Splitter 2 in 2 out
1 x IR Remote Control
1 x 5V / 1A Power adapter
1 x User Manual

Questions about this item

How much desk space does the 5.91 x 2.36 x 0.79 inch unit need?

The switch measures 5.91 inches wide, 2.36 inches deep and 0.79 inches high, so it fits on a small shelf or behind a display without blocking other ports.

Which button do I press to change sources without the IR remote?

Press the front-panel button once to cycle through the two HDMI inputs; a common mistake is holding it down, which does nothing.

When should I replace the 5V 1A power adapter?

Replace the adapter if the unit loses signal, the LEDs flicker, or the audio extractor stops outputting sound, as the switch requires constant 5 V 1 A to operate.
