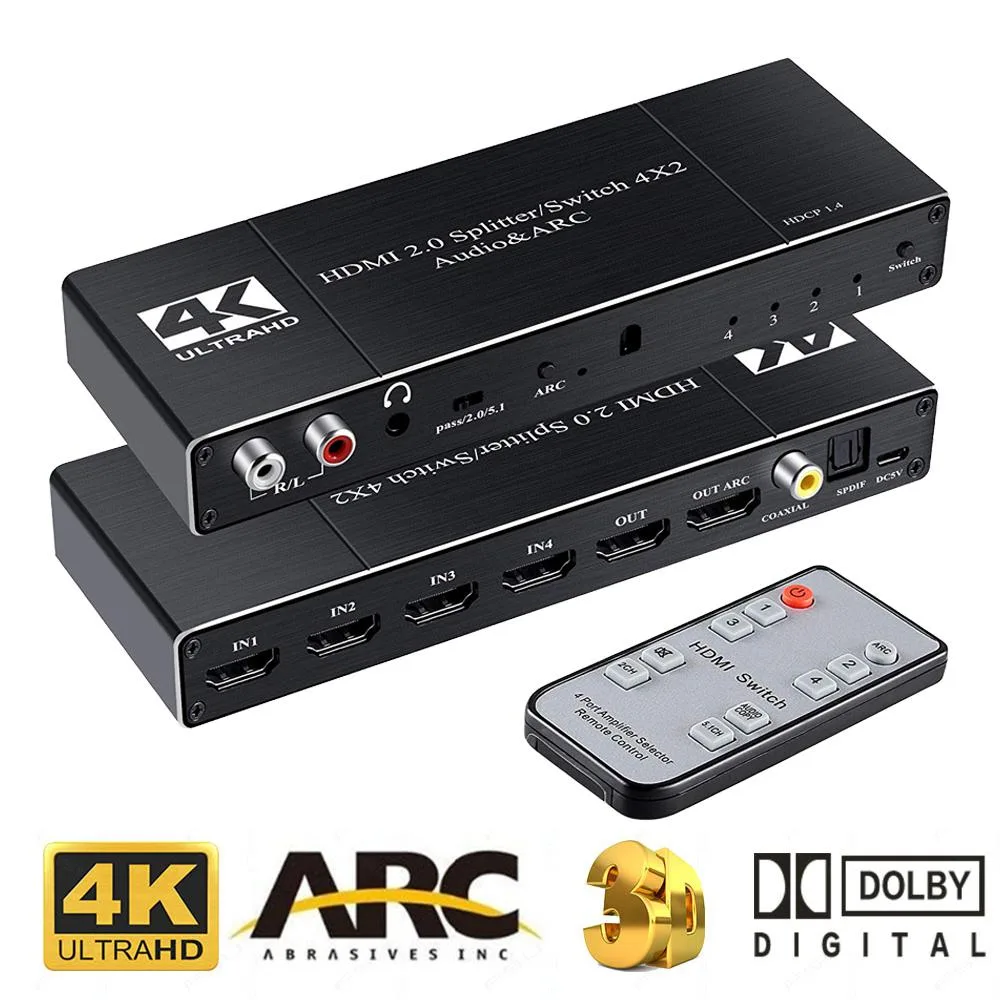

Black rectangular HDMI switch box with multiple ports on front and back, IR remote beside it

ESTONE

ESTONE OZQ10 4x2 HDMI Switch with Audio Extraction

SKU CH-C1AY-9ZBWX

Routes four HDMI sources to two displays at 4K 60 Hz and extracts audio to 3.5 mm, coaxial or optical outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • SpecificationsProduct Type: HDMI Switch Splitter 4x2. Interface Type: 4 HD
  • Input Connector4 x HDMI
  • Connect 4 sources to 2 displays with 4K@60Hz switching
  • Extract audio to coaxial, SPDIF and 3.5mm jack simultaneously
  • Supports HDR, Dolby and HDCP 2.2 pass-through
  • IR remote included for convenient input selection
  • Compact 5.91 x 2.36 x .79 inch metal enclosure

4x2 HDMI switch with audio extraction

The ESTONE OZQ10 routes four HDMI sources to two displays and simultaneously extracts sound to coaxial, SPDIF and 3.5mm outputs. It handles 4K at 60Hz and 1080P at 120Hz with HDCP 2.2 and HDR support. An IR remote switches inputs without leaving the sofa. Installers who need matrix routing to more than two screens should look elsewhere.

Sustained 4K 60Hz operation

The 6Gbps bandwidth and 340MHz clock keep a stable 4K 60Hz signal across both outputs during long sessions. Active cooling is not required; the aluminium chassis dissipates heat from the DC5V 2A supply. Users who rely on 8K or higher refresh rates at 4K will find the bandwidth ceiling restrictive.

Upgrade from basic 4x1 switch

This unit replaces a simple 4x1 switch when a second display or projector must show the same or a different source. The dedicated audio ports feed an amplifier or soundbar without needing the TV speakers or ARC handshake. Buyers who only ever connect one screen gain no advantage over a cheaper 4x1 model.

Highlights

  • Connect 4 sources to 2 displays with 4K@60Hz switching
  • Extract audio to coaxial, SPDIF and 3.5mm jack simultaneously
  • Supports HDR, Dolby and HDCP 2.2 pass-through
  • IR remote included for convenient input selection
  • Compact 5.91 x 2.36 x .79 inch metal enclosure

Specifications

BrandESTONE
SeriesOZQ10
ModelOZQ10
Part NumberOZQ10
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
SpecificationsProduct Type: HDMI Switch Splitter 4x2.
Interface Type: 4 HDMI in, 2 HDMI out.
Power adapter format: Input: AC ( 50HZ, 60HZ ) 100V-240V; Output: DC5V/2A.

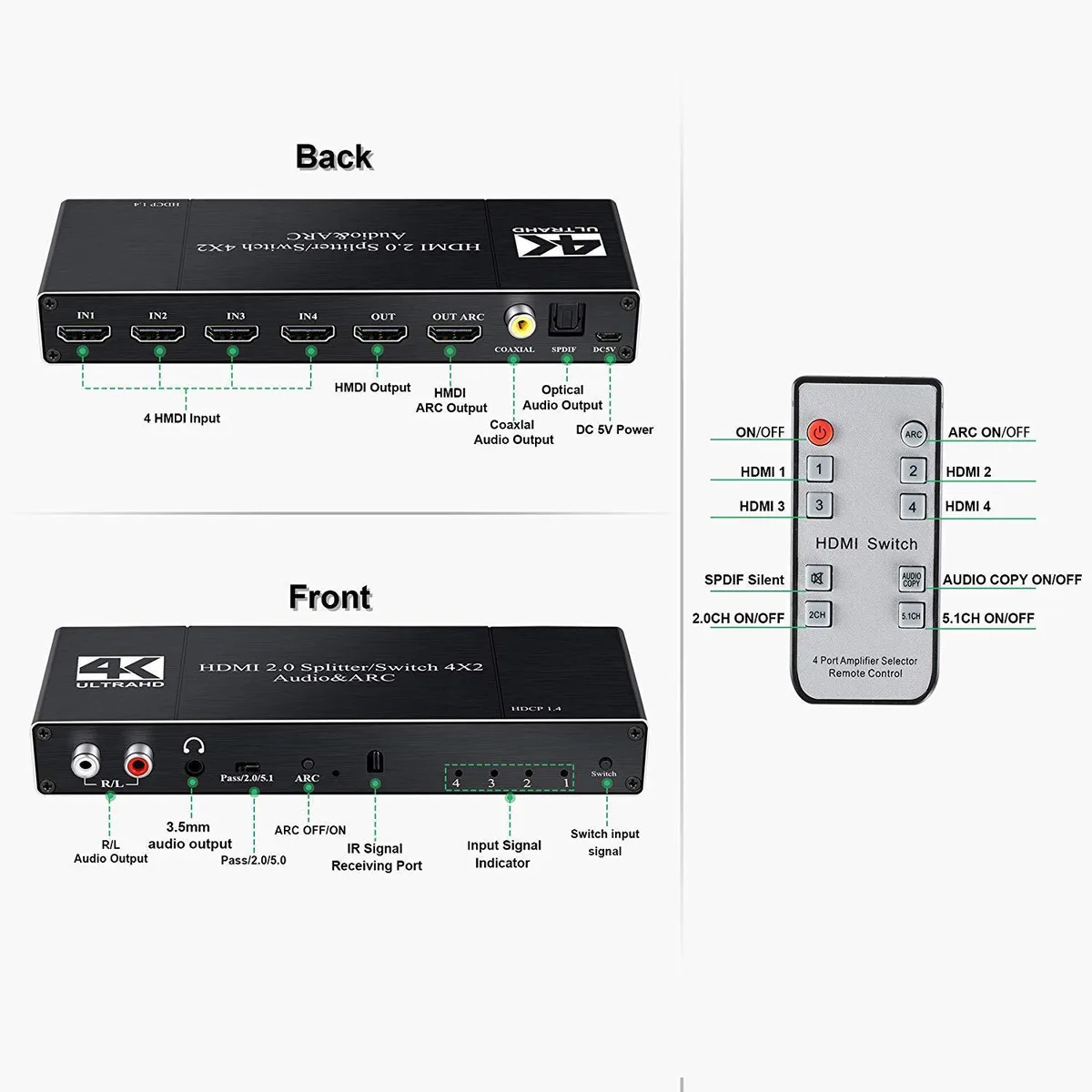

Audio Output Port: 3.5mm Audio Port, Coaxial Audio Port, Toslink SPDIF Port.
Input Connector4 x HDMI
Output Connector2 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth6Gbps/340MHZ
FeaturesHDMI Switch 4x2: The 4x2 HDMI 2.0 switch splitter can connect 4 hdmi input signal sources to 2 hdmi output display terminals. It can easily Switch the 4 HDMI input signals to 2 HDMI output siganl. (Please Note: Two HDMI Output are the same Siganl.)
High Resolution: The HDMI Switch Splitter can support all hd multichannel audio formats including 720P, 1080P, 4K@30Hz, 4K@60HZ. It also supports the 3.5 mm 2.0ch audio output and SPDIF Toslink (2.0ch/5.1ch) audio output.
Audio Extraction Function: This HDMI switch splitter 4x2 can extract the HDMI Audio to Coaxial, SPDIF and 3.5mm Jack au
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x 4K HDMI switch splitter 4X2
1xIR Remote Control(Battery is not included)
1x5V power adapter
1xUser Manual

Questions about this item

Does the 5 V 2 A power adapter run warm when the switch is left on all day?

The unit ships with a 5 V 2 A adapter; it draws little current and stays cool during continuous operation.

What cables must I already have to connect four sources and two displays?

You need four HDMI cables for the inputs and two HDMI cables for the outputs; audio cables are optional.

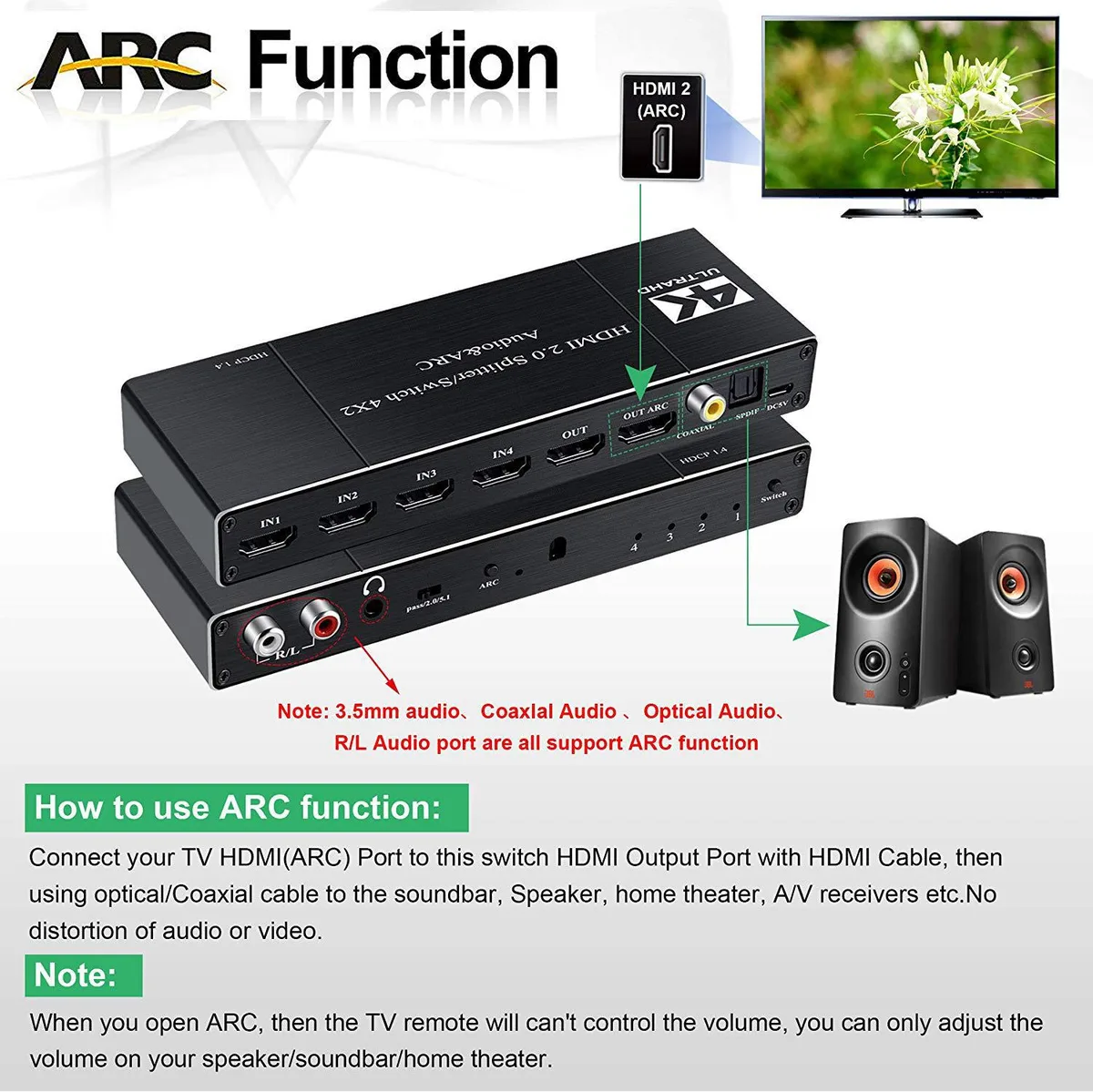

Will the ARC output work with my older 1080p projector that lacks ARC?

ARC requires an ARC-capable display; without it the audio extraction ports still function but ARC will not pass through.
