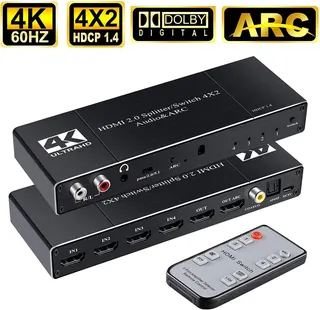

Black rectangular HDMI switch with four inputs, two outputs, optical, coaxial and 3.5 mm audio ports

ESTONE

ESTONE OZQ10 4x2 HDMI Switch Audio Extractor 4K@60Hz

SKU CH-ZAQ4-TC51F

Routes four HDMI inputs to two 4K 60 Hz outputs and extracts audio to optical, coaxial, SPDIF and 3.5 mm jacks

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • SpecificationsProduct Type: HDMI Switch Splitter 4x2. Interface Type: 4 HD
  • Input Connector4 x HDMI
  • Connect four sources to two displays with 4K 60 Hz switching
  • Extract audio to coaxial, optical and 3.5 mm outputs simultaneously
  • Control switching remotely with included IR handset
  • Supports ARC pass-through and 5.1 channel audio formats
  • Compact 5.91 x 2.36 x .79 inch metal chassis

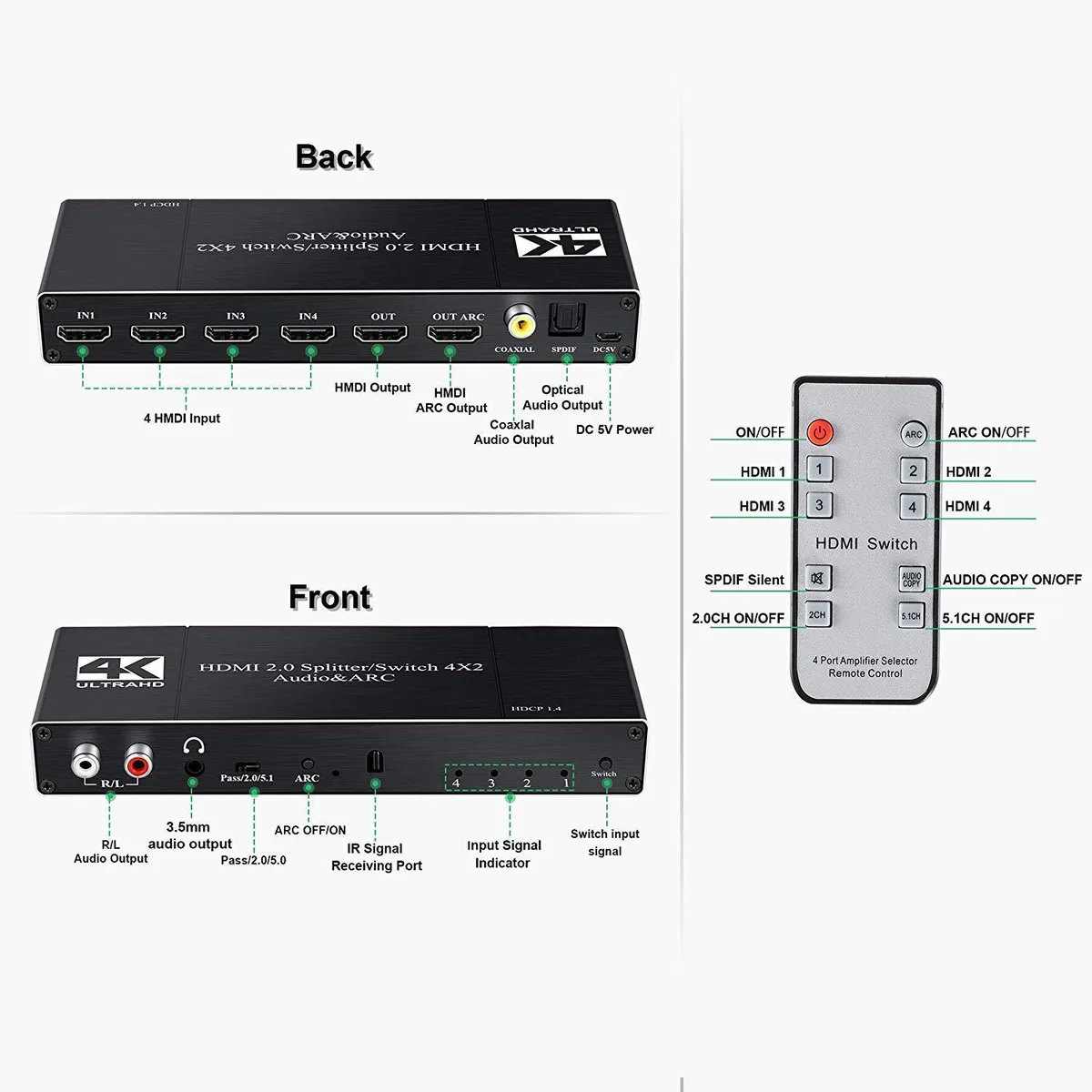

4x2 HDMI 2.0 Switch with Audio Extraction

The ESTONE OZQ10 routes four HDMI sources to two independent displays at 4K 60 Hz. It also extracts the audio stream to coaxial, Toslink and 3.5 mm outputs for connection to an amplifier or sound system. A supplied IR remote allows input switching without reaching behind the rack.

Upgrade from Basic Splitters

A simple splitter duplicates one source to two screens; this unit lets you choose any of four sources for each output independently. The jump is worth it when you need matrix-style routing plus separate audio feeds for a surround receiver or active speakers.

Suits Multi-Source Home Cinema

Ideal for users who switch between consoles, streamers and PCs while feeding both a TV and a projector with discrete audio extraction. Not for buyers who need more than four inputs, HDMI 2.1 bandwidth, or automatic switching based on signal detection.

Highlights

  • Connect four sources to two displays with 4K 60 Hz switching
  • Extract audio to coaxial, optical and 3.5 mm outputs simultaneously
  • Control switching remotely with included IR handset
  • Supports ARC pass-through and 5.1 channel audio formats
  • Compact 5.91 x 2.36 x .79 inch metal chassis

Specifications

BrandESTONE
SeriesOZQ10
ModelOZQ10
Part NumberOZQ10
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
SpecificationsProduct Type: HDMI Switch Splitter 4x2.
Interface Type: 4 HDMI in, 2 HDMI out.
Power adapter format: Input: AC ( 50HZ, 60HZ ) 100V-240V; Output: DC5V/2A.
Audio Output Port: 3.5mm Audio Port, Coaxial Audio Port, Toslink SPDIF Port.
Input Connector4 x HDMI
Output Connector2 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth6Gbps/340MHZ
FeaturesHDMI Switch 4x2: The 4x2 HDMI 2.0 switch splitter can connect 4 hdmi input signal sources to 2 hdmi output display terminals. It can easily Switch the 4 HDMI input signals to 2 HDMI output siganl. (Please Note: Two HDMI Output are the same Siganl.)
High Resolution: The HDMI Switch Splitter can support all hd multichannel audio formats including 720P, 1080P, 4K@30Hz, 4K@60HZ. It also supports the 3.5 mm 2.0ch audio output and SPDIF Toslink (2.0ch/5.1ch) audio output.
Audio Extraction Function: This HDMI switch splitter 4x2 can extract the HDMI Audio to Coaxial, SPDIF and 3.5mm Jack au
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x 4K HDMI switch splitter 4X2
1xIR Remote Control(Battery is not included)
1x5V power adapter
1xUser Manual

Questions about this item

What are the dimensions of the switch so I can check if it fits my rack or shelf?

The unit measures 5.91 x 2.36 x 0.79 inches and weighs 11.9 ounces, so verify your available depth and clearance before mounting.

How do I power the switch and what is the common mistake during hookup?

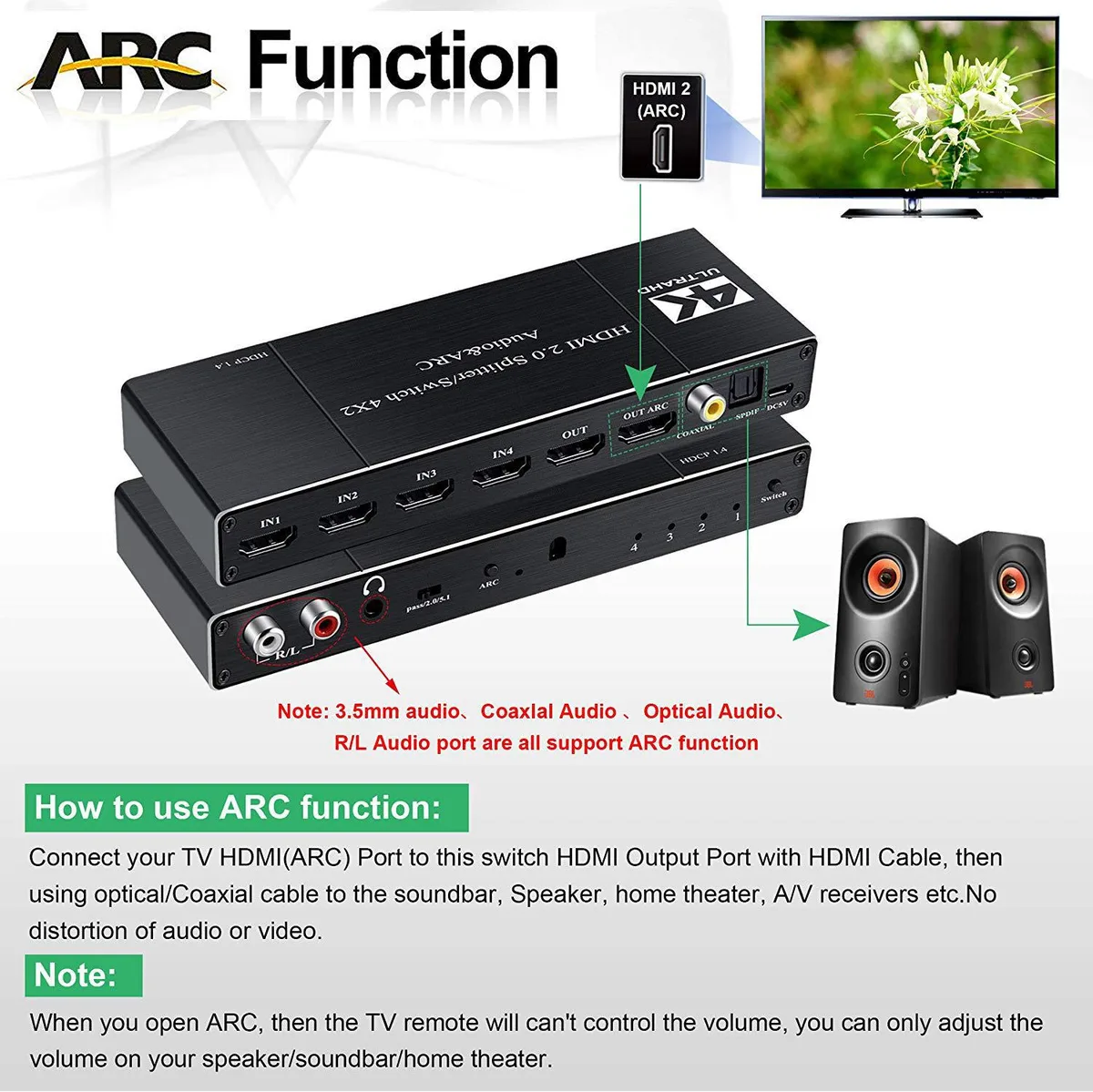

Connect the included 5V/2A adapter to the DC jack; the step often missed is linking the HDMI ARC output to an ARC-enabled TV input and enabling ARC on the display before audio will pass.

Which consumable item will need replacement over time?

The IR remote requires a coin cell battery (not supplied); swap it when the control range noticeably shortens.
