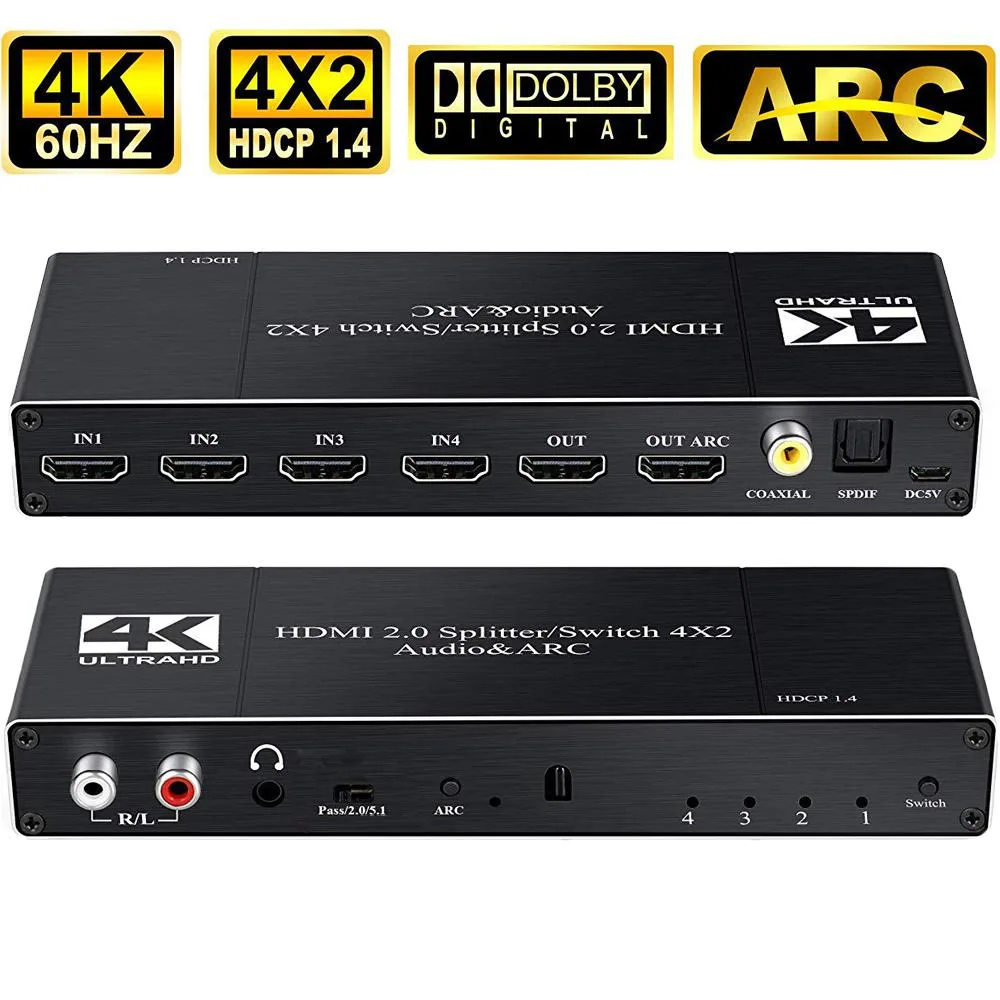

Black rectangular HDMI switch with four inputs, two outputs, optical and 3.5mm audio ports

ESTONE

ESTONE OZQ10 4K HDMI Switch Audio Extractor 4x2

SKU CH-ED81-P3EYK

Routes four HDMI sources to two displays at 4K 60 Hz and extracts audio to optical, coaxial or 3.5 mm outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • SpecificationsProduct Type: HDMI Switch Splitter 4x2. Interface Type: 4 HD
  • Input Connector4 x HDMI
  • Connect four sources to two displays with 4×2 HDMI 2.0 switching
  • Extract audio to coaxial, optical or 3.5 mm jack for external amplifiers
  • Supports 4K at 60 Hz video with 6 Gbps bandwidth

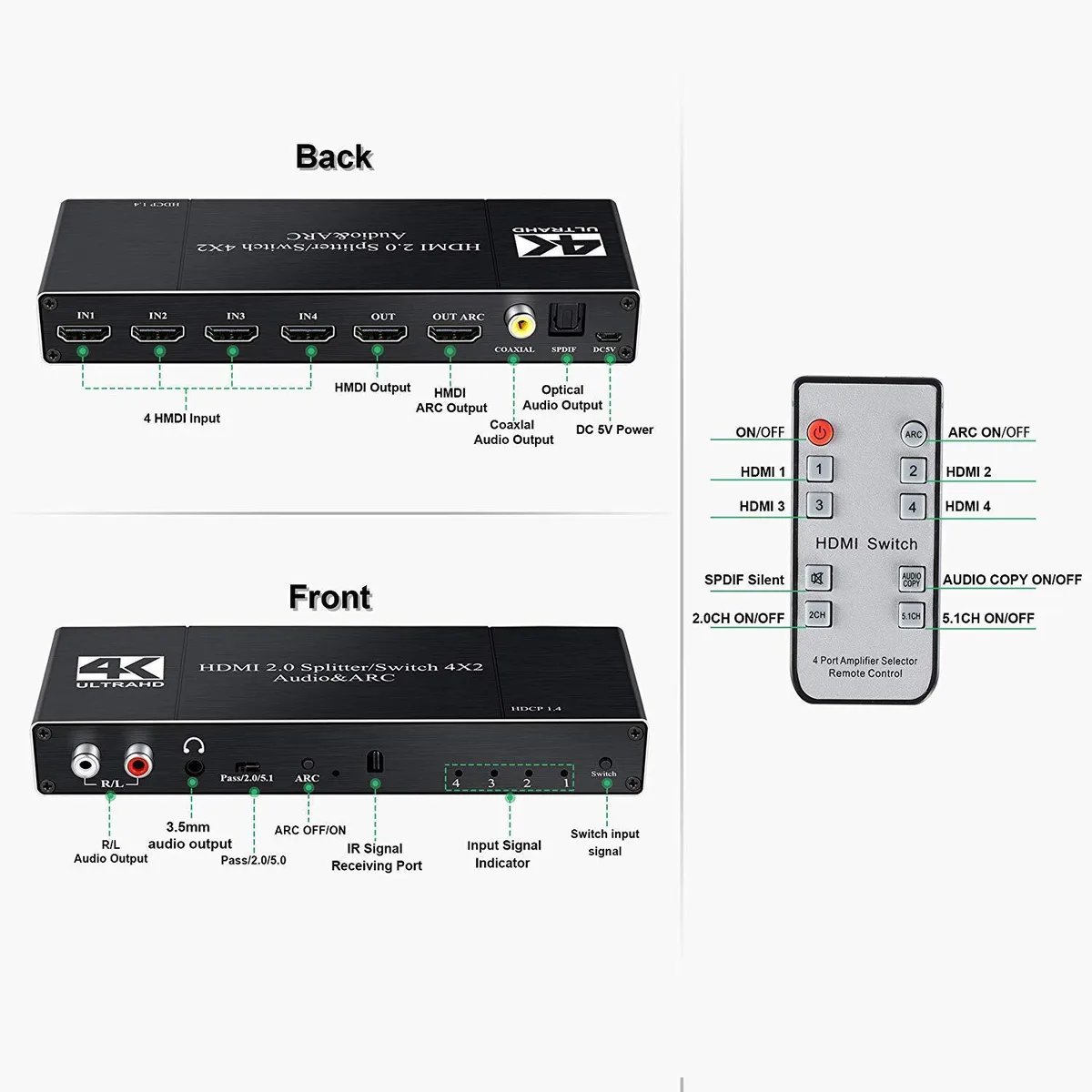

  • Includes IR remote for convenient source selection from a distance
  • Powers from 100–240 V AC adapter for worldwide use

4x2 HDMI 2.0 Switch with Audio Extraction

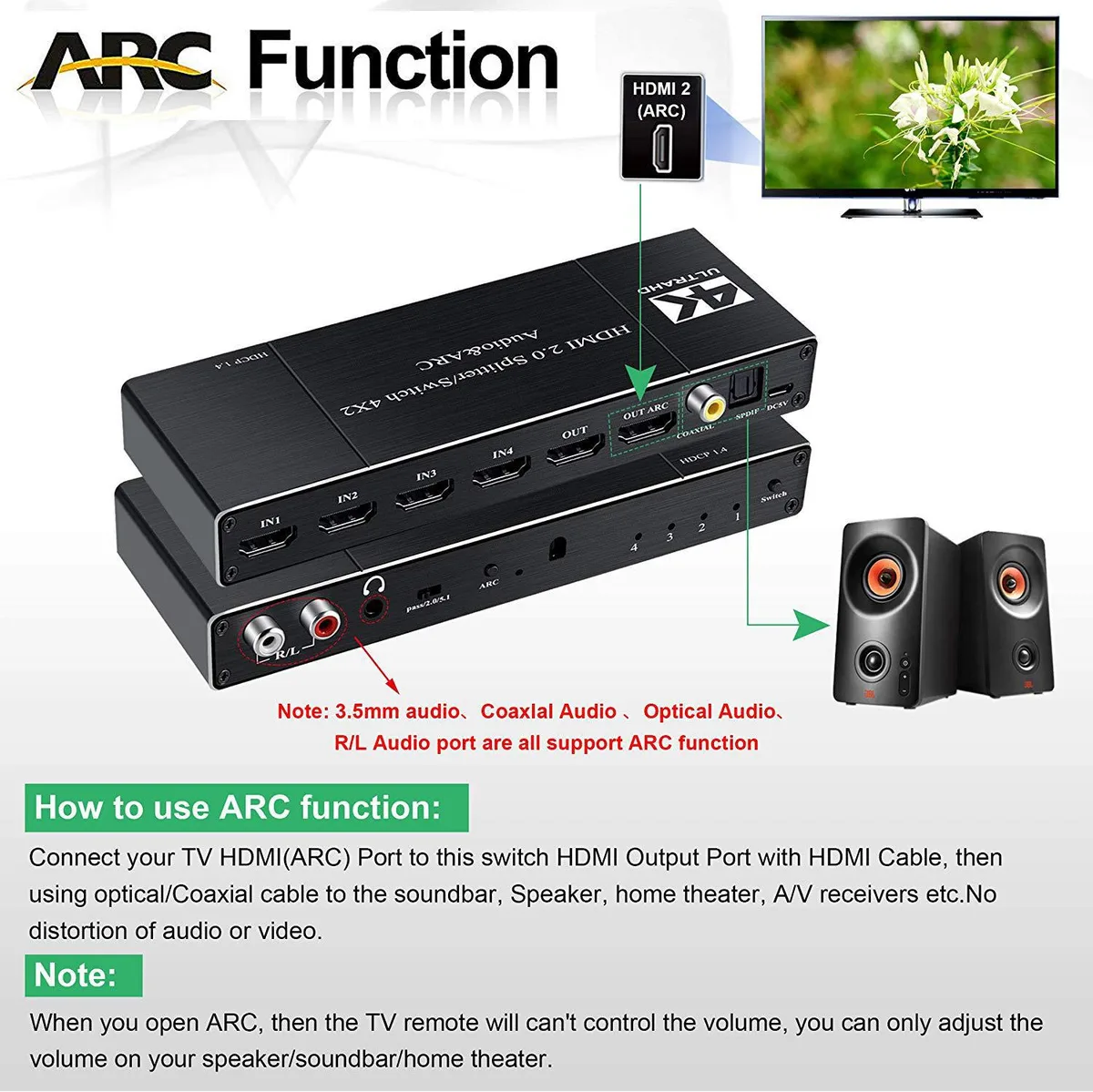

The ESTONE OZQ10 routes four HDMI sources to two displays at 4K 60 Hz. It extracts audio from the HDMI stream to coaxial, optical SPDIF and 3.5 mm analogue outputs simultaneously. An IR remote selects inputs without leaving the seat. The unit ships with a 5 V power adapter and operates on 100-240 V mains.

Installers needing matrix routing to two zones

This switch suits installers who need independent source selection for two displays and simultaneous digital or analogue audio breakout. It is not for users who require more than two output zones or who need HDMI 2.1 bandwidth for higher refresh rates.

4K 60 Hz maximum resolution with 6 Gbps bandwidth

The single specification that decides fit is the 6 Gbps bandwidth limit, which supports 4K at 60 Hz but not higher refresh rates or 8K signals. Verify that every source and display in the chain operates within this ceiling before purchase.

Highlights

  • Connect four sources to two displays with 4×2 HDMI 2.0 switching
  • Extract audio to coaxial, optical or 3.5 mm jack for external amplifiers
  • Supports 4K at 60 Hz video with 6 Gbps bandwidth
  • Includes IR remote for convenient source selection from a distance
  • Powers from 100–240 V AC adapter for worldwide use

Specifications

BrandESTONE
SeriesOZQ10
ModelOZQ10
Part NumberOZQ10
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
SpecificationsProduct Type: HDMI Switch Splitter 4x2.
Interface Type: 4 HDMI in, 2 HDMI out.
Power adapter format: Input: AC ( 50HZ, 60HZ ) 100V-240V; Output: DC5V/2A.
Audio Output Port: 3.5mm Audio Port, Coaxial Audio Port, Toslink SPDIF Port.
Input Connector4 x HDMI
Output Connector2 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth6Gbps/340MHZ
FeaturesHDMI Switch 4x2: The 4x2 HDMI 2.0 switch splitter can connect 4 hdmi input signal sources to 2 hdmi output display terminals. It can easily Switch the 4 HDMI input signals to 2 HDMI output siganl. (Please Note: Two HDMI Output are the same Siganl.)
High Resolution: The HDMI Switch Splitter can support all hd multichannel audio formats including 720P, 1080P, 4K@30Hz, 4K@60HZ. It also supports the 3.5 mm 2.0ch audio output and SPDIF Toslink (2.0ch/5.1ch) audio output.
Audio Extraction Function: This HDMI switch splitter 4x2 can extract the HDMI Audio to Coaxial, SPDIF and 3.5mm Jack au
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x 4K HDMI switch splitter 4X2
1xIR Remote Control(Battery is not included)
1x5V power adapter
1xUser Manual

Questions about this item

Will the IR remote or 5V power adapter need replacing first?

The unit ships with one IR remote (battery not included) and a 5V/2A power adapter; the remote battery will need replacement before the adapter under normal use.

What bandwidth ceiling limits 4K@60Hz signals on this switch?

The switch is rated for 6Gbps/340MHz bandwidth, which is the first limit reached when passing full 4K@60Hz content.

How much heat or noise does the OZQ10 produce during all-day operation?

The OZQ10 has no fan and draws only 5V/2A, so it runs silently with minimal heat even during continuous use.
