Black rectangular HDMI switch with four inputs, two outputs, audio ports and IR remote

ESTONE

ESTONE OZQ10 4K 60Hz HDMI 2.0 Switch 4x2 Audio Extractor

SKU CH-R32T-Q6GD5

Connects four HDMI sources to two displays at 4K 60Hz while extracting audio to optical, coaxial and 3.5 mm outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • SpecificationsProduct Type: HDMI Switch Splitter 4x2. Interface Type: 4 HD
  • Input Connector4 x HDMI
  • Connect four sources to two displays with 4K 60 Hz switching
  • Extract audio to coaxial, Toslink and 3.5 mm jack simultaneously
  • Switch automatically or by IR remote control
  • HDCP 2.2 and 3D content supported
  • Universal 100-240 V power supply included

4K 60Hz HDMI 2.0 Switch 4x2

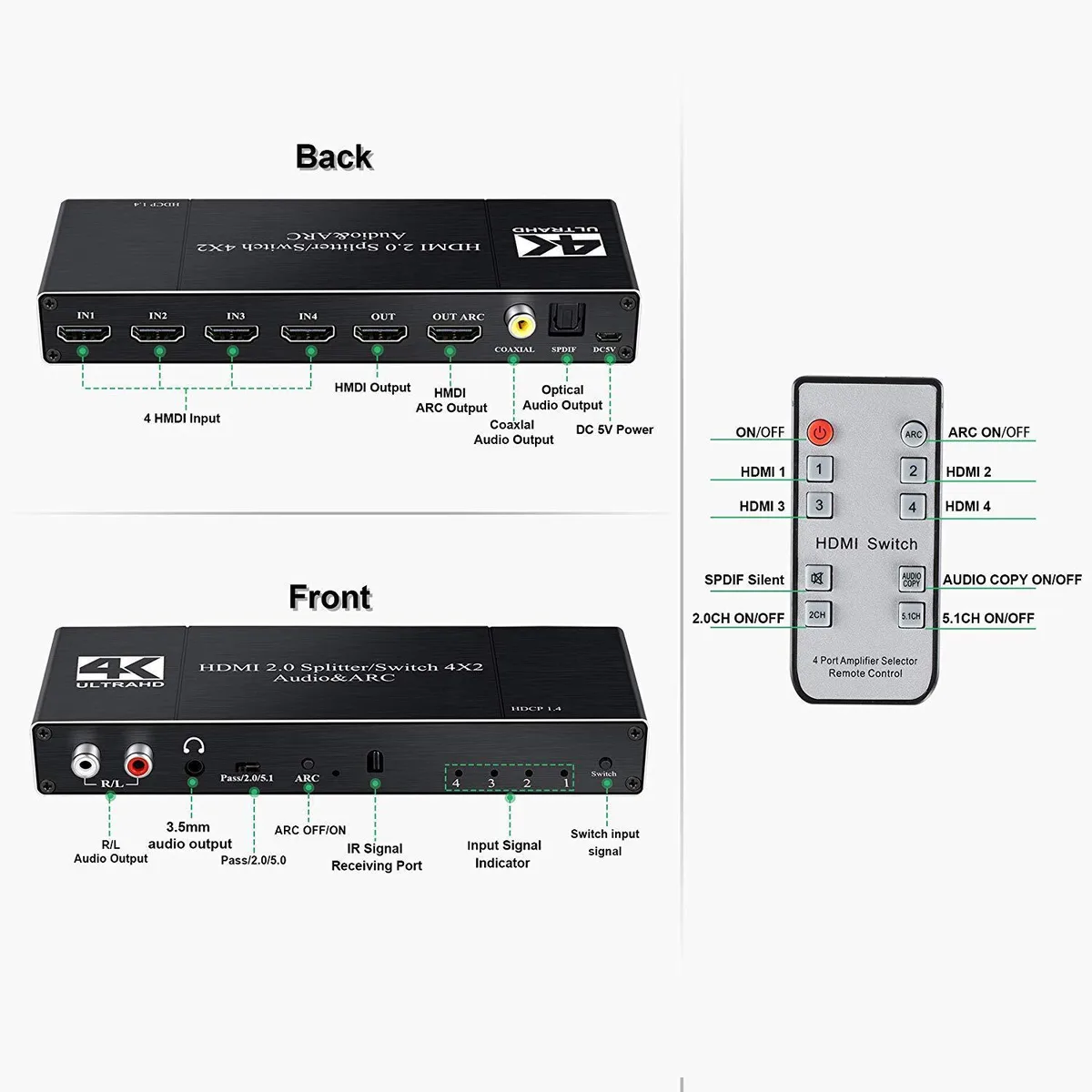

The ESTONE OZQ10 is a 4x2 HDMI 2.0 switch splitter that routes four HDMI sources to two displays. It supports 4K resolution at 60Hz with 6Gbps bandwidth and HDCP 2.2 compliance. The unit includes an IR remote for convenient switching and auto-switching capability.

Matrix routing with multi-format audio extraction

This switch suits installations needing independent source selection across two screens, such as home theatres or presentation setups. Audio can be de-embedded to Toslink, coaxial or 3.5mm outputs simultaneously or separately. Buyers who only need a simple 4-to-1 switch or require HDMI 2.1 bandwidth should consider other options.

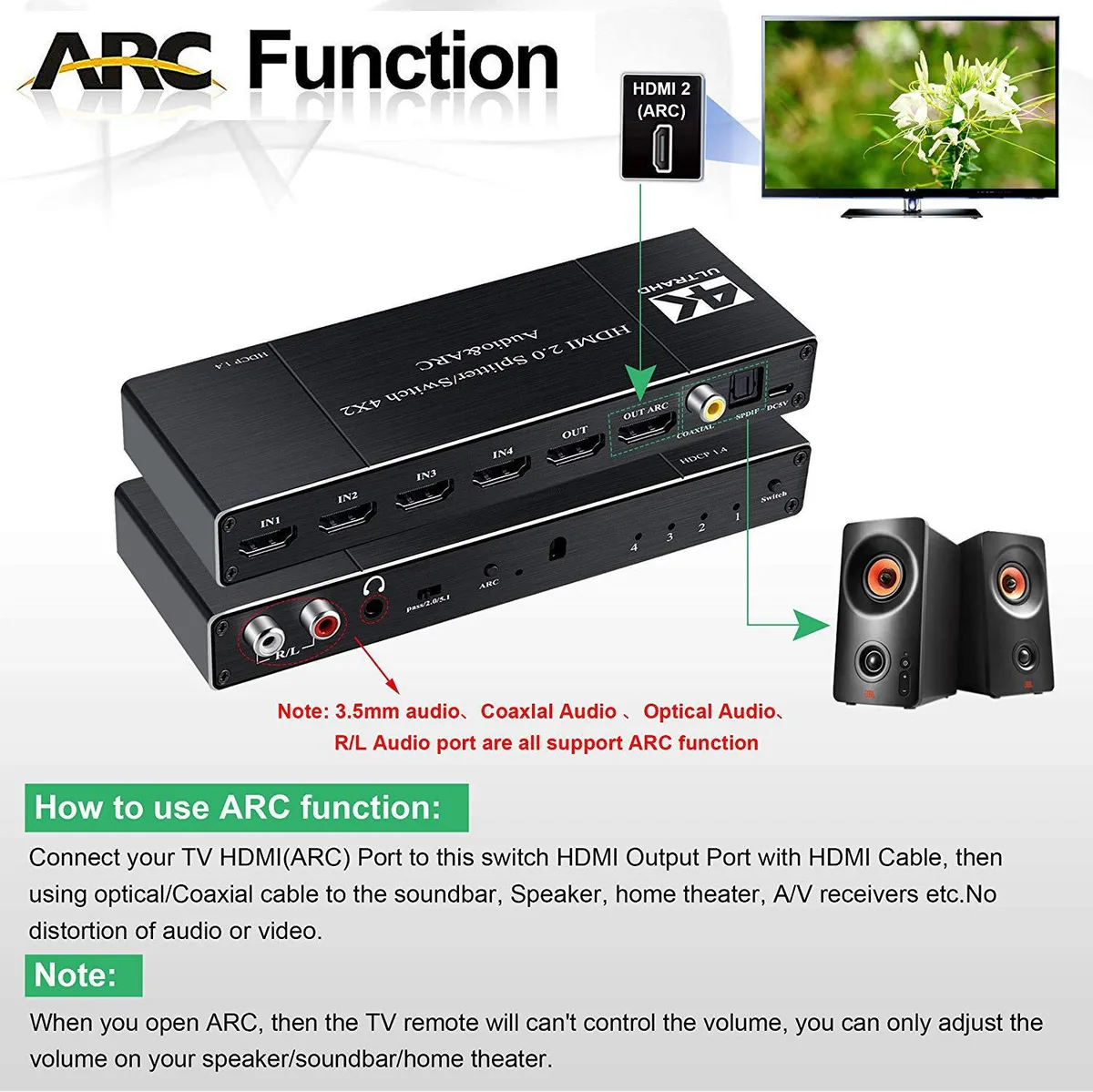

HDMI ARC return channel support

The HDMI ARC output port connects to an ARC-enabled display to return audio from the TV's internal apps back through the extractor. ARC must be set to PASS mode before enabling the audio channel and configured for 5.1 if surround output is desired.

Highlights

  • Connect four sources to two displays with 4K 60 Hz switching
  • Extract audio to coaxial, Toslink and 3.5 mm jack simultaneously
  • Switch automatically or by IR remote control
  • HDCP 2.2 and 3D content supported
  • Universal 100-240 V power supply included

Specifications

BrandESTONE
SeriesOZQ10
ModelOZQ10
Part NumberOZQ10
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
SpecificationsProduct Type: HDMI Switch Splitter 4x2.
Interface Type: 4 HDMI in, 2 HDMI out.
Power adapter format: Input: AC ( 50HZ, 60HZ ) 100V-240V; Output: DC5V/2A.
Audio Output Port: 3.5mm Audio Port, Coaxial Audio Port, Toslink SPDIF Port.
Input Connector4 x HDMI
Output Connector2 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth6Gbps/340MHZ
FeaturesHDMI Switch 4x2: The 4x2 HDMI 2.0 switch splitter can connect 4 hdmi input signal sources to 2 hdmi output display terminals. It can easily Switch the 4 HDMI input signals to 2 HDMI output siganl. (Please Note: Two HDMI Output are the same Siganl.)
High Resolution: The HDMI Switch Splitter can support all hd multichannel audio formats including 720P, 1080P, 4K@30Hz, 4K@60HZ. It also supports the 3.5 mm 2.0ch audio output and SPDIF Toslink (2.0ch/5.1ch) audio output.
Audio Extraction Function: This HDMI switch splitter 4x2 can extract the HDMI Audio to Coaxial, SPDIF and 3.5mm Jack au
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x 4K HDMI switch splitter 4X2
1xIR Remote Control(Battery is not included)
1x5V power adapter
1xUser Manual

Questions about this item

Should I pick the 4×2 model or a simpler 4×1 switch?

Choose the 4×2 version when you need two displays showing the same source at once; a 4×1 only feeds one screen.

What does the 4K 60 Hz rating mean once the switch is installed?

It passes 4K at 60 Hz through both HDMI outputs, limited to the 6 Gbps bandwidth of the HDMI 2.0 chips inside.

Which HDMI standard is used and what does it cap in practice?

HDMI 2.0 caps video at 4K 60 Hz and 6 Gbps, while ARC carries audio back to the extractor ports.
