ESTONE

ESTONE OZQ1 HDMI Switch 3 in 1 Out 4K@60Hz 18Gbps Pigtail

SKU CH-EYMP-KAGRT

A 3-input HDMI switch routes 4K@60Hz video and multi-channel audio from three sources to one display with a manual button and integrated 50 cm pigtail

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports3-Port UHD
  • SpecificationsHDMI Standard: Built-in the latest chips, suitable for HDMI
  • Input Connector3 x HDMI
  • Switch three sources to one display with a top-mounted button
  • 4K at 60 Hz via HDMI 2.0 chips at 18 Gbps bandwidth
  • Supports HDR, 3D and 12-bit deep colour for richer images
  • Draws power from connected devices so no extra adapter is needed
  • Compact 5.91 x 2.36 x 0.79 inch design with 50 cm pigtail cable

3-input 4K HDMI switch for multi-source setups

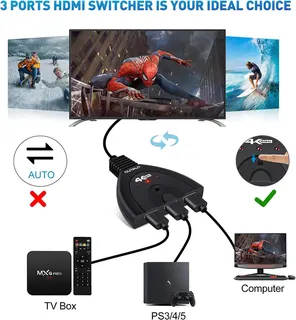

The ESTONE OZQ1 routes video and audio from three HDMI sources to a single display. It supports 4K at 60 Hz, 3D and HDR with 12-bit deep colour. The unit draws power from connected sources so no external adapter is needed. A manual button on top selects the active input.

HDMI 2.0 bandwidth and HDCP 2.2 limits

The switch handles 18 Gbps throughput and is compliant with HDCP 2.2 for protected content. It passes resolutions up to 3840 x 2160 at 60 Hz and lower rates such as 1080p and 720p. Audio formats including LPCM, Dolby Digital and DTS 7.1 are supported. The fixed 50 cm pigtail cable sets the maximum reach to the display.

Check source power and cable length before ordering

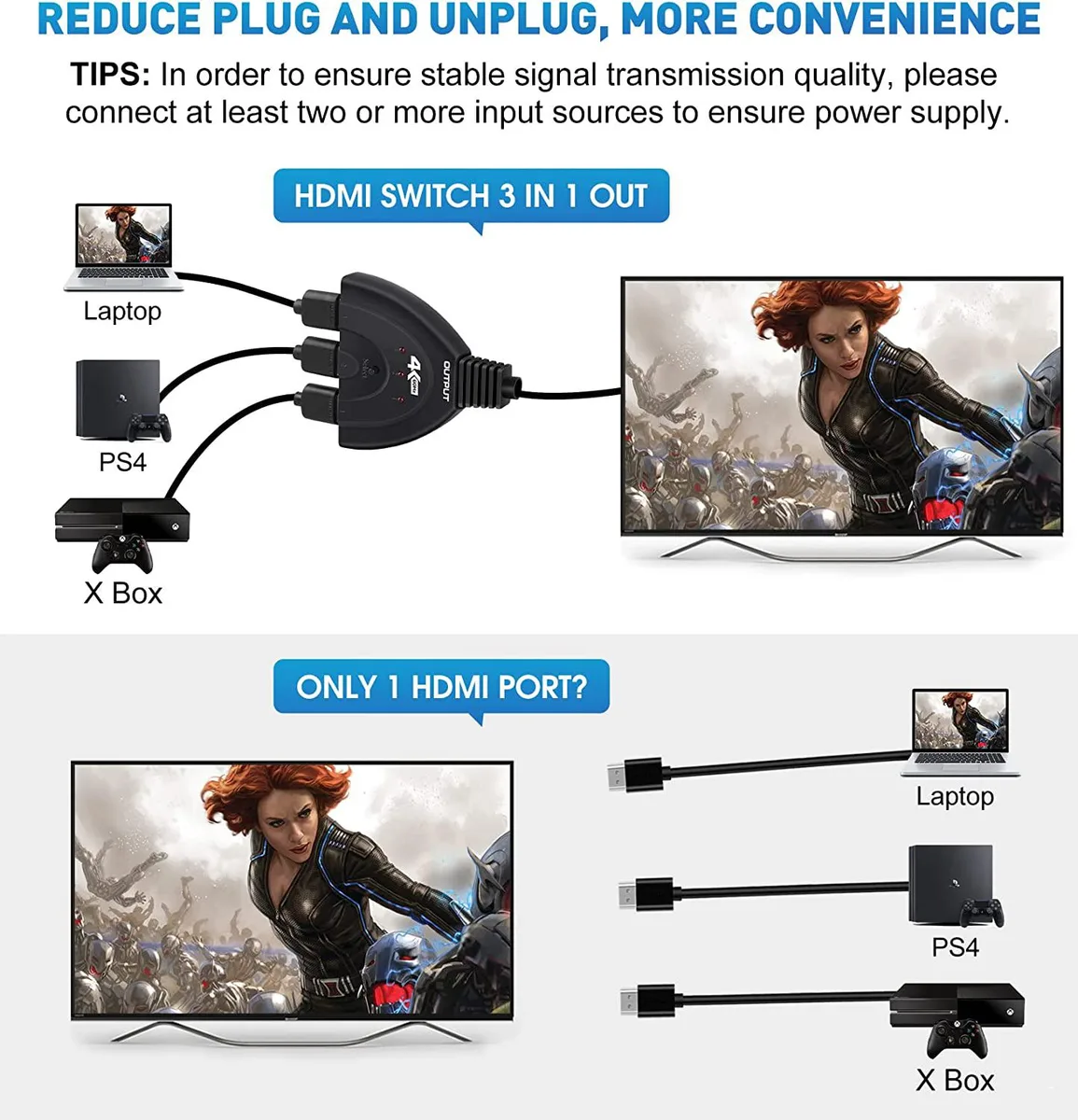

Verify that at least two source devices can supply enough bus power for stable operation. Ensure the 50 cm output tail reaches your display or plan an extension. The switch is one-way only — three inputs to one output — so it cannot drive multiple screens from a single source. Confirm your sources and display use standard HDMI connectors.

Highlights

  • Switch three sources to one display with a top-mounted button
  • 4K at 60 Hz via HDMI 2.0 chips at 18 Gbps bandwidth
  • Supports HDR, 3D and 12-bit deep colour for richer images
  • Draws power from connected devices so no extra adapter is needed
  • Compact 5.91 x 2.36 x 0.79 inch design with 50 cm pigtail cable

Specifications

BrandESTONE
SeriesOZQ1
ModelOZQ1
Part NumberOZQ1
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports3-Port UHD
SpecificationsHDMI Standard: Built-in the latest chips, suitable for HDMI 2.0, HDCP 2.2
Resolution: 4K@60Hz, 4K@30Hz, 1080P, 1080i, 720P, 576P, 576i, 480i
Audio Format: LPCM, Dobly Digital, DTS-HD, DTS7.1, Dobly AC3, Direct Stream Digital
Bandwidth: Up to 18 Gbps transmission rate (600MHz)
Input Device: PS4, Roku, TV Box, Blu-Ray, DVD, Beamer, laptop, etc.
Output Device: HD TV, Projectors, Monitor, etc.
Input Connector3 x HDMI
Output Connector1 x HDMI
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesHDMI 2.0 video format support
HDCP 2.2 protocol compliant
Support 12 bit deep color
18 Gbps high performance
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x 4K@60Hz HDMI switcher 3 in 1 out with pigtail (50cm)
1x User manual

Questions about this item

Which ESTONE OZQ1 version should I choose?

The ESTONE OZQ1 is offered as a single 3-port HDMI 2.0 switch with a 50 cm pigtail cable. There are no alternative port counts, cable lengths or colour options in this series.

What does the 18 Gbps bandwidth mean when I connect a 4K 60 Hz source?

The 18 Gbps rating matches the full HDMI 2.0 data rate, so a 3840×2160 60 Hz signal with 12-bit colour and HDR passes through without compression or frame-rate loss.

How does the HDMI 2.0 interface limit what I can run on this switch?

The switch is HDMI 2.0 and HDCP 2.2 compliant, capping video at 4K 60 Hz 12-bit and audio at 7.1-channel LPCM or bitstream formats; higher refresh rates or 8K resolutions are not supported.
