ESTONE
ESTONE OZQ1 HDMI Switch 3×1 4K@60Hz 18Gbps with 50cm Pigtail
A 3-input HDMI switch routes 4K@60Hz video and multi-channel audio from three sources to one display with a manual button and 50 cm pigtail
- TypeHDMI Switchers
- Changer TypeHDMI Switch/Extender
- ColorBlack
- Ports3-Port UHD
- SpecificationsHDMI Standard: Built-in the latest chips, suitable for HDMI
- Input Connector3 x HDMI
- Connect three HDMI sources to one display without cable swapping
- Manual top button switches between inputs instantly
- HDMI 2.0 chips deliver 4K 60 Hz at 18 Gbps bandwidth
- HDCP 2.2 and 12-bit deep colour pass through for protected 4K content
- Draws power from connected devices so no extra adapter is needed
What the ESTONE OZQ1 does

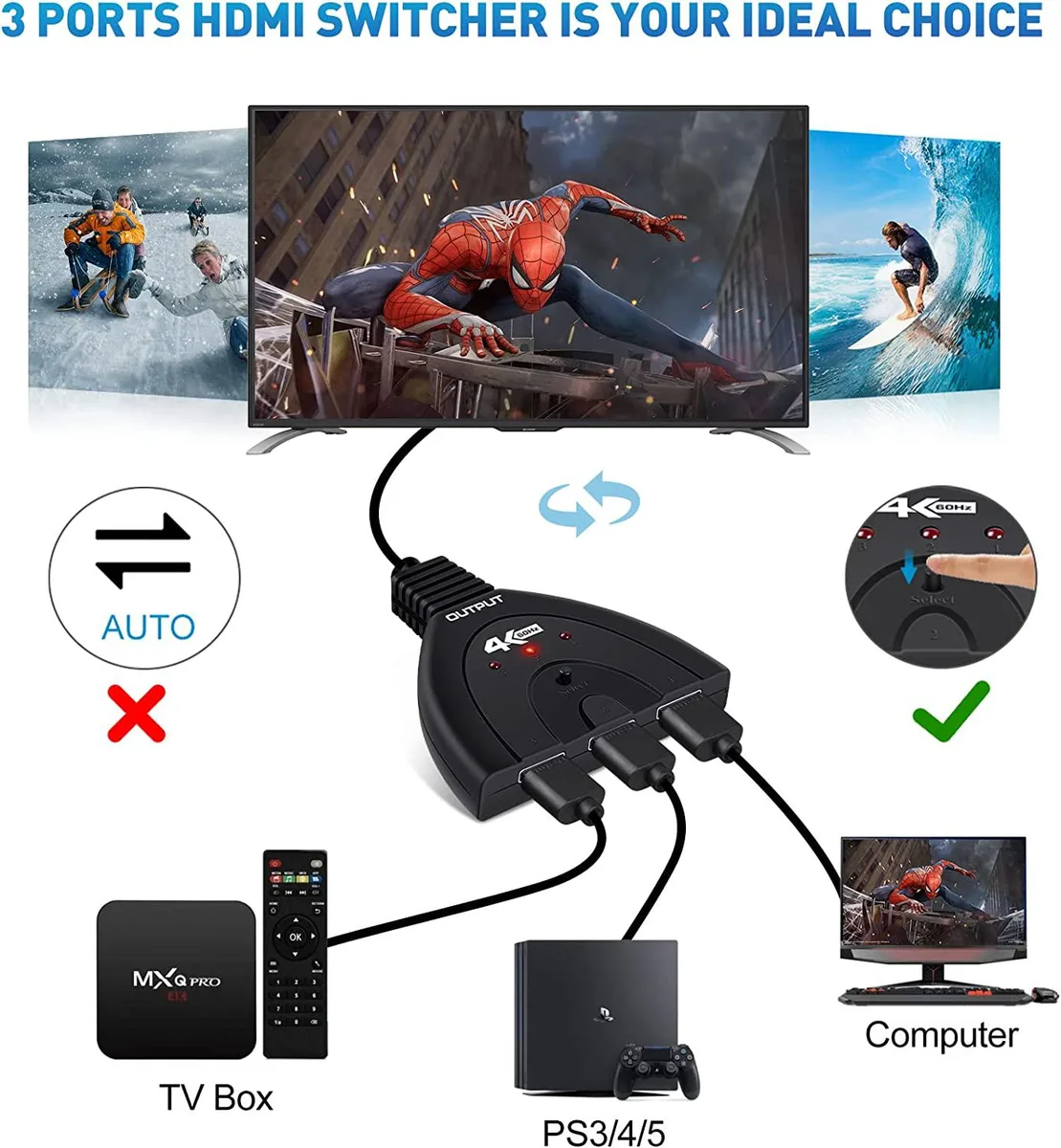

The ESTONE OZQ1 is a three-input, one-output HDMI switch that lets you connect three source devices to a single display. It is aimed at anyone who wants to swap between a games console, a streaming stick and a set-top box without unplugging cables.
Build and connections
The black metal enclosure measures 5.91 x 2.36 x 0.79 inches and weighs 11.9 ounces. A 50 cm pigtail cable is permanently attached to the output, while three HDMI ports on the box accept the sources. A push button on top selects the active input and the unit draws power from the connected devices.
Check before you buy
Verify that your display accepts 4K at 60 Hz over HDMI 2.0 and that each source can supply enough bus power for the switch to operate reliably. The switch only works in a 3-in-1-out direction, so it cannot send one source to three screens. You will also need three HDMI cables for the inputs.
Highlights
- Connect three HDMI sources to one display without cable swapping
- Manual top button switches between inputs instantly
- HDMI 2.0 chips deliver 4K 60 Hz at 18 Gbps bandwidth
- HDCP 2.2 and 12-bit deep colour pass through for protected 4K content
- Draws power from connected devices so no extra adapter is needed
Specifications
| Brand | ESTONE |
|---|---|
| Series | OZQ1 |
| Model | OZQ1 |
| Part Number | OZQ1 |
| Type | HDMI Switchers |
| Changer Type | HDMI Switch/Extender |
| Color | Black |
| Ports | 3-Port UHD |
| Specifications | HDMI Standard: Built-in the latest chips, suitable for HDMI 2.0, HDCP 2.2 Resolution: 4K@60Hz, 4K@30Hz, 1080P, 1080i, 720P, 576P, 576i, 480i Audio Format: LPCM, Dobly Digital, DTS-HD, DTS7.1, Dobly AC3, Direct Stream Digital Bandwidth: Up to 18 Gbps transmission rate (600MHz) Input Device: PS4, Roku, TV Box, Blu-Ray, DVD, Beamer, laptop, etc. Output Device: HD TV, Projectors, Monitor, etc. |
| Input Connector | 3 x HDMI |
| Output Connector | 1 x HDMI |
| Maximum Resolutions | 3840 x 2160 |
| Bandwidth | 18Gbps |
| Features | HDMI 2.0 video format support HDCP 2.2 protocol compliant Support 12 bit deep color 18 Gbps high performance |
| Dimensions | 5.91 x 2.36 x 0.79 inches |
| Weight | 11.9 ounces |
| Package Quantity | 1 |
| Package Contents | 1x 4K@60Hz HDMI switcher 3 in 1 out with pigtail (50cm) 1x User manual |
Questions about this item
Does the HDMI 2.0 interface on the ESTONE OZQ1 cap bandwidth at 18 Gbps?
Yes, the switch uses HDMI 2.0 chips and is rated for a maximum bandwidth of 18 Gbps, supporting 4K@60Hz and 12-bit deep color.
What are the physical dimensions of the ESTONE OZQ1 switch box?
The unit measures 5.91 x 2.36 x 0.79 inches and weighs 11.9 ounces, with a 50 cm pigtail cable attached.
How do I power the ESTONE OZQ1 and what is the common setup mistake?

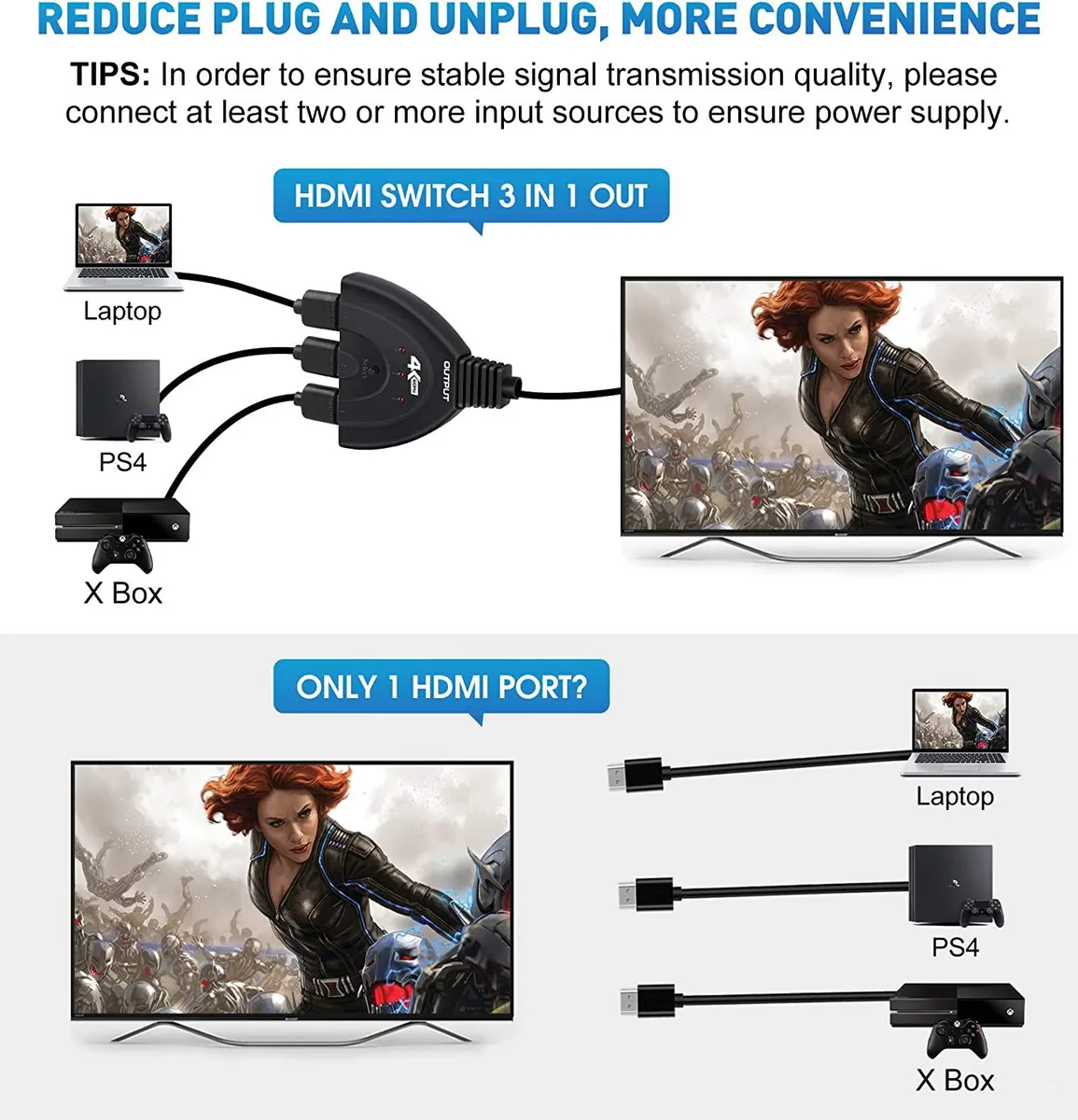

It draws power from the source devices — connect at least two HDMI sources so the switch can operate reliably without an external adapter.
