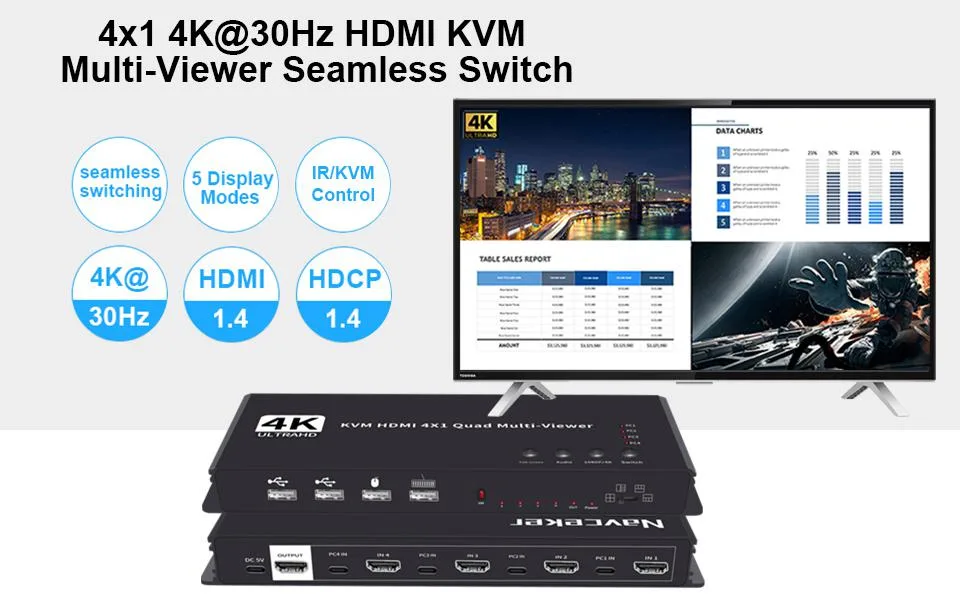

Black rectangular HDMI KVM multiviewer switch with four input ports

ESTONE

ESTONE OZK6 HDMI KVM Multiviewer Switch 4x1 4K@30Hz

SKU CH-RSZQ-TPGA3

Connects four HDMI sources to one display with quad-screen multiview, seamless switching, 4K@30Hz support and USB KVM control

  • TypeHDMI KVM Multiviewer Switch 4x1
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • SpecificationsSupport 4HDMI input, 1 HDMI output Support HDMI 1.4b and HDC
  • Input Connector4 x HDMI 1.4
  • View four sources simultaneously on one screen with quad multi-view modes
  • Switch instantly between inputs with zero-frame seamless switching
  • Control all connected devices using a single keyboard and mouse via KVM
  • Operate from across the room using the included IR remote
  • Connect up to four HDMI 1.4 sources supporting 4K at 30 Hz and 1080p at 60 Hz

Product Identity

The ESTONE OZK6 is a new HDMI KVM multiviewer switch that accepts four HDMI 1.4 inputs and delivers one HDMI 1.4 output. It is built for users who need to view or switch between four video sources on a single display without changing cables.

Deciding Specification

The unit supports a maximum resolution of 3840 x 2160 at 30 Hz and 1080p at 60 Hz over HDMI 1.4b with HDCP 1.4. If your workflow requires 4K at 60 Hz or HDMI 2.0 bandwidth, this switch will not meet that requirement.

Thermals Noise Power

The compact black enclosure measures 8.39 x 3.94 x 0.98 inches and weighs 0.85 pounds with no internal fan, so it runs silently. Power is supplied through an included USB adapter, and the specification lists a maximum bandwidth of 330 MHz and 10.2 Gbps baud rate.

Highlights

  • View four sources simultaneously on one screen with quad multi-view modes
  • Switch instantly between inputs with zero-frame seamless switching
  • Control all connected devices using a single keyboard and mouse via KVM
  • Operate from across the room using the included IR remote
  • Connect up to four HDMI 1.4 sources supporting 4K at 30 Hz and 1080p at 60 Hz

Specifications

BrandESTONE
SeriesOZK6
ModelOZK6
Part NumberOZK6
TypeHDMI KVM Multiviewer Switch 4x1
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
SpecificationsSupport 4HDMI input, 1 HDMI output
Support HDMI 1.4b and HDCP 1.4
Support 4 channels HDMI signal screen segmentation
Support 4 channels HDMI signal seamless switching
Support resolution up to 4K@30Hz/1080@60Hz
Support 4 USB 2.0 port and KVM control
Support IR control
Input support resolution:4K,1080P,720P,1080i,1024X768,1360X768 etc
Support audio output format:PCM2
Input cable distance: <15M AWG26 HDMI1.4b standard cable
Output cable distance: <24M AWG26 HDMI1.4b standard cable
Max bandwidth:330MHz
Max baud rate:10.2Gbps
Maximum working current:0.6 A
Power adapter :5V/2A
Dimension(Lx
Input Connector4 x HDMI 1.4
Output Connector1 x HDMI 1.4
Maximum Resolutions3840 x 2160

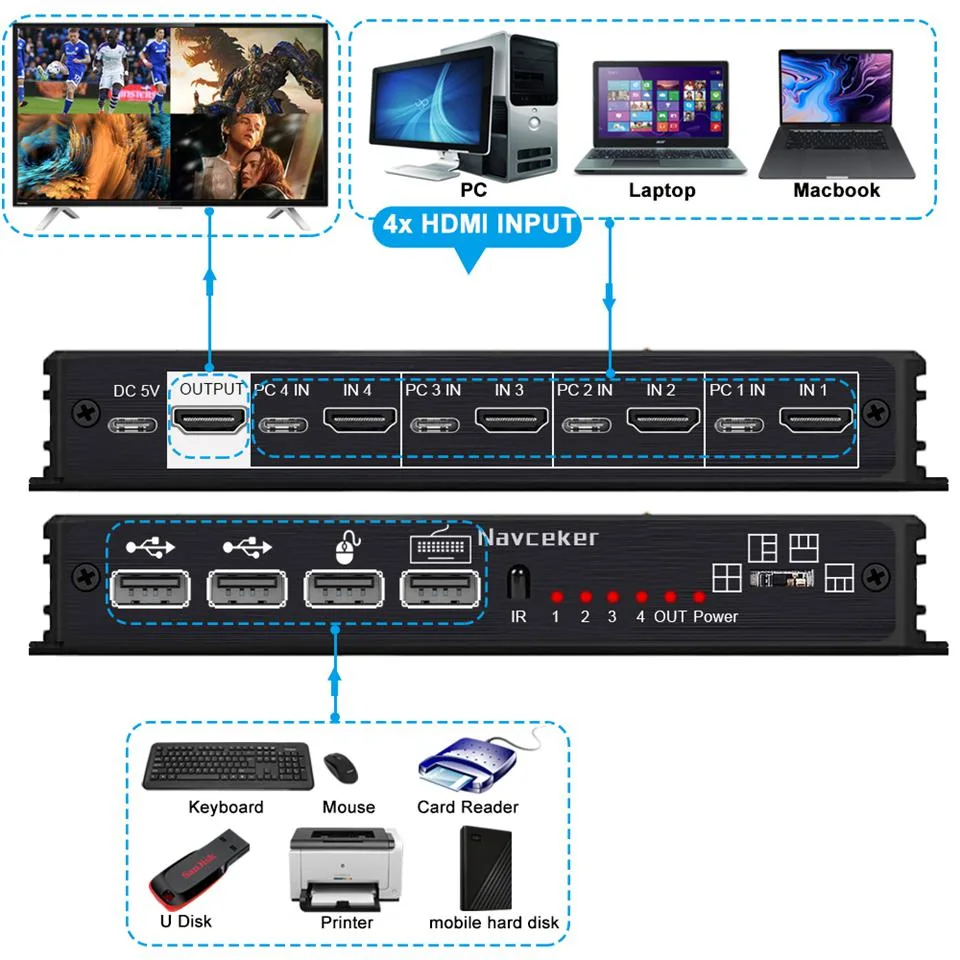

Features5 Ways Viewing Screen:The 4X1 Quad MultiView Selector support 5 viewing modes. You could see 4 HDMI input sources screen on one monitor by 4 ways, also can only see only one HDMI input source by full screen;
HDMI Switch 4 in 1 out: 4 HDMI Input ports, 1 HDMI output port. Support Connect 4 HDMI input device and one HDMI Display device on Switch box, avoid frequently plugging and unplugging on HDMI Display device;
KVM Control:support hotkey switch,Ctrl + Ctrl to next PC,Ctrl + Shift + 1/2/3/4 to PC1/2/3/4,use Ctrl + Shift + K to enable/ disable hotkey function,the USB 2.0 port could co
Dimensions8.39 x 3.94 x 0.98 inches
Weight0.85 pounds
Package Quantity1
Package Contents1xHDMI 4x1 quad KVM multi-viewer
1x USB Power adapter
4x USB Data cable
1xRemote control
1xUser manual

Questions about this item

What does 4K@30Hz actually deliver on my monitor?

The switch outputs up to 3840 x 2160 at 30 Hz, so a 4K display shows all four sources in quad view or one source full-screen at that refresh rate.

What does HDMI 1.4b with 10.2 Gbps bandwidth limit in practice?

The 330 MHz pixel clock and 10.2 Gbps link cap video at 4K 30 Hz or 1080p 60 Hz, and carry HDCP 1.4 protected content.

How much space and power does the unit need on my desk?

It measures 8.39 x 3.94 x 0.98 inches, weighs .85 pounds, and draws power from the included USB adapter.
