Black rectangular metal box with eight HDMI inputs and eight HDMI outputs on the rear, front panel buttons and status LEDs

ESTONE

ESTONE OZJ8 HDMI Matrix 8x8 4K 60Hz 18Gbps

SKU CH-D1VZ-GH8NT

An 8×8 HDMI 2.0b matrix routes eight 4K 60 Hz sources to eight displays with IR, RS232 and front-panel control

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports8x8 Matrix
  • MatrixYes
  • AudioYes
  • Routes eight 4K sources to eight displays independently
  • 4K@60 Hz 4:4:4 colour with HDR10 and 3D support
  • Switch via IR remote, front-panel keys or RS-232 control
  • HDMI 2.0b 18 Gbps bandwidth for lossless 4K video
  • Compact metal chassis measuring 5.91 x 2.36 x .79 inches

8×8 HDMI Matrix Switcher

The ESTONE OZJ8 routes up to eight 4K HDR sources to eight displays or projectors. Installers and AV integrators use it in conference rooms, classrooms and control rooms where multiple sources must reach multiple screens independently.

18 Gbps bandwidth with 8 m cable limit

HDMI 2.0b carries 3840×2160 at 60 Hz, 1080p at 120 Hz and 10/12-bit deep colour within the 600 MHz clock. Runs out of headroom above 4K 60 Hz 4:4:4 or when source cables exceed the 8 m AWG26 limit.

IR remote RS232 and front-panel control

Bundled infrared handset works up to 7 m for quick switching. RS232 port enables automation-system integration while front-panel keys give local manual override without extra hardware.

Highlights

  • Routes eight 4K sources to eight displays independently
  • 4K@60 Hz 4:4:4 colour with HDR10 and 3D support
  • Switch via IR remote, front-panel keys or RS-232 control
  • HDMI 2.0b 18 Gbps bandwidth for lossless 4K video
  • Compact metal chassis measuring 5.91 x 2.36 x .79 inches

Specifications

BrandESTONE
SeriesOZJ8
ModelOZJ8
Part NumberOZJ8
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports8x8 Matrix
MatrixYes
AudioYes
SpecificationsHDMI version: HDMI 2.0b
HDMI resolution: Up to 3840*2160@60Hz; YUV(4:4:4) RGB.
Support video format: 3D, 8/ 10/ 12/ 24 bit deep color.
Max bandwidth: 600MHz
Max band rate: 18Gbps
Input cable distance: less than 8m AWG26 HDMI 2.0b standard cable
Output cable distance: less than 8m AWG26 HDMI 2.0b standard cable
HDMI Matrix Ports: 8*HDMI Input; 8*HDMI Output; 1*RS232 Port; 1*DC 12V Power Port
Switching mode: Manual switching & IR remote control switch
Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC 12V/2A
Max working current: 500mA
Input Connector8 x HDMI
Output Connector8 x HDMI
Maximum Cable Lengthless than 8m AWG26 HDMI 2.0b standard cable
Maximum Resolutions4096 x 2160
Bandwidth18Gbps/600MHZ

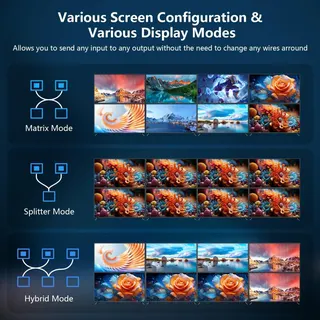

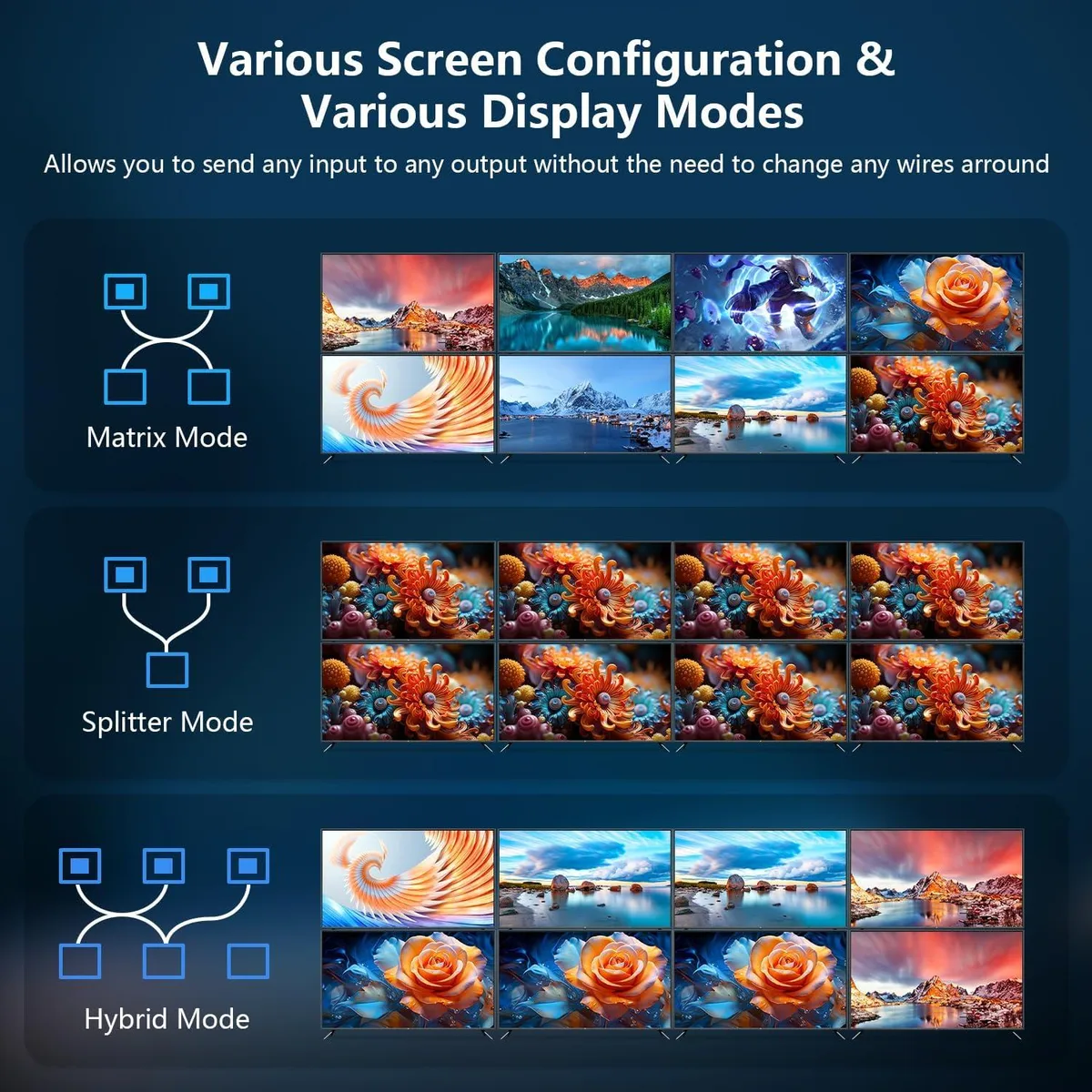

Features8 HDMI Input 8HDMI Output: This 8X8 HDMI Matrix routes up to eight 4K HDR HDMI sources to eight 4K HDR display devices. can be used for multiple high-definition digital video inputs and outputs exchange; any one of the signal outputs can be selected from any one of the signal sources without interfering with other outputs.

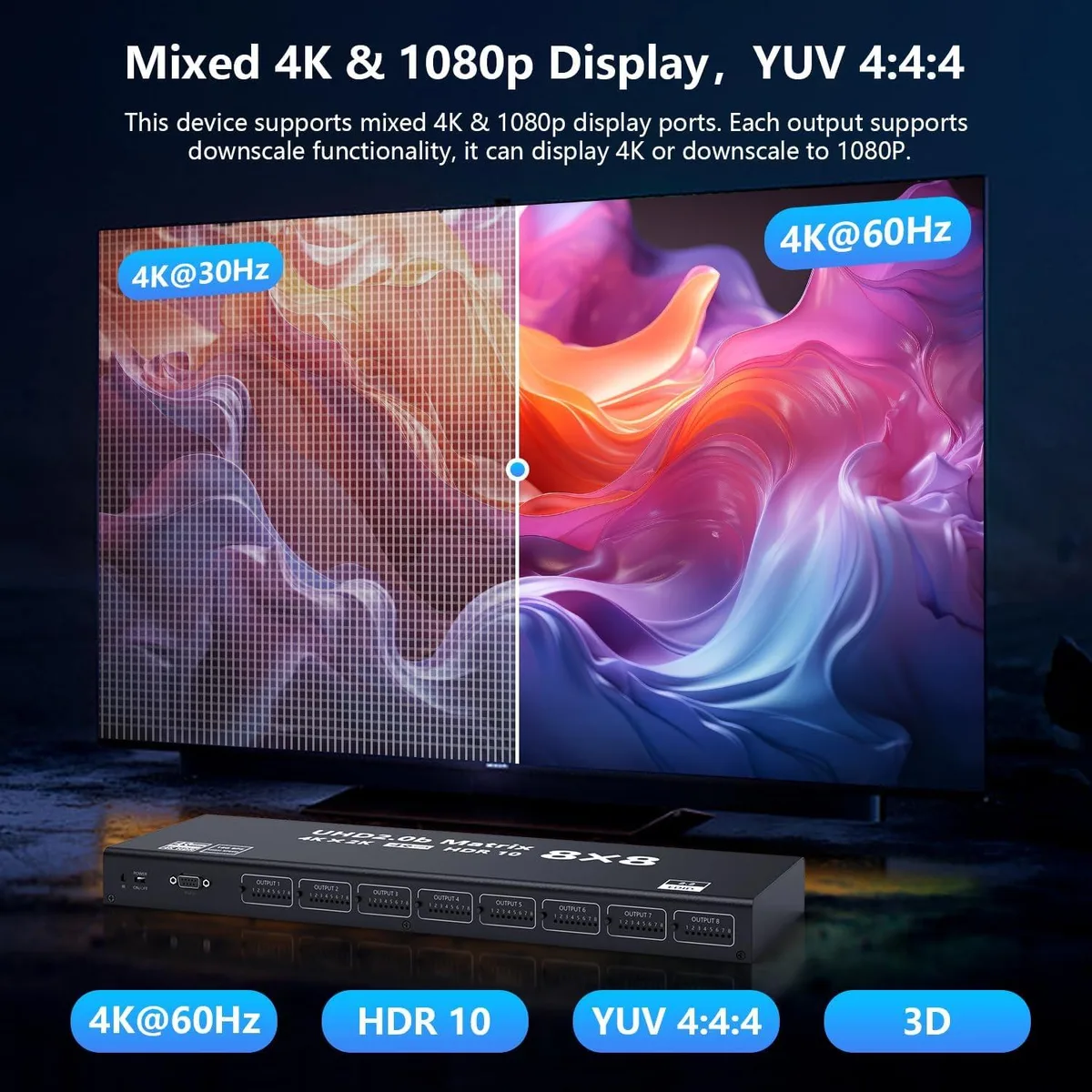

4K 60Hz Support & Downscale Function: Supports up to 4K 60Hz resolution with support for HDR,3D.Enjoy UHD content as it was intended.And the device supports mixed 4K & 1080p display ports. Each output supports downscale functionality, it can display 4K or downscale
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 8x8
1x 12V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

Will the ESTONE OZJ8 pass 4K@60Hz HDR10 from my older Blu-ray player to a 1080p projector?

Yes, the matrix supports 4K@60Hz, HDR10 and 3D on all eight inputs and outputs, and is backward compatible with 1080p and lower resolutions so legacy sources and displays work together.

How do I confirm the matrix is routing signals correctly after connecting everything?

Front-panel indicator lights show the active input for each output, and you can also verify switching through the IR remote, RS232 commands or the panel keys.

Does the OZJ8 come with the IR remote and RS232 cable, or must I buy them separately?

The package includes the matrix unit, an IR remote control and a power supply; RS232 and HDMI cables are not included and must be purchased separately.
