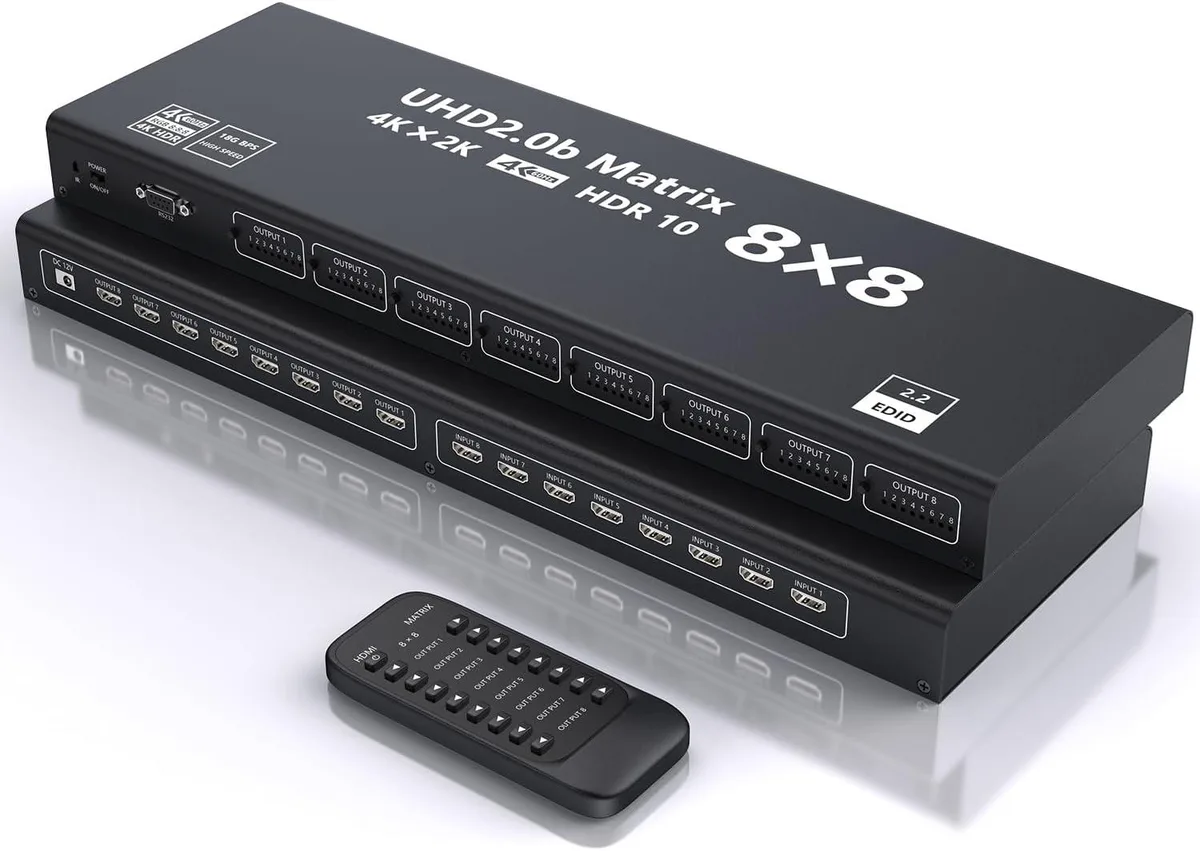

Black rectangular metal box with eight HDMI inputs and eight HDMI outputs, front status lights, remote included

ESTONE

ESTONE OZJ8 8x8 HDMI Matrix Switch Splitter 4K@60Hz 18Gbps Remote HDMI2.0b 3840x2160@60Hz 3D

SKU CH-TF4F-PVQHW

An 8×8 HDMI matrix routes eight 4K sources to eight displays at 60 Hz with 18 Gbps bandwidth and HDR10 support

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports8x8 Matrix
  • MatrixYes
  • AudioYes
  • Route eight 4K sources to eight displays independently with the 8x8 matrix
  • Switch inputs via IR remote, front-panel buttons or RS-232 for flexible control
  • Enjoy 4K at 60 Hz with 18 Gbps bandwidth and 4:4:4 chroma sampling
  • Supports 3D, HDR10 and deep colour up to 24-bit for vivid imagery
  • HDCP 2.2 compliant for protected 4K content playback

8x8 HDMI Matrix Switch

The ESTONE OZJ8 routes up to eight HDMI 2.0b sources to eight displays or projectors. It supports 4K at 60 Hz with 18 Gbps bandwidth and 4:4:4 chroma sampling. The unit handles 3D, deep-colour bit depths and HDR10 content. Installers and AV integrators use it for conference rooms, classrooms and multi-zone signage.

Check cables and control needs

Each HDMI run must stay under 8 metres using AWG26 cable rated for HDMI 2.0b. Verify that every source and sink supports HDCP 2.2 for protected 4K streams. The switch offers front-panel buttons, an IR remote with 7-metre range and an RS-232 port for automation systems. Ensure your control system can send RS-232 commands if you plan centralised management.

Remote and RS-232 expand operation

The bundled IR remote lets users switch any input to any output from across the room. RS-232 connectivity enables scheduled routing, status monitoring and integration with third-party control processors. Front-panel LEDs confirm active routes at a glance. No software licence or configuration utility is required for basic matrix operation.

Highlights

  • Route eight 4K sources to eight displays independently with the 8x8 matrix
  • Switch inputs via IR remote, front-panel buttons or RS-232 for flexible control
  • Enjoy 4K at 60 Hz with 18 Gbps bandwidth and 4:4:4 chroma sampling
  • Supports 3D, HDR10 and deep colour up to 24-bit for vivid imagery
  • HDCP 2.2 compliant for protected 4K content playback

Specifications

BrandESTONE
SeriesOZJ8
ModelOZJ8
Part NumberOZJ8
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports8x8 Matrix
MatrixYes
AudioYes
SpecificationsHDMI version: HDMI 2.0b
HDMI resolution: Up to 3840*2160@60Hz; YUV(4:4:4) RGB.
Support video format: 3D, 8/ 10/ 12/ 24 bit deep color.
Max bandwidth: 600MHz
Max band rate: 18Gbps
Input cable distance: less than 8m AWG26 HDMI 2.0b standard cable
Output cable distance: less than 8m AWG26 HDMI 2.0b standard cable
HDMI Matrix Ports: 8*HDMI Input; 8*HDMI Output; 1*RS232 Port; 1*DC 12V Power Port
Switching mode: Manual switching & IR remote control switch
Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC 12V/2A
Max working current: 500mA
Input Connector8 x HDMI
Output Connector8 x HDMI
Maximum Cable Lengthless than 8m AWG26 HDMI 2.0b standard cable
Maximum Resolutions4096 x 2160
Bandwidth18Gbps/600MHZ

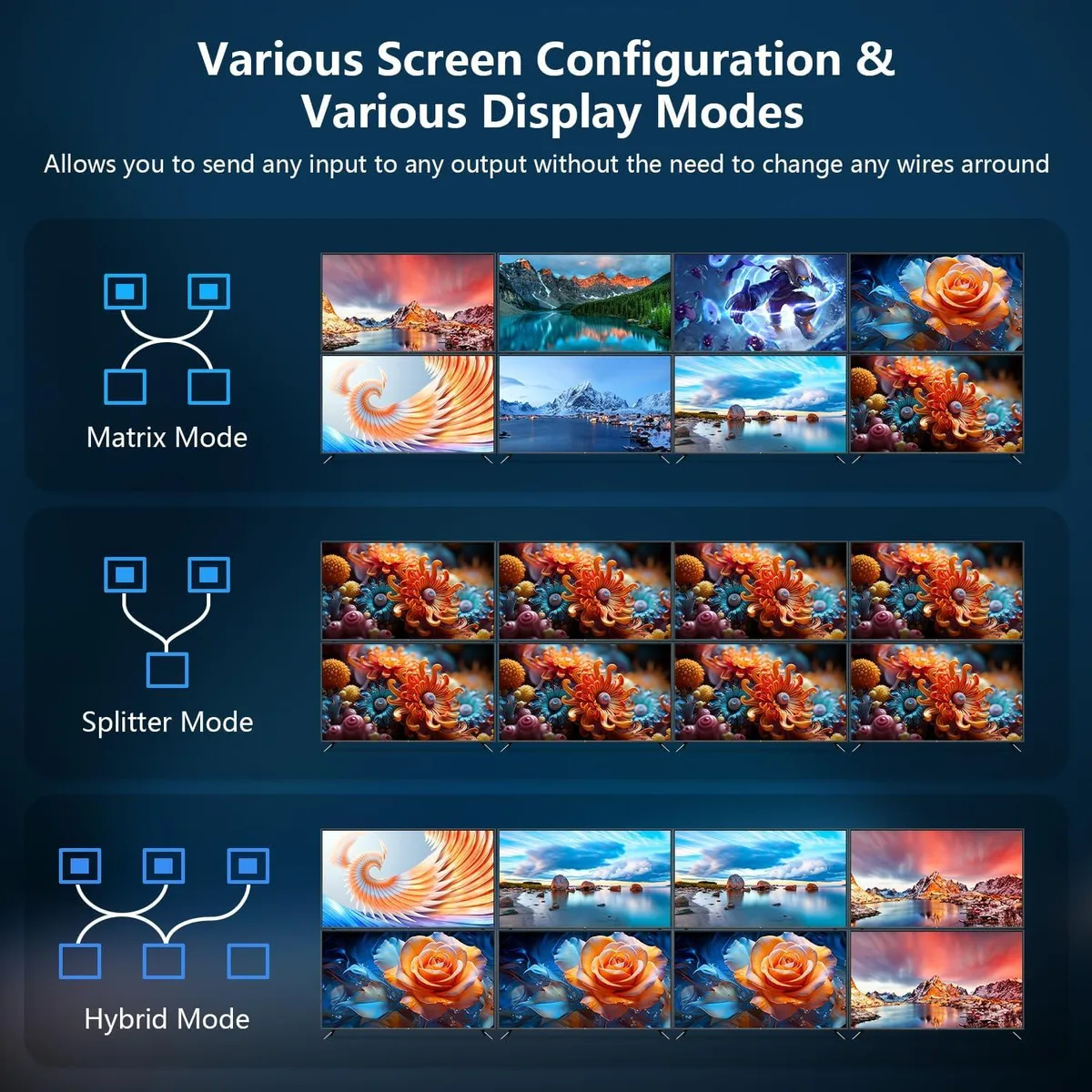

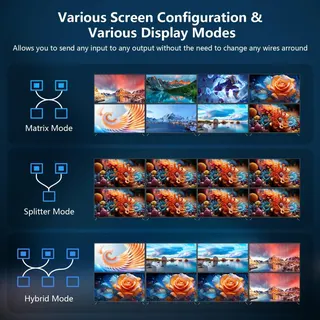

Features8 HDMI Input 8HDMI Output: This 8X8 HDMI Matrix routes up to eight 4K HDR HDMI sources to eight 4K HDR display devices. can be used for multiple high-definition digital video inputs and outputs exchange; any one of the signal outputs can be selected from any one of the signal sources without interfering with other outputs.
4K 60Hz Support & Downscale Function: Supports up to 4K 60Hz resolution with support for HDR,3D.Enjoy UHD content as it was intended.And the device supports mixed 4K & 1080p display ports. Each output supports downscale functionality, it can display 4K or downscale
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 8x8
1x 12V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

What cables are included with the ESTONE OZJ8 8x8 HDMI matrix switch?

The unit ships alone; you must supply eight HDMI 2.0b cables for the inputs and eight more for the outputs, each no longer than 8 metres with AWG26 conductors.

Should I choose a different model if I only need four inputs and four outputs?

The OZJ8 is an 8x8 matrix; if fewer ports are required a smaller matrix would be more appropriate.

Will the 18 Gbps bandwidth carry 4K 60 Hz 4:4:4 from a PlayStation 4 to a projector?

Yes, the 18 Gbps / 600 MHz path supports 3840×2160 at 60 Hz with RGB 8:8:8 or YUV 4:4:4, plus HDR10 and 3D.
