Black metal box with eight HDMI inputs and eight HDMI outputs front and rear, status LEDs, IR remote included

ESTONE

ESTONE OZJ8 8x8 HDMI Matrix Switch 4K@60Hz 18Gbps Remote Control

SKU CH-0W1S-ZH6TM

Routes eight 4K@60Hz HDMI sources to eight displays with 18Gbps bandwidth, HDCP2.2, HDR10, 3D, and IR, RS232 or front-panel control

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports8x8 Matrix
  • MatrixYes
  • AudioYes
  • Routes eight 4K sources to eight displays independently
  • 18 Gbps bandwidth carries 4K at 60 Hz 4:4:4 colour
  • HDCP 2.2 and HDR10 keep protected 4K content intact
  • IR remote, front-panel buttons and RS-232 give three control options
  • Status LEDs show active input-output mapping at a glance

8x8 HDMI Matrix for Multi-Source Installations

The ESTONE OZJ8 routes eight HDMI sources to eight displays independently. Installers use it in conference rooms, classrooms or digital-signage walls where any input must reach any output without re-cabling. It handles 4K at 60 Hz with full 4:4:4 chroma and HDR10, so text and graphics stay sharp on every screen.

HDMI 2.0b Ports and Metal Chassis

Eight HDMI inputs and eight HDMI outputs sit on a black metal enclosure measuring 5.91 by 2.36 by .79 inches and weighing 11.9 ounces. The spec limits source cables to less than 8 metres using AWG26 HDMI 2.0b leads. Front-panel buttons show active routing through indicator lights, while a rear RS-232 port enables integration with control systems.

IR Remote, RS-232 and Panel Control

An infrared remote works up to 7 metres for quick source changes from the seat. RS-232 commands let automation hardware drive the matrix without line-of-sight, and front-panel keys give local override when the remote is missing. No software or drivers are required; the switch passes EDID and HDCP 2.2 transparently.

Highlights

  • Routes eight 4K sources to eight displays independently
  • 18 Gbps bandwidth carries 4K at 60 Hz 4:4:4 colour
  • HDCP 2.2 and HDR10 keep protected 4K content intact
  • IR remote, front-panel buttons and RS-232 give three control options
  • Status LEDs show active input-output mapping at a glance

Specifications

BrandESTONE
SeriesOZJ8
ModelOZJ8
Part NumberOZJ8
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports8x8 Matrix
MatrixYes
AudioYes
SpecificationsHDMI version: HDMI 2.0b
HDMI resolution: Up to 3840*2160@60Hz; YUV(4:4:4) RGB.
Support video format: 3D, 8/ 10/ 12/ 24 bit deep color.
Max bandwidth: 600MHz
Max band rate: 18Gbps
Input cable distance: less than 8m AWG26 HDMI 2.0b standard cable
Output cable distance: less than 8m AWG26 HDMI 2.0b standard cable
HDMI Matrix Ports: 8*HDMI Input; 8*HDMI Output; 1*RS232 Port; 1*DC 12V Power Port
Switching mode: Manual switching & IR remote control switch
Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC 12V/2A
Max working current: 500mA
Input Connector8 x HDMI
Output Connector8 x HDMI
Maximum Cable Lengthless than 8m AWG26 HDMI 2.0b standard cable
Maximum Resolutions4096 x 2160
Bandwidth18Gbps/600MHZ

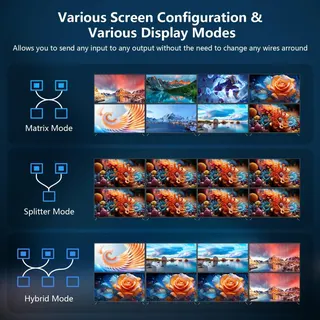

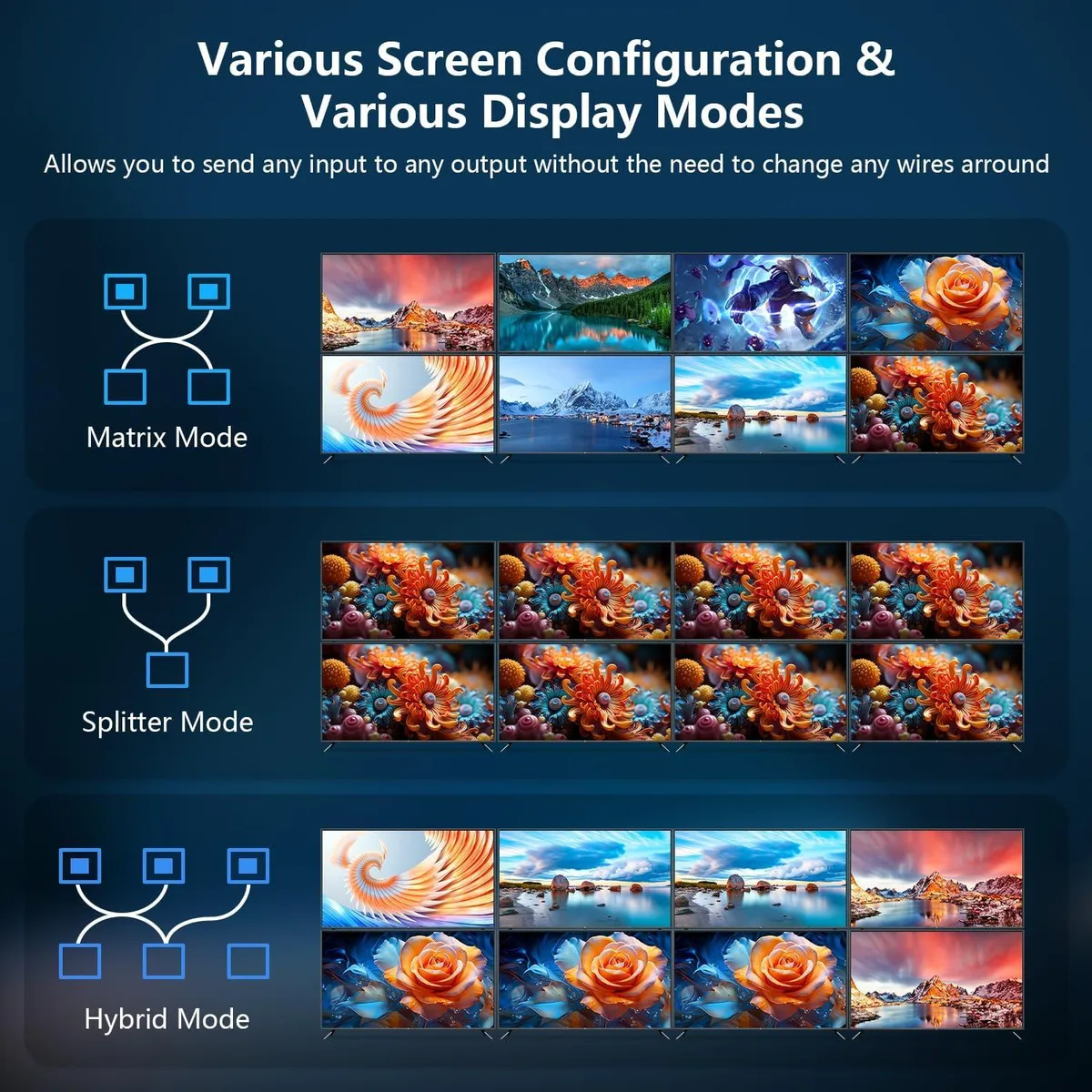

Features8 HDMI Input 8HDMI Output: This 8X8 HDMI Matrix routes up to eight 4K HDR HDMI sources to eight 4K HDR display devices. can be used for multiple high-definition digital video inputs and outputs exchange; any one of the signal outputs can be selected from any one of the signal sources without interfering with other outputs.

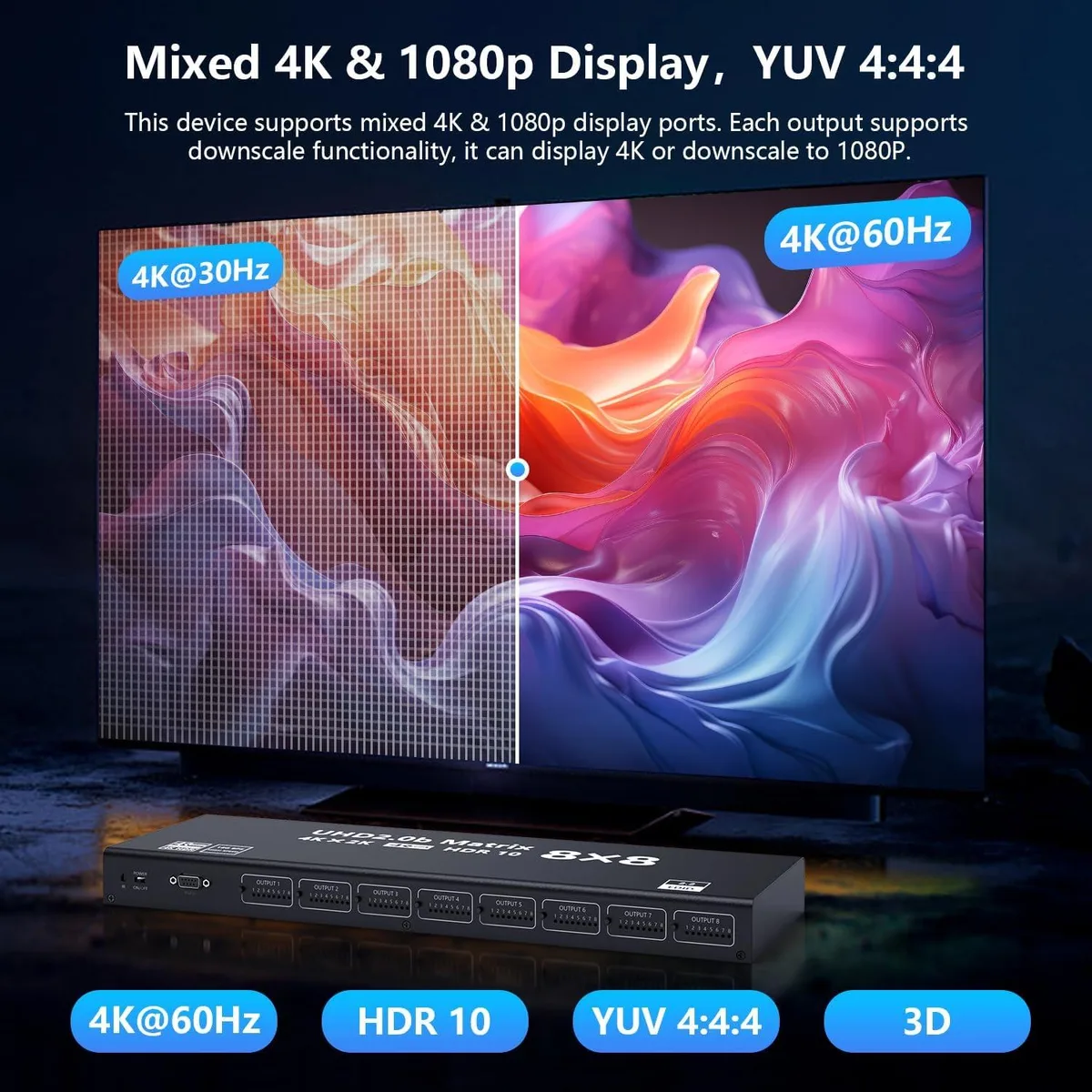

4K 60Hz Support & Downscale Function: Supports up to 4K 60Hz resolution with support for HDR,3D.Enjoy UHD content as it was intended.And the device supports mixed 4K & 1080p display ports. Each output supports downscale functionality, it can display 4K or downscale
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 8x8
1x 12V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

What HDMI standard does the OZJ8 use and what bandwidth does that cap at?

The matrix runs on HDMI 2.0b with a maximum data rate of 18Gbps and a TMDS clock up to 600MHz.

What rack space and cabling does the 8x8 matrix need to fit?

The unit measures 5.91 x 2.36 x 0.79 inches and weighs 11.9 ounces; each HDMI input or output cable must be shorter than 8 metres using AWG26 HDMI 2.0b cable.

How is the switch configured and which step is often missed?

Connect sources to the eight HDMI inputs and displays to the eight HDMI outputs, then use the IR remote, front-panel buttons or RS232 to route signals; the step often missed is setting the remote to the correct IR address so commands are accepted.
