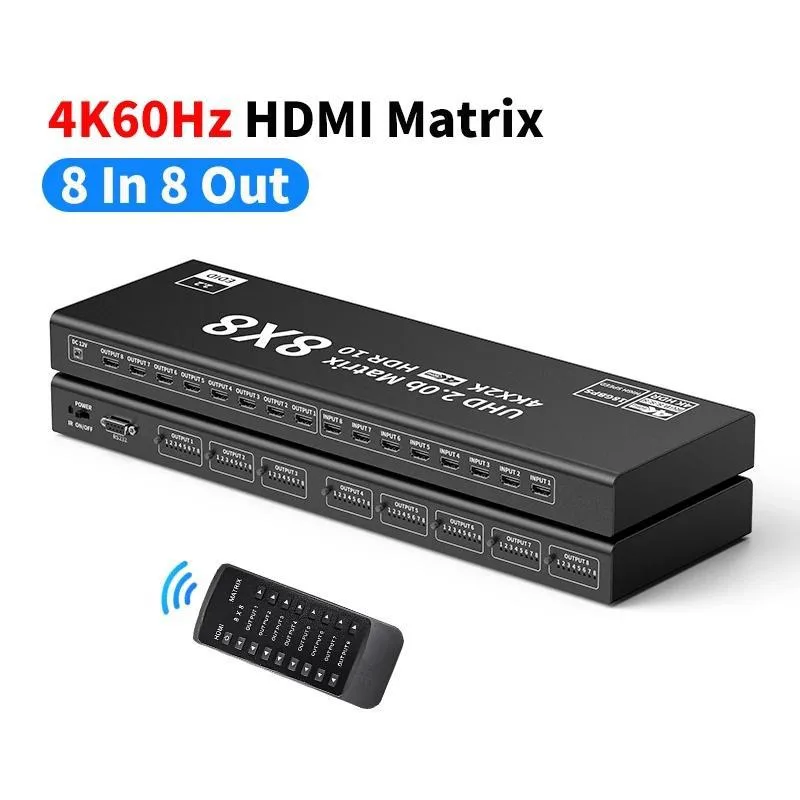

Black metal box with eight HDMI inputs and eight HDMI outputs on the rear, status LEDs on the front, and an IR remote included

ESTONE

ESTONE OZJ8 8x8 HDMI Matrix Switch 4K@60Hz 18Gbps

SKU CH-FTN0-7B1RH

Routes eight 4K@60Hz sources to eight displays via HDMI 2.0b with IR, RS232 and front-panel control

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports8x8 Matrix
  • MatrixYes
  • AudioYes
  • Routes 8 sources to 8 displays independently
  • 4K@60Hz 18Gbps bandwidth with HDR10 and 3D support
  • HDMI 2.0b HDCP 2.2 YUV444 RGB888 deep colour
  • IR remote RS232 front-panel control options
  • Compact metal chassis 5.91 x 2.36 x .79 inches

8x8 HDMI Matrix Switch

The ESTONE OZJ8 routes eight HDMI sources to eight independent displays with full 4K@60Hz support. It handles 18Gbps bandwidth and HDCP 2.2 for protected content. Installers in conference rooms, classrooms or digital-signage deployments get deterministic switching without a PC. Buyers needing more than eight inputs or outputs should look elsewhere.

Thermal noise and power

The unit ships in a metal enclosure measuring 5.91 x 2.36 x 0.79 inches and weighing 11.9 ounces. No active cooling is mentioned, so operation is silent. Power consumption figures are not supplied by the manufacturer. Input cables must stay under 8 metres using AWG26 HDMI 2.0b leads for reliable 18Gbps transmission.

IR RS232 and front panel control

An infrared remote works up to 7 metres for source selection. Front-panel buttons give local switching with status LEDs. RS232 provides serial integration for automation systems. No software, drivers or IP-based control are included.

Highlights

  • Routes 8 sources to 8 displays independently
  • 4K@60Hz 18Gbps bandwidth with HDR10 and 3D support
  • HDMI 2.0b HDCP 2.2 YUV444 RGB888 deep colour
  • IR remote RS232 front-panel control options
  • Compact metal chassis 5.91 x 2.36 x .79 inches

Specifications

BrandESTONE
SeriesOZJ8
ModelOZJ8
Part NumberOZJ8
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports8x8 Matrix
MatrixYes
AudioYes
SpecificationsHDMI version: HDMI 2.0b
HDMI resolution: Up to 3840*2160@60Hz; YUV(4:4:4) RGB.
Support video format: 3D, 8/ 10/ 12/ 24 bit deep color.
Max bandwidth: 600MHz
Max band rate: 18Gbps
Input cable distance: less than 8m AWG26 HDMI 2.0b standard cable
Output cable distance: less than 8m AWG26 HDMI 2.0b standard cable
HDMI Matrix Ports: 8*HDMI Input; 8*HDMI Output; 1*RS232 Port; 1*DC 12V Power Port
Switching mode: Manual switching & IR remote control switch
Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC 12V/2A
Max working current: 500mA
Input Connector8 x HDMI
Output Connector8 x HDMI
Maximum Cable Lengthless than 8m AWG26 HDMI 2.0b standard cable
Maximum Resolutions4096 x 2160
Bandwidth18Gbps/600MHZ

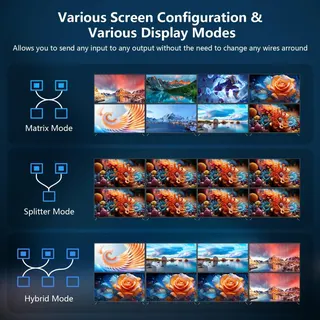

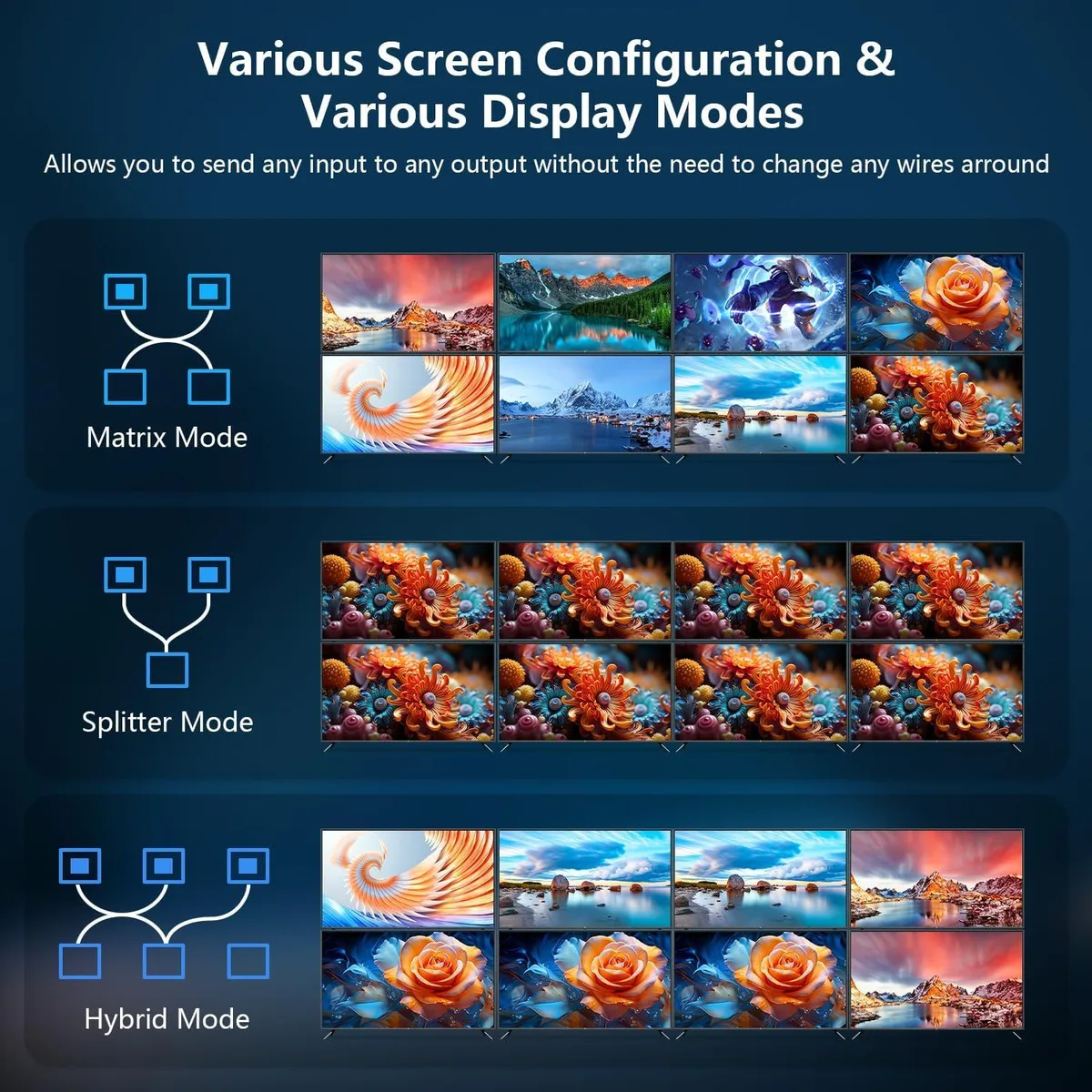

Features8 HDMI Input 8HDMI Output: This 8X8 HDMI Matrix routes up to eight 4K HDR HDMI sources to eight 4K HDR display devices. can be used for multiple high-definition digital video inputs and outputs exchange; any one of the signal outputs can be selected from any one of the signal sources without interfering with other outputs.
4K 60Hz Support & Downscale Function: Supports up to 4K 60Hz resolution with support for HDR,3D.Enjoy UHD content as it was intended.And the device supports mixed 4K & 1080p display ports. Each output supports downscale functionality, it can display 4K or downscale
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 8x8
1x 12V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

How do I install the ESTONE OZJ8 8x8 matrix and what step is often missed?

Connect up to eight HDMI sources to the eight input ports and eight displays to the output ports using cables under 8 metres AWG26, then apply power; the step often missed is setting each output to the desired input via the front panel buttons, IR remote, or RS232 commands before assuming signal passes through automatically.

What maintenance or replacement will the ESTONE OZJ8 need over time?

The unit has no user-serviceable parts; maintenance is limited to keeping ventilation slots clear and replacing any HDMI cables that exceed the 8-metre AWG26 limit or show signal degradation at 18Gbps bandwidth.

What limit appears first when the ESTONE OZJ8 runs continuously at 4K@60Hz 4:4:4?

The 18Gbps bandwidth ceiling and 600MHz TMDS clock are the first hard limits; pushing 3840x2160@60Hz YUV444/RGB888 on all eight outputs simultaneously stays within spec, but any higher resolution, refresh rate or colour depth would exceed the 18Gbps maximum.
