Black metal box with eight HDMI inputs and eight HDMI outputs, front status lights, IR sensor, compact rack form factor

ESTONE

ESTONE OZJ8 8x8 HDMI Matrix 4K 60Hz 18Gbps video switch

SKU CH-2N09-JGD31

Routes eight 4K HDR sources to eight displays with per-output 1080p downscale and IR, RS232 or front-panel control

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports8x8 Matrix
  • MatrixYes
  • AudioYes
  • Routes eight 4K HDR sources to eight displays independently
  • 4K 60Hz with HDR10, 3D and per-output 1080p downscale
  • HDMI 2.0b 18Gbps bandwidth for 3840×2160 60Hz 4:4:4 colour
  • IR remote, front-panel buttons and RS232 control up to 7 metres
  • Metal chassis with status LEDs for rack or desktop use

ESTONE OZJ8 8x8 HDMI Matrix

The ESTONE OZJ8 is an 8x8 HDMI matrix switcher designed for installers and AV professionals who need to route eight HDMI sources to eight displays simultaneously. It handles 4K 60Hz HDR content across all ports and includes IR remote, front-panel buttons and RS232 control for flexible operation in conference rooms, control centres or hospitality environments.

Sustained 4K 60Hz signal integrity

The matrix maintains 18Gbps bandwidth and HDCP 2.2 compliance across all eight outputs during continuous operation, preventing the handshake drops that can appear on lesser switches after extended use. Each output provides independent down-scaling from 4K to 1080p, so mixed-resolution displays stay connected without forcing the source to renegotiate a lower common resolution.

Rack-friendly metal chassis with RS232 integration

The 5.91 x 2.36 x 0.79-inch metal enclosure fits standard equipment racks and runs on the supplied power adapter without external cooling noise. Installers should verify that source and display cables do not exceed the 8-metre AWG26 limit for 4K 60Hz; longer runs require active optical cables or fibre extenders not included in the package.

Highlights

  • Routes eight 4K HDR sources to eight displays independently
  • 4K 60Hz with HDR10, 3D and per-output 1080p downscale
  • HDMI 2.0b 18Gbps bandwidth for 3840×2160 60Hz 4:4:4 colour
  • IR remote, front-panel buttons and RS232 control up to 7 metres
  • Metal chassis with status LEDs for rack or desktop use

Specifications

BrandESTONE
SeriesOZJ8
ModelOZJ8
Part NumberOZJ8
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports8x8 Matrix
MatrixYes
AudioYes
SpecificationsHDMI version: HDMI 2.0b
HDMI resolution: Up to 3840*2160@60Hz; YUV(4:4:4) RGB.
Support video format: 3D, 8/ 10/ 12/ 24 bit deep color.
Max bandwidth: 600MHz
Max band rate: 18Gbps
Input cable distance: less than 8m AWG26 HDMI 2.0b standard cable
Output cable distance: less than 8m AWG26 HDMI 2.0b standard cable
HDMI Matrix Ports: 8*HDMI Input; 8*HDMI Output; 1*RS232 Port; 1*DC 12V Power Port
Switching mode: Manual switching & IR remote control switch
Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC 12V/2A
Max working current: 500mA
Input Connector8 x HDMI
Output Connector8 x HDMI
Maximum Cable Lengthless than 8m AWG26 HDMI 2.0b standard cable
Maximum Resolutions4096 x 2160
Bandwidth18Gbps/600MHZ

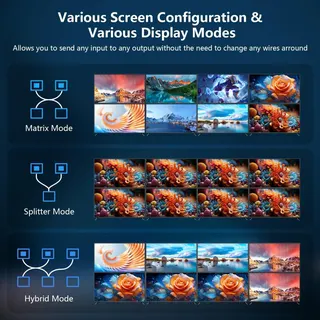

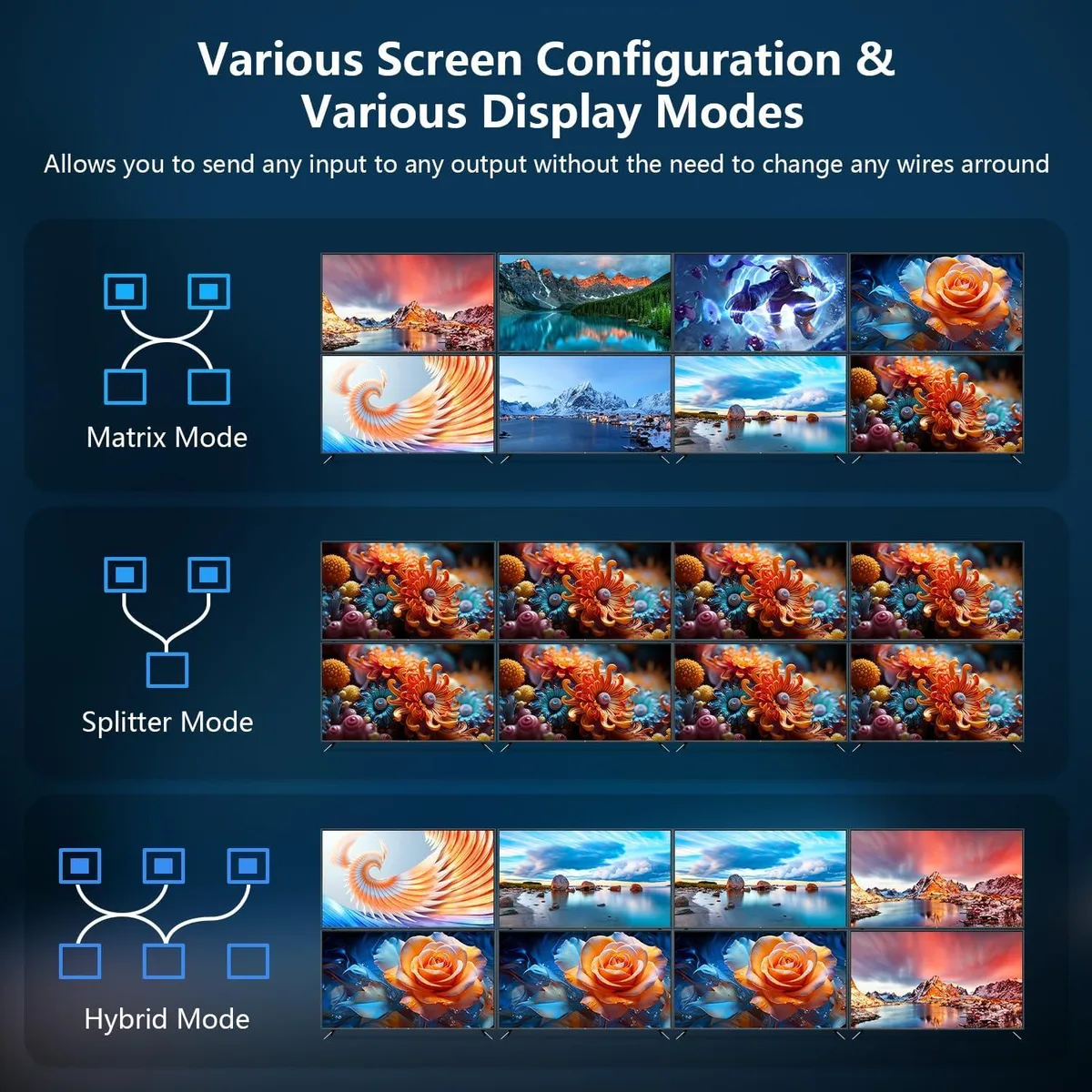

Features8 HDMI Input 8HDMI Output: This 8X8 HDMI Matrix routes up to eight 4K HDR HDMI sources to eight 4K HDR display devices. can be used for multiple high-definition digital video inputs and outputs exchange; any one of the signal outputs can be selected from any one of the signal sources without interfering with other outputs.

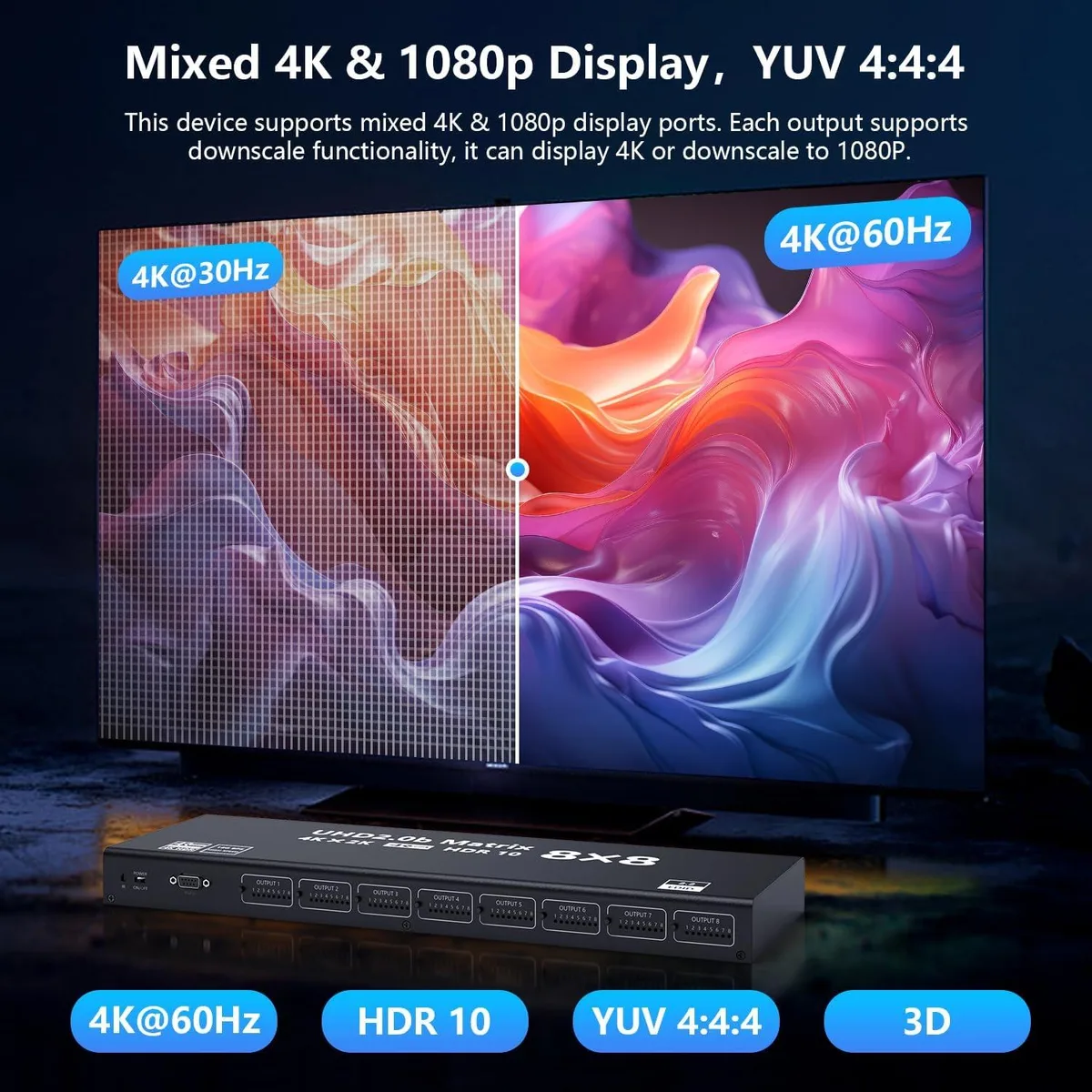

4K 60Hz Support & Downscale Function: Supports up to 4K 60Hz resolution with support for HDR,3D.Enjoy UHD content as it was intended.And the device supports mixed 4K & 1080p display ports. Each output supports downscale functionality, it can display 4K or downscale
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1

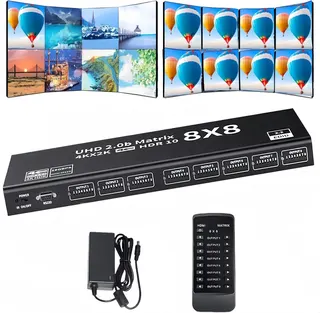

Package Contents1x HDMI Matrix 8x8
1x 12V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

Does the 8x8 HDMI matrix generate noticeable heat or fan noise when running continuously?

The unit has a durable metal casing that acts as passive cooling; no fan is mentioned, so operation is silent.

Which cables and source devices must I already have to use the eight HDMI inputs and eight HDMI outputs?

You need up to eight HDMI source devices and up to eight HDMI displays plus HDMI cables; the spec notes cables should be under 8 m AWG26 for 4K@60Hz.

Will the matrix downscale 4K@60Hz signals automatically for older 1080p displays I want to keep?

Yes, each output supports independent downscale from 4K to 1080p, so mixed 4K and 1080p screens work together without signal loss.
