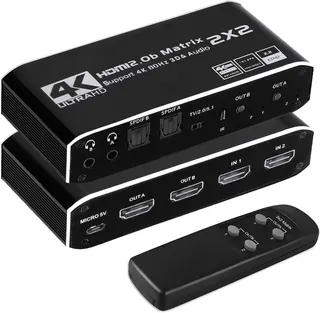

Black rectangular HDMI matrix switch with front panel buttons and rear ports

ESTONE

ESTONE OZJ6 HDMI Matrix Switch 2x2 4K@60Hz 18.5Gbps

SKU CH-QEDN-2J147

Routes two HDMI sources to two displays at 4K@60Hz with 18.5Gbps bandwidth, HDCP 2.2, IR remote and audio extraction

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • MatrixYes
  • AudioYes
  • Routes two 4K@60Hz sources to two displays independently
  • 5Gbps bandwidth carries 4K@60Hz 4:4:4 HDR without compression
  • HDCP 2.2 support keeps protected 4K streams playing on both outputs
  • IR remote switches or splits sources from across the room
  • Optical and 3.5mm audio outputs extract LPCM or 5.1 surround per zone

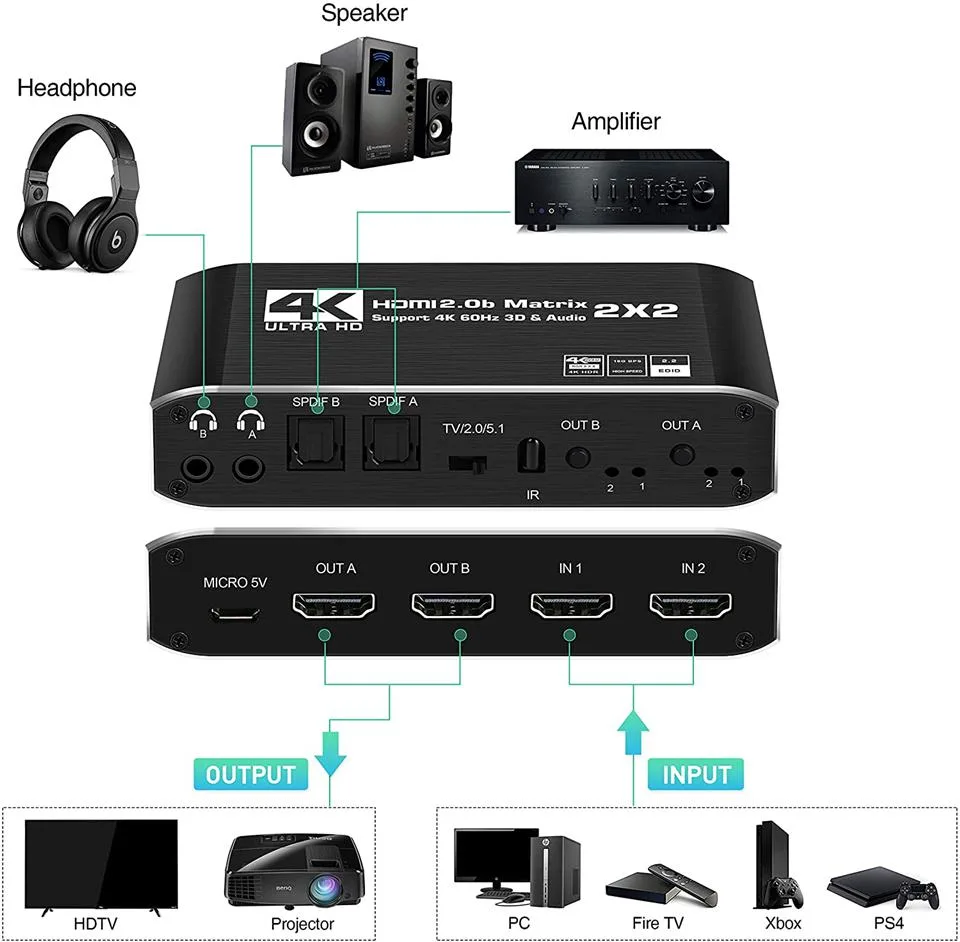

2x2 HDMI Matrix for Dual Displays

The ESTONE OZJ6 routes two HDMI sources to two displays independently. It suits home theatres, conference rooms, retail signage and training setups where different content must appear on separate screens simultaneously.

Installation and Common Issues

The unit connects with standard HDMI cables up to 10 metres using AWG26 construction. Power the device, select inputs via the IR remote or front buttons, and audio extracts automatically through 3.5 mm or optical ports. Handshake failures usually stem from cables exceeding the length limit or displays that do not support HDCP 2.2.

Bandwidth and Resolution Limits

HDMI 2.0b caps throughput at 18.5 Gbps with a 600 MHz TMDS clock. That ceiling locks maximum output to 3840 x 2160 at 60 Hz with 8:8:8 colour sampling. Higher refresh rates, 12-bit HDR above 60 Hz or uncompressed 48-bit deep colour at 4K 60 Hz exceed the interface and will not pass.

Highlights

  • Routes two 4K@60Hz sources to two displays independently
  • 5Gbps bandwidth carries 4K@60Hz 4:4:4 HDR without compression
  • HDCP 2.2 support keeps protected 4K streams playing on both outputs
  • IR remote switches or splits sources from across the room
  • Optical and 3.5mm audio outputs extract LPCM or 5.1 surround per zone

Specifications

BrandESTONE
SeriesOZJ6
ModelOZJ6
Part NumberOZJ6
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
MatrixYes
AudioYes
SpecificationsModel: HDMI Matrix 2x2
HDMI version: HDMI 2.0b
HDMI resolution: up to 4K@60Hz, 3D.RGB 8:8:8
Support video format: 8/10/12/24/32 bit
Support audio format: LPCM/DTS 5.1/Dobly-AC3
Maximum bandwidth: 18.5Gbps
Max bandwidth: 600MHz

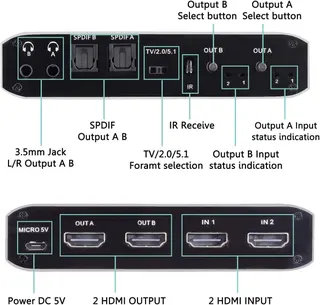

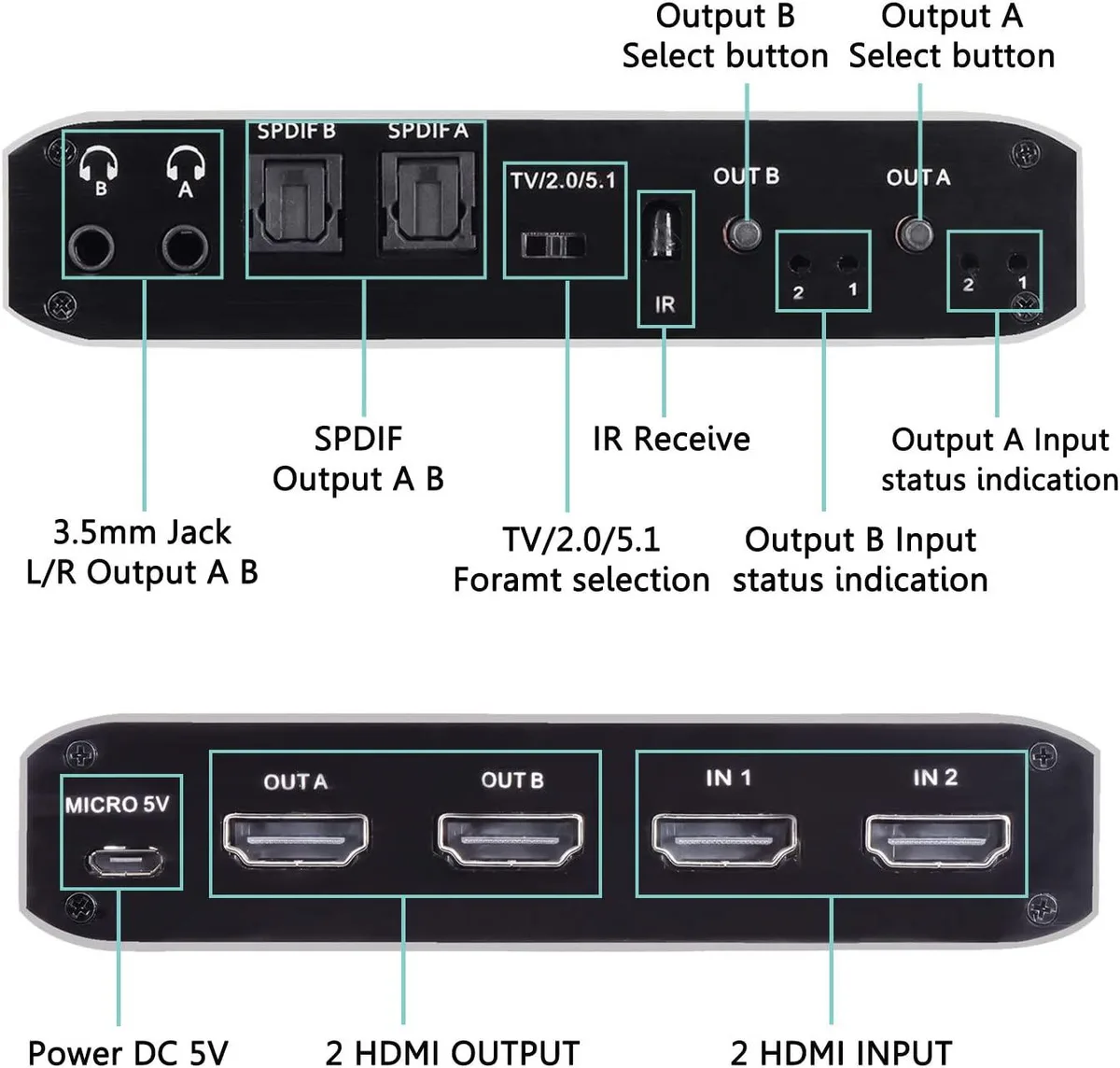

Input Connector2 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
Support LPCM/Dolby/DTS 5.1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 2 in 2 out
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

How do I verify the matrix is passing a 4K@60Hz signal correctly?

Connect a 4K@60Hz source to an input and a 4K display to an output; the front-panel LEDs will show the active input for each output and the display should report 3840x2160@60Hz with RGB 4:4:4.

What comes in the box and which cables must I supply?

The package includes the matrix, a charger, a USB cable, an IR remote and a user manual; you must provide up to four HDMI cables (two inputs, two outputs) rated for 18.5Gbps and no longer than 10m AWG26.

This model is listed as OZJ6 — are there other versions or capacities I should consider?

The OZJ6 is a single 2x2 matrix with 18.5Gbps bandwidth, HDMI 2.0b, HDCP 2.2, dual SPDIF and 3.5mm audio extraction, and a 4K-to-1080P downscaler; no other capacities or versions are offered for this part number.
