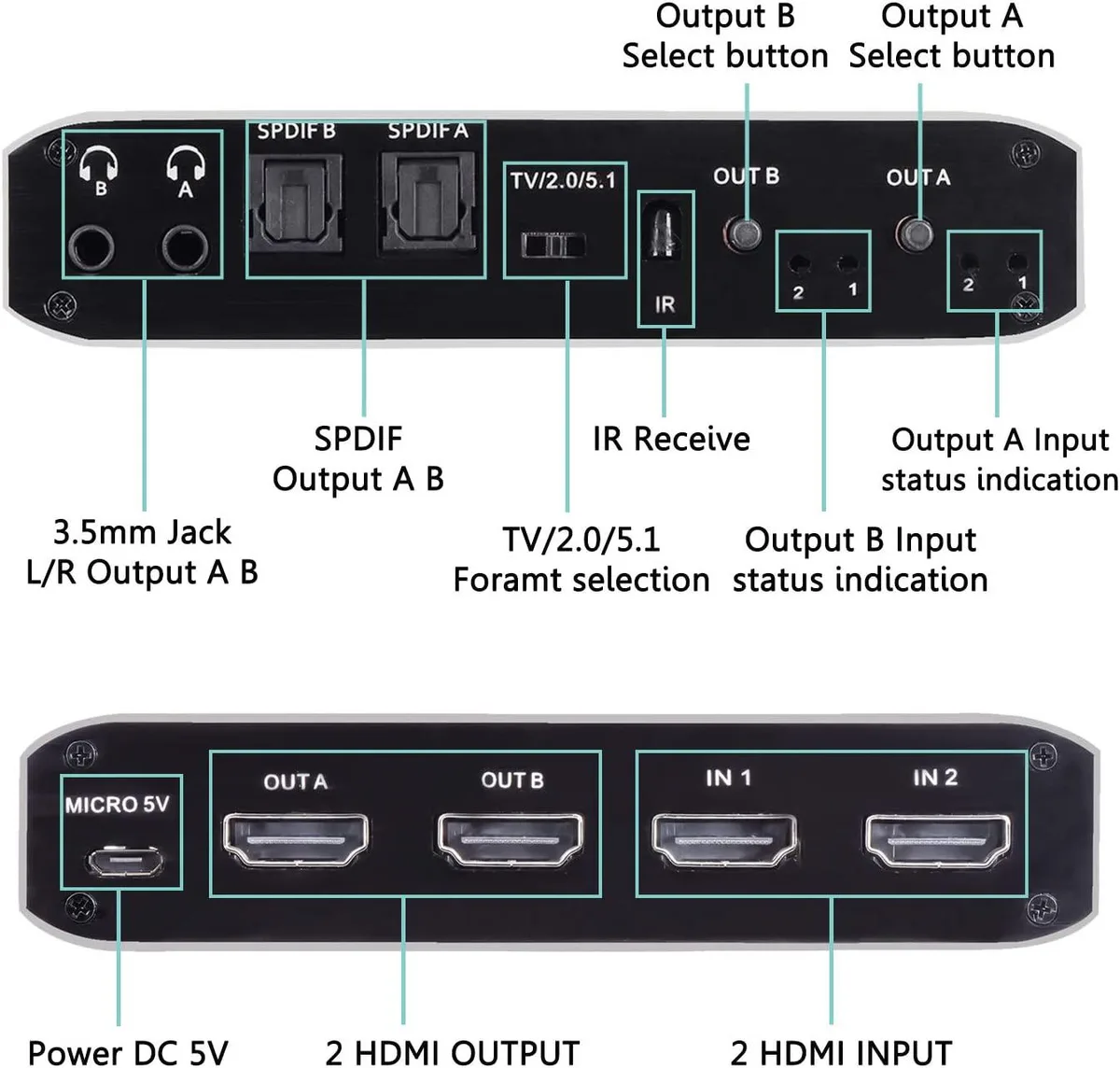

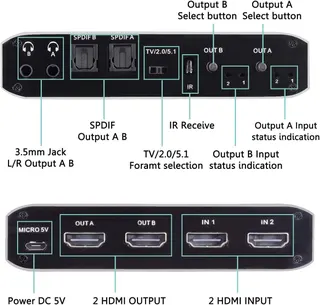

Black rectangular HDMI matrix box with front ports and IR sensor

ESTONE

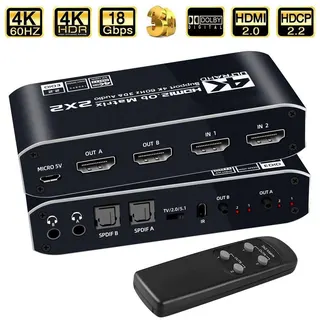

ESTONE OZJ6 HDMI Matrix 2x2 4K@60Hz Audio Extractor

SKU CH-K8JM-AR68V

Routes two HDMI sources to two displays at 4K@60Hz with SPDIF and 3.5mm audio extraction and IR control

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • MatrixYes
  • AudioYes
  • 4K@60Hz matrix switching with 18.5Gbps bandwidth
  • Audio extraction via 2x SPDIF and 2x 3.5mm outputs
  • HDCP 2.2 and HDR10 support for protected 4K content
  • IR remote control for convenient source selection
  • 10m cable reach at full 4K@60Hz specification

2×2 HDMI Matrix Switch

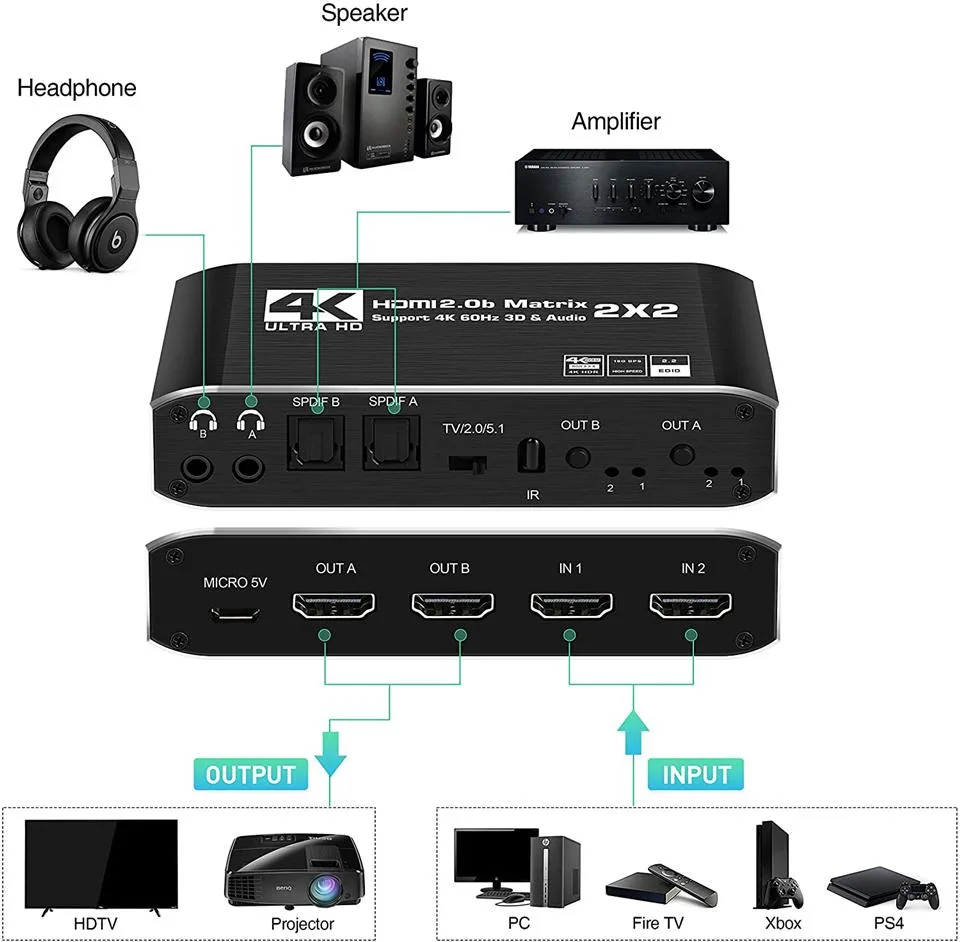

The ESTONE OZJ6 is a 2×2 HDMI matrix that routes two sources to two displays independently. It supports 4K resolution at 60 Hz with HDR10 and HDCP 2.2 compliance. The unit suits home theatre, conference room or digital signage installations needing flexible signal distribution.

Audio Extraction and Control

Two Toslink optical outputs and two 3.5 mm stereo ports extract audio from either HDMI input. Supported formats include LPCM and DTS 5.1 channels. An IR remote is included for source switching without front-panel access.

HDMI 2.0b Bandwidth Limits

The 18.5 Gbps bandwidth caps video at 4K 60 Hz 4:4:4 colour. Cable runs are limited to 10 metres using AWG 26 HDMI 2.0b cables. The built-in downscaler converts 4K to 1080p per output but cannot up-convert lower resolutions.

Highlights

  • 4K@60Hz matrix switching with 18.5Gbps bandwidth
  • Audio extraction via 2x SPDIF and 2x 3.5mm outputs
  • HDCP 2.2 and HDR10 support for protected 4K content
  • IR remote control for convenient source selection
  • 10m cable reach at full 4K@60Hz specification

Specifications

BrandESTONE
SeriesOZJ6
ModelOZJ6
Part NumberOZJ6
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
MatrixYes
AudioYes
SpecificationsModel: HDMI Matrix 2x2
HDMI version: HDMI 2.0b
HDMI resolution: up to 4K@60Hz, 3D.RGB 8:8:8
Support video format: 8/10/12/24/32 bit
Support audio format: LPCM/DTS 5.1/Dobly-AC3
Maximum bandwidth: 18.5Gbps
Max bandwidth: 600MHz
Input Connector2 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
Support LPCM/Dolby/DTS 5.1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 2 in 2 out
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

Will the IR remote or the power supply need replacing over time?

The unit ships with an IR remote and a charger plus USB cable; no user-serviceable parts are listed, so only the remote batteries would need periodic replacement.

What bandwidth ceiling limits sustained 4K 60 Hz throughput?

The matrix is rated for 18.5 Gbps and a TMDS clock of 600 MHz, which is the hard limit for continuous 4K 60 Hz 4:4:4 signals.

Does the box get hot or draw much power when running 24/7?

No power-consumption or thermal figures are supplied; the aluminium enclosure is passively cooled and the external charger handles all power conversion.
