ESTONE

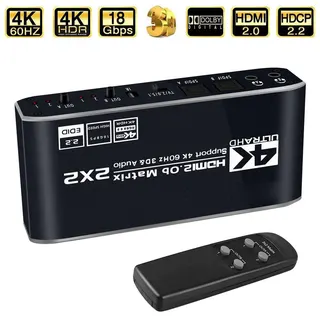

ESTONE OZJ6 2x2 HDMI Matrix Switch 4K@60Hz IR Remote
A 2x2 HDMI matrix switches two 4K@60Hz sources between two displays with IR remote control and extracts audio via optical and 3.5mm outputs
- TypeHDMI Switchers
- Changer TypeHDMI Switch/Extender
- ColorBlack
- Ports2
- MatrixYes
- AudioYes
- Route two 4K sources to two displays independently
- 5 Gbps bandwidth carries 4K@60 Hz HDR10 and 3D
- HDCP 2.2 keeps protected content flowing without handshake issues
- IR remote switches inputs from across the room
- Extract audio via optical or 3.5 mm for external sound systems
What this switch does

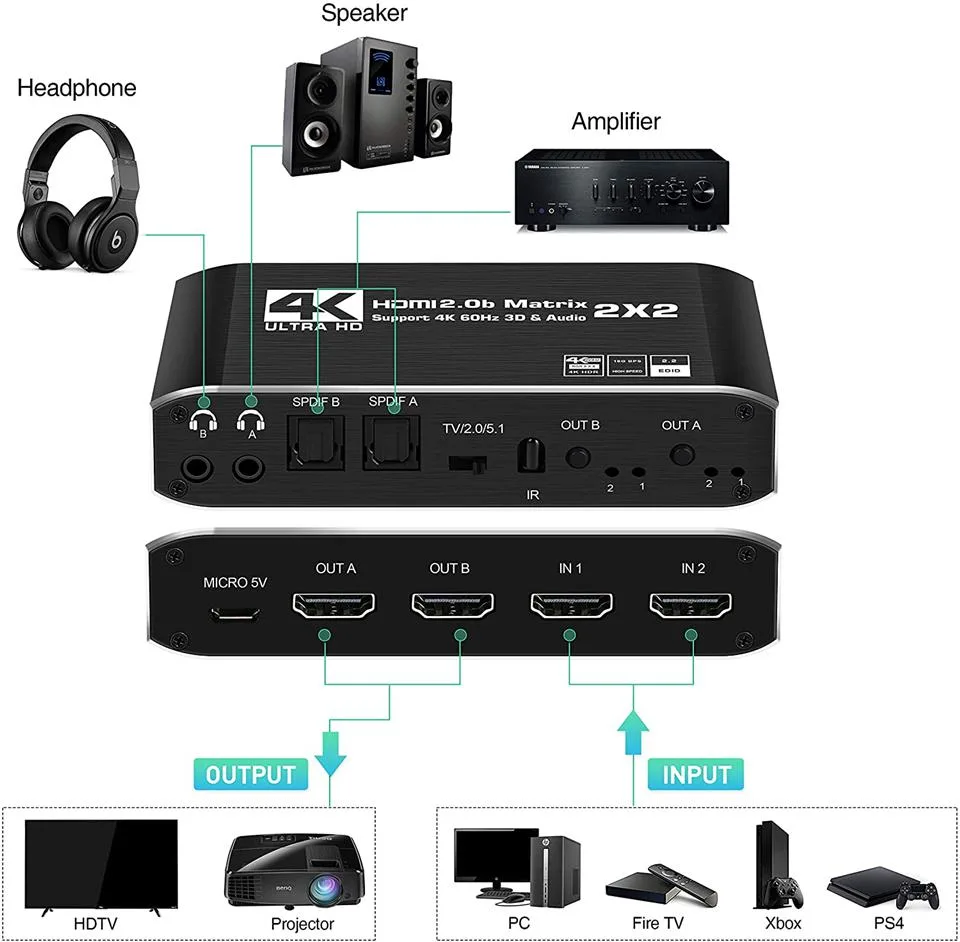

The ESTONE OZJ6 is a 2x2 HDMI matrix that routes two source devices to two displays independently. It suits installers who need simultaneous distribution to a projector and a monitor in meeting rooms, classrooms or home theatres.
Bandwidth and cable limits
The 18.5Gbps ceiling handles 4K at 60Hz with deep colour up to 48-bit, but it cannot carry higher refresh rates or uncompressed 8K signals. Standard AWG26 cables are reliable to 10 metres; longer runs risk signal loss without active fibre or repeaters.
Audio extraction decides fit

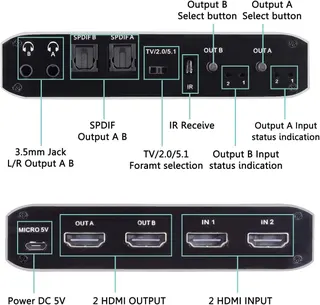

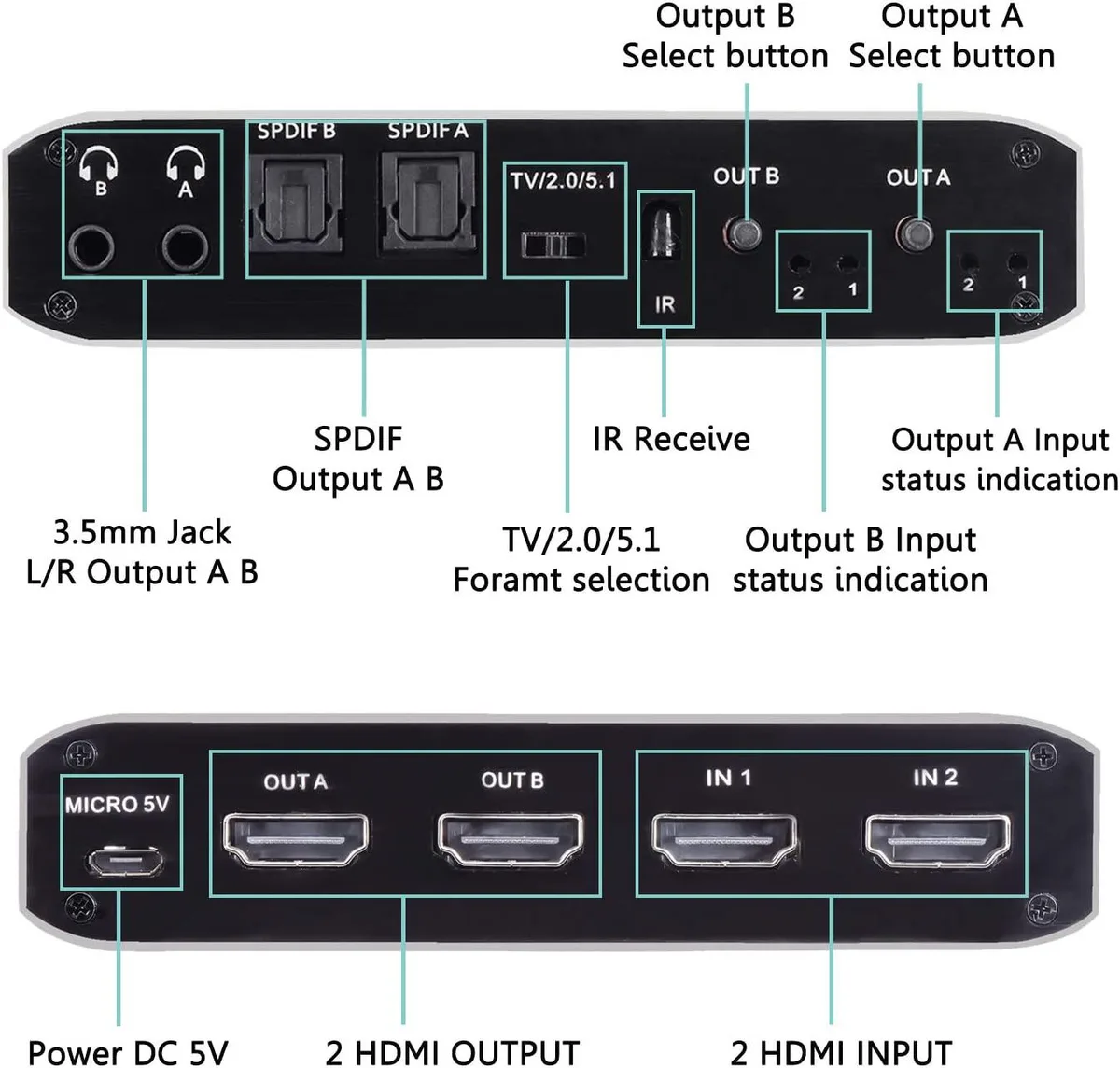

Two SPDIF optical and two 3.5mm analogue outputs pull multichannel or stereo sound from either HDMI stream. If your installation requires de-embedded audio for a soundbar or PA system, this unit covers it; if you only need pure video switching, the extra audio ports add no value.
Highlights
- Route two 4K sources to two displays independently
- 5 Gbps bandwidth carries 4K@60 Hz HDR10 and 3D
- HDCP 2.2 keeps protected content flowing without handshake issues
- IR remote switches inputs from across the room
- Extract audio via optical or 3.5 mm for external sound systems
Specifications
| Brand | ESTONE |
|---|---|
| Series | OZJ6 |
| Model | OZJ6 |
| Part Number | OZJ6 |
| Type | HDMI Switchers |
| Changer Type | HDMI Switch/Extender |
| Color | Black |
| Ports | 2 |
| Matrix | Yes |
| Audio | Yes |
| Specifications | Model: HDMI Matrix 2x2 HDMI version: HDMI 2.0b HDMI resolution: up to 4K@60Hz, 3D.RGB 8:8:8 Support video format: 8/10/12/24/32 bit Support audio format: LPCM/DTS 5.1/Dobly-AC3 Maximum bandwidth: 18.5Gbps Max bandwidth: 600MHz |
| Input Connector | 2 x HDMI |
| Output Connector | 2 x HDMI |
| Maximum Cable Length | 10m AWG26 HDMI2.0b standard cable |
| Maximum Resolutions | 4K@60Hz |
| Bandwidth | 18.5Gbps/600MHZ |
| Features | Support HDMI 2.0b HDCP 2.2 Support 3D video format Support highest resolution up to 3840*2160/60Hz Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz Support deep color 8/10/12/24/32/48bit Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time Support LPCM/Dolby/DTS 5.1 audio |
| Dimensions | 5.91 x 2.36 x 0.79 inches |
| Weight | 11.9 ounces |
| Package Quantity | 1 |
| Package Contents | 1x HDMI Matrix 2 in 2 out 1x 5V power adapter 1x IR Remote Control 1x User Manual |
Questions about this item
How do I choose between the available versions or capacities of this matrix switch?
This model is a single 2x2 configuration with two HDMI inputs and two HDMI outputs; there are no alternative versions or capacities to select.
What does the 4K@60Hz rating mean when the unit is connected to real displays and sources?
It means each output can deliver 3840x2160 at 60 Hz with HDR10 and deep colour up to 48-bit, provided the source and cables also support HDMI 2.0b and the 18.5 Gbps bandwidth limit.
How does the HDMI 2.0b interface cap performance in practice?
The 2.0b link tops out at 18.5 Gbps and 600 MHz TMDS clock, so 4K@60Hz 4:4:4 is the maximum; higher refresh rates or 8K signals are not supported.
