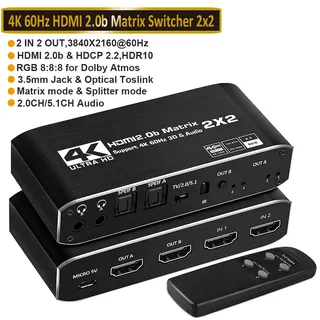

Black rectangular HDMI matrix box with front and rear ports

ESTONE

ESTONE OZJ6 2x2 HDMI Matrix 4K 60Hz HDR10 Audio Extract

SKU CH-30S8-38X6G

Routes two 4K 60 Hz HDR10 sources to two displays with independent audio extraction via optical and 3.5 mm outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • MatrixYes
  • AudioYes
  • Two sources to two displays via 2x2 matrix
  • 4K 60 Hz HDR10 with 18.5 Gbps bandwidth
  • Audio extract to optical and 3.5 mm stereo
  • Independent 4K to 1080P downscaler per output
  • IR remote and front buttons for instant switching

2x2 HDMI Matrix Switcher

The ESTONE OZJ6 is a 2x2 HDMI matrix switcher that routes two HDMI sources to two displays independently. It supports HDMI 2.0b and HDCP 2.2 with a maximum bandwidth of 18.5Gbps. The unit handles video up to 4K at 60Hz with HDR10 and deep colour up to 48-bit. Audio can be extracted via two Toslink SPDIF ports and two 3.5mm stereo outputs supporting LPCM and DTS 5.1.

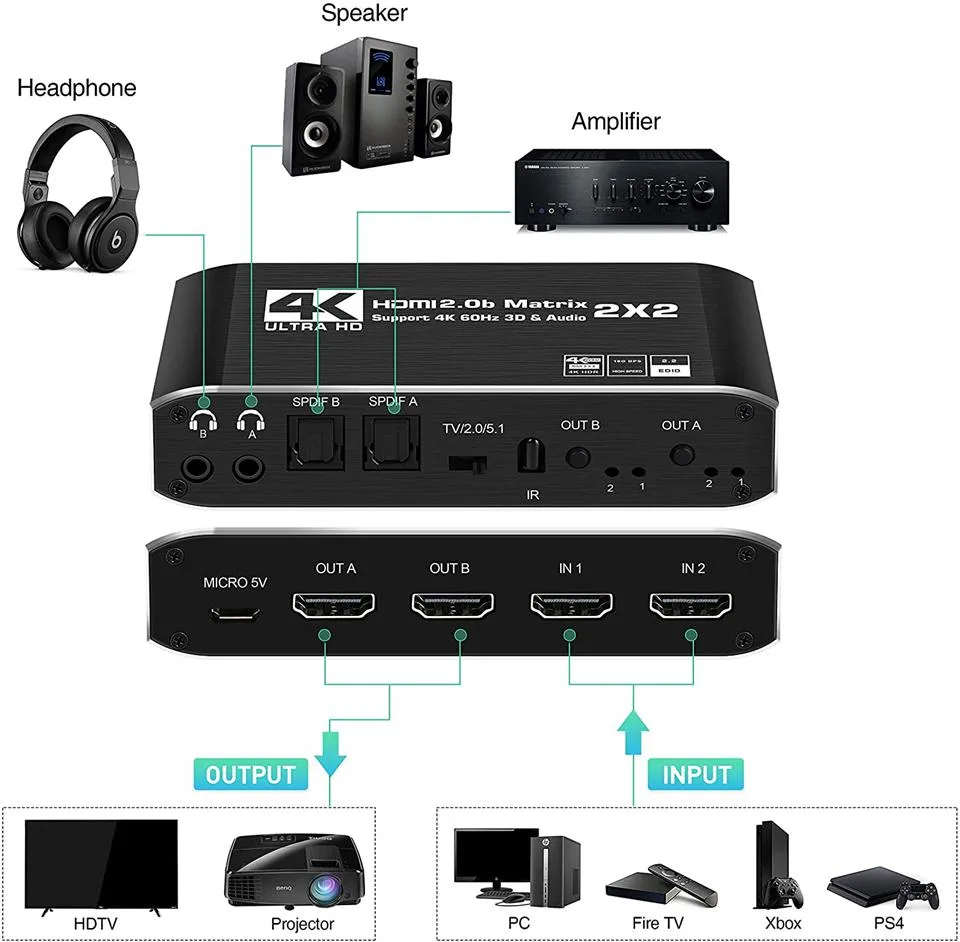

Installers needing independent dual-display routing

This matrix suits installers who need to send two 4K sources to two screens with separate audio extraction for each zone. It includes an IR remote for front-of-room control and a downscaler that converts 4K signals to 1080p on either output. Buyers who require more than two inputs or two outputs should consider other options. Those needing HDMI 2.1 features or higher refresh rates at 4K will not find them here.

18.5Gbps bandwidth ceiling

The 18.5Gbps bandwidth limit defines the maximum video throughput. It locks the switcher to 4K at 60Hz with 4:4:4 chroma and prevents uncompressed 4K at higher frame rates or 8K signals. If your source devices output within this limit, the matrix will pass them cleanly to both displays with independent audio extraction.

Highlights

  • Two sources to two displays via 2x2 matrix
  • 4K 60 Hz HDR10 with 18.5 Gbps bandwidth
  • Audio extract to optical and 3.5 mm stereo
  • Independent 4K to 1080P downscaler per output
  • IR remote and front buttons for instant switching

Specifications

BrandESTONE
SeriesOZJ6
ModelOZJ6
Part NumberOZJ6
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
MatrixYes
AudioYes
SpecificationsModel: HDMI Matrix 2x2
HDMI version: HDMI 2.0b
HDMI resolution: up to 4K@60Hz, 3D.RGB 8:8:8
Support video format: 8/10/12/24/32 bit
Support audio format: LPCM/DTS 5.1/Dobly-AC3
Maximum bandwidth: 18.5Gbps
Max bandwidth: 600MHz
Input Connector2 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
Support LPCM/Dolby/DTS 5.1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 2 in 2 out
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

What HDMI sources and displays do I need to connect to the two HDMI inputs and two HDMI outputs?

Connect up to two HDMI source devices such as a computer, game console or media player to the inputs, and two HDMI displays such as monitors, TVs or projectors to the outputs.

Will my older 1080p display work with the 4K 60Hz sources connected through the matrix?

Yes, the built-in downscaler converts 4K signals to 1080p for any display that only supports 1080p resolution.

How can I verify the matrix is passing 4K 60Hz HDR10 and multi-channel audio correctly?

Check the display shows 3840x2160 at 60Hz with HDR active, and confirm audio is heard via the SPDIF optical or 3.5mm outputs in LPCM, Dolby or DTS 5.1 formats.
