Black rectangular HDMI matrix switcher with multiple ports on front and rear

ESTONE

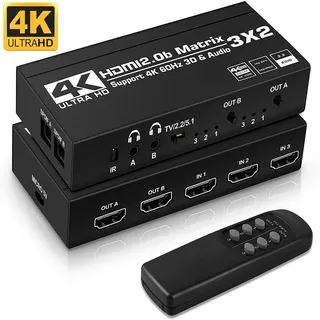

ESTONE OZJ5 HDMI Matrix 3x2 4K@60Hz HDR Audio Extract

SKU CH-V096-S5QS7

Routes three 4K@60Hz HDR sources to two displays while extracting audio via SPDIF and 3.5 mm outputs, controlled by IR remote or front button

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports3-Port
  • MatrixYes
  • AudioYes
  • Route three 4K HDR sources to two displays with a 3×2 HDMI matrix
  • Extract audio via Toslink SPDIF or 3.5 mm stereo from any input simultaneously
  • Control switching by IR remote or front-panel button without leaving your seat
  • Downscale 4K to 1080p per output for mixed-resolution screens
  • Pass 18.5 Gbps bandwidth with 4:4:4 chroma and HDR10 support

3x2 HDMI Matrix for multi-source routing

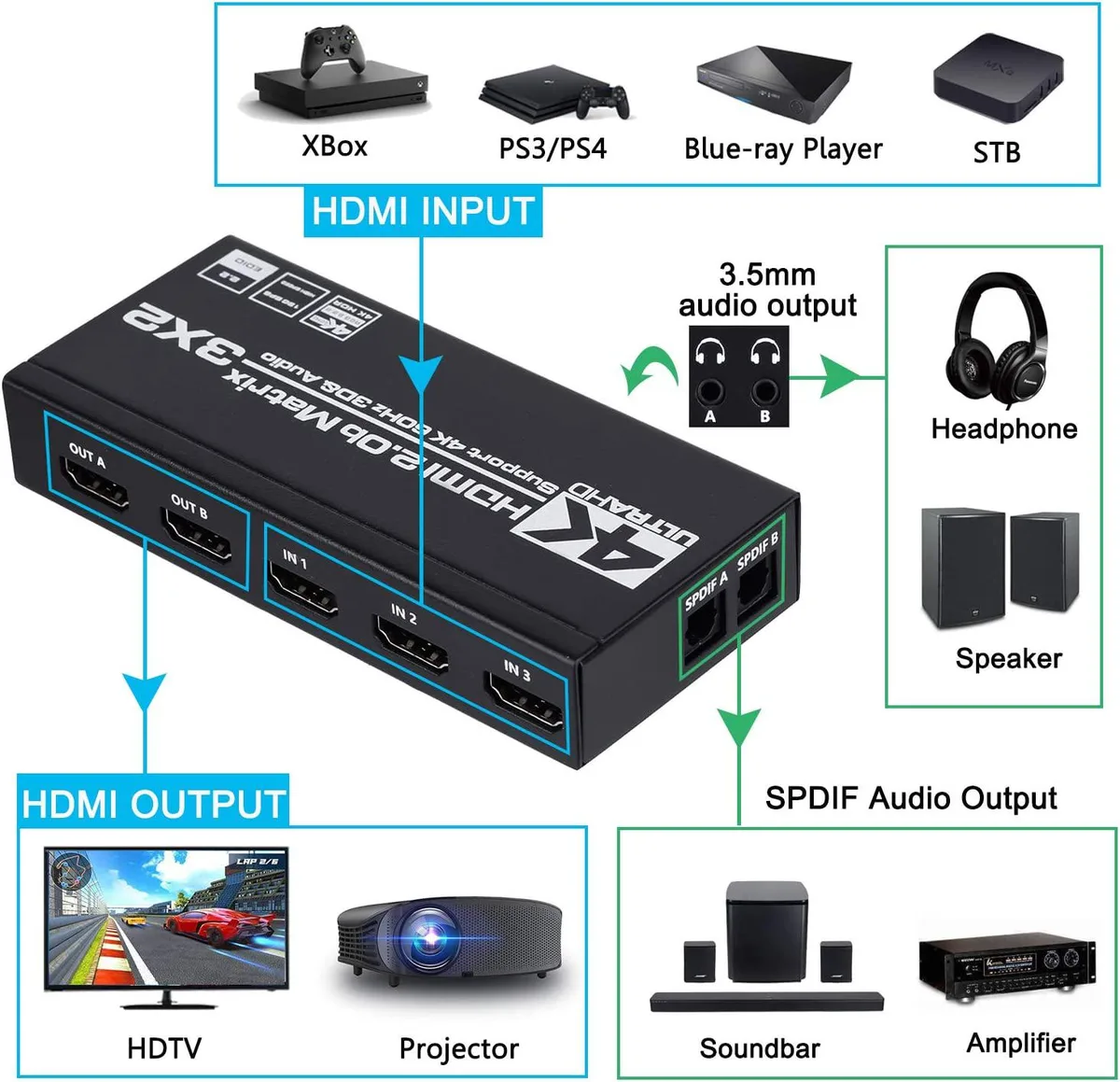

The ESTONE OZJ5 connects three HDMI sources to two displays, allowing each output to show any input independently. It handles 4K resolution at 60 Hz with HDR support and extracts audio through both optical SPDIF and 3.5 mm stereo ports. IR remote and front-panel buttons provide switching control for installers and home-theatre enthusiasts.

Replaces basic switchers and splitters

Unlike a simple switch that sends one source to one screen, this matrix lets two zones pick different sources simultaneously. The built-in downscaler lets a 4K source feed a 1080p display without extra converters. The jump is worth it when you need independent routing and audio extraction in a single powered unit.

Limited to HDMI 2.0b bandwidth and cable reach

The 18.5 Gbps link caps colour depth at 48-bit and requires standard AWG26 cables no longer than 10 metres for 4K60 signals. HDCP 2.2 compliance protects premium content but older sources may need EDID adjustment. No HDMI 2.1 features such as higher refresh rates or variable refresh are supported.

Highlights

  • Route three 4K HDR sources to two displays with a 3×2 HDMI matrix
  • Extract audio via Toslink SPDIF or 3.5 mm stereo from any input simultaneously
  • Control switching by IR remote or front-panel button without leaving your seat
  • Downscale 4K to 1080p per output for mixed-resolution screens
  • Pass 18.5 Gbps bandwidth with 4:4:4 chroma and HDR10 support

Specifications

BrandESTONE
SeriesOZJ5
ModelOZJ5
Part NumberOZJ5
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports3-Port
MatrixYes
AudioYes

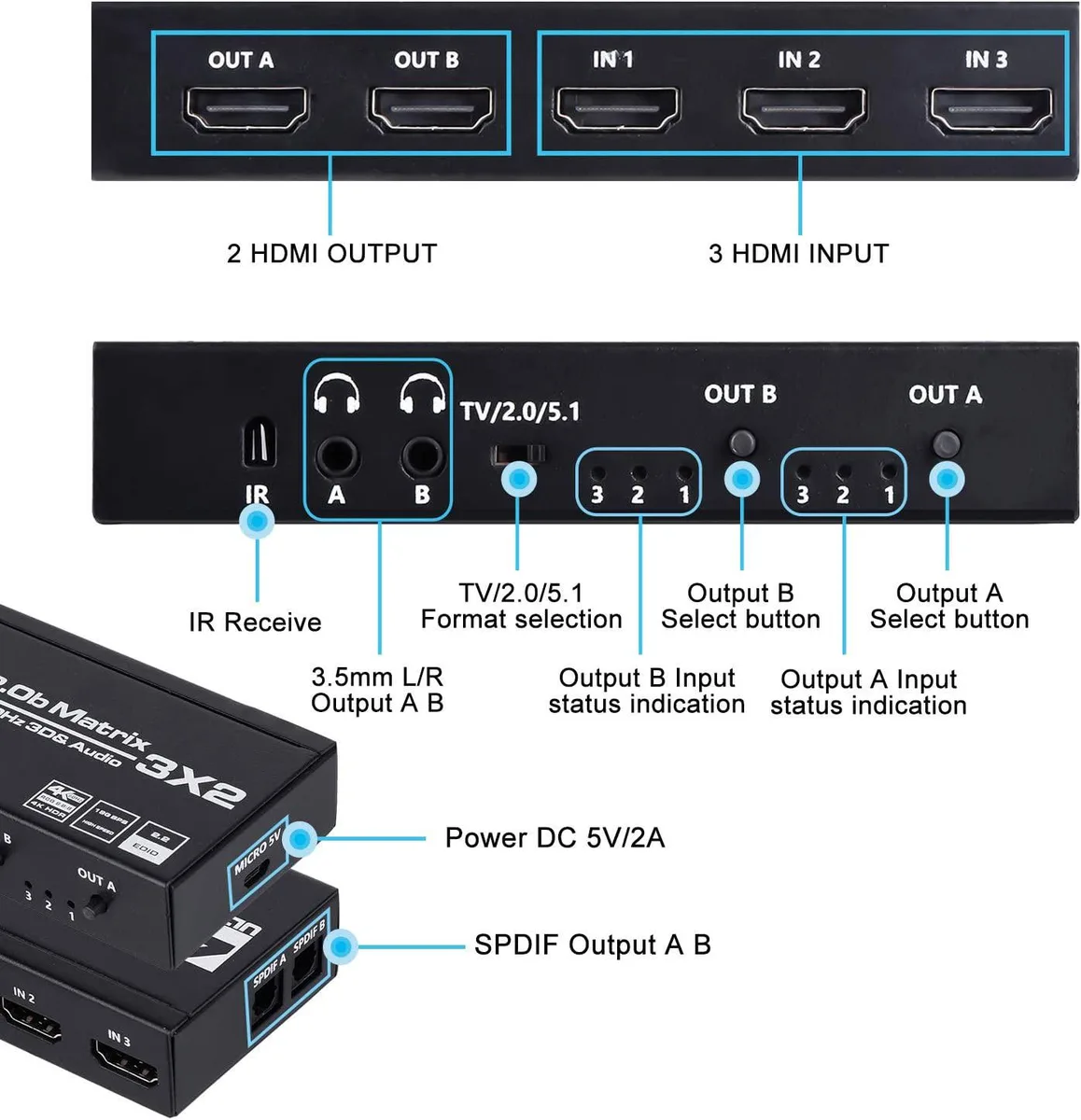

Specifications- Product Type:HDMI Matrix 3x2.
- Interface Type: 3 HDMI Input port, 2 HDMI Output Port
- Color: Black
- Power Supply: DC 5V.
- Max working current: 600mA
- Operating Temperature range -15°C to+45°C
- Dimension (LxWxH): 170*56*24mm
- Weight: 0.25kg
Input Connector3 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
Features- Support HDMI 2.0b HDCP 2.2
- Support 3D video format - Support highest resolution up to 3840*2160/60Hz
- Support 18.5Gbps data rate and tmds clock up to 600Mhz
- Support deep color 8/10/12/24/32/48bit
- Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
- HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
- 3 HDMI inputs switch and split to 2 HDMI displays
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 3x2
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

What clearance is needed for the 5.91 x 2.36 x 0.79 inch chassis?

The unit measures 5.91 x 2.36 x 0.79 inches, so allow at least that footprint plus room for three HDMI cables, two HDMI outputs, two SPDIF cables and 3.5 mm audio leads.

Which step do installers often miss when powering the matrix?

Connect the DC 5 V supply rated for at least 600 mA before linking sources; the matrix will not switch or pass 4K@60 Hz without external power.

What ongoing care does the IR remote require?

The remote uses an AAA battery that will need replacement when range drops; the matrix itself has no user-serviceable parts.
