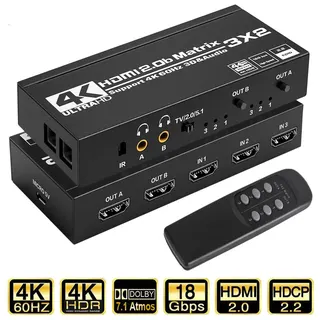

Black rectangular HDMI matrix switch with multiple ports and IR remote control

ESTONE

ESTONE OZJ5 3x2 HDMI Matrix Switch 4K@60Hz Audio Extractor IR Remote

SKU CH-6TDZ-EMV0C

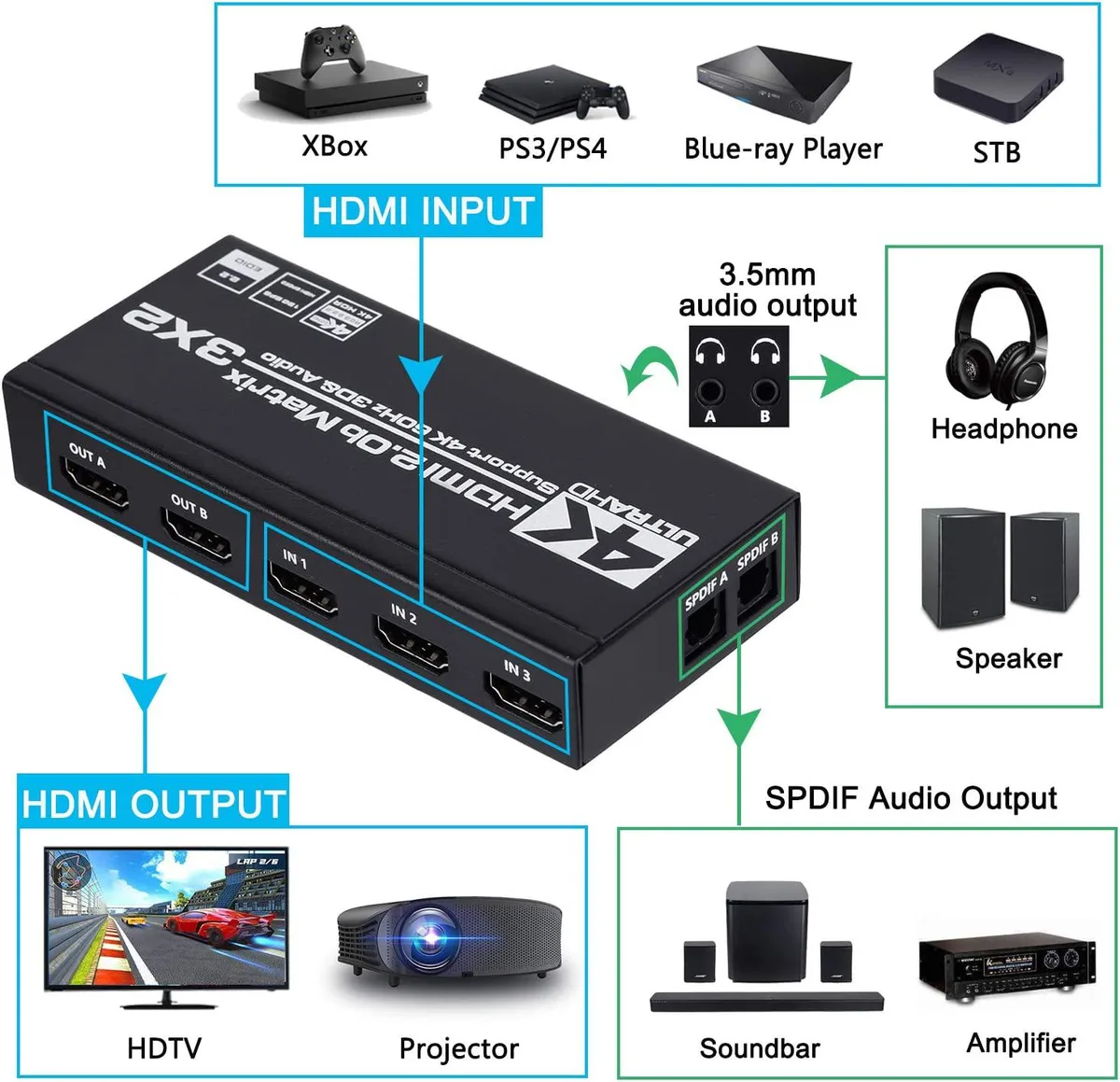

Routes three 4K HDR sources to two displays while extracting audio via optical or 3.5 mm outputs, controlled by IR remote or front button

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports3-Port
  • MatrixYes
  • AudioYes
  • Connect three 4K sources to two displays with 3x2 matrix switching
  • Extract audio via dual SPDIF optical and 3.5 mm stereo outputs simultaneously
  • Control switching by IR remote or front-panel buttons for flexible operation
  • Supports 4K@60 Hz, HDR, 3D and 18.5 Gbps bandwidth for high-fidelity video
  • Compact 170 x 56 x 24 mm unit runs on DC 5 V power

3x2 HDMI Matrix Switch

The ESTONE OZJ5 routes three HDMI sources to two displays independently. It supports 4K at 60 Hz with HDR and 3D formats. Audio can be extracted from any input to optical SPDIF or 3.5 mm stereo outputs. Control is via IR remote or front-panel buttons.

HDMI 2.0b bandwidth limits

The 18.5 Gbps link caps video at 4K 60 Hz 4:4:4 and deep colour up to 48 bit. Cables longer than 10 metres at AWG 26 may lose signal integrity. The unit draws 600 mA from the supplied 5 V DC adapter and operates between -15 °C and 45 °C.

Three inputs to two outputs

This matrix suits installations needing simultaneous, independent routing of three sources to two screens. It does not serve setups requiring more than two destinations or more than three sources. Buyers needing additional outputs or inputs should select a larger matrix.

Highlights

  • Connect three 4K sources to two displays with 3x2 matrix switching
  • Extract audio via dual SPDIF optical and 3.5 mm stereo outputs simultaneously
  • Control switching by IR remote or front-panel buttons for flexible operation
  • Supports 4K@60 Hz, HDR, 3D and 18.5 Gbps bandwidth for high-fidelity video
  • Compact 170 x 56 x 24 mm unit runs on DC 5 V power

Specifications

BrandESTONE
SeriesOZJ5
ModelOZJ5
Part NumberOZJ5
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports3-Port
MatrixYes
AudioYes
Specifications- Product Type:HDMI Matrix 3x2.
- Interface Type: 3 HDMI Input port, 2 HDMI Output Port
- Color: Black
- Power Supply: DC 5V.
- Max working current: 600mA
- Operating Temperature range -15°C to+45°C
- Dimension (LxWxH): 170*56*24mm
- Weight: 0.25kg
Input Connector3 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
Features- Support HDMI 2.0b HDCP 2.2
- Support 3D video format - Support highest resolution up to 3840*2160/60Hz
- Support 18.5Gbps data rate and tmds clock up to 600Mhz
- Support deep color 8/10/12/24/32/48bit
- Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
- HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
- 3 HDMI inputs switch and split to 2 HDMI displays
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 3x2
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

How do I decide between using the SPDIF optical output or the 3.5 mm stereo jack for audio extraction?

Both outputs can operate separately or simultaneously; choose SPDIF for LPCM 2.1, Dolby or DTS 5.1 surround formats, and use the 3.5 mm jack for analogue stereo headphones or powered speakers.

What does the 18.5 Gbps bandwidth figure mean when the switch is connected to a 4K 60 Hz source?

It matches the HDMI 2.0b limit, so full 4K 60 Hz 4:4:4 signals up to 3840 x 2160 pass through without compression or colour subsampling.

Which HDMI version and HDCP standard does the matrix enforce on its three inputs and two outputs?

The unit complies with HDMI 2.0b and HDCP 2.2 on every port, so protected 4K HDR content from any connected source will handshake and display correctly.
