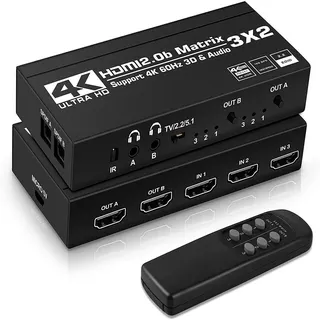

ESTONE OZJ5 3×2 HDMI Matrix Switch 4K@60Hz
Connect three 4K HDR sources to two displays with audio extraction via optical and 3.5 mm outputs, controlled by IR remote or front button
- TypeHDMI Switchers
- Changer TypeHDMI Switch/Extender
- ColorBlack
- Ports3-Port
- MatrixYes
- AudioYes
- Connect three 4K sources to two displays via 3×2 HDMI matrix
- Switch or split any input to either output with IR remote or front button
- Extract audio from any source through optical Toslink or 3.5 mm stereo output
- Pass 4K@60 Hz HDR video at 18.5 Gbps bandwidth with HDCP 2.2 support
- Operate reliably from –15 °C to +45 °C with 5 V DC power
3×2 HDMI Matrix Switch

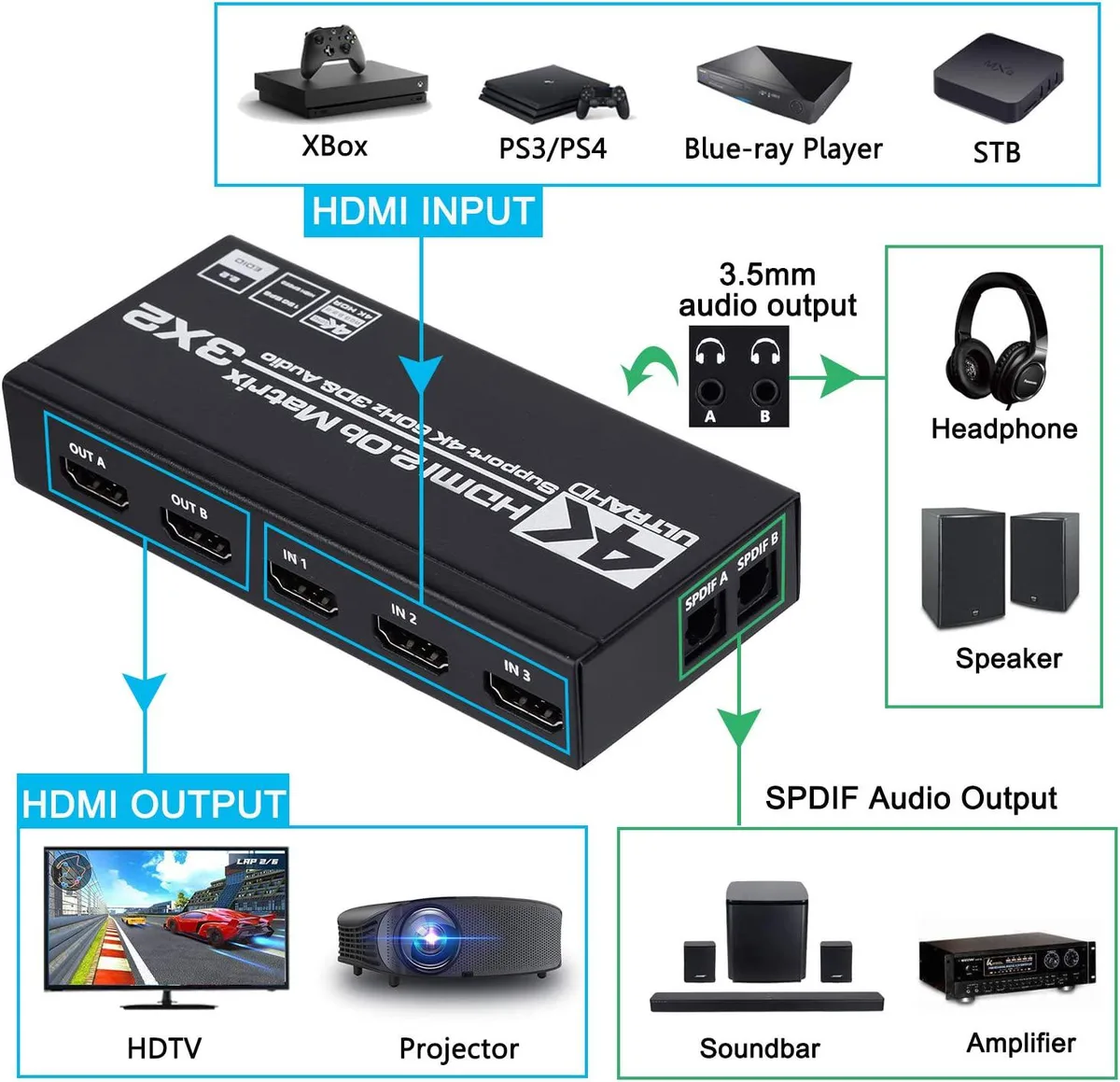

The ESTONE OZJ5 connects three HDMI sources to two displays, letting each output show any input independently. It supports 4K resolution at 60 Hz with HDR and 3D formats. An IR remote and front-panel buttons provide switching control. Audio can be extracted through optical SPDIF or a 3.5 mm jack.
Sustained operation and thermal limits
The unit draws up to 600 mA from its 5 V DC supply while routing 18.5 Gbps signals continuously. It is rated for ambient temperatures from minus 15 °C to plus 45 °C. No active cooling is included, so ventilation around the enclosure matters during long sessions.
Cable length and bandwidth constraints
HDMI 2.0b bandwidth tops out at 18.5 Gbps, limiting 4K 60 Hz 4:4:4 to roughly 10 metres with standard AWG26 cables. Longer runs need active or fibre cables not covered by the spec. EDID management is manual per input, so automatic format negotiation across mixed displays is not supported.
Highlights
- Connect three 4K sources to two displays via 3×2 HDMI matrix
- Switch or split any input to either output with IR remote or front button
- Extract audio from any source through optical Toslink or 3.5 mm stereo output
- Pass 4K@60 Hz HDR video at 18.5 Gbps bandwidth with HDCP 2.2 support
- Operate reliably from –15 °C to +45 °C with 5 V DC power
Specifications
| Brand | ESTONE |
|---|---|
| Series | OZJ5 |
| Model | OZJ5 |
| Part Number | OZJ5 |
| Type | HDMI Switchers |
| Changer Type | HDMI Switch/Extender |
| Color | Black |
| Ports | 3-Port |
| Matrix | Yes |
| Audio | Yes |

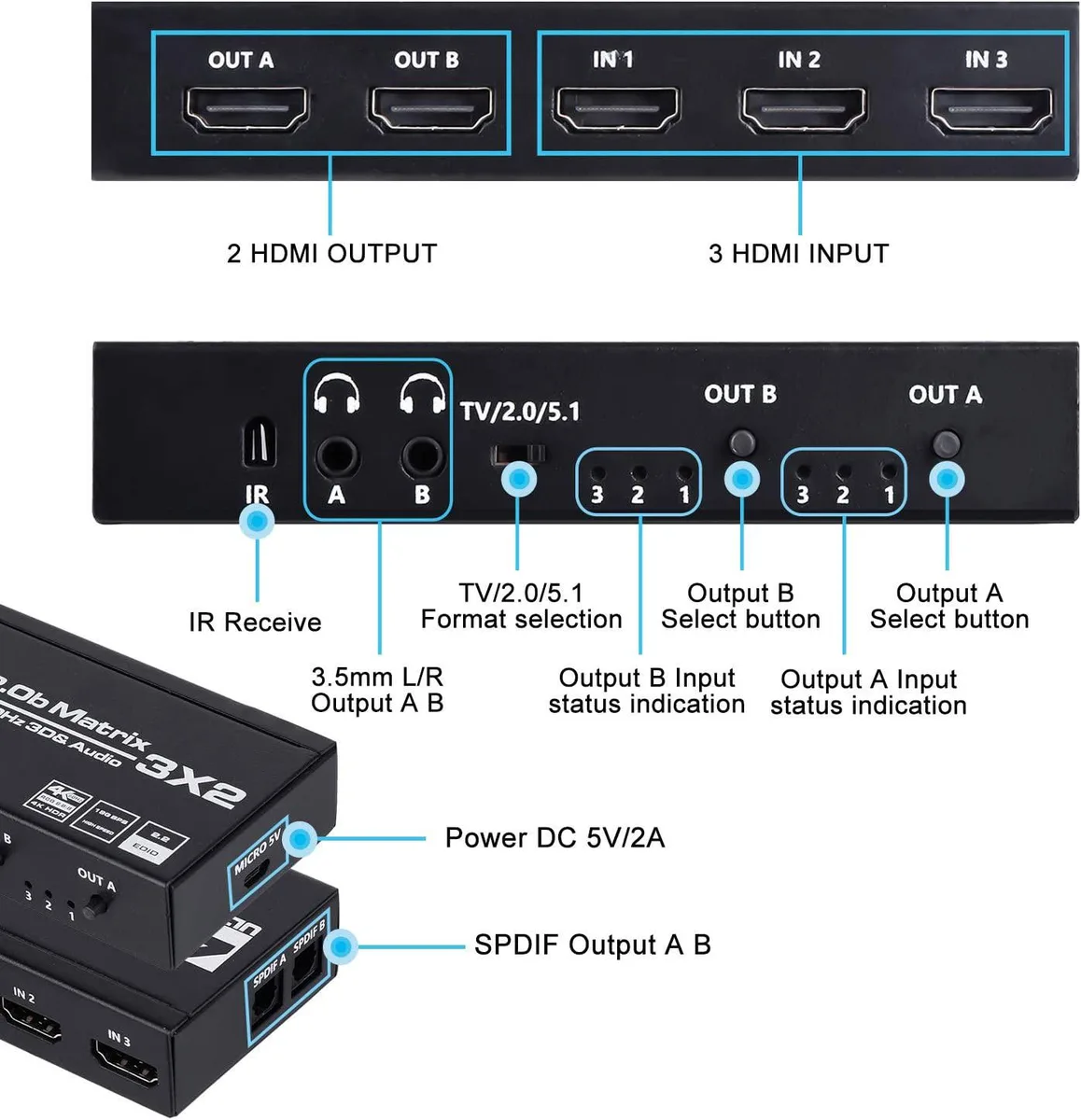

| Specifications | - Product Type:HDMI Matrix 3x2. - Interface Type: 3 HDMI Input port, 2 HDMI Output Port - Color: Black - Power Supply: DC 5V. - Max working current: 600mA - Operating Temperature range -15°C to+45°C - Dimension (LxWxH): 170*56*24mm - Weight: 0.25kg |
| Input Connector | 3 x HDMI |
| Output Connector | 2 x HDMI |
| Maximum Cable Length | 10m AWG26 HDMI2.0b standard cable |
| Maximum Resolutions | 4K@60Hz |
| Bandwidth | 18.5Gbps/600MHZ |
| Features | - Support HDMI 2.0b HDCP 2.2 - Support 3D video format - Support highest resolution up to 3840*2160/60Hz - Support 18.5Gbps data rate and tmds clock up to 600Mhz - Support deep color 8/10/12/24/32/48bit - Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time - HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4 - 3 HDMI inputs switch and split to 2 HDMI displays |
| Dimensions | 5.91 x 2.36 x 0.79 inches |
| Weight | 11.9 ounces |
| Package Quantity | 1 |
| Package Contents | 1x HDMI Matrix 3x2 1x 5V power adapter 1x IR Remote Control 1x User Manual |
Questions about this item
Does the ESTONE OZJ5 run hot or draw much power when left on all day?
It operates from a DC 5 V supply with a maximum working current of 600 mA and is rated for an ambient temperature range of -15 °C to +45 °C.
What cables or sources must I already have to use the three HDMI inputs and two HDMI outputs?
You need up to three HDMI source devices and up to two HDMI displays, plus HDMI cables no longer than 10 m built to the AWG26 HDMI 2.0b standard.
Will the matrix pass 4K 60 Hz HDR from my older Blu-ray player and games console to a 1080p projector?
Yes, it supports 4K@60 Hz, HDR10, HDCP 2.2 and 3D, and the built-in EDID management lets each input negotiate the best format for the connected display.
