ESTONE
ESTONE OZJ4 4x4 HDMI Matrix Switch video switch
Routes four HDMI sources to four displays with 4K at 60 Hz, HDCP 2.2 and IR remote control
- TypeHDMI Switchers
- Changer TypeHDMI Switch/Extender
- ColorBlack
- Ports4x4 Matrix
- MatrixYes
- AudioYes
- Routes four sources to four displays independently
- Handles 4K 60 Hz 4:4:4 with 18.5 Gbps bandwidth
- HDCP 2.2 and HDMI 2.0b keep protected content flowing
- EDID extractor learns display capabilities for correct resolution

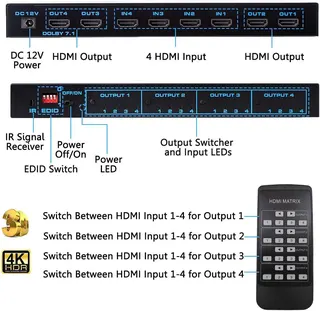

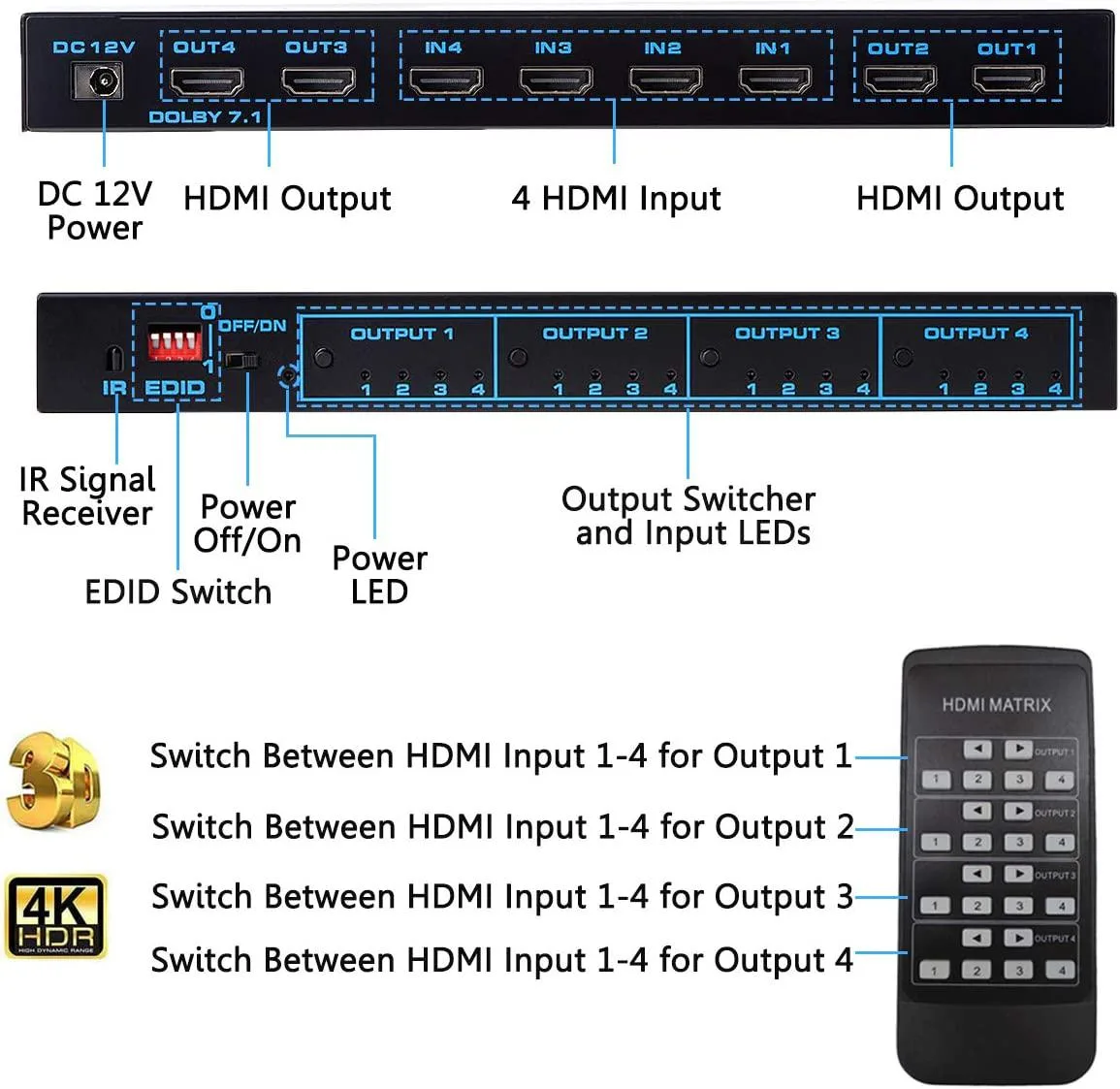

- IR remote gives instant switching from the sofa
Matrix capability

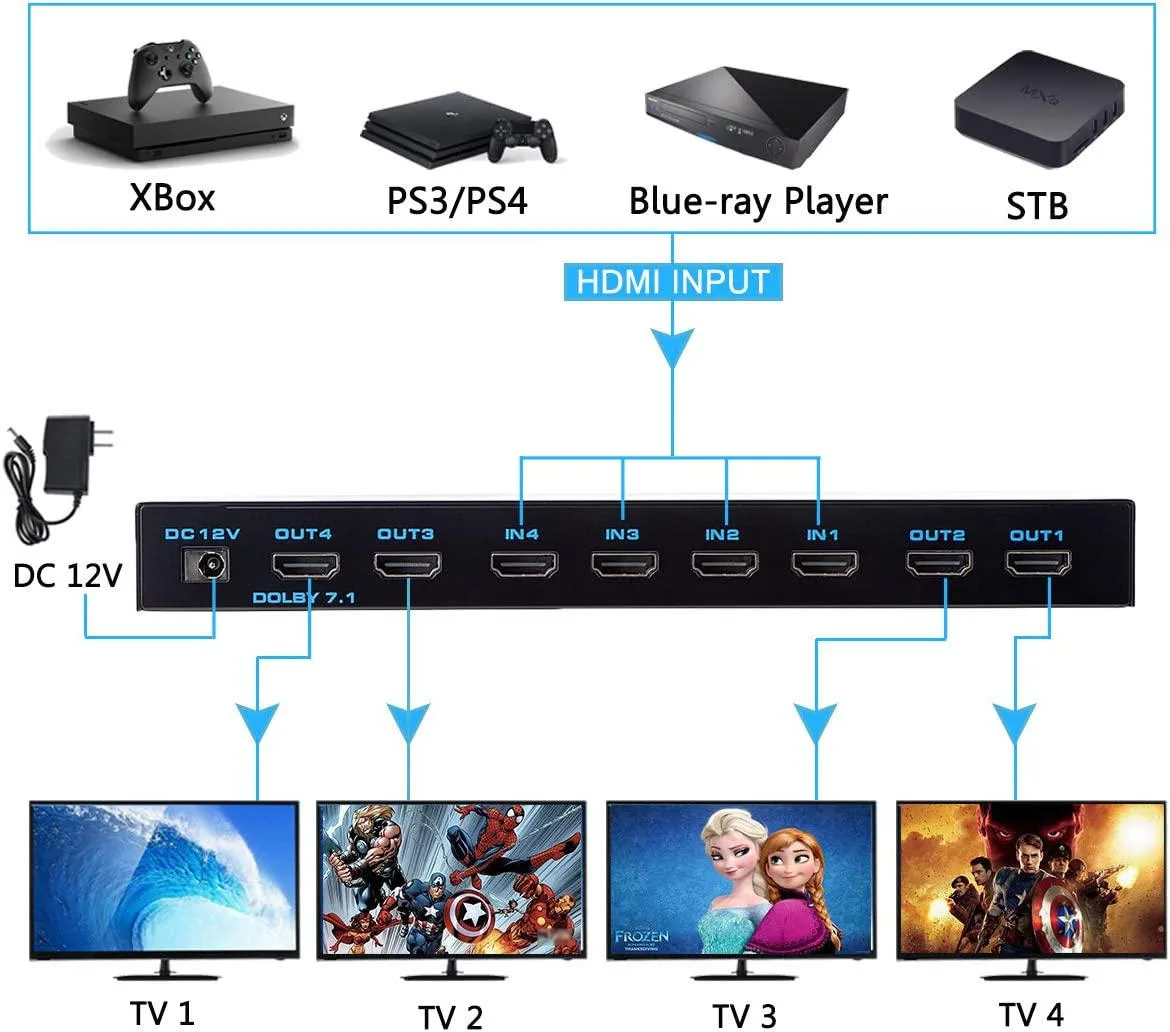

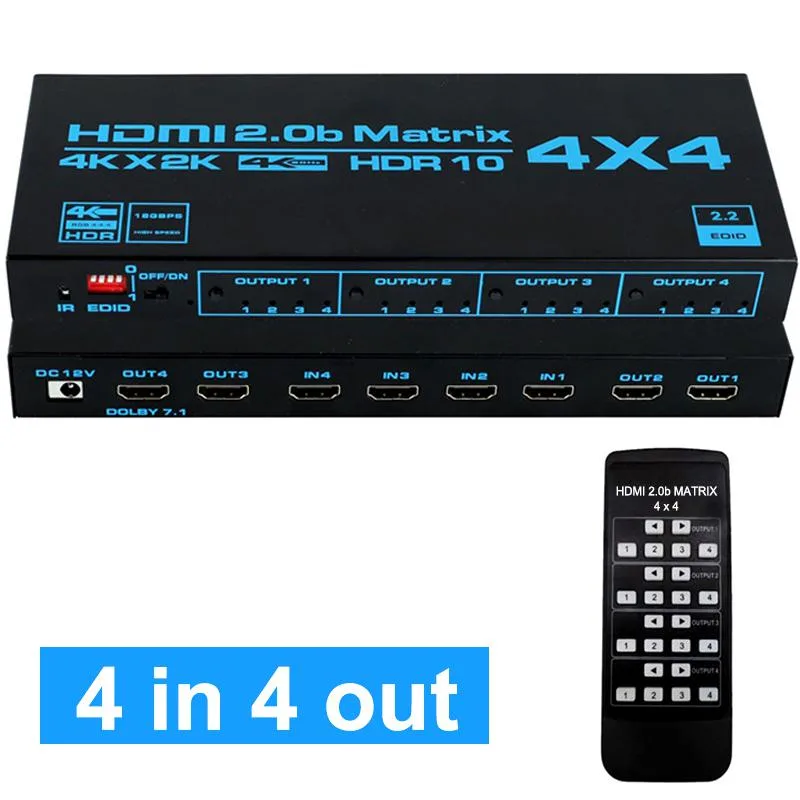

The ESTONE OZJ4 is a 4x4 HDMI matrix switch that routes any of four source devices to any of four displays simultaneously. It suits installers and enthusiasts who need independent zone control without running multiple dedicated cables.
Build integration
The unit accepts four HDMI inputs and provides four HDMI outputs, each supporting up to 4K at 60 Hz with 18 Gbps bandwidth. HDCP 2.2 compliance keeps protected content flowing, while the EDID extractor lets sources negotiate the correct resolution automatically. IR remote control is included for front-of-room switching.
Bundled control
An IR remote ships in the box for instant input selection from the sofa. The EDID learning function stores display capabilities so sources start at the right mode without manual setup. ARC support passes audio back from compatible displays to an external sound system.
Highlights
- Routes four sources to four displays independently
- Handles 4K 60 Hz 4:4:4 with 18.5 Gbps bandwidth
- HDCP 2.2 and HDMI 2.0b keep protected content flowing
- EDID extractor learns display capabilities for correct resolution
- IR remote gives instant switching from the sofa
Specifications
| Brand | ESTONE |
|---|---|
| Series | OZJ4 |
| Model | OZJ4 |
| Part Number | OZJ4 |
| Type | HDMI Switchers |
| Changer Type | HDMI Switch/Extender |
| Color | Black |
| Ports | 4x4 Matrix |
| Matrix | Yes |
| Audio | Yes |
| Specifications | HDMI-compatible Matrix Switch 4x4 Dimension (LxWxH): approx. 230*90*25mm Support HDMI 2.0b HDCP 2.2 Support 3D video format Support highest resolution up to 3840*2160/60Hz YUV4:4:4 Support 18Gbps data rate and tmds clock up to 600Mhz Support deep color 8/10/12/bit 4 HDMI input switch and split to 4 HDMI output Input cable distance: =8m AWG26HDMI-compatible2.0b standard cable Output cable distance: =8m AWG26HDMI-compatible2.0b standard cable |
| Input Connector | 4 x HDMI |
| Output Connector | 4 x HDMI |
| Maximum Cable Length | Less than 8m AWG26 HDMI2.0b standard cable |
| Maximum Resolutions | 4K@60Hz |
| Bandwidth | 18.5Gbps/600MHZ |
| Features | Support HDMI 2.0b HDCP 2.2 Support 3D video format Support highest resolution up to 3840*2160/60Hz YUV4:4:4 Support 18Gbps data rate and tmds clock up to 600Mhz Support deep color 8/10/12/24bit Input and output cable distance: <8m AWG26 HDMI2.0b standard cable |
| Dimensions | 5.91 x 2.36 x 0.79 inches |
| Weight | 11.9 ounces |
| Package Quantity | 1 |
| Package Contents | 1x HDMI Matrix 4X4 1x 12V power adapter 1x IR Remote Control 1x User Manual |
Questions about this item
What is the maximum cable length the ESTONE OZJ4 supports at 4K@60Hz without signal loss?
The matrix works with HDMI 2.0b cables up to 8 metres using AWG26 wire.
Does the ESTONE OZJ4 generate noticeable heat or fan noise during continuous 18.5 Gbps operation?
The unit has no fan and its 230 x 90 x 25 mm metal case dissipates heat passively.
Which audio outputs must my displays or amplifier already provide to use the matrix’s SPDIF and 3.5 mm L/R ports?
You need a display or amplifier with an optical SPDIF input and a 3.5 mm stereo line input.
