Black rectangular box with four HDMI inputs and four HDMI outputs on the rear, small front-panel buttons and an IR window

ESTONE

ESTONE OZJ4 4x4 HDMI Matrix Switch 4K@60Hz 18Gbps

SKU CH-54BD-9W1PY

Routes four HDMI sources to four displays at 4K 60 Hz with 18 Gbps bandwidth and HDCP 2.2

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4x4 Matrix
  • MatrixYes
  • AudioYes

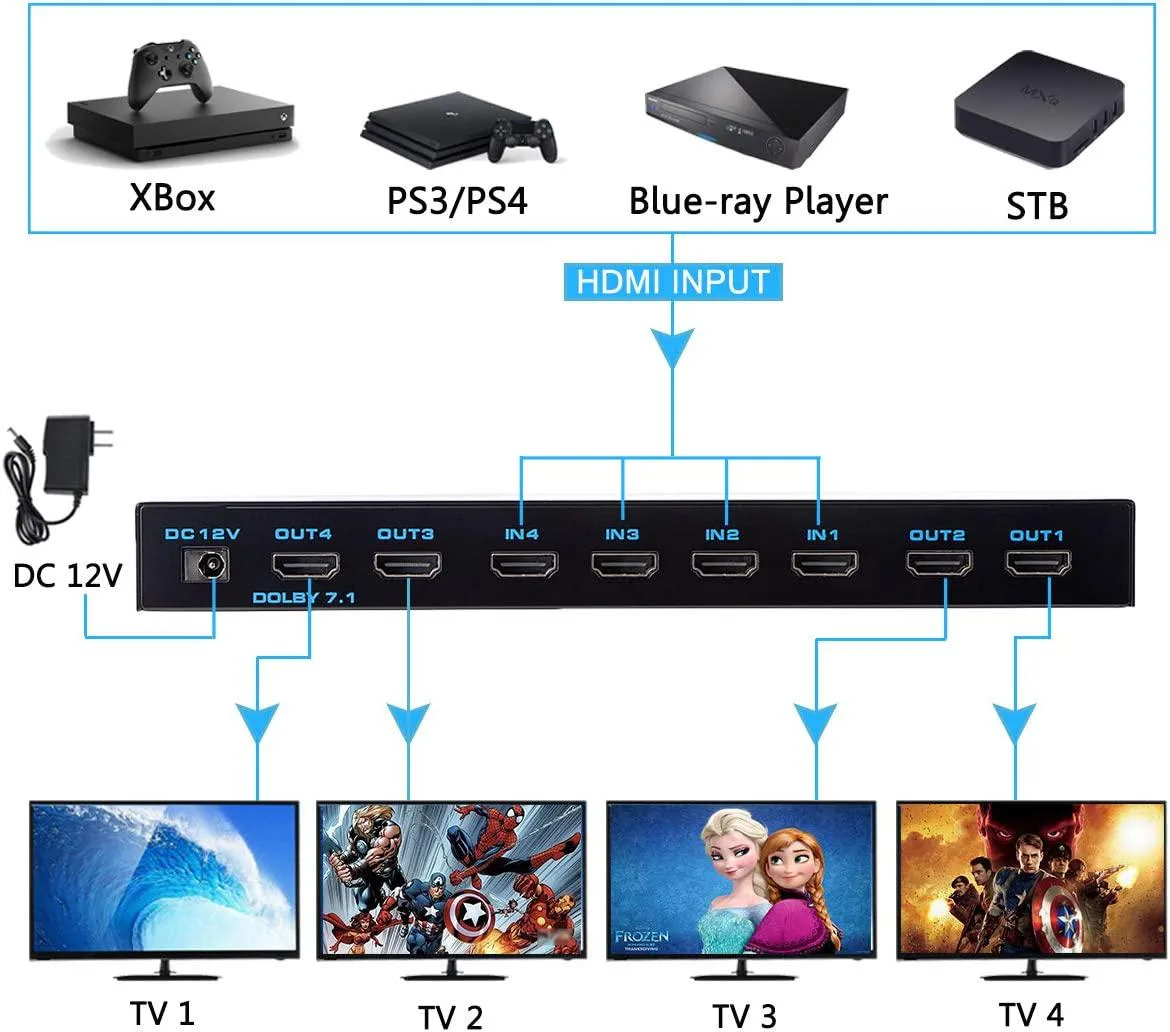

  • Switch four sources to four displays independently
  • 4K 60 Hz YUV 4:4:4 at 18 Gbps bandwidth
  • HDCP 2.2 and HDMI 2.0b compliant for protected content
  • EDID learning ensures correct resolution from every source

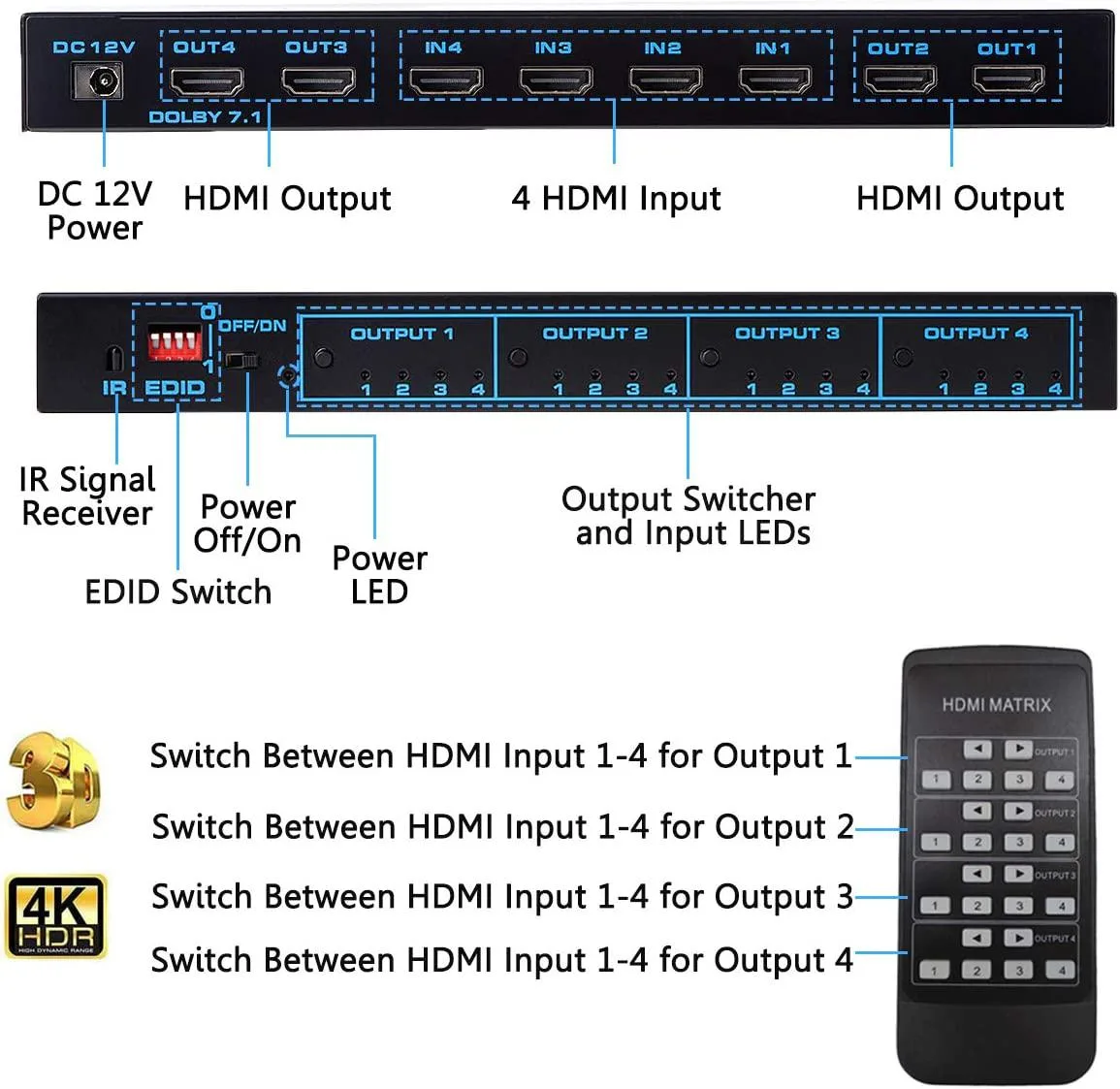

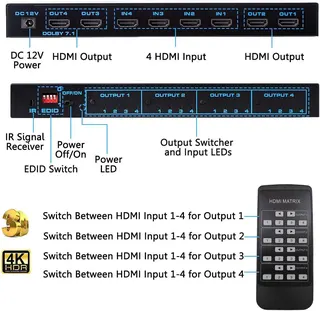

  • IR remote and front-panel buttons give flexible control

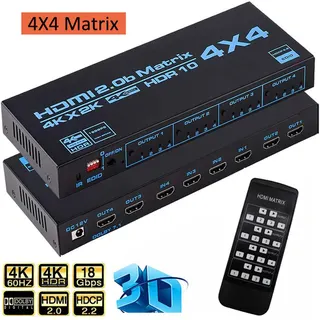

4x4 HDMI Matrix Switch

The ESTONE OZJ4 is a 4x4 HDMI matrix switch that routes four HDMI sources to four HDMI displays. It supports HDMI 2.0b and HDCP 2.2 for protected 4K content at 60 Hz. The unit handles 18.5 Gbps bandwidth with TMDS clock up to 600 MHz and deep colour up to 24-bit. An IR remote and EDID management simplify source selection and display handshake.

Installers needing four-zone distribution

This matrix suits installers who need independent switching of four sources across four screens in a home cinema, classroom or digital signage setup. It also fits enthusiasts connecting multiple consoles and a PC to a projector and TVs simultaneously. Buyers who require more than four inputs or outputs, or who need HDMI 2.1 features such as 8K resolution, should look at a larger or newer chassis.

18.5 Gbps bandwidth at 4K 60 Hz

The single specification that decides fit is the 18.5 Gbps bandwidth limit, which caps the switch at 4K 60 Hz 4:4:4. Sources or displays that demand higher data rates for 8K, high-refresh 4K or uncompressed HDR metadata will not pass full quality through this unit.

Highlights

  • Switch four sources to four displays independently
  • 4K 60 Hz YUV 4:4:4 at 18 Gbps bandwidth
  • HDCP 2.2 and HDMI 2.0b compliant for protected content
  • EDID learning ensures correct resolution from every source
  • IR remote and front-panel buttons give flexible control

Specifications

BrandESTONE
SeriesOZJ4
ModelOZJ4
Part NumberOZJ4
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4x4 Matrix
MatrixYes
AudioYes
SpecificationsHDMI-compatible Matrix Switch 4x4
Dimension (LxWxH): approx. 230*90*25mm
Support HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz YUV4:4:4
Support 18Gbps data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/bit
4 HDMI input switch and split to 4 HDMI output
Input cable distance: =8m AWG26HDMI-compatible2.0b standard cable
Output cable distance: =8m AWG26HDMI-compatible2.0b standard cable
Input Connector4 x HDMI
Output Connector4 x HDMI
Maximum Cable LengthLess than 8m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz YUV4:4:4
Support 18Gbps data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24bit
Input and output cable distance: <8m AWG26 HDMI2.0b standard cable
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 4X4
1x 12V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

How do I install the ESTONE OZJ4 matrix and which step is often missed?

Connect up to four HDMI sources to the four input ports and up to four displays to the four output ports using cables no longer than 8 metres AWG26, power the unit, then set the EDID for each output and restart the matrix so the new EDID takes effect.

What maintenance or replacement will the ESTONE OZJ4 need over time?

The unit has no user-serviceable parts; only the external HDMI cables or the power supply may need replacement if they fail.

What is the first limit reached during sustained 4K@60Hz use on the ESTONE OZJ4?

The 18.5 Gbps bandwidth ceiling and the 8-metre AWG26 cable limit are the first constraints encountered at 4K@60Hz YUV4:4:4.
