Black rectangular HDMI matrix switch with two input and two output ports

ESTONE

ESTONE OZJ3 2x2 HDMI Matrix Switch 4K 60Hz IR Remote YUV 4:2:0

SKU CH-JJ7W-M94DH

A 2×2 HDMI matrix routes two sources to two displays independently or mirrored up to 4K 60 Hz with HDR, 3D and 7.1 audio via an included IR remote

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • MatrixYes
  • AudioYes
  • True 2×2 matrix routes any source to any display
  • 4K 60 Hz via 18.5 Gbps bandwidth and HDMI 2.0b
  • IR remote gives instant switching from the sofa
  • YUV 4:2:0 and deep colour up to 48-bit for rich images
  • DC 5 V power draw max 600 mA runs cool

2×2 HDMI Matrix Switch

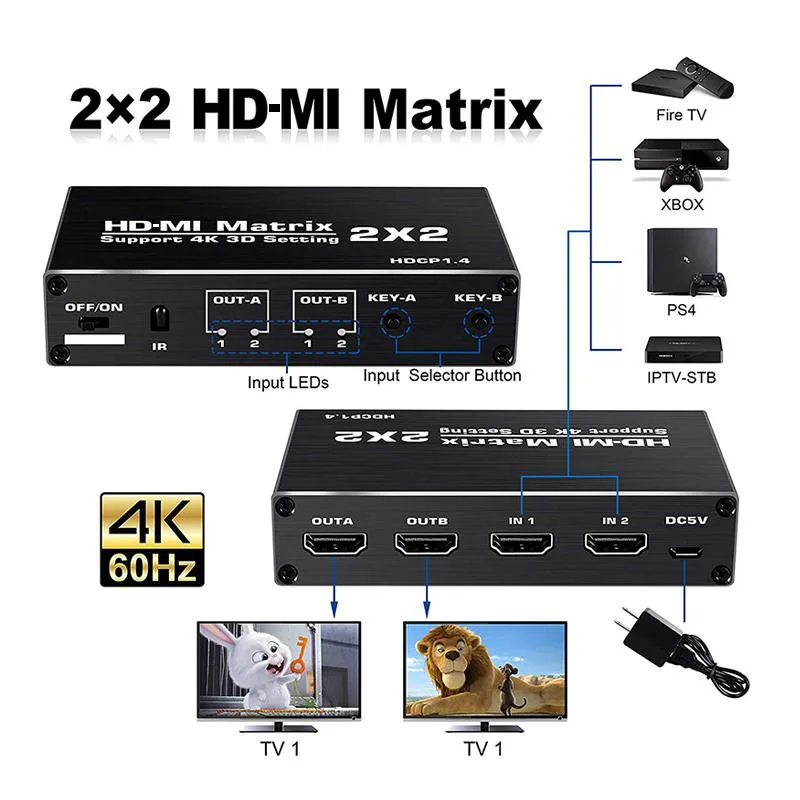

The ESTONE OZJ3 is a 2×2 HDMI matrix switch that routes two HDMI sources to two displays independently or duplicates one source to both screens simultaneously. It is built for installers and AV enthusiasts who need flexible signal distribution in home theatres, conference rooms or digital-signage setups.

HDMI 2.0b connectivity and IR control

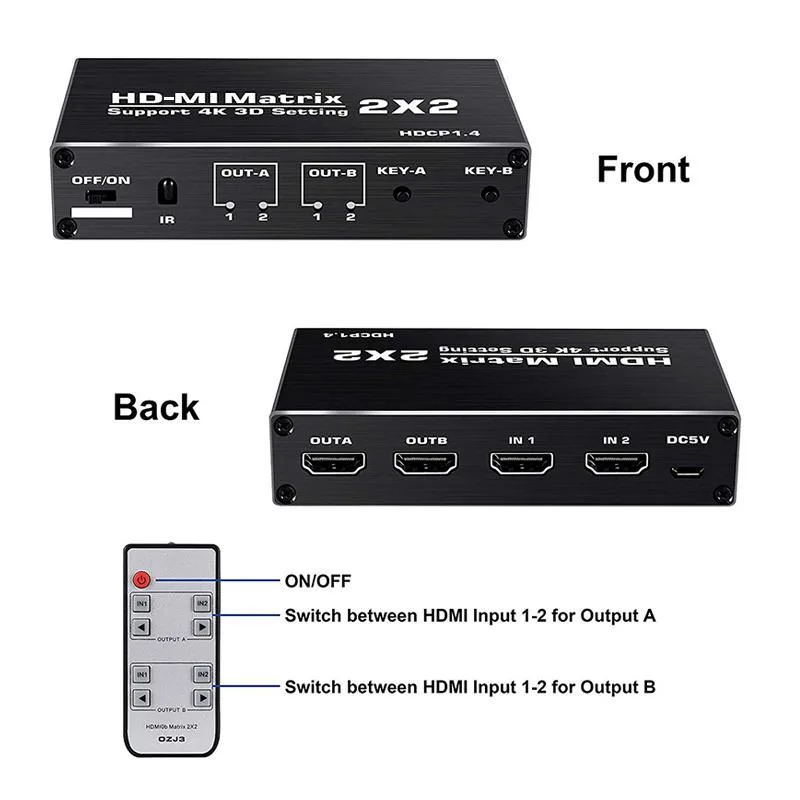

The unit provides two HDMI inputs and two HDMI outputs with 18.5 Gbps bandwidth, supporting 4K at 60 Hz, HDR, 3D and deep-colour formats up to 48 bit. A supplied IR remote lets users switch or split sources from across the room, while the DC 5 V power supply and operating range of minus 15 °C to plus 45 °C suit permanent rack or wall mounting.

Remote and cables included

The package includes the IR remote control for immediate operation without extra configuration. No additional software or drivers are required, so the switch is ready to use once sources and displays are connected with standard HDMI cables.

Highlights

  • True 2×2 matrix routes any source to any display
  • 4K 60 Hz via 18.5 Gbps bandwidth and HDMI 2.0b
  • IR remote gives instant switching from the sofa
  • YUV 4:2:0 and deep colour up to 48-bit for rich images
  • DC 5 V power draw max 600 mA runs cool

Specifications

BrandESTONE
SeriesOZJ3
ModelOZJ3
Part NumberOZJ3
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
MatrixYes
AudioYes
SpecificationsProduct Type:HDMI Matrix 2x2.
Interface Type: 2 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Input Connector2 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0, HDCP 1.4
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
HDMI resolution: up to 3840*2160/60 Hz, YUV 4:2:0
2 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS LPCM 7.1 audio format
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 2X2
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

Does the HDMI 2.0b interface with 18.5 Gbps bandwidth support full 4:4:4 chroma at 4K 60 Hz?

The switch handles 4K at 60 Hz with YUV 4:2:0 sampling; full 4:4:4 at that resolution would exceed the 18.5 Gbps limit.

What are the exact dimensions and weight for rack or shelf mounting?

The unit measures 5.91 x 2.36 x .79 inches and weighs 11.9 ounces.

How do I power and connect the matrix, and what common step is missed?

Connect the included DC 5 V supply first, then attach up to 10 m AWG26 HDMI cables to the two inputs and two outputs; users often forget to power the unit before plugging in sources.
