Black rectangular HDMI matrix switch with four HDMI ports

ESTONE

ESTONE OZJ3 2×2 HDMI Matrix Switch 4K 60Hz 18.5Gbps

SKU CH-BHW5-RM2V9

A 2×2 HDMI matrix routes two sources to two displays at 4K 60 Hz with 18.5 Gbps bandwidth and IR remote control

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • MatrixYes
  • AudioYes
  • True 2×2 matrix routes any source to any display independently
  • 4K 60 Hz at 18.5 Gbps bandwidth for sharp UHD video
  • HDMI 2.0 and HDCP 1.4 compliant for protected content
  • Deep-colour support up to 48-bit with 7.1-channel LPCM audio
  • IR remote and front-panel buttons give instant switching control

2×2 HDMI Matrix for Dual-Source Setups

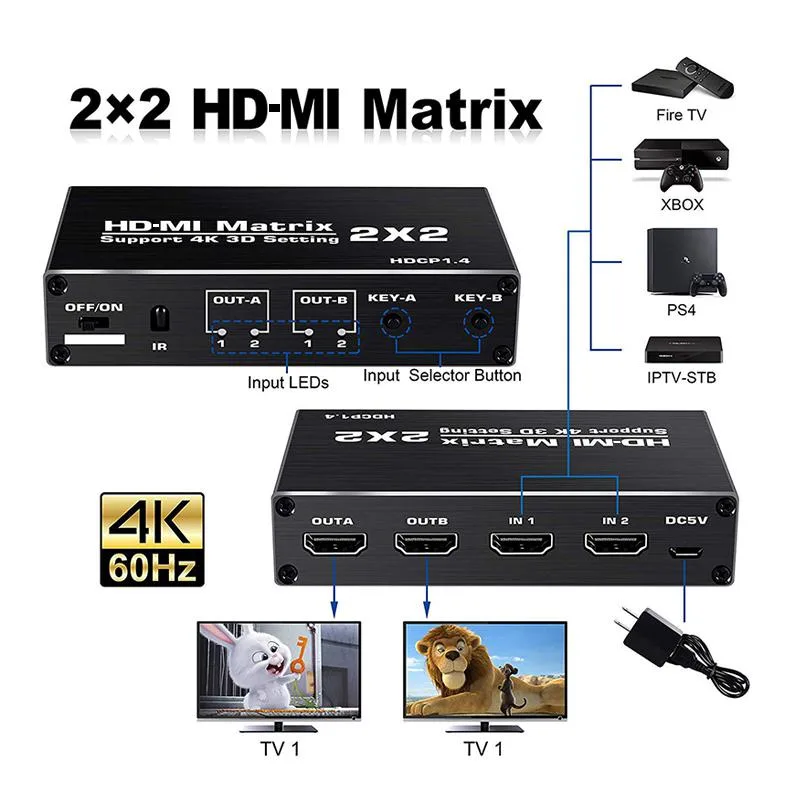

The ESTONE OZJ3 routes two HDMI sources to two displays independently or mirrors one source across both screens. It handles 4K at 60 Hz with 18.5 Gbps bandwidth and HDCP 1.4 compliance. Installers needing simple distribution without a full control system will find it fit for purpose.

Sustained 4K 60 Hz Operation

The unit draws up to 600 mA from its 5 V supply and is rated for continuous use between -15 °C and 45 °C. Deep-colour signals up to 48-bit pass without frame drops or HDCP handshake loss during long sessions. Cable runs up to 10 metres on AWG26 cable remain stable at the full data rate.

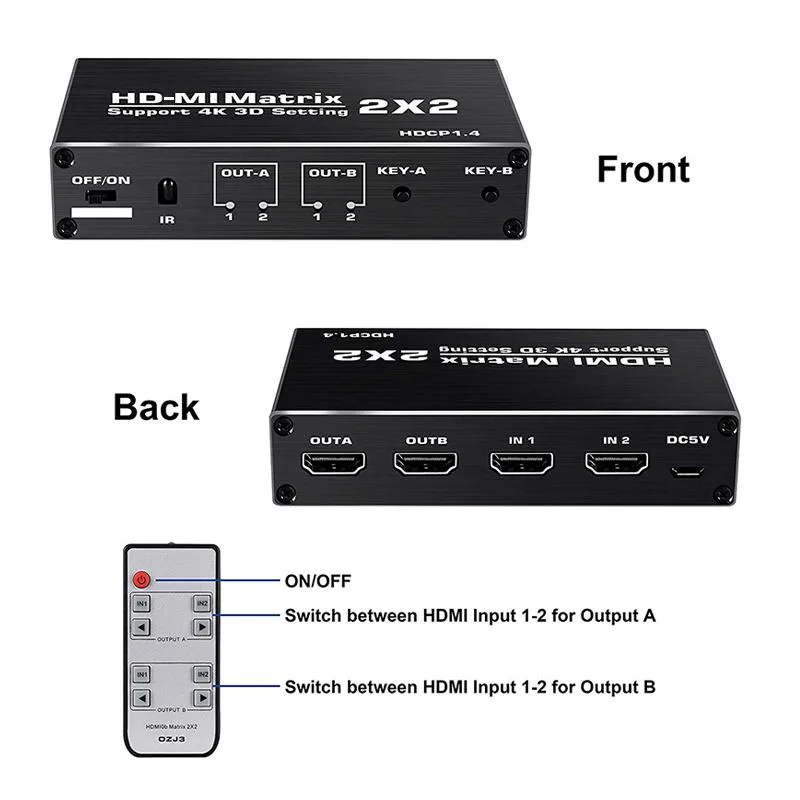

Plug-and-Play With IR Remote

Front-panel buttons and the included IR remote switch inputs instantly; no drivers or software are required. The only common issue is attempting to pass HDCP 2.2 content, which this model does not support. Ensure source devices are set to HDCP 1.4 or lower to avoid a blank screen.

Highlights

  • True 2×2 matrix routes any source to any display independently
  • 4K 60 Hz at 18.5 Gbps bandwidth for sharp UHD video
  • HDMI 2.0 and HDCP 1.4 compliant for protected content
  • Deep-colour support up to 48-bit with 7.1-channel LPCM audio
  • IR remote and front-panel buttons give instant switching control

Specifications

BrandESTONE
SeriesOZJ3
ModelOZJ3
Part NumberOZJ3
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
MatrixYes
AudioYes
SpecificationsProduct Type:HDMI Matrix 2x2.
Interface Type: 2 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Input Connector2 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0, HDCP 1.4
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
HDMI resolution: up to 3840*2160/60 Hz, YUV 4:2:0
2 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS LPCM 7.1 audio format
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 2X2
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

Does the ESTONE OZJ3 matrix switch run hot or draw much power when it operates all day?

It draws a maximum of 600mA from the DC 5V supply and is rated for an operating temperature range of -15°C to +45°C, so it stays cool during continuous use.

What cables and power source do I need to have on hand before the ESTONE OZJ3 will work?

You need two HDMI source devices, up to two HDMI displays, HDMI cables (up to 10m AWG26 for 4K@60Hz), and the included DC 5V power adapter.

Will the ESTONE OZJ3 pass 4K@60Hz signals from my older HDMI 1.4 Blu-ray player and 1080p projector without issues?

Yes, it supports HDMI 2.0 and HDCP 1.4, handles resolutions up to 3840×2160/60Hz YUV 4:2:0, and is backward compatible with 1080p and 3D formats.
