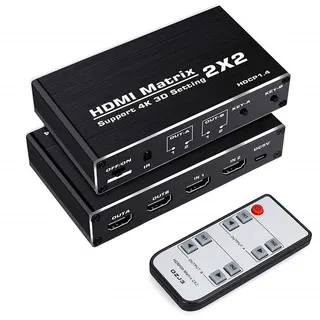

Black rectangular HDMI matrix switch with four ports on the front

ESTONE

ESTONE OZJ3 2×2 HDMI Matrix 4K@60Hz video switch

SKU CH-ZH61-3R0FP

A 2×2 HDMI matrix routes two sources to two displays at 4K 60 Hz with HDR and 18.5 Gbps bandwidth

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • MatrixYes
  • AudioYes
  • 2×2 matrix routes any source to either display independently
  • 4K@60Hz video with HDR and 18.5Gbps bandwidth for sharp detail
  • HDCP 1.4 and 3D support for protected and stereoscopic content
  • 1-channel LPCM, Dolby and DTS audio pass-through included

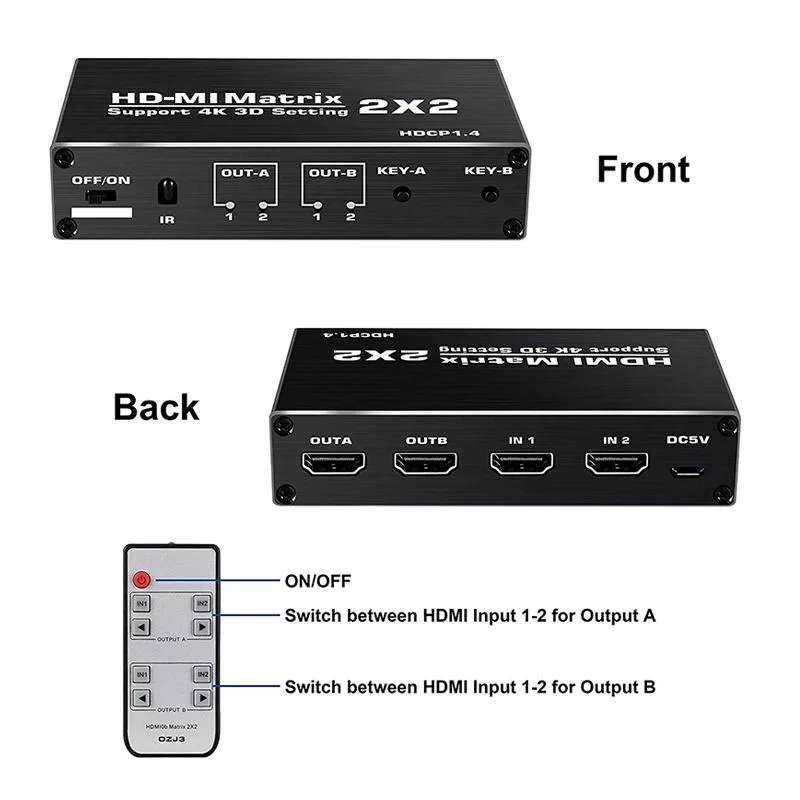

  • IR remote and front-panel buttons give instant source selection

2×2 HDMI Matrix for dual displays

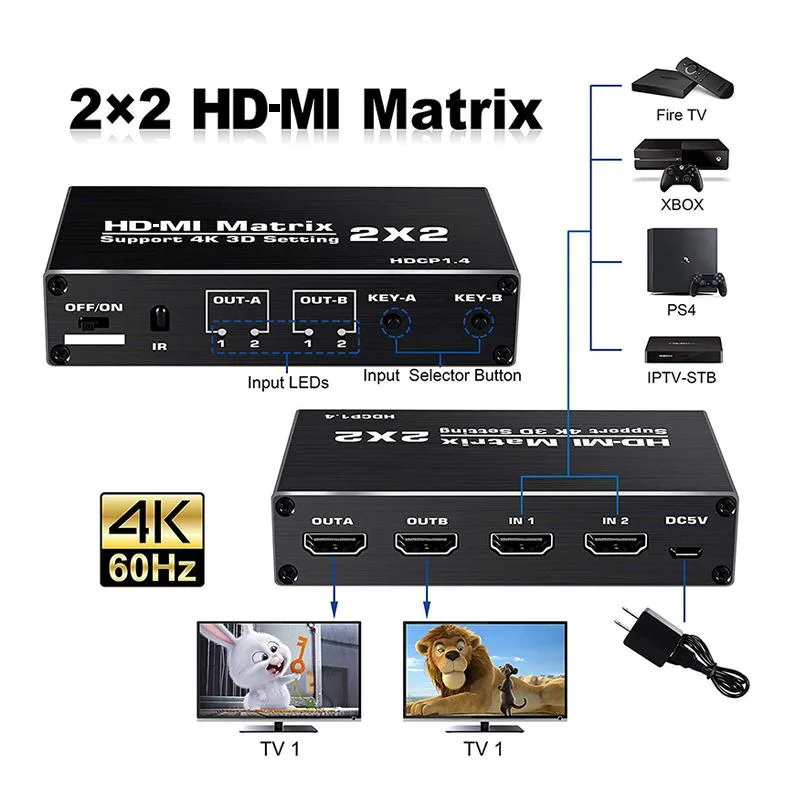

The ESTONE OZJ3 is a 2×2 HDMI matrix that routes two sources to two displays independently or duplicates one source across both screens. It handles 4K@60Hz signals with HDR and 3D support over HDMI 2.0b connections. An IR remote allows quick switching without leaving the seat.

Installers needing true matrix routing

This unit suits integrators who must send any of two sources to either display on demand. It does not support HDCP 2.2, so protected 4K streams that require that standard will not pass through. Buyers needing more than two inputs or outputs should look at larger matrices.

HDCP 1.4 limits protected 4K playback

The matrix complies with HDCP 1.4 but not HDCP 2.2. That single specification decides whether copy-protected 4K@60Hz content from modern sources will display correctly. Verify the source requirements before purchasing.

Highlights

  • 2×2 matrix routes any source to either display independently
  • 4K@60Hz video with HDR and 18.5Gbps bandwidth for sharp detail
  • HDCP 1.4 and 3D support for protected and stereoscopic content
  • 1-channel LPCM, Dolby and DTS audio pass-through included
  • IR remote and front-panel buttons give instant source selection

Specifications

BrandESTONE
SeriesOZJ3
ModelOZJ3
Part NumberOZJ3
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
MatrixYes
AudioYes
SpecificationsProduct Type:HDMI Matrix 2x2.
Interface Type: 2 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Input Connector2 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0, HDCP 1.4
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
HDMI resolution: up to 3840*2160/60 Hz, YUV 4:2:0
2 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS LPCM 7.1 audio format
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 2X2
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

Will the OZJ3 matrix pass 4K@60Hz from my older Blu-ray player through HDMI 2.0b ports without HDCP 2.2 handshake issues?

Yes, the unit supports HDMI 2.0b and HDCP 1.4, so 4K@60Hz sources using HDCP 1.4 will pass through both outputs; HDCP 2.2 protected content is not supported.

How can I verify the matrix is switching correctly after connecting two displays and two sources?

Use the IR remote or front-panel buttons to select each input for each output; the corresponding LED indicators show the active routing, and both displays should show the chosen source without delay or flash.

Does the package include the DC 5V power adapter and HDMI cables, or must I buy them separately?

The box contains the OZJ3 matrix, an IR remote control, and a DC 5V power supply; HDMI cables are not included and must be purchased separately.
