Black rectangular HDMI matrix switch with four inputs and two outputs

ESTONE

ESTONE OZJ2 HDMI 2.0 Matrix 4x2 4K60Hz Audio Switch

SKU CH-ADQS-7CNQM

A 4×2 HDMI matrix routes four sources to two displays at 4K60Hz with ARC audio extraction on output A

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • MatrixYes
  • AudioYes
  • Routes four sources to two displays independently
  • 4K 60 Hz video with 18.5 Gbps bandwidth
  • HDCP 2.2 and HDR support built in
  • Audio extract via optical coax 3.5 mm on output A

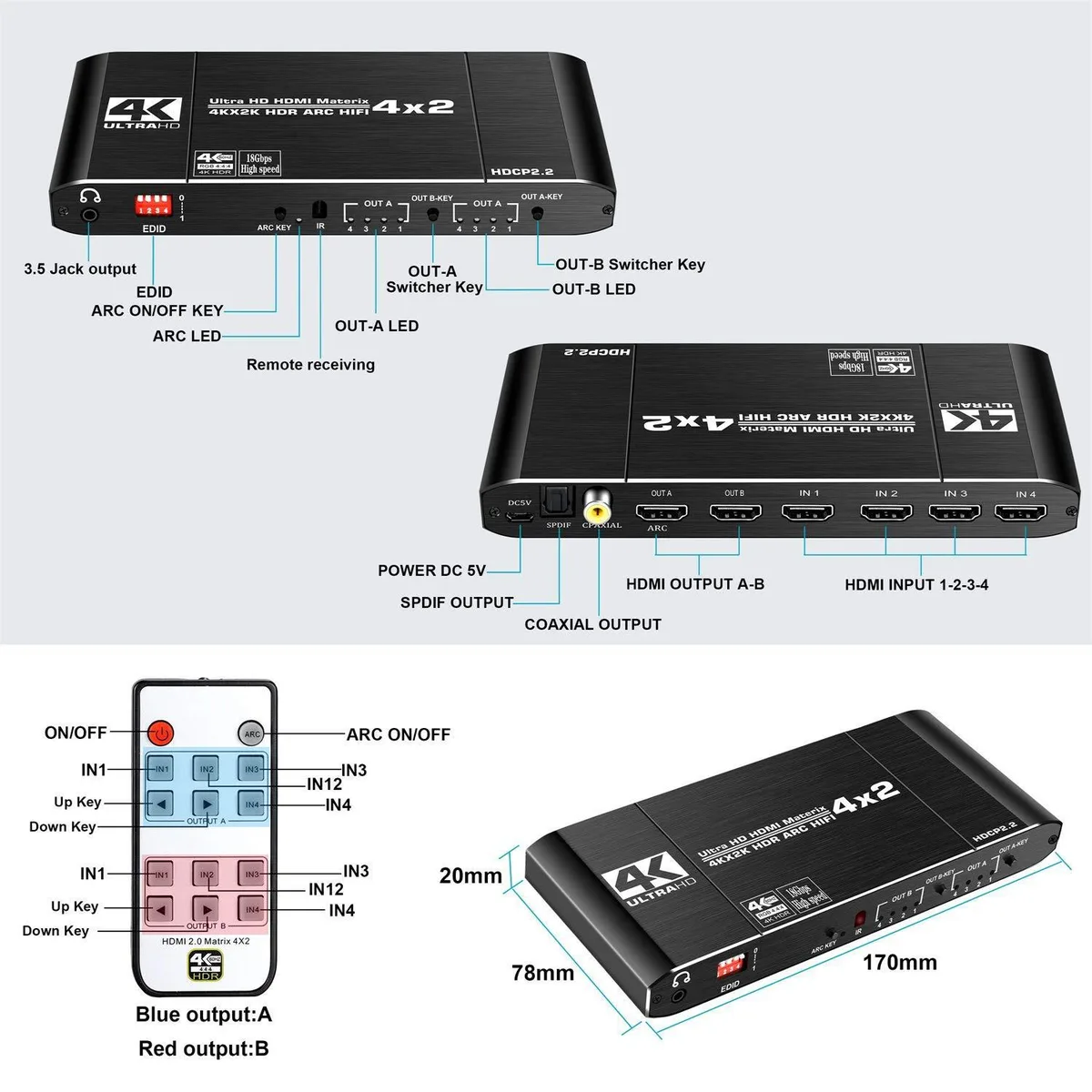

  • IR remote and front button for quick switching

What this matrix does

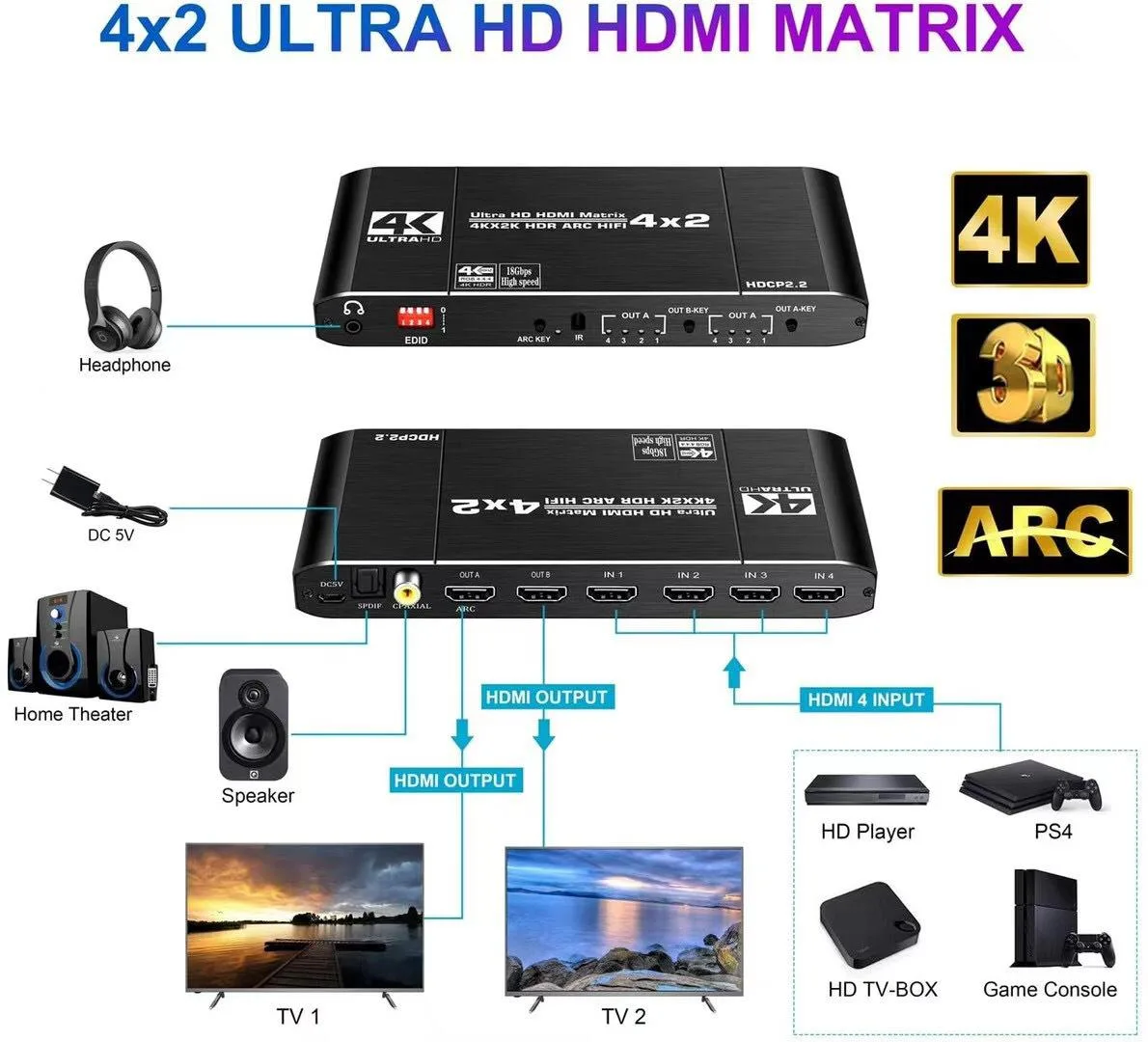

The ESTONE OZJ2 routes four HDMI sources to two displays independently. Each output can show the same or a different 4K@60Hz signal with HDR and deep-colour support up to 48-bit. Audio is extracted on output A through optical, coaxial or 3.5mm ports and ARC is available on that same output.

Who should use it and who should not

Installers needing to distribute up to four sources across two screens in a home-theatre, classroom or digital-signage setup will find the 18.5Gbps bandwidth and IR remote convenient. Buyers who require more than two simultaneous display zones or need ARC on both outputs should look at a larger matrix.

The spec that decides fit

Maximum resolution is 3840×2160 at 60Hz with HDCP2.2 and HDMI2.0b compliance. If your sources or displays demand higher bandwidth or a different HDCP version, this unit will not pass the signal.

Highlights

  • Routes four sources to two displays independently
  • 4K 60 Hz video with 18.5 Gbps bandwidth
  • HDCP 2.2 and HDR support built in
  • Audio extract via optical coax 3.5 mm on output A
  • IR remote and front button for quick switching

Specifications

BrandESTONE
SeriesOZJ2
ModelOZJ2
Part NumberOZJ2
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
MatrixYes
AudioYes
SpecificationsProduct Type:HDMI Splitter 4x2
Interface Type: 4 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Dimension (LxWxH): 170*56*24mm
Weight: 0.175kg
Input Connector4 x HDMI
Output Connector2 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
4 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS 5 1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 4X2
1x 5V power adapter
1x IR Remote Control(Battery is not included)
1x User Manual

Questions about this item

How can I verify the OZJ2 matrix is passing 4K@60Hz HDR correctly after connecting my sources?

Check that both displays show 3840x2160 at 60 Hz in their on-screen info menus and that HDR indicators are active; the unit supports 18.5 Gbps bandwidth and HDCP 2.2 for protected content.

What does the box contain and what must I provide separately for the IR remote?

Included are the 4x2 matrix, a 5 V power adapter, an IR remote control and a user manual; the remote requires a button-cell battery which is not supplied.

The specs list deep-colour support up to 48 bit — which version should I choose for 10-bit HDR sources?

The OZJ2 handles 8/10/12/24/32/48-bit deep colour automatically; no separate version exists, so the single model covers 10-bit HDR sources.
