Black rectangular HDMI matrix switch with four inputs and two outputs

ESTONE

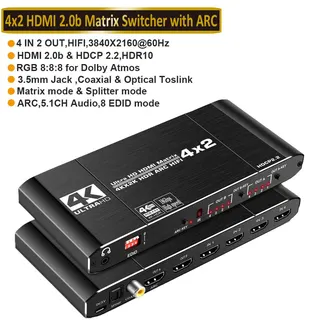

ESTONE OZJ2 4x2 HDMI Matrix Switch with SPDIF and 3.5mm Audio

SKU CH-4QEW-SW55J

Routes four HDMI sources to two displays at 4K 60 Hz with SPDIF and 3.5 mm audio extraction

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • MatrixYes
  • AudioYes
  • Route four sources to two displays independently with 4x2 matrix switching
  • Enjoy 4K at 60 Hz on both outputs via 18.5 Gbps bandwidth
  • Extract multi-channel audio through SPDIF and 3.5 mm ports on Output A
  • Return TV audio to your sound system using ARC on Output A
  • Control sources instantly with included IR remote or front-panel button

4x2 HDMI matrix for multi-source setups

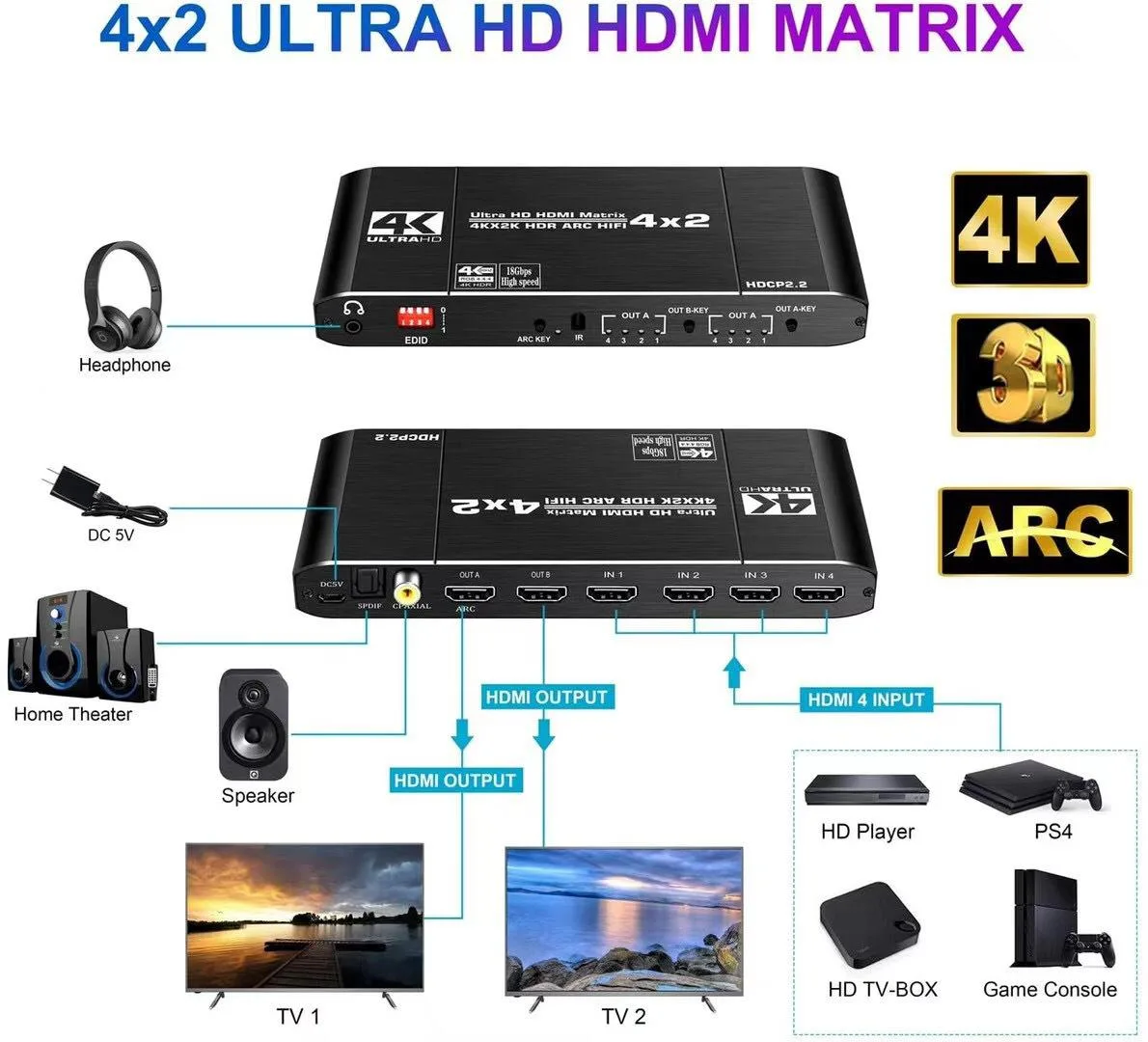

The ESTONE OZJ2 routes four HDMI sources to two independent displays while extracting audio through SPDIF, 3.5 mm and ARC on output A. It handles 4K at 60 Hz with 18.5 Gbps bandwidth and HDCP 2.2 compliance. Installers and home-theatre owners use it to share consoles, streamers and players across a projector and a TV without constantly swapping cables.

Replaces basic 4-to-1 switchers when two zones are

A simple selector only sends one source to one screen; this matrix adds a second simultaneous output and dedicated audio breakout. The jump is worth it when you run a living-room TV and a projector, or a TV and a capture card, and want each to show a different source. It is not for buyers who only ever connect one display at a time.

Front-panel buttons and IR remote simplify daily use

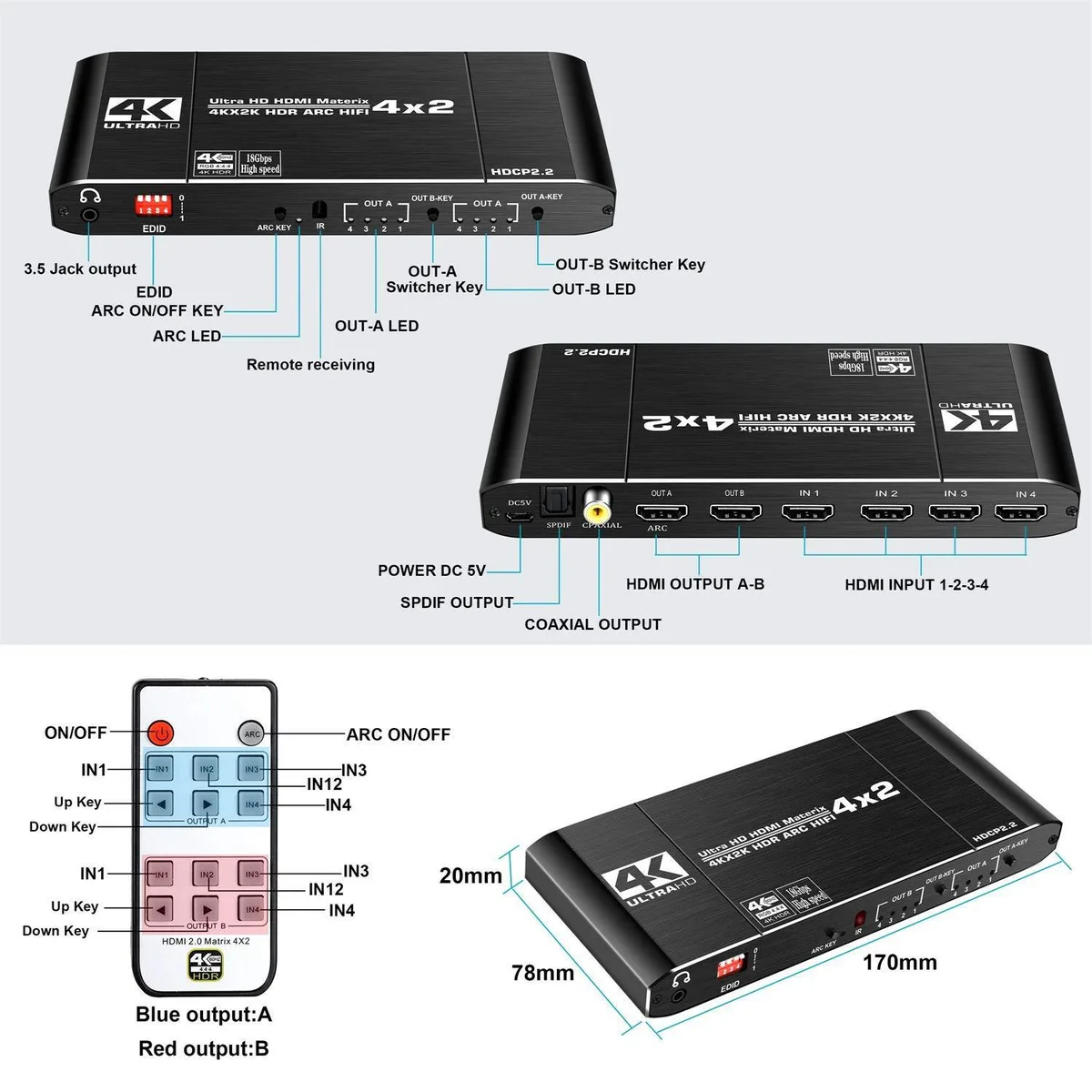

Power comes from an included 5 V adapter; the unit draws 600 mA and operates from -15 °C to 45 °C. EDID management is automatic, but forced EDID modes can be selected if a source refuses to handshake. The only common pitfall: ARC and audio extraction work solely on output A, so the soundbar or AV receiver must connect there.

Highlights

  • Route four sources to two displays independently with 4x2 matrix switching
  • Enjoy 4K at 60 Hz on both outputs via 18.5 Gbps bandwidth
  • Extract multi-channel audio through SPDIF and 3.5 mm ports on Output A
  • Return TV audio to your sound system using ARC on Output A
  • Control sources instantly with included IR remote or front-panel button

Specifications

BrandESTONE
SeriesOZJ2
ModelOZJ2
Part NumberOZJ2
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
MatrixYes
AudioYes
SpecificationsProduct Type:HDMI Splitter 4x2
Interface Type: 4 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Dimension (LxWxH): 170*56*24mm
Weight: 0.175kg
Input Connector4 x HDMI
Output Connector2 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
4 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS 5 1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 4X2
1x 5V power adapter
1x IR Remote Control(Battery is not included)
1x User Manual

Questions about this item

How much depth does the 170 x 56 x 24 mm chassis need behind the rack?

The unit is 170 mm deep, so allow at least that much clearance plus cable bend radius behind the mounting surface.

Which output must be used for ARC and how is it enabled?

Only Output A supports ARC; connect the TV to Output A, ensure the TV HDMI port is ARC-capable, then select the ARC source via the front button or IR remote.

What power supply will need replacement first and what are its specs?

The included DC 5 V adapter rated for 600 mA max current is the only external power item; replace it with an equivalent 5 V unit if it fails.
