ESTONE

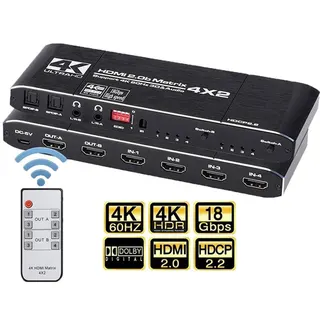

ESTONE OZJ2 4x2 HDMI Matrix Switch 4K@60Hz 18.5 Gbps
Routes four HDMI sources to two displays at 4K 60 Hz with 18.5 Gbps bandwidth and ARC audio return on output A
- TypeHDMI Switchers
- Changer TypeHDMI Switch/Extender
- ColorBlack
- Ports4
- MatrixYes
- AudioYes
- Routes four sources to two displays independently
- Delivers 4K at 60 Hz with 18.5 Gbps bandwidth
- Extracts audio via SPDIF, coaxial or 3.5 mm on output A
- Returns TV audio through ARC on output A
- Switches instantly by remote or front button
Matrix Switch for Four Sources and Two Displays

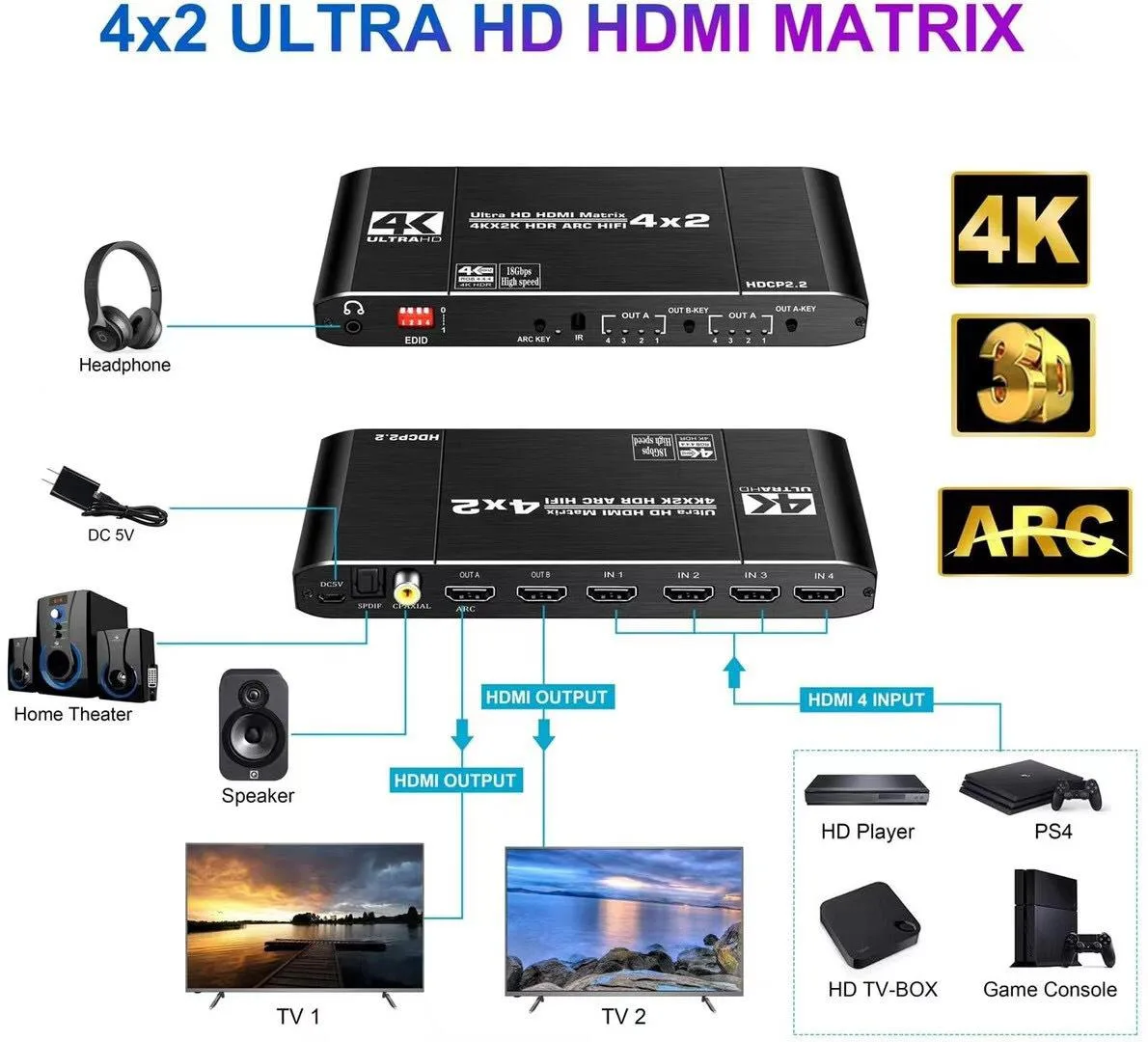

The ESTONE OZJ2 routes four HDMI sources to two independent displays at 4K@60Hz. It handles 18.5 Gbps bandwidth with HDMI 2.0b and HDCP 2.2 compliance. Installers and home-theatre owners can share consoles, players or PCs across a projector and a TV without re-cabling. Buyers who need more than four inputs or more than two simultaneous outputs cannot use this unit.
Audio Extraction and Remote Control Change Daily Use

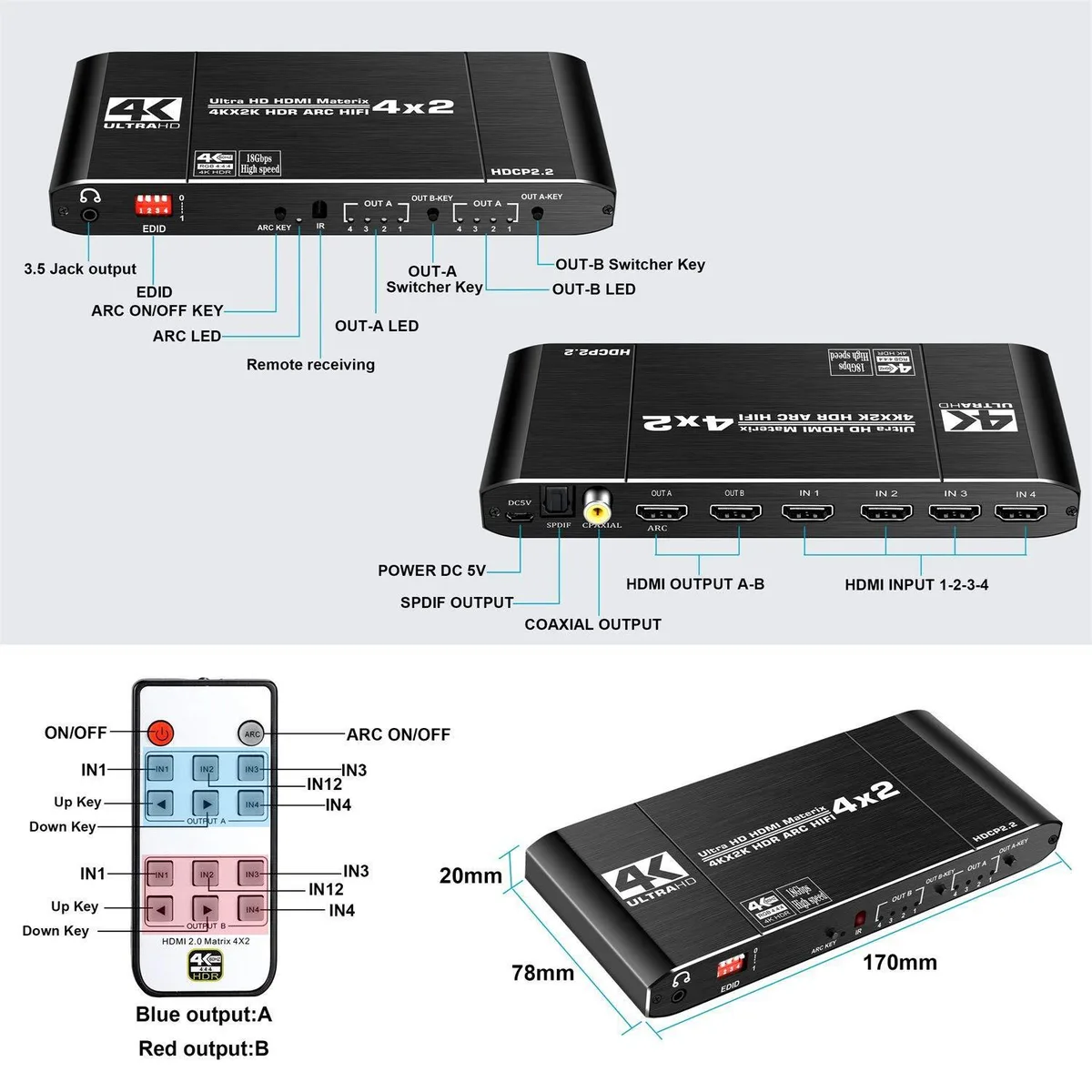

The box adds SPDIF Toslink, coaxial and 3.5 mm analogue outputs that pull audio from Output A only. ARC return works solely on Output A when the connected TV supports it. The bundled IR remote and front-panel button let users swap sources without leaving the seat. A 5 V power adapter is included; the 3.5 mm jack does not carry ARC signals.
Straightforward Rack or Shelf Install with One
The compact 170 x 56 x 24 mm metal chassis fits on a shelf or in a shallow rack tray and draws 600 mA from the supplied adapter. EDID management is automatic, but only Output A handles ARC and audio extraction. Users who connect audio gear to Output B or expect 3.5 mm ARC will get no signal. Operating range spans -15 °C to +45 °C.
Highlights
- Routes four sources to two displays independently
- Delivers 4K at 60 Hz with 18.5 Gbps bandwidth
- Extracts audio via SPDIF, coaxial or 3.5 mm on output A
- Returns TV audio through ARC on output A
- Switches instantly by remote or front button
Specifications
| Brand | ESTONE |
|---|---|
| Series | OZJ2 |
| Model | OZJ2 |
| Part Number | OZJ2 |
| Type | HDMI Switchers |
| Changer Type | HDMI Switch/Extender |
| Color | Black |
| Ports | 4 |
| Matrix | Yes |
| Audio | Yes |
| Specifications | Product Type:HDMI Splitter 4x2 Interface Type: 4 HDMI in, 2 HDMI out Color: Black Power Supply: DC 5V. Max working current: 600mA Operating Temperature range -15°C to+45°C Dimension (LxWxH): 170*56*24mm Weight: 0.175kg |
| Input Connector | 4 x HDMI |
| Output Connector | 2 x HDMI |
| Maximum Resolutions | 4K@60Hz |
| Bandwidth | 18.5Gbps/600MHZ |
| Features | Support HDMI 2.0b HDCP 2.2 Support 3D video format Support highest resolution up to 3840*2160/60Hz Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz Support deep color 8/10/12/24/32/48bit Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4 4 HDMI inputs switch and split to 2 HDMI displays Support LPCM/Dolby/DTS 5 1 audio |
| Dimensions | 5.91 x 2.36 x 0.79 inches |
| Weight | 11.9 ounces |
| Package Quantity | 1 |
| Package Contents | 1x HDMI Matrix 4X2 1x 5V power adapter 1x IR Remote Control(Battery is not included) 1x User Manual |
Questions about this item
Will the IR remote control need new batteries over time?
The IR remote control is included but batteries are not supplied, so you will need to provide and replace them as they run down.
What bandwidth ceiling limits sustained 4K@60Hz throughput?
The switch is rated for 18.5 Gbps with a TMDS clock up to 600 MHz, which is the maximum sustained video bandwidth it can pass.
How warm does the unit get when powered continuously?
It draws up to 600 mA at 5 V and is rated to operate from -15 °C to +45 °C, indicating modest heat output during all-day use.
