Black rectangular HDMI matrix switch with front ports and IR sensor

ESTONE

ESTONE OZJ1 4x2 HDMI Matrix Switch with Audio 4K 60Hz

SKU CH-XAN8-2CR53

A 4×2 HDMI matrix routes four sources to two displays at 4K 60 Hz with HDCP 2.2, HDR 10 and 18.5 Gbps bandwidth, plus optical and 3.5 mm audio outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • MatrixYes
  • AudioYes
  • Route four sources to two displays independently
  • 4K 60 Hz via 18.5 Gbps HDMI 2.0b bandwidth
  • Simultaneous optical, 3.5 mm and HDMI audio extraction
  • HDCP 2.2 and HDR 10 protected content support

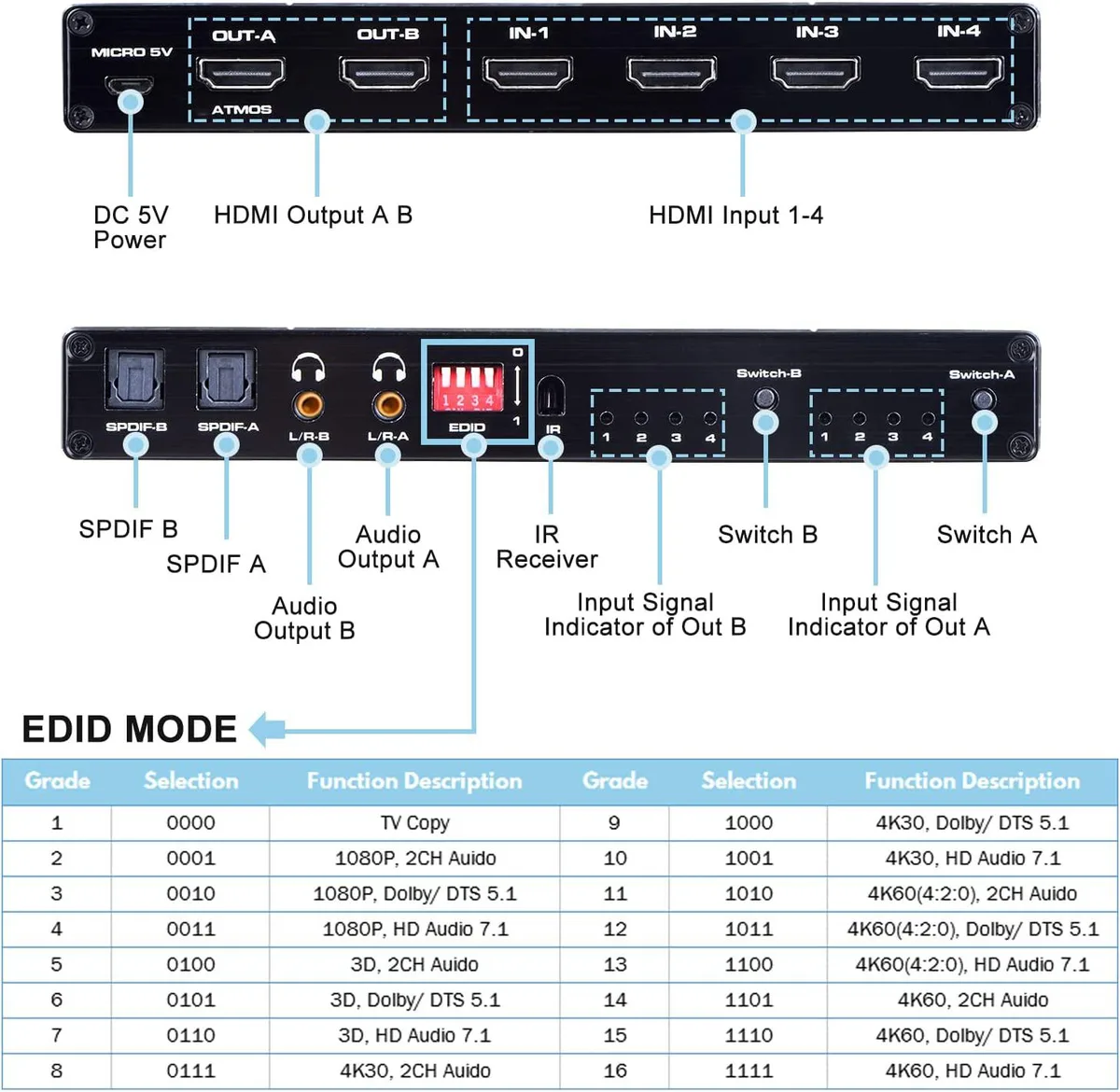

  • IR remote and front-panel buttons for instant switching

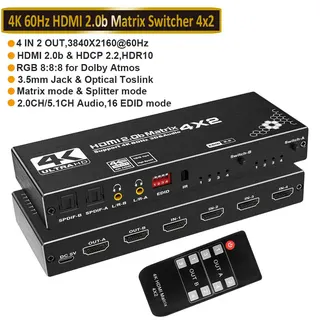

ESTONE OZJ1 4x2 HDMI Matrix Switch

The ESTONE OZJ1 is a 4x2 HDMI matrix switch that routes four HDMI sources to two independent displays with simultaneous audio extraction. It supports HDMI 2.0b and HDCP 2.2 for protected 4K content at 60 Hz. The unit includes an IR remote for source selection and EDID management. A compact black chassis houses all ports on one side for tidy cable routing.

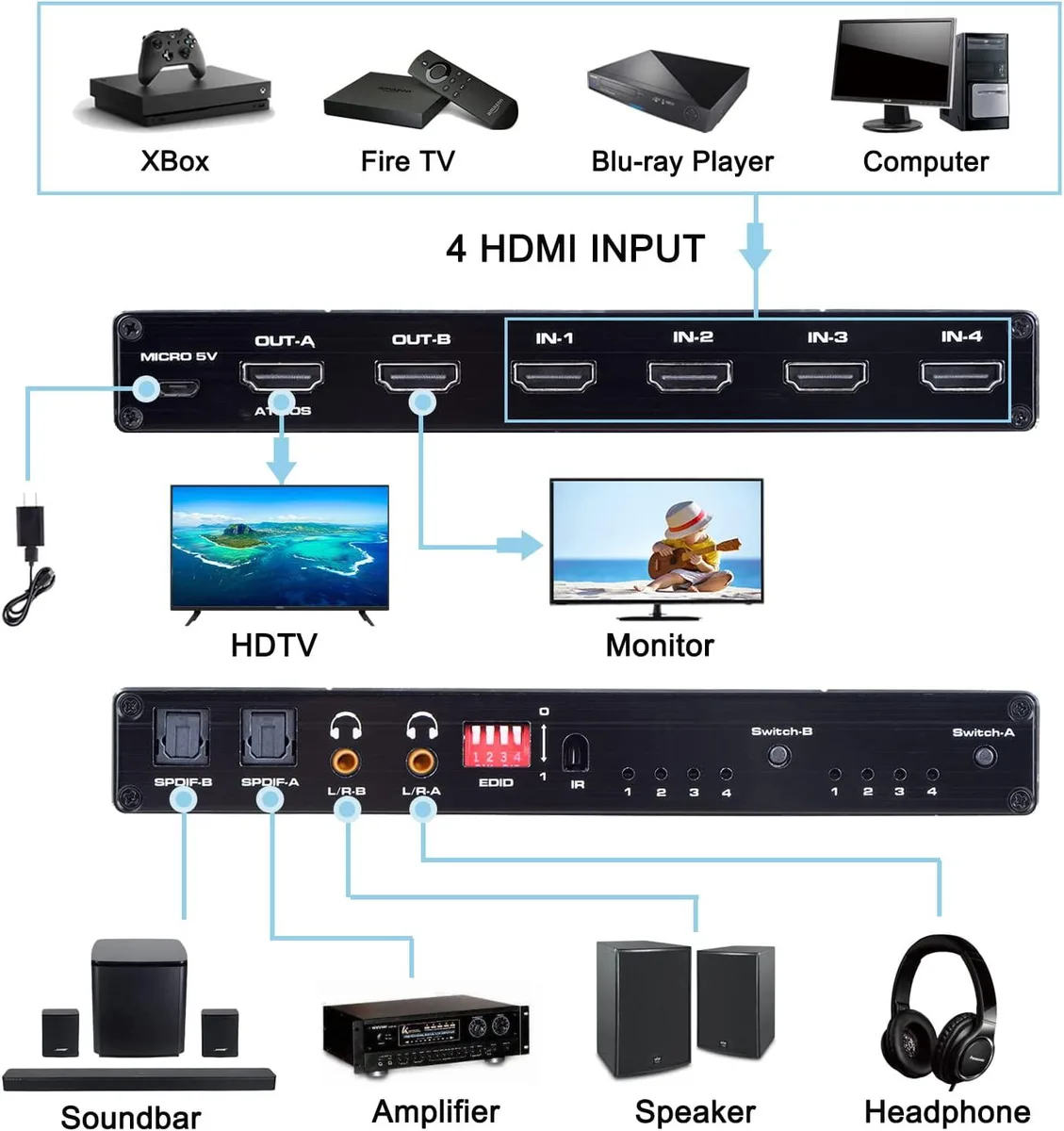

Home-theatre and multi-room installers

This matrix suits installers who need to distribute four sources such as game consoles, streamers or media players across two screens with separate audio zones. It provides optical SPDIF and 3.5 mm analogue outputs alongside HDMI audio for flexible amplifier integration. Buyers requiring more than two output zones or native ultra-wide 3440x1440 resolution should consider alternative distribution hardware.

18.5 Gbps bandwidth ceiling

The 18.5 Gbps bandwidth limit defines the maximum video payload this switch can pass without compression. It carries 4K 3840x2160 at 60 Hz with 8-bit colour or 4K at 30 Hz with deeper colour depths up to 48-bit. Source devices must output within this bandwidth envelope; higher refresh-rate or chroma-subsampled signals beyond 18.5 Gbps will not pass correctly.

Highlights

  • Route four sources to two displays independently
  • 4K 60 Hz via 18.5 Gbps HDMI 2.0b bandwidth
  • Simultaneous optical, 3.5 mm and HDMI audio extraction
  • HDCP 2.2 and HDR 10 protected content support
  • IR remote and front-panel buttons for instant switching

Specifications

BrandESTONE
SeriesOZJ1
ModelOZJ1
Part NumberOZJ1
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
MatrixYes
AudioYes
SpecificationsHDMI 2.0 Matrix 4K 60Hz/30Hz HDMI-compatible Matrix 4x2 Switch Splitter HDCP 2.2 4 in 2 out Swicther With Audio HDR For for TV HDTV PS4
Product Type:HDMI Splitter 1x4.
Interface Type: 4 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Dimension (LxWxH): 170*56*24mm
Weight: 0.175kg
Input Connector4 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
4 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS 5 1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 4X2
1x 5V power adapter
1x IR Remote Control(Battery is not included)
1x User Manual

Questions about this item

What does the 18.5 Gbps bandwidth mean when the matrix is connected to a 4K 60 Hz display?

It carries full 4K 60 Hz 4:4:4 video with HDR and up to 48-bit deep colour without compression, matching the HDMI 2.0b limit.

How does the HDMI 2.0b interface cap what I can send to each output?

Each HDMI output is limited to 4K at 60 Hz, 18.5 Gbps, HDCP 2.2 and HDR 10; resolutions above 3840×2160 or ultra-wide formats are not supported.

What clearance do I need to mount the unit in a rack or cabinet?

The chassis measures 5.91 × 2.36 × 0.79 inches and weighs 11.9 ounces, so a shallow 1 U shelf or wall bracket with at least 6 inches of depth will fit.
