ESTONE
ESTONE OZJ1 4x2 HDMI Matrix Switch 4K@60Hz Audio
A 4x2 HDMI matrix routes four sources to two displays at 4K@60Hz with 18.5Gbps bandwidth, HDCP 2.2, HDR, 3D and simultaneous optical, 3.5mm and HDMI audio outputs, controlled by IR remote
- TypeHDMI Switchers
- Changer TypeHDMI Switch/Extender
- ColorBlack
- Ports4
- MatrixYes
- AudioYes
- Switch four sources to two displays independently via 4x2 matrix
- View 4K@60Hz content with 18.5Gbps bandwidth and HDR 10 support
- Extract audio through optical SPDIF and 3.5mm L/R outputs simultaneously
- Control switching remotely with included IR remote for convenient operation

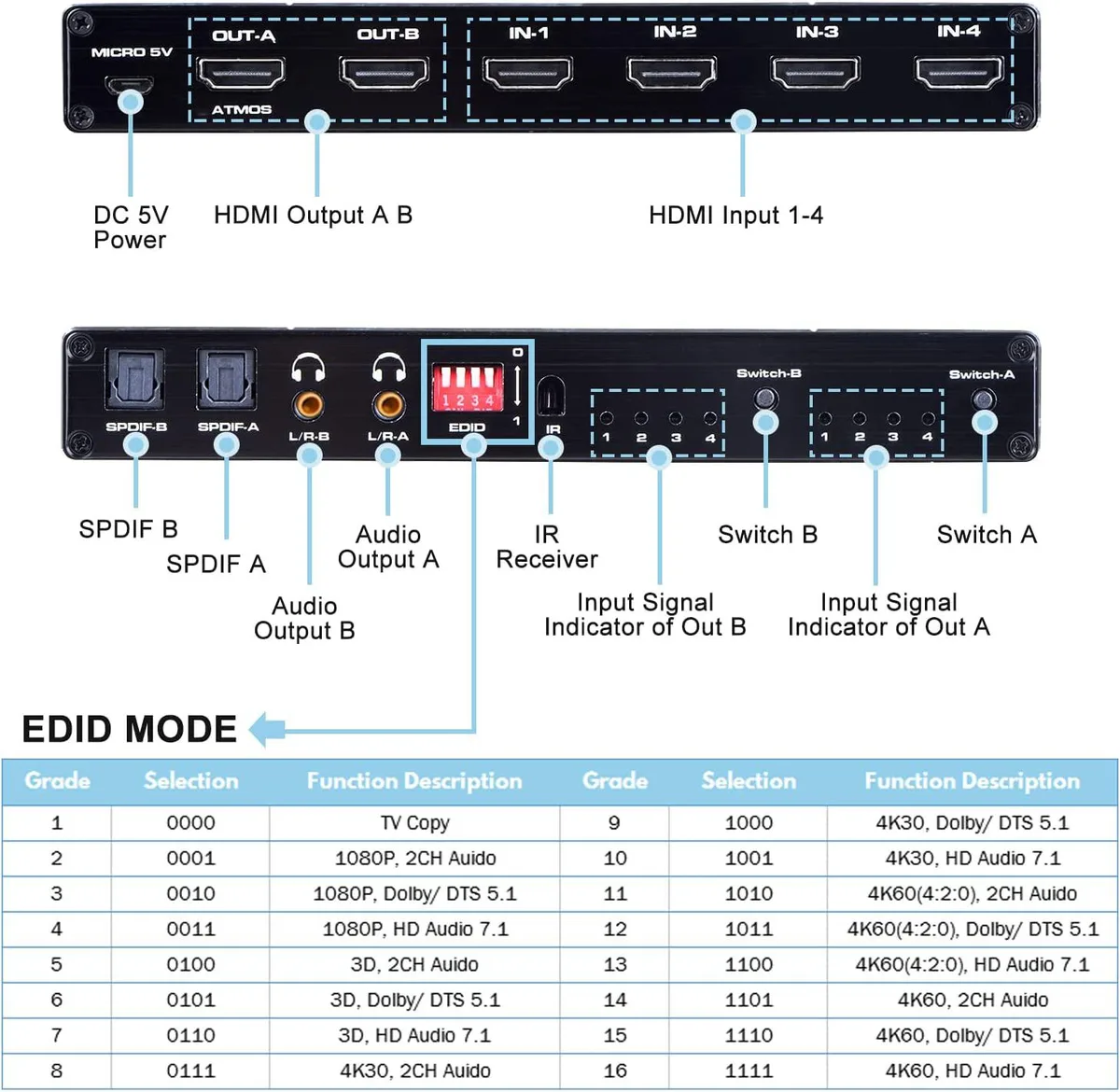

- Install easily with plug-and-play setup and EDID management built in

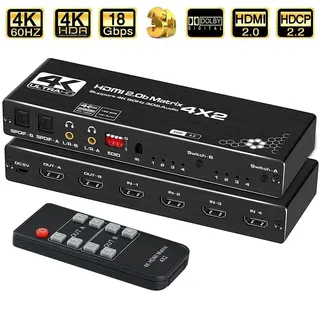

4x2 HDMI Matrix for 4K@60Hz Setups
The ESTONE OZJ1 routes four HDMI sources to two independent displays at up to 3840x2160 resolution and 60Hz refresh. It handles 18.5Gbps bandwidth with HDMI 2.0b and HDCP 2.2 compliance, plus HDR10 and 3D video pass-through. Deep colour up to 48-bit is supported across both output paths.

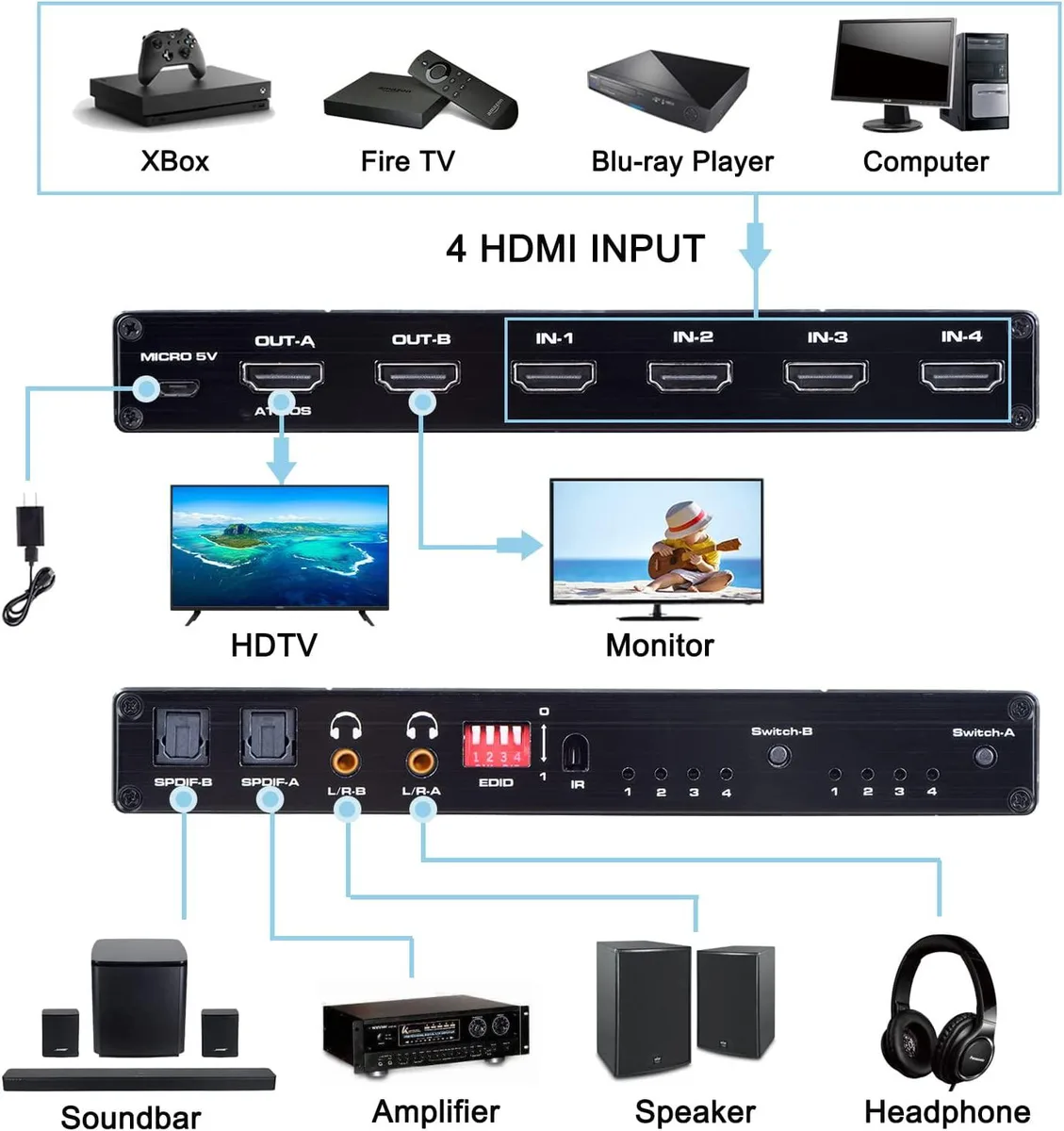

Two-Zone Distribution with Audio Breakout
Each output delivers simultaneous HDMI video plus optical SPDIF and 3.5mm analogue audio, so a soundbar or AV receiver can sit on either zone without extra splitters. The unit fits on a shelf at 5.91 x 2.36 x 0.79 inches and weighs 11.9 ounces. Source switching is handled by front-panel buttons or the included IR remote.
Upgrade from Basic Switch or Splitter
A simple 4-in-1-out switch forces both screens to show the same source; this matrix lets each display pick independently. It also replaces a separate audio extractor because optical and analogue outputs are built in. The jump is worth it when you need two rooms or zones driven from the same four sources without duplicating players or consoles.
Highlights
- Switch four sources to two displays independently via 4x2 matrix
- View 4K@60Hz content with 18.5Gbps bandwidth and HDR 10 support
- Extract audio through optical SPDIF and 3.5mm L/R outputs simultaneously
- Control switching remotely with included IR remote for convenient operation
- Install easily with plug-and-play setup and EDID management built in
Specifications
| Brand | ESTONE |
|---|---|
| Series | OZJ1 |
| Model | OZJ1 |
| Part Number | OZJ1 |
| Type | HDMI Switchers |
| Changer Type | HDMI Switch/Extender |
| Color | Black |
| Ports | 4 |
| Matrix | Yes |
| Audio | Yes |
| Specifications | HDMI 2.0 Matrix 4K 60Hz/30Hz HDMI-compatible Matrix 4x2 Switch Splitter HDCP 2.2 4 in 2 out Swicther With Audio HDR For for TV HDTV PS4 Product Type:HDMI Splitter 1x4. Interface Type: 4 HDMI in, 2 HDMI out Color: Black Power Supply: DC 5V. Max working current: 600mA Operating Temperature range -15°C to+45°C Dimension (LxWxH): 170*56*24mm Weight: 0.175kg |
| Input Connector | 4 x HDMI |
| Output Connector | 2 x HDMI |
| Maximum Cable Length | 10m AWG26 HDMI2.0b standard cable |
| Maximum Resolutions | 4K@60Hz |
| Bandwidth | 18.5Gbps/600MHZ |
| Features | Support HDMI 2.0b HDCP 2.2 Support 3D video format Support highest resolution up to 3840*2160/60Hz Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz Support deep color 8/10/12/24/32/48bit Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4 4 HDMI inputs switch and split to 2 HDMI displays Support LPCM/Dolby/DTS 5 1 audio |
| Dimensions | 5.91 x 2.36 x 0.79 inches |
| Weight | 11.9 ounces |
| Package Quantity | 1 |
| Package Contents | 1x HDMI Matrix 4X2 1x 5V power adapter 1x IR Remote Control(Battery is not included) 1x User Manual |
Questions about this item
Will the 18.5 Gbps bandwidth limit 4K 60 Hz HDR signals on long cable runs?
The matrix is rated for 18.5 Gbps and supports 4K@60 Hz with HDR. Maximum cable length is 10 m using AWG26 HDMI 2.0b standard cables, so bandwidth is sufficient within that distance.
Does the unit generate noticeable heat or fan noise during all-day operation?
No cooling fan is mentioned in the specifications. The compact enclosure measures 5.91 x 2.36 x 0.79 inches and weighs 11.9 ounces, suggesting passive cooling with minimal heat and silent operation.
What source devices and displays must I already own to use this matrix?
You need up to four HDMI source devices (such as consoles, players or PCs) and two HDMI displays or projectors. Optional audio extraction requires an optical-input amplifier or 3.5 mm analogue audio system.
