ESTONE OZJ1 4x2 HDMI Matrix Switch 4K 60Hz

ESTONE OZJ1 4x2 HDMI Matrix Switch

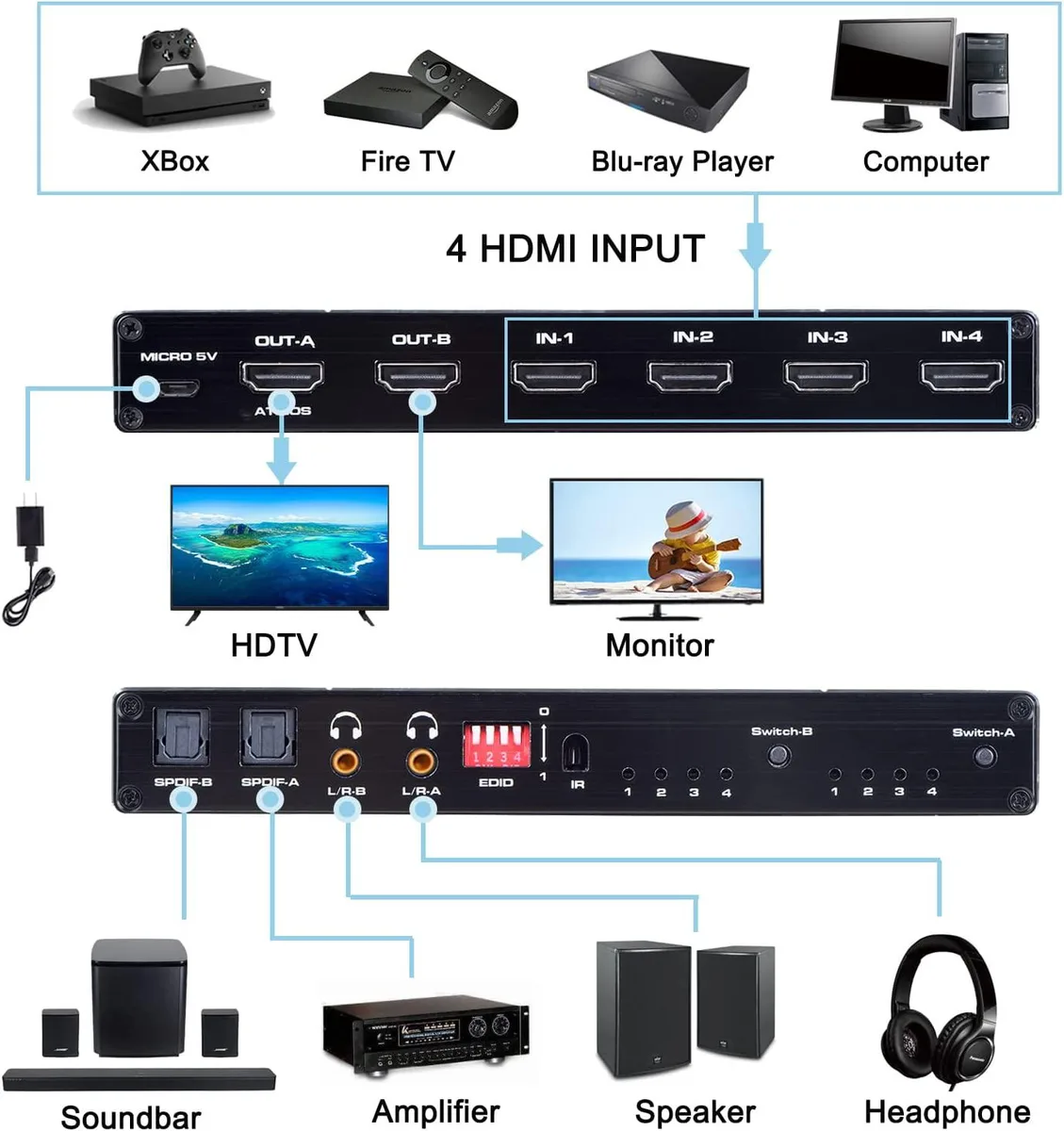

The ESTONE OZJ1 is a 4x2 HDMI matrix switch that routes four HDMI sources to two independent displays. It supports 4K resolution at 60 Hz with 18.5 Gbps bandwidth, HDCP 2.2 and HDR10. The unit also provides simultaneous HDMI audio, 3.5 mm stereo and optical digital audio outputs. It is suited for home theatre, meeting rooms or retail installations where multiple sources must be shared across two screens.

Check sources, cables and display needs

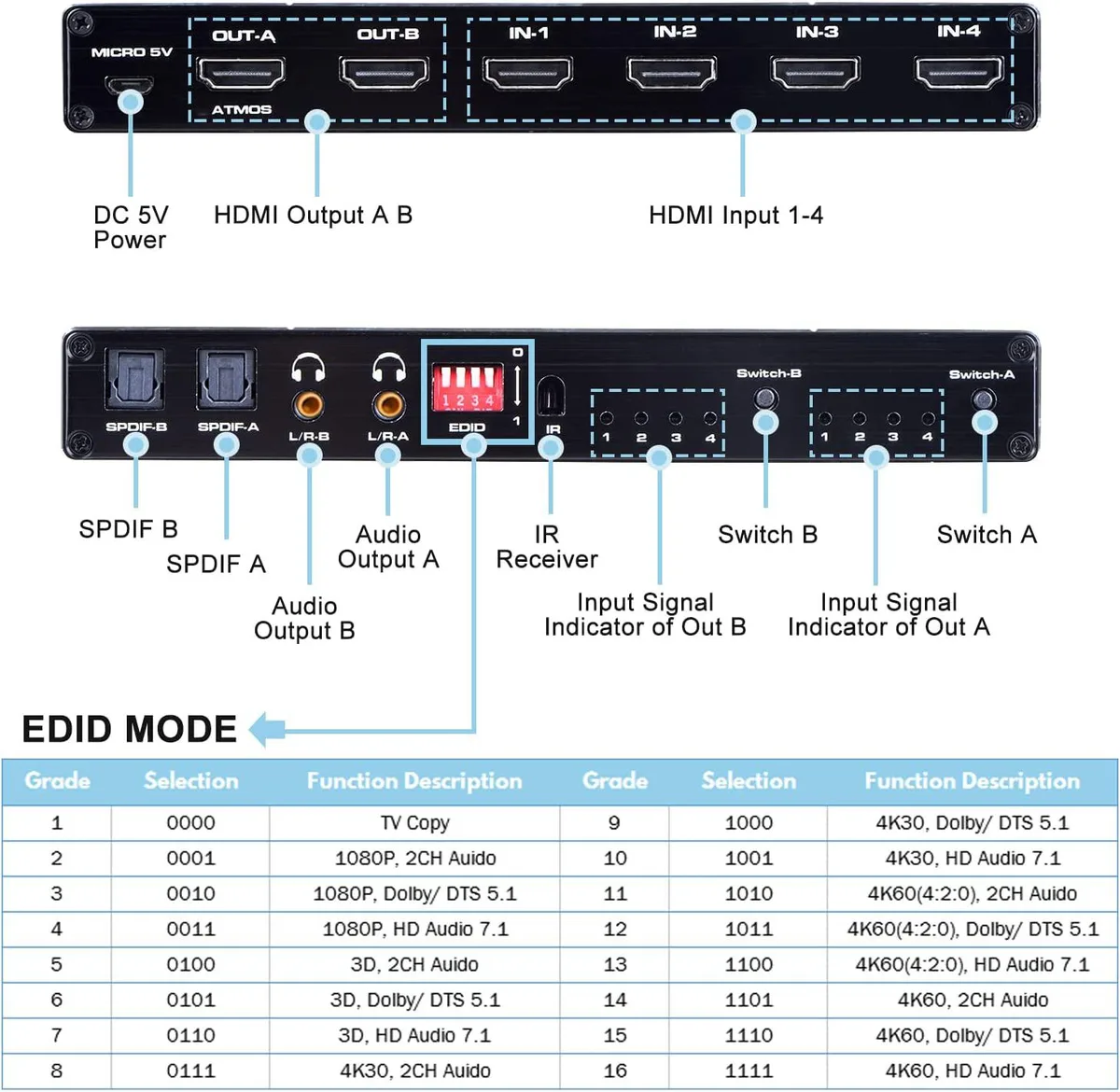

Verify that each source device can output a resolution and refresh rate the switch supports, noting that 3440 x 1440 ultra-wide 4K is not recommended. Use HDMI 2.0b certified cables no longer than 10 metres AWG26 for reliable 4K 60 Hz transmission. Confirm both displays accept the same EDID settings or be prepared to manage EDID via the included IR remote. Ensure a power outlet is available near the unit since all ports and the power connector sit on the same side.

Replaces basic splitters or single-output switches

This matrix replaces a simple 1x4 splitter or a single-output switch when you need two independently selectable zones from the same four sources. The jump is worth it if you require simultaneous HDMI, 3.5 mm and optical audio extraction, or need EDID management for mixed display types. It does not suit buyers who need more than two output zones or who require ultra-wide 4K compatibility.
