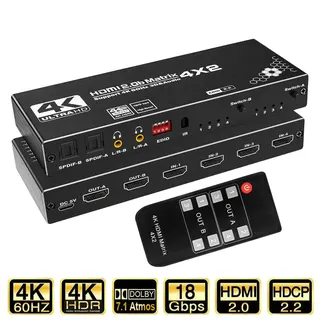

Black rectangular HDMI matrix switch, four inputs two outputs, front panel buttons and ports

ESTONE

ESTONE OZJ1 4x2 HDMI 2.0b Matrix Switch 4K@60Hz Optical Audio Scaler EDID Remote HDCP2.2 HDR 10

SKU CH-7PBM-XXP60

A 4x2 HDMI 2.0b matrix routes four sources to two displays at 4K@60Hz with optical and 3.5 mm audio outputs, scaler EDID management, HDCP 2.2 and HDR 10

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • MatrixYes
  • AudioYes
  • Route four sources to two displays independently
  • 5 Gbps bandwidth carries 4K at 60 Hz
  • Optical and 3.5 mm audio outputs extract sound
  • HDCP 2.2 and HDR 10 protect premium content
  • IR remote and front-panel buttons simplify switching

4x2 HDMI Matrix Switch

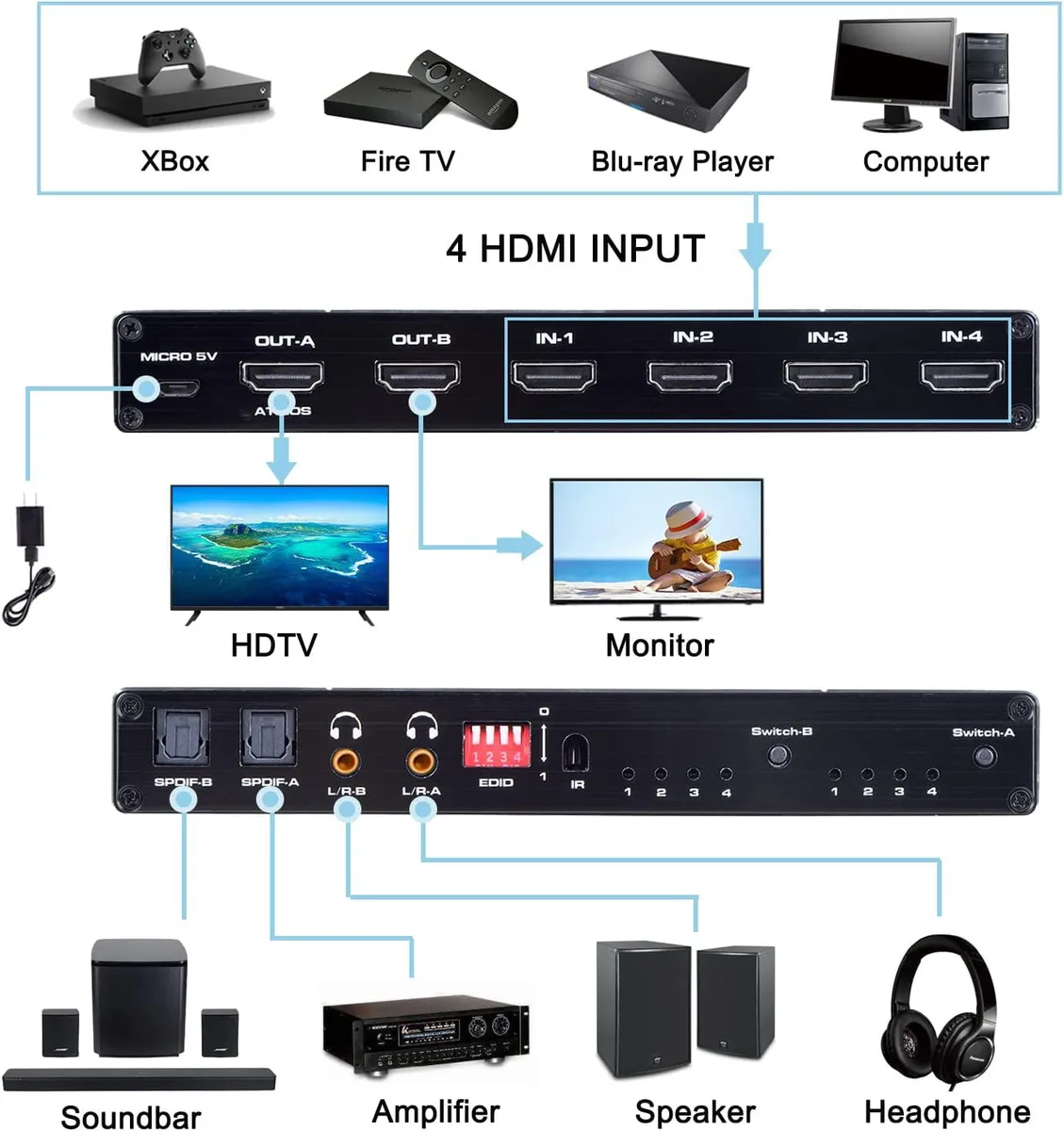

The ESTONE OZJ1 connects four HDMI sources to two displays, letting you route any input to either output independently. It suits home-theatre enthusiasts, meeting-room installers and multi-screen setups that need simultaneous audio extraction.

Thermals noise and power

The compact aluminium enclosure dissipates heat passively, so the unit runs silently without fans. Power draw stays low during normal switching and 4K@60Hz pass-through, and the included supply plugs in alongside the HDMI ports for tidy cable routing.

Upgrade path and value

This matrix replaces basic 4x1 switchers when you need two independent zones or separate audio paths. The jump is worth it if you currently swap cables manually or lack optical and analogue audio breakout for a soundbar or headphones.

Highlights

  • Route four sources to two displays independently
  • 5 Gbps bandwidth carries 4K at 60 Hz
  • Optical and 3.5 mm audio outputs extract sound
  • HDCP 2.2 and HDR 10 protect premium content
  • IR remote and front-panel buttons simplify switching

Specifications

BrandESTONE
SeriesOZJ1
ModelOZJ1
Part NumberOZJ1
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
MatrixYes
AudioYes
SpecificationsHDMI 2.0 Matrix 4K 60Hz/30Hz HDMI-compatible Matrix 4x2 Switch Splitter HDCP 2.2 4 in 2 out Swicther With Audio HDR For for TV HDTV PS4
Product Type:HDMI Splitter 1x4.
Interface Type: 4 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Dimension (LxWxH): 170*56*24mm
Weight: 0.175kg
Input Connector4 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
4 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS 5 1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 4X2
1x 5V power adapter
1x IR Remote Control(Battery is not included)
1x User Manual

Questions about this item

How do I connect the four HDMI sources and two displays so the power port stays on the same side as the HDMI ports?

Plug each source into one of the four HDMI inputs and each display into the two HDMI outputs; the power jack sits on the same edge so all cables run parallel.

Which audio outputs need periodic checking when I use both the optical port and the 3.5 mm jack simultaneously?

The optical and 3.5 mm analogue outputs are active together, so verify both cables stay seated and the optical Toslink tip remains clean.

At what cable length does the 18.5 Gbps bandwidth limit appear first on a 4K 60 Hz signal?

The 18.5 Gbps link is rated for 10 m with AWG26 HDMI 2.0b cable; longer runs will hit the bandwidth ceiling first.
